Rittal 8618541 VX side panel for top module

Your rating:
Average rating
product review for Rittal 8618541 VX side panel for top module
( 4.3 / 5 ) 4 ratings
Rittal 8618541
This image may differ from the desired article.
Rittal 8618541Rittal 8618541
118,31 EUR
( 140,79 EUR incl. VAT )
≈ £99.03  |  ≈ $130.02
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8618541 VX side panel for top module
Datasheet:file_download Download
Lieske Part No.:1775566
Mfg Part No: 8618541
UPC/EAN: 4028177957626
Weight:3.42 kg
Type:VX 8618541

Product information for Rittal 8618541:

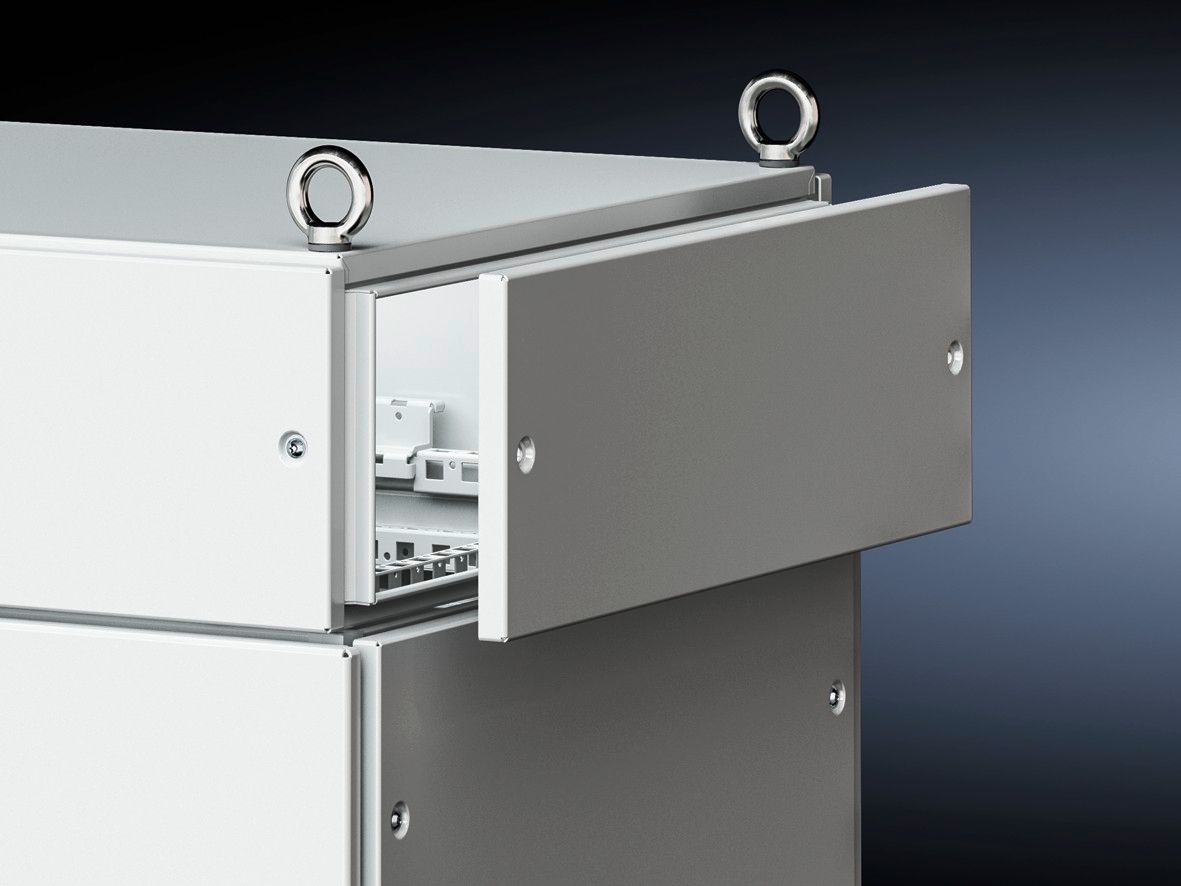

The Rittal VX side panel, type 8618541, is a specially developed component for lateral closure cladding of top modules or bayed combinations in the field of industrial enclosure technology. It serves for optical and mechanical closure of the side surfaces, completing the external structure of a VX enclosure and ensuring a closed, clean front. The side panel is made of steel sheet with a thickness of 1.5 mm, providing sufficient stability and durability for industrial use. The surface is painted and coated with a structured paint, ensuring a robust, scratch- and abrasion-resistant finish. The color corresponds to the standard RAL 7035, a gray-beige tone black, commonly used in industrial environments to enable uniform optical design.

Applications

The side panel is specifically designed for use with VX enclosures, which are widespread in industrial electrical engineering and automation technology. It is used to optically and mechanically close top modules or multiple enclosures arranged side by side. Its use is particularly common in installations requiring a structured, modular design, such as in manufacturing automation, power supply, or process control. The side panel ensures that the side surfaces of the modules are not left open, which is beneficial both aesthetically and in terms of mechanical stability and protection against foreign objects.

Functions and Equipment in Detail

The side panel is designed for enclosures with a height of 200 mm and a depth of 600 mm. These dimensions correspond to a standard format within the VX series, allowing the side panel to be directly integrated into existing configurations without requiring additional adjustments. The delivery includes fastening material required for mounting on the enclosure flanks. Installation is carried out using the included fastening elements, ensuring a secure and durable connection.

Technology Explained Simply

The use of steel sheet with a thickness of 1.5 mm provides sufficient mechanical strength to protect the side panel against external influences such as mechanical stress or transport vibrations. The structured paint finish ensures a uniform surface texture, which is not only visually appealing but also increases corrosion resistance. The color RAL 7035 is a standard in industrial manufacturing and enables uniform design of installations. The designation Type rating according to UL 50E: Type 1, Type 12 refers to the protection class according to US standards, where Type 1 is for indoor use without special protection against dust and water, and Type 12 provides protection against falling droplets and splashes as well as against dust — but not for outdoor use.

Compatibility and Accessories

The side panel is exclusively compatible with VX enclosures with the specified dimensions (height 200 mm, depth 600 mm). It is used in combination with top modules or bayed enclosure combinations to close the side surfaces.

Installation and Mounting

Mounting is carried out on the side surfaces of the VX enclosure or the top module. The included fastening material enables simple and secure attachment. Installation requires no special tools or additional mounting aids.

Operational Advantages

The side panel provides a clean, closed closure surface, improving the visual appearance of enclosure installations. It protects the side surfaces from mechanical damage and prevents the ingress of dust or small foreign objects, especially when used indoors. The use of steel sheet and structured paint ensures high durability and ease of maintenance. Compatibility with standardized VX modules simplifies the planning and installation of enclosure systems.

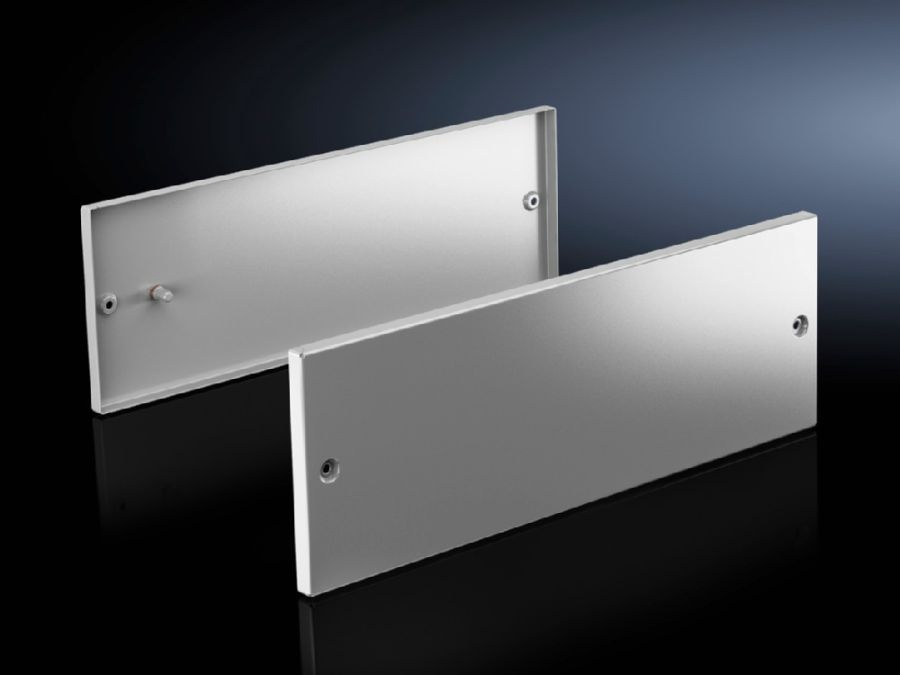

The packaging unit includes 2 pcs, enabling mounting on both sides of a module. The net weight is 2.7 kg, the gross weight 3.42 kg, indicating a compact and easily transportable package. The customs tariff number 94039910 and the EAN 4028177957626 are relevant for logistics and ordering purposes, but not for the technical use of the side panel itself.

General
MaterialSheet steel, 1.5 mm
Surface protectionPainted, textured paint
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Type rating according to UL 50EType 1, Type 12
Suitable forCabinet type: VX, height: = 200 mm, depth: = 600 mm


Product data sheet
Datasheet for Rittal 8618541, EAN: 4028177957626

Questions & answers

What is the delivery time of Rittal 8618541 VX side panel for top module?

The article Rittal 8618541 VX side panel for top module is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618541 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618541 VX side panel for top module always at the best possible price. We can give you a discount of 2% on Rittal 8618541 VX side panel for top module if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
