Rittal 8618511 VX add-on module, for W: 800 mm

Your rating:
Average rating
product review for Rittal 8618511 VX add-on module, for W: 800 mm
( 5 / 5 ) 2 ratings
Rittal 8618511
This image may differ from the desired article.
Rittal 8618511Rittal 8618511Rittal 8618511Rittal 8618511Rittal 8618511Rittal 8618511Rittal 8618511
374,21 EUR
( 445,31 EUR incl. VAT )
≈ £313.21  |  ≈ $411.26
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8618511 VX add-on module, for W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1910676
Mfg Part No: 8618511
UPC/EAN: 4028177957602
Weight:12.74 kg
Type:VX 8618511

Product information for Rittal 8618511:

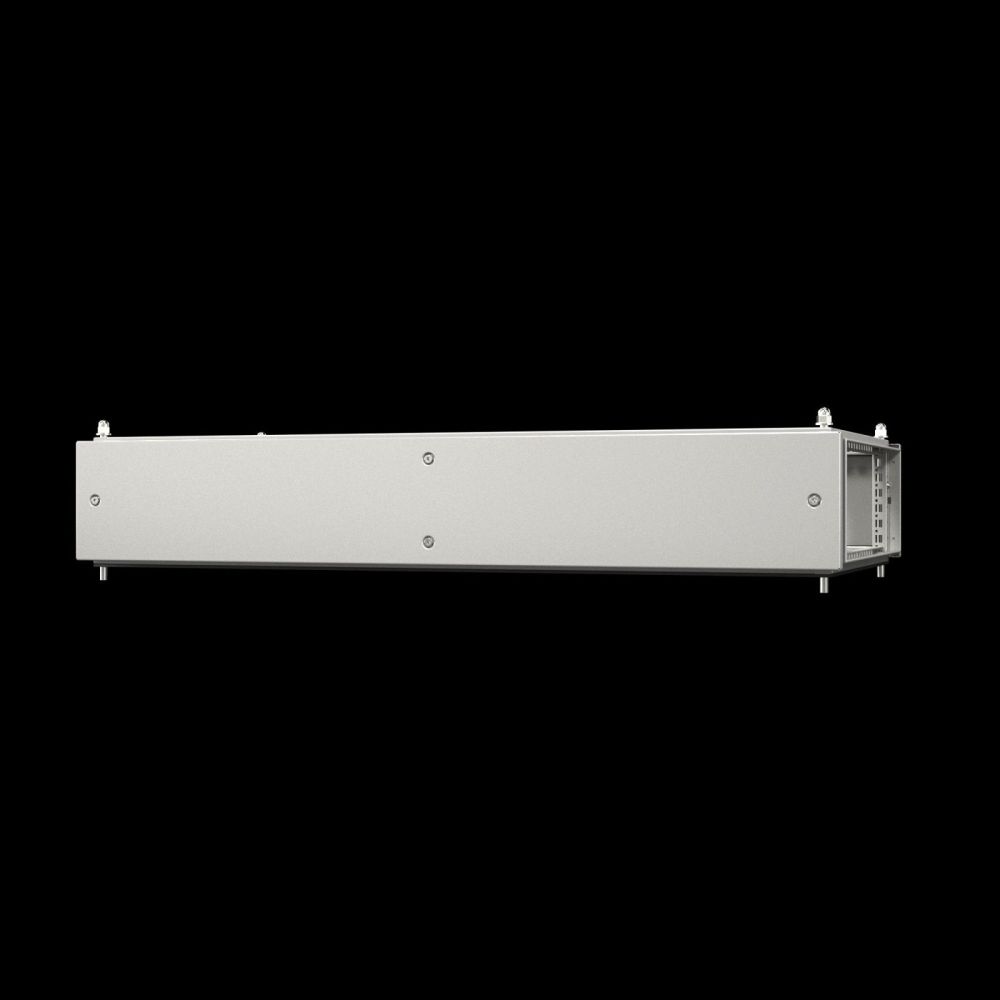

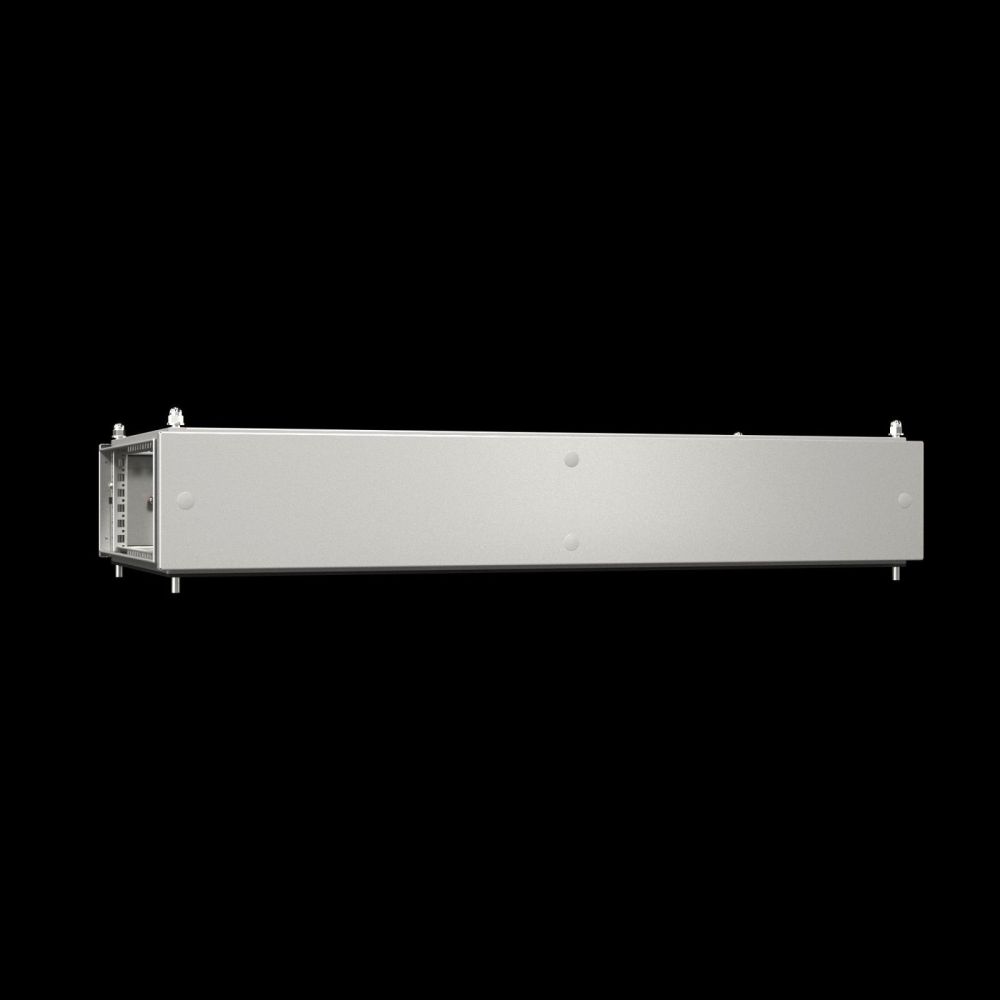

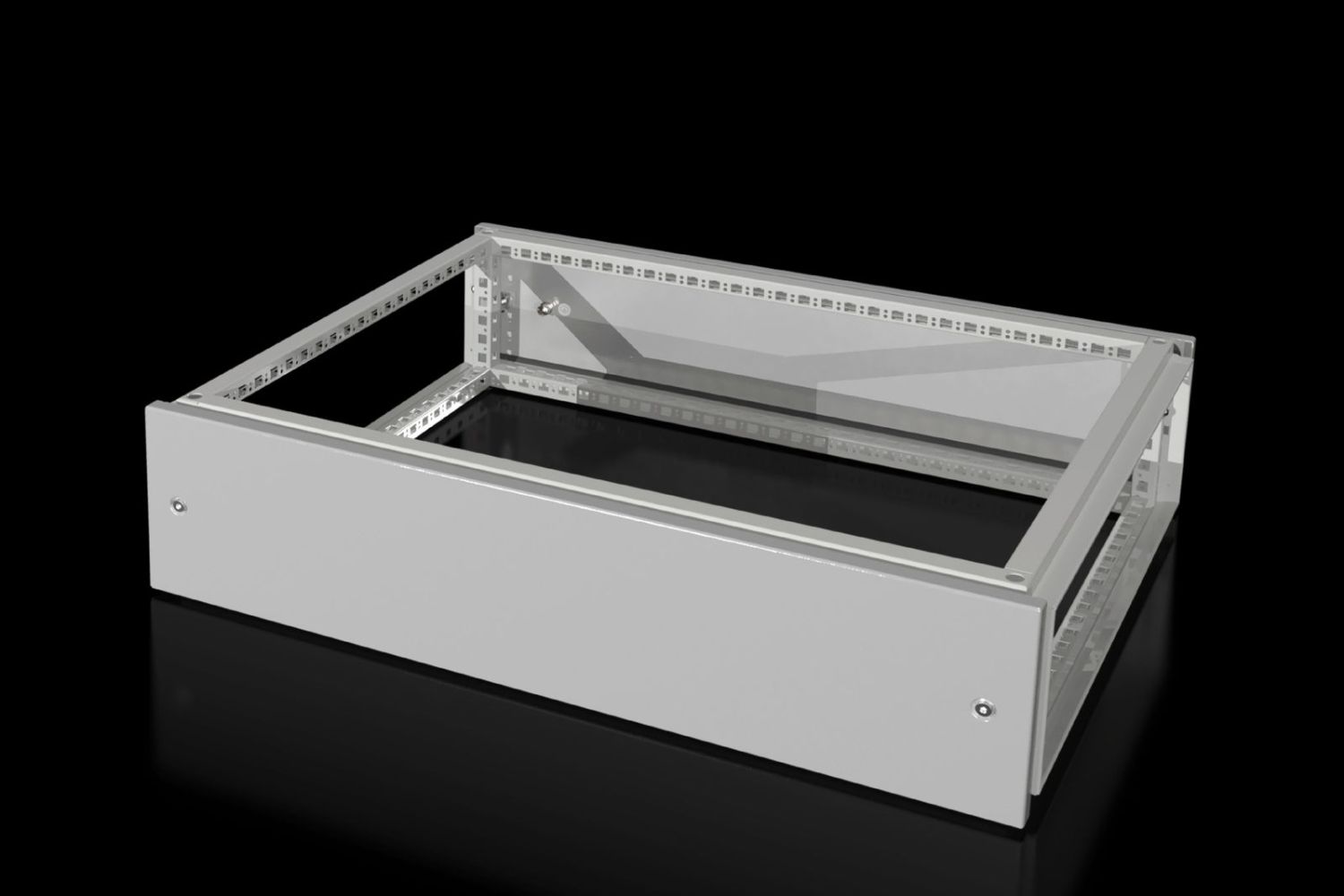

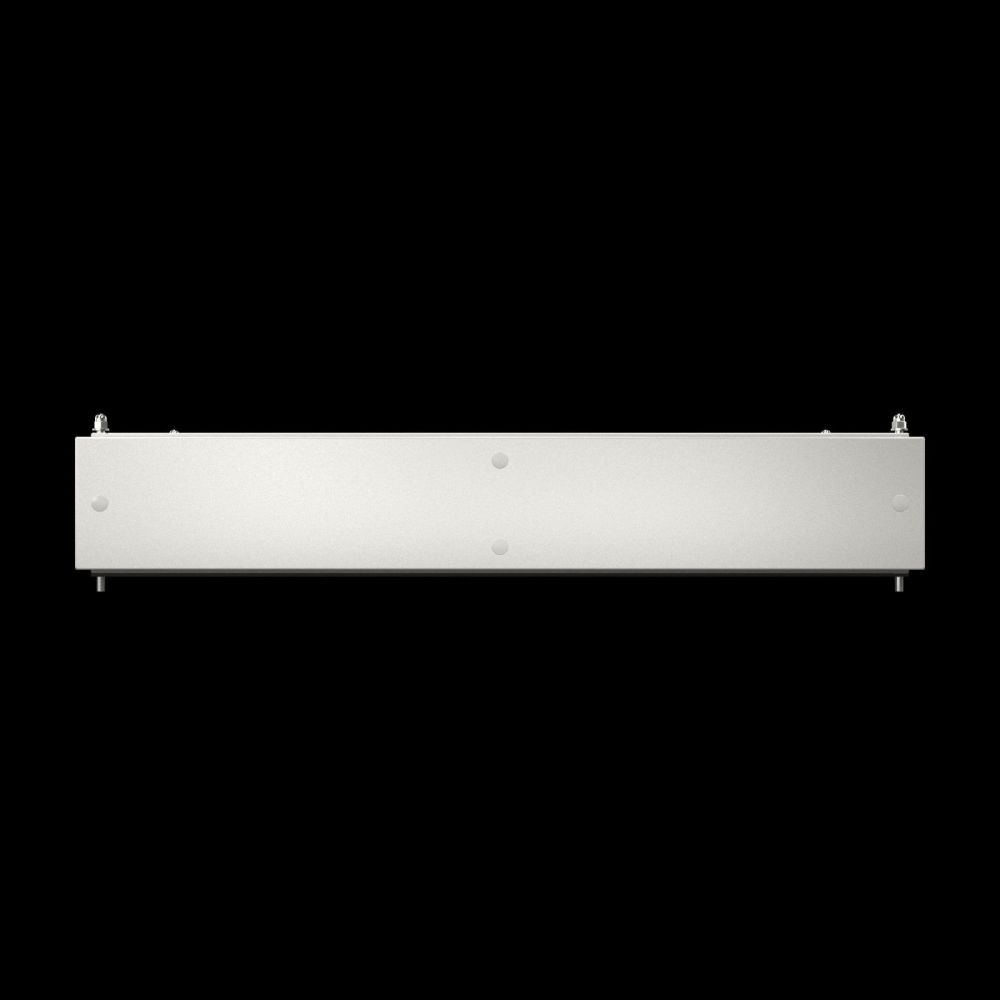

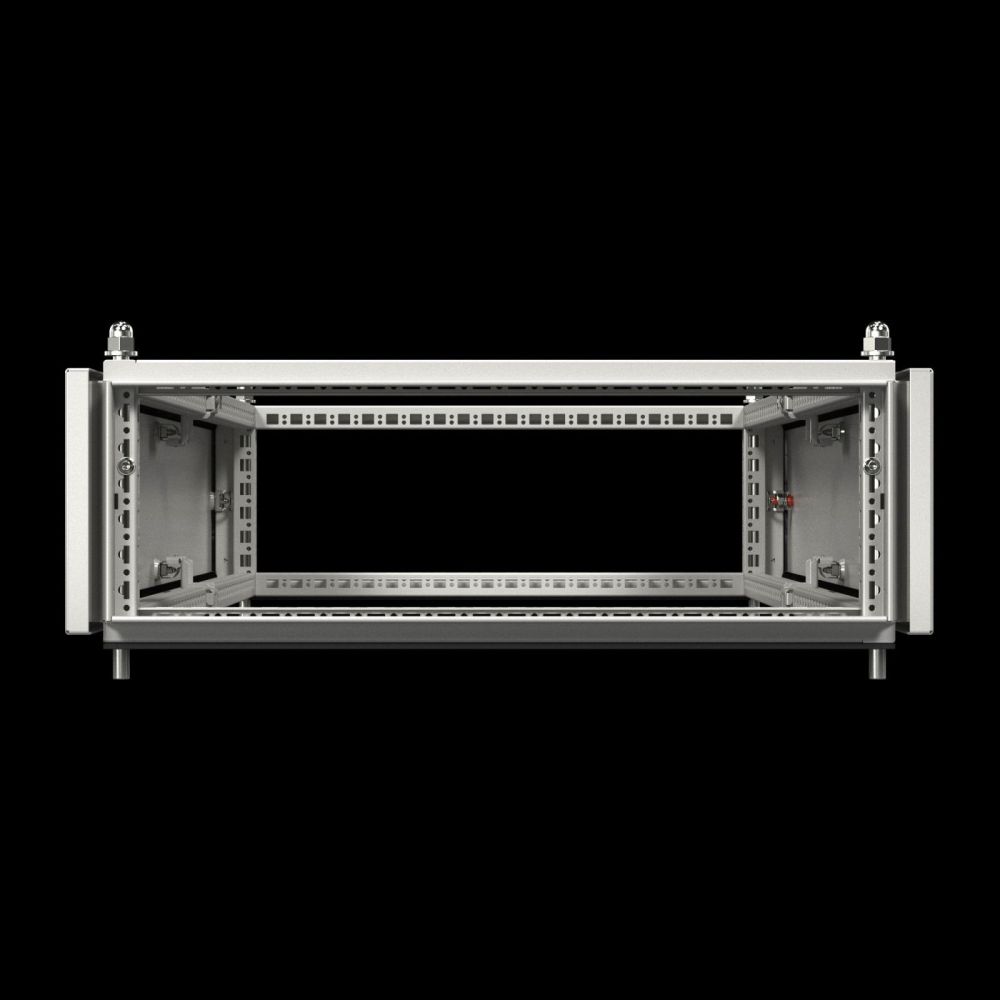

The Rittal VX 8618511 is an add-on module for enclosures of type VX, specifically designed for enclosures with a width of 800 mm and a depth of 600 mm. It serves as a cable routing space for cable feed-in from above or as an energy distribution element with busbar systems over bayed enclosures. The module is mounted directly onto the standard roof plate of the enclosure, creating a closed and protective surface. The construction from steel sheet with a thickness of 1.5 mm ensures high mechanical stability and durability in industrial environments.

Applications
This add-on module is designed for use in industrial electrical installations where structured and protected cable routing above the enclosure is required. It is particularly suitable for installations where multiple enclosures are arranged in a row and energy distribution occurs via busbars. Using it as a cable routing space enables orderly routing of lines and cables entering from above, improving accessibility and maintainability of the installation.

Functions and Equipment in Detail

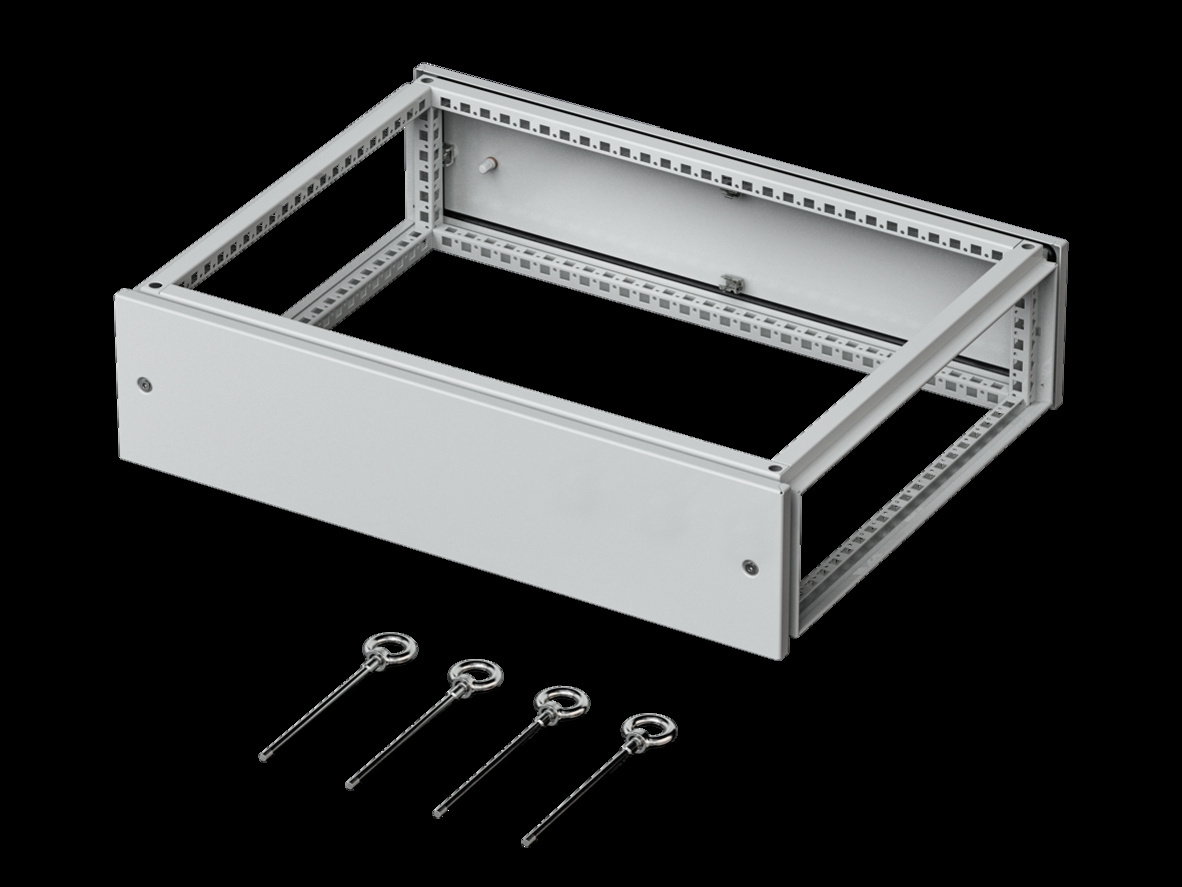

The module is supplied with a frame module forming the structural base. Two front and rear panels ensure an aesthetically finished and closed front and rear side. The delivery also includes 8 holders with automatic equipotential bonding, enabling secure and electrically safe mounting of components.

Technology Explained Simply
The construction from steel sheet (1.5 mm) provides sufficient strength to withstand mechanical loads during operation. The surface is painted with textured paint in RAL 7035, ensuring high corrosion resistance and a uniform, structured surface finish. The protection rating IP 55 according to IEC 60 529 means the module is dust-tight and protected against water jets from any angle, making it suitable for use in humid or dusty environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor use and protection against splashing water, supporting application in industrial and commercial facilities.

Compatibility and Accessories
The add-on module is specifically designed for enclosures of type VX with dimensions width 800 mm and depth 600 mm. It is compatible with various accessories available for the VX system, including C-profile rails, support rails (punched and unpunched), system chassis, baying brackets, mounting rails, and cable strain relief rails in various versions. These components enable flexible and modular expansion of the enclosure system.

Installation and Mounting
Mounting is done directly onto the roof plate of the enclosure. The included holders and mounting materials facilitate installation. The designated mounting points and the automatic equipotential bonding function of the holders ensure a secure and electrically correct installation. The front and rear panels included in the delivery are also mounted to ensure a closed and clean appearance.

Operational Advantages
The module provides a structured and protected solution for cable routing from above, increasing the maintainability and safety of the installation. The IP 55 protection rating protects against dust and splashing water, enhancing reliability in demanding environments. Compatibility with the VX system and the wide range of matching accessories allow flexible and scalable adaptation to individual requirements. The integrated holders with automatic equipotential bonding ensure a secure electrical connection, increasing operational safety.

General
MaterialSheet steel, 1.5 mm
Surface protectionPainted, textured paint
ColourRAL 7035
Scope of deliveryFrame module, 2 front/rear panels, 8 holders with automatic potential equalization, including mounting material
Height200 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Suitable forHousing type: VX, width: = 800 mm, depth: = 600 mm


Product data sheet
Datasheet for Rittal 8618511, EAN: 4028177957602

Questions & answers

What is the delivery time of Rittal 8618511 VX add-on module, for W: 800 mm?

The article Rittal 8618511 VX add-on module, for W: 800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618511 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618511 VX add-on module, for W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618511 VX add-on module, for W: 800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
