Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm

Your rating:
Average rating
product review for Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm
( 4.5 / 5 ) 26 ratings
Rittal 8617730
This image may differ from the desired article.
Rittal 8617730Rittal 8617730Rittal 8617730
36,80 EUR 37,79 EUR
( 43,79 EUR incl. VAT )
≈ £30.80  |  ≈ $40.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm
Datasheet:file_download Download
Lieske Part No.:1440921
Mfg Part No: 8617730
UPC/EAN: 4028177921733
Weight:3.44 kg
Type:VX 8617.730

Product information for Rittal 8617730:

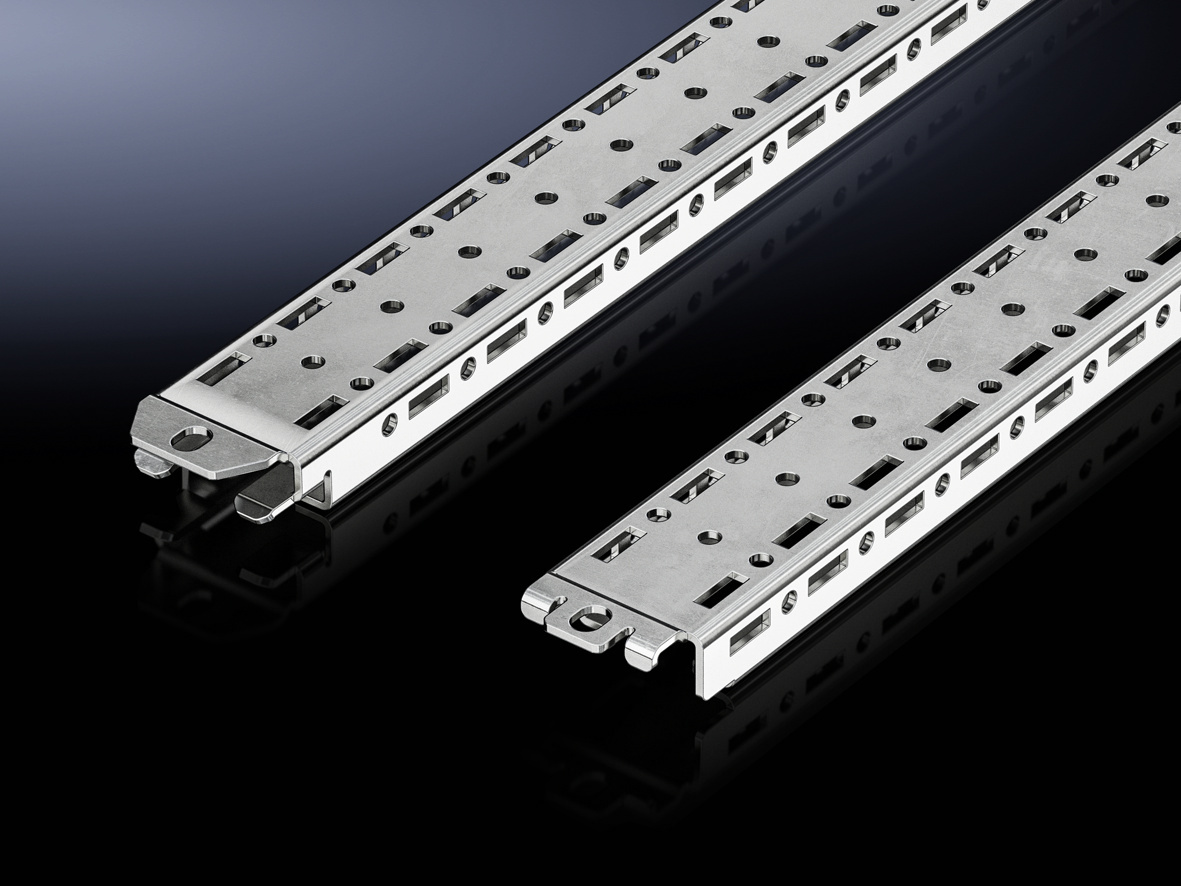

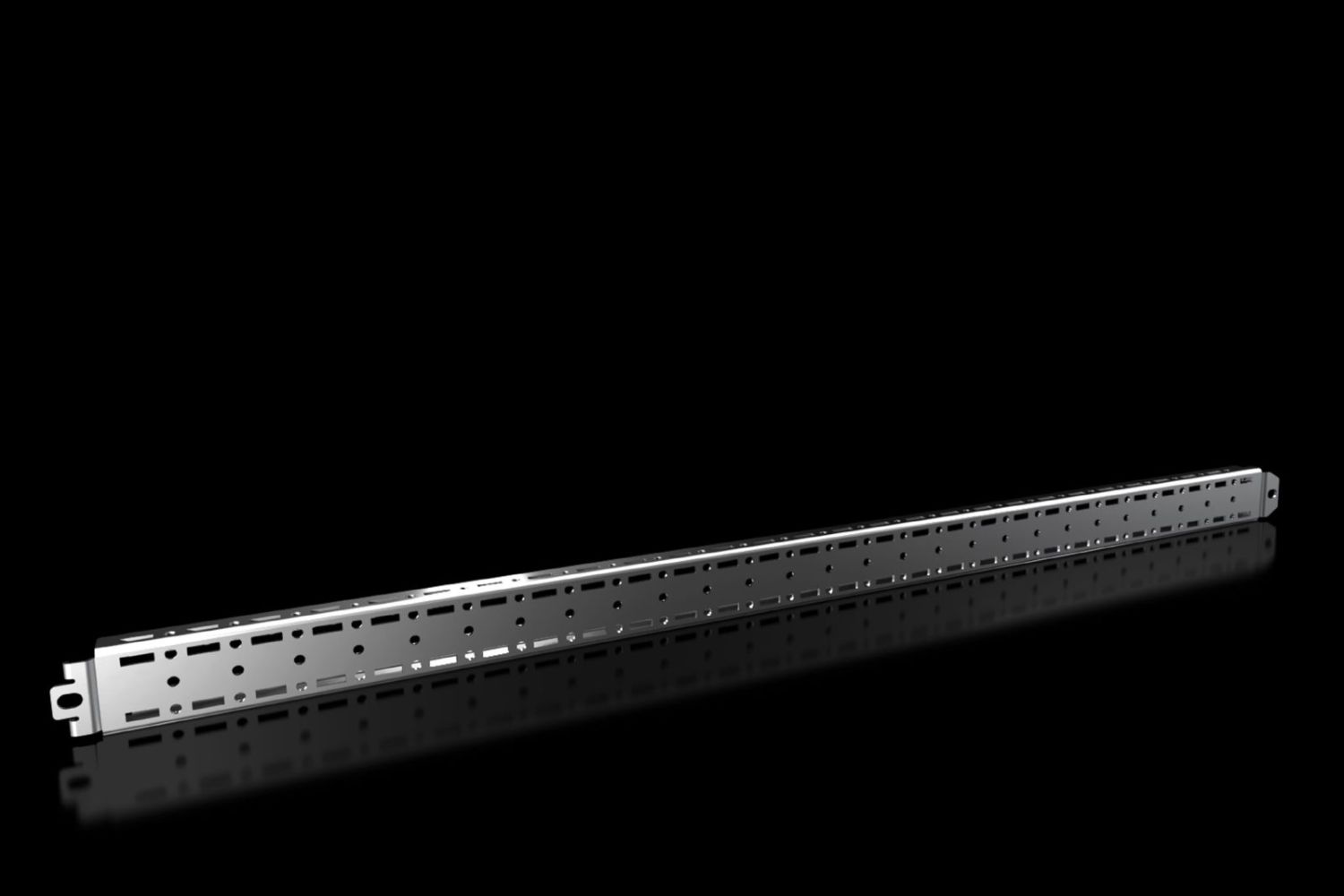

Rittal VX 8617.730 is a mounting rail made of sheet steel with a surface of galvanised metal, specifically designed for use in the internal assembly of enclosures of type VX and VX SE. The rail has dimensions of 18 x 39 mm and is designed for enclosures with a width/depth of 800 mm. It serves as a mounting element for electrical components, devices or modules on the internal mounting plane of the enclosure frame, enabling a flexible and individual setup. The rail is supplied in a pack of 4 pieces and includes mounting material in the delivery scope.

Applications
The mounting rail is intended for use in enclosures of type VX and VX SE, particularly in combination with the VX enclosure profile. For enclosures with a mounting plate, two mounting rails are already included in the delivery scope, so additional rails are only required for extensions or individual adaptations. The rail can also be used as a mounting kit for component shelves, enabling flexible use within the enclosure interior.

Functions and Equipment in Detail
The rail is rear-prepared to accept cable ties, supporting an orderly and secure cable routing within the enclosure interior. Installation is simple into the system perforation of the enclosure frame, even when a mounting plate is installed in the rearmost position. Use in combination with other chassis is possible, facilitating adaptation to different device configurations.

Technology Explained Simply
The mounting rail is made of sheet steel that is galvanised to prevent corrosion and ensure a longer service life. The dimensions 18 x 39 mm correspond to a standard format for mounting rails in enclosure technology, compatible with many devices and modules. The galvanised surface provides good protection against environmental influences, especially in industrial environments. The rail is secured via the system perforation in the enclosure profile, ensuring a stable and secure installation.

Compatibility and Accessories
The rail is specifically designed for enclosures of type VX and VX SE with a width/depth of 800 mm. As an accessory, a cable tie with a length of 150 mm is available, which can be used to secure cables to the rear preparation of the rail. Combination with other chassis is possible, increasing flexibility in device arrangement.

Mounting and Installation
Installation is performed by inserting the rail into the system perforation of the enclosure profile. Fixing is done using the mounting material included in the delivery scope. For enclosures with a mounting plate, the rail can also be mounted in the rearmost position, enabling optimal use of available space. The rear preparation for cable ties simplifies cable routing and ensures orderly wiring.

Advantages in Operation
The mounting rail offers flexible and individual adaptation options for the internal assembly of enclosures. Simple installation and compatibility with various chassis facilitate installation and maintenance. The rear preparation for cable ties ensures structured cable routing, enhancing maintainability and safety in operation. The galvanised surface ensures high corrosion resistance, extending the service life of the rail in industrial applications.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX on the inner mounting plane on VX cabinet profile, In VX SE on cabinet profile in combination with VX adapter rail, As built-in kit for equipment floor
NoteCabinets with mounting plate include 2 mounting rails in the delivery scope.
Suitable forHousing type: VX, VX SE, Width/depth: 800 mm
PCF/VE (Cradle-to-Gate)39,55


Product data sheet
Datasheet for Rittal 8617730, EAN: 4028177921733

Questions & answers

What is the delivery time of Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm?

The article Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617730 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617730 VX mounting rail 18 x 38 mm, W x D: 800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
