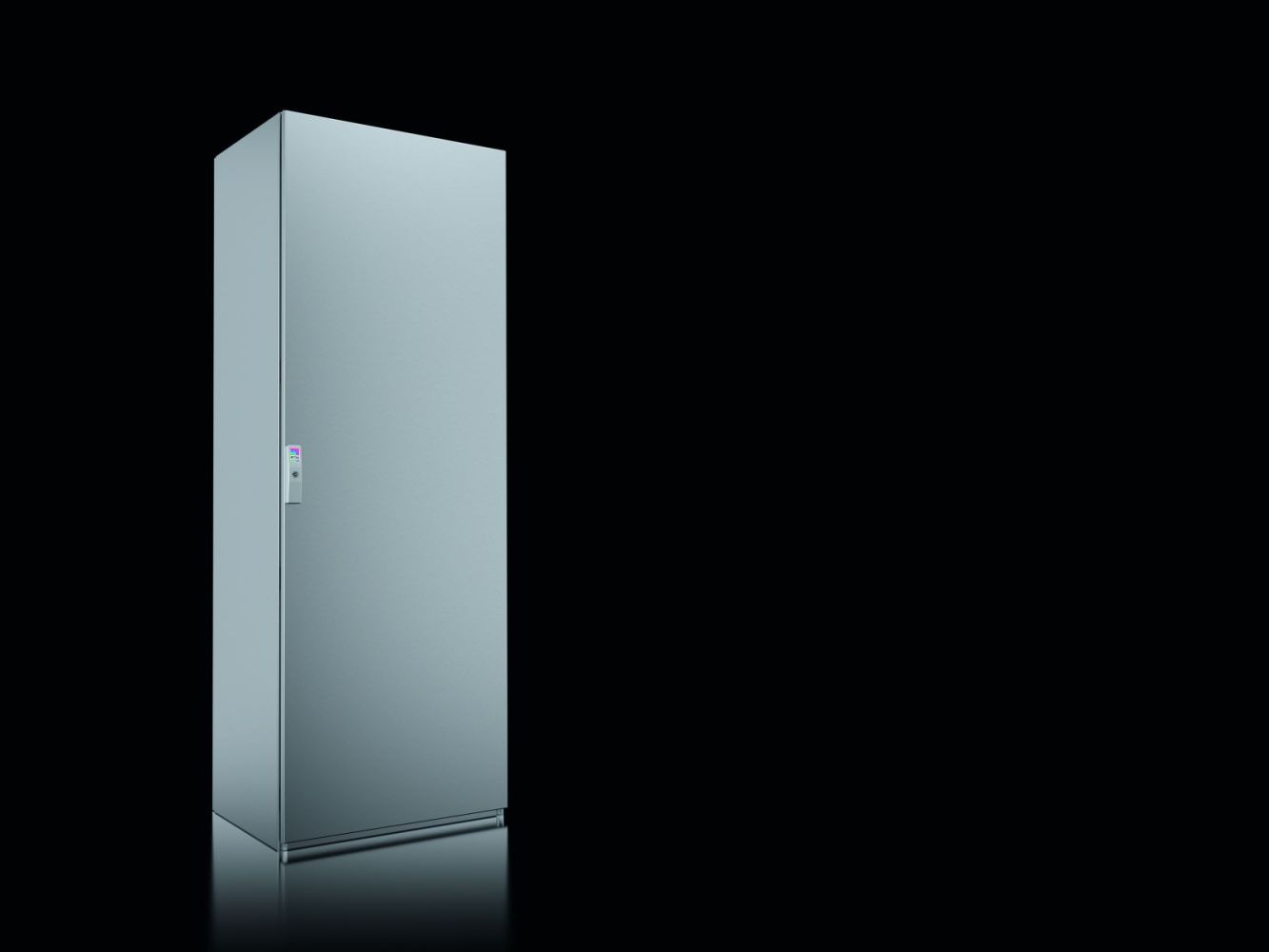

Rittal 5857600 VX SE system single enclosure, 800x1200x500 mm, stainless steel
|
2.106,11 EUR |
|
|
( 2.506,27 EUR incl. VAT ) ≈ £1,762.81 | ≈ $2,314.61 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1062218 |
| Mfg Part No: | 5857600 |
| UPC/EAN: | 4028177970281 |
| Weight: | 89 kg |
| Type: | SE 5857600 |
Product information for Rittal 5857600:
Applications include industrial plants, manufacturing environments, and outdoor applications where protection against dust, splashing water, and mechanical impacts is required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making the enclosure suitable for use in humid or dusty environments. Additionally, it meets the NEMA classifications NEMA 3R and NEMA 12, as well as the Type Ratings Type 1, Type 2, Type 3, Type 3R, Type 12 according to UL 50E, confirming its suitability for various industrial and commercial application scenarios. The IK code IK10 provides high protection against mechanical impacts, such as blows or shock loads.
Functions and equipment in detail include a fully enclosed housing with openings covered on top and sides, providing high protection. The door is equipped with a 3 mm double bar lock, ensuring secure and stable latching. The delivery includes two mounting rails with dimensions 18 x 39 mm, which can be used for mounting components or control panels. The mounting plate has dimensions 699 mm (width) × 1,096 mm (height) and is galvanized, providing additional corrosion protection. The base plates are also made of stainless steel 1.4301, ensuring a stable foundation.
Technology explained simply shows that the material stainless steel 1.4301 (AISI 304) offers high corrosion resistance and mechanical strength, which is particularly advantageous in humid or aggressive environments. The linear satin finish (grain 400) is not only aesthetically pleasing but also easy to clean and resistant to contamination. The IP 55 protection rating means the enclosure is protected against dust and splashing water, making it suitable for outdoor use or in production halls. The IK10 protection code guarantees that the enclosure is resistant to mechanical impacts such as shocks or blows up to a certain energy level.
Compatibility and accessories include various supplementary products recommended for use with this enclosure. These include stainless steel 1.4301 lifting eyes, circuit diagram pockets for subassemblies, system chassis, comfort handles, lock inserts, mounting rails (e.g. 23 x 23 mm), partial mounting plates, C-profile rails, support rollers, mounting brackets, 180° hinges, door latches for escape routes, and other accessories that extend the functionality and adaptability of the enclosure. These components allow for individual adaptation to specific mounting and operational requirements.
Mounting and installation are performed via the integrated mounting plate and pre-mounted mounting rails. The removable rear panel facilitates access to the interior. The door hinge direction is changeable, increasing flexibility in placement. For internal assembly, the use of the internal hexagon sheet metal screw 2486.400 is recommended to account for the hardness of the stainless steel and ensure secure fastening.
Operational advantages lie in the high mechanical and chemical resistance of stainless steel, long service life, and low maintenance. The protection ratings IP 55, NEMA 3R, NEMA 12, and the Type Ratings according to UL 50E ensure broad applicability in various industrial sectors. The integrated mounting plate and pre-mounted rails reduce installation time and increase installation accuracy. The door latch and robust locking construction ensure secure and reliable enclosure locking.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 290,46 |
Questions & answers
What is the delivery time of Rittal 5857600 VX SE system single enclosure, 800x1200x500 mm, stainless steel?
The article Rittal 5857600 VX SE system single enclosure, 800x1200x500 mm, stainless steel is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5857600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5857600 VX SE system single enclosure, 800x1200x500 mm, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 5857600 VX SE system single enclosure, 800x1200x500 mm, stainless steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
