Rittal 4172000 SZ mounting rail 23 x 23 mm, for TS, SE, for 800

Your rating:
Average rating
product review for Rittal 4172000 SZ mounting rail 23 x 23 mm, for TS, SE, for 800
( 4.4 / 5 ) 24 ratings
Rittal 4172000
This image may differ from the desired article.
Rittal 4172000Rittal 4172000Rittal 4172000Rittal 4172000Rittal 4172000Rittal 4172000
65,09 EUR
( 77,46 EUR incl. VAT )
≈ £54.48  |  ≈ $71.53
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 4172000 SZ mounting rail 23 x 23 mm, for TS, SE, for 800
Datasheet:file_download Download
Lieske Part No.:460858
Mfg Part No: 4172000
UPC/EAN: 4028177093164
Weight:5.45 kg
Type:SZ 4172000

Product information for Rittal 4172000:

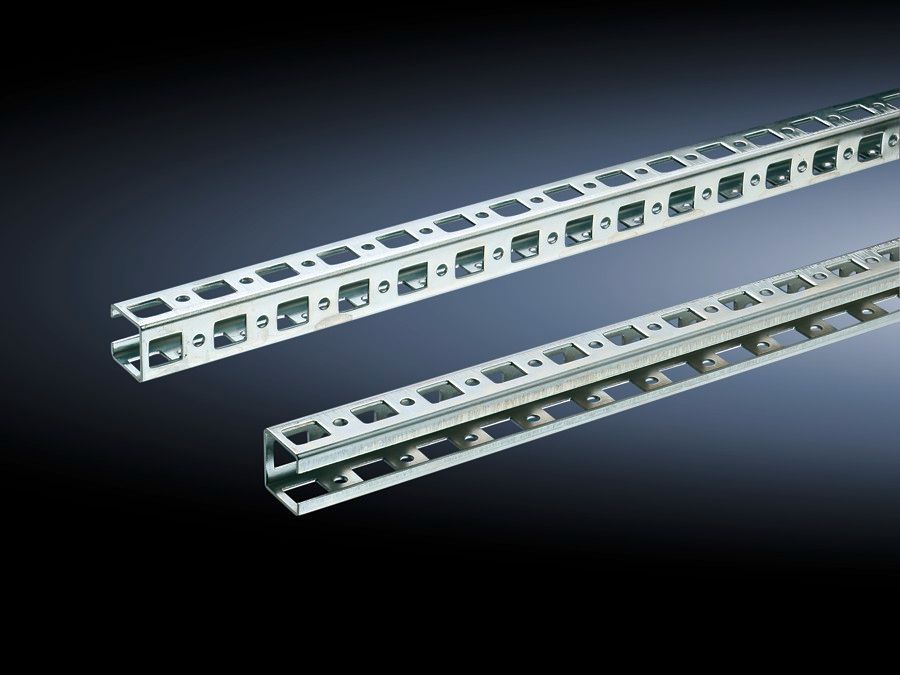

The Rittal SZ 4172000 is a mounting rail made of sheet steel with a galvanised surface, designed for installation in enclosures of types VX, TS and VX SE. The rail has a length of 695 mm and is specifically designed for enclosures with a width, height or depth of 800 mm. It serves as a mounting base for electrical components, such as switching devices, fuses or controls, and enables structured and secure mounting within the enclosure. The dimensions of 23 x 23 mm correspond to the standard format for mounting rails in industrial electrical engineering, ensuring high compatibility with common components.

Mounting rail

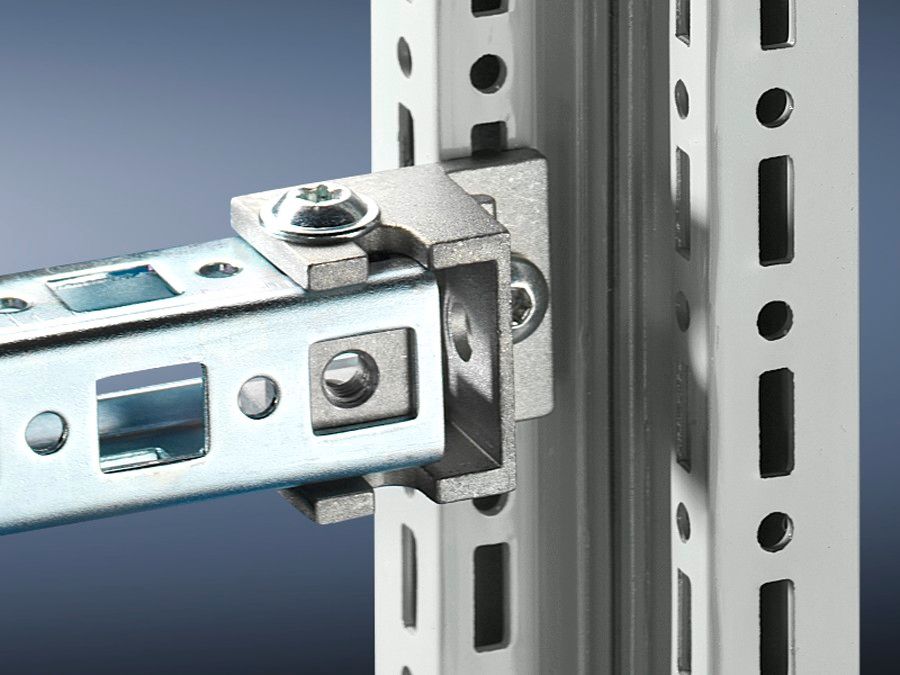

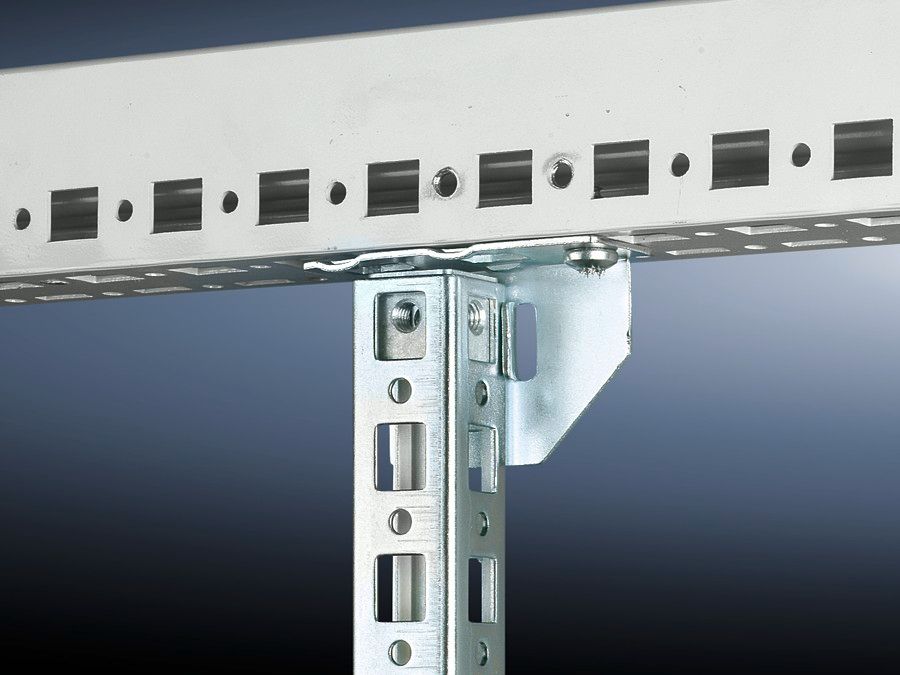

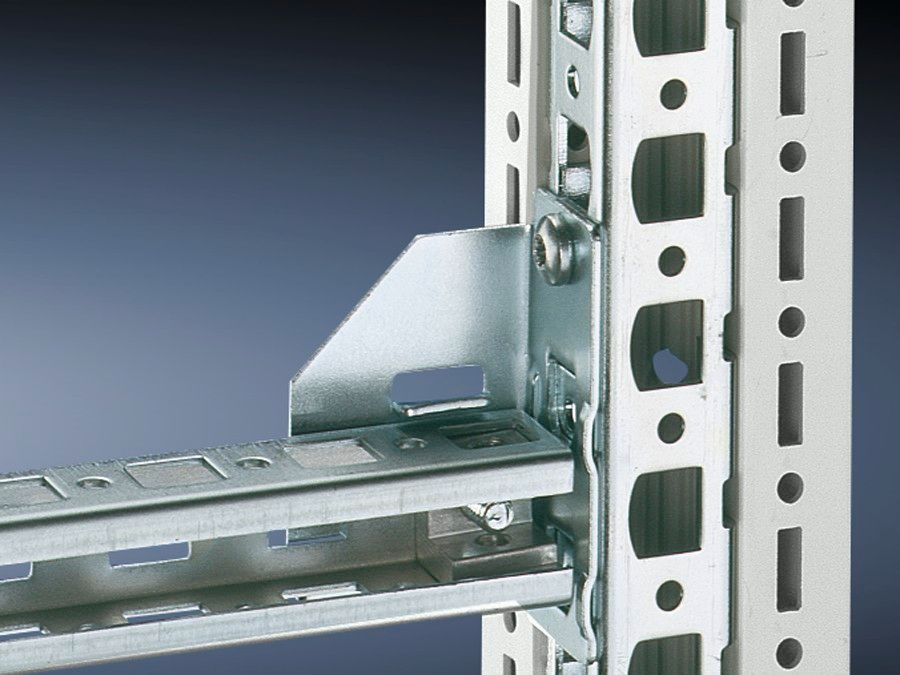

The rail is attached to the horizontal and vertical enclosure profiles, with mounting carried out using additional mounting elements. In VX enclosures, it can be mounted on the vertical and horizontal profiles using mounting brackets. In VX SE enclosures, mounting is done on the vertical profile using mounting brackets in combination with a VX adapter rail, or on the horizontal profile or in the roof area also using mounting brackets with VX adapter rail. Mounting in depth is possible using TS combination brackets, adapter rails for PS compatibility, as well as holding angles or mounting brackets.

Functions and equipment in detail
The mounting rail is made of sheet steel with a galvanised surface to prevent corrosion and ensure a longer service life. The galvanisation provides effective protection against moisture and environmental influences, especially in industrial environments. The length of 695 mm allows the mounting of multiple components side by side, enabling efficient use of the enclosure interior. The rail is designed for use in enclosures with dimensions of 800 mm in width, height or depth, allowing adaptation to various enclosure configurations.

Technology explained clearly
The rail features a hole pattern in the format 23 x 23 mm, which corresponds to the standard for DIN terminal strips. This hole pattern allows the mounting of components that are secured using screws or clamp holders. The use of mounting brackets or adapter rails allows flexible adaptation to different enclosure profiles and mounting positions. The galvanised surface ensures high mechanical strength and chemical resistance, which is particularly advantageous in damp or aggressive environments.

Compatibility and accessories
The mounting rail is compatible with enclosures of types VX, TS and VX SE. Additional mounting elements are required for installation, such as mounting brackets or VX adapter rails. In the product range, cable ties with a length of 150 mm are also available, which can be used to secure cables and wiring to the rail or within the enclosure. These accessories support proper and secure cabling.

Mounting and installation
Mounting is carried out on the designated profiles of the enclosure, with the exact mounting method depending on the enclosure type. In VX enclosures, the rail is mounted on the vertical and horizontal profiles using mounting brackets. In VX SE enclosures, mounting requires the use of VX adapter rails in combination with mounting brackets. Installation in depth is done using TS combination brackets or holding angles, with the exact mounting method varying depending on the enclosure configuration. The rail is designed for mounting in enclosures with dimensions of 800 mm, with precise positioning on the profiles achieved through the mounting elements.

Advantages in operation
The mounting rail provides a stable and secure mounting option for electrical components, ensuring reliable operation of installed devices. The galvanised surface protects against corrosion and increases the service life of the rail. Compatibility with various enclosure types and the use of standard mounting elements simplify installation and maintenance. The length of 695 mm enables efficient use of the enclosure interior, allowing multiple components to be mounted side by side. The use of cable ties supports orderly cabling and improves clarity within the enclosure interior.

General
Materialsteel sheet
Surface protectionZinc-plated
Length695 mm
Suitable forHousing type: VX, TS, VX SE, suitable for width or height or depth: 800 mm
PCF/VE (Cradle-to-Gate)27.03 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4172000, EAN: 4028177093164
