Rittal 4182000 SZ mounting bracket
|
-8% 34,16 EUR 36,99 EUR |
|
|
( 40,65 EUR incl. VAT ) ≈ £28.87 | ≈ $38.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 941083 |
| Mfg Part No: | 4182000 |
| UPC/EAN: | 4028177093362 |
| Weight: | 1.509 kg |
| Type: | SZ 4182000 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 4182000:

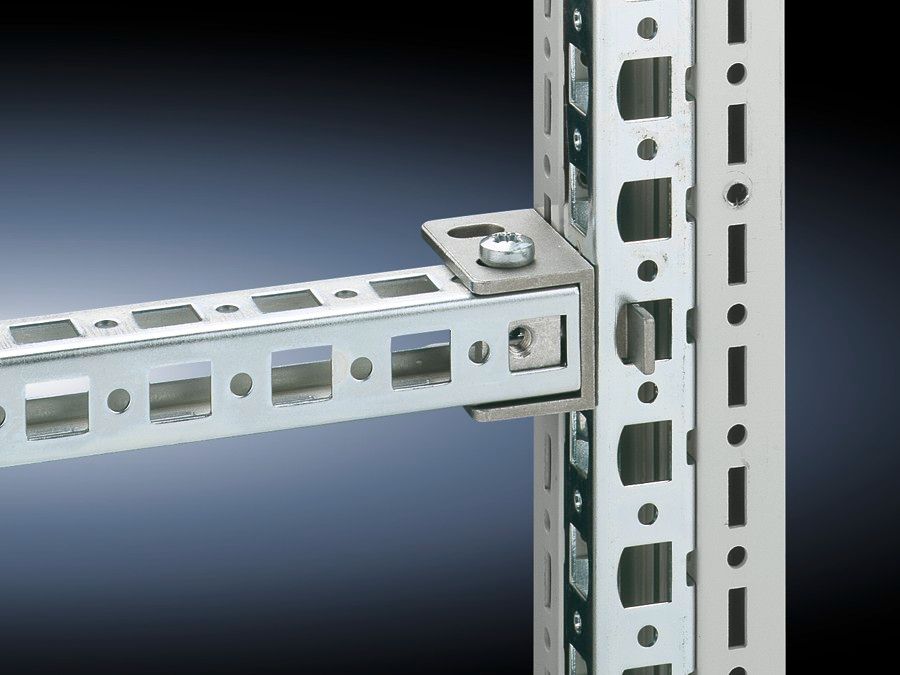

For variable attachment of punched rail 23 x 23 mm.
Material: Die-cast zinc

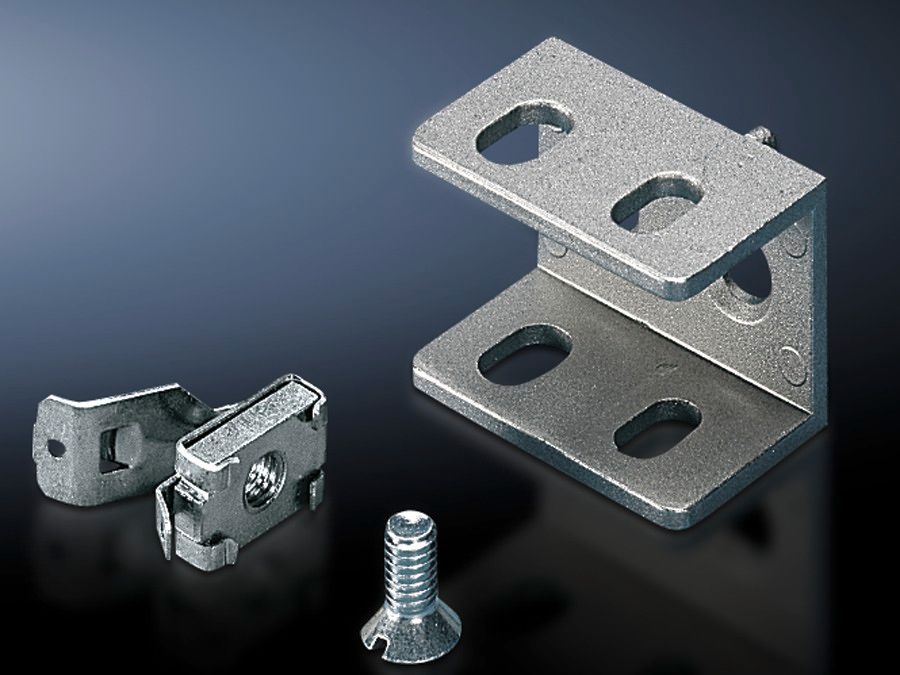

Supply includes: 1 set = 1 mounting bracket, 1 screw M6 x 12 mm, 1 cage nut M6
Note: U nuts (recommended: M6)
Packs of: 24 pc(s).
EAN: 4028177093362
Customs tariff number: 83024900
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
To fit: Enclosure type: TS
Enclosure type: SE
Installation options: Optionally flush with: Outer enclosure edge or enclosure clearance width
On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility, height-offset, via TS punched rail 25 x 38 mm
On the horizontal TS enclosure section
On the horizontal SE enclosure section, bottom
On the horizontal SE enclosure section, top in the depth
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Weight/pack: 1.49 kg
Material: Die-cast zinc
Supply includes: 1 set = 1 mounting bracket, 1 screw M6 x 12 mm, 1 cage nut M6
Note: U nuts (recommended: M6)
Packs of: 24 pc(s).
EAN: 4028177093362
Customs tariff number: 83024900
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
To fit: Enclosure type: TS
Enclosure type: SE
Installation options: Optionally flush with: Outer enclosure edge or enclosure clearance width
On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility, height-offset, via TS punched rail 25 x 38 mm
On the horizontal TS enclosure section
On the horizontal SE enclosure section, bottom
On the horizontal SE enclosure section, top in the depth
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Weight/pack: 1.49 kg
Questions & answers
What is the delivery time of Rittal 4182000 SZ mounting bracket?
The article Rittal 4182000 SZ mounting bracket is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4182000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4182000 SZ mounting bracket always at the best possible price. We can give you a discount of 2% on Rittal 4182000 SZ mounting bracket if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
