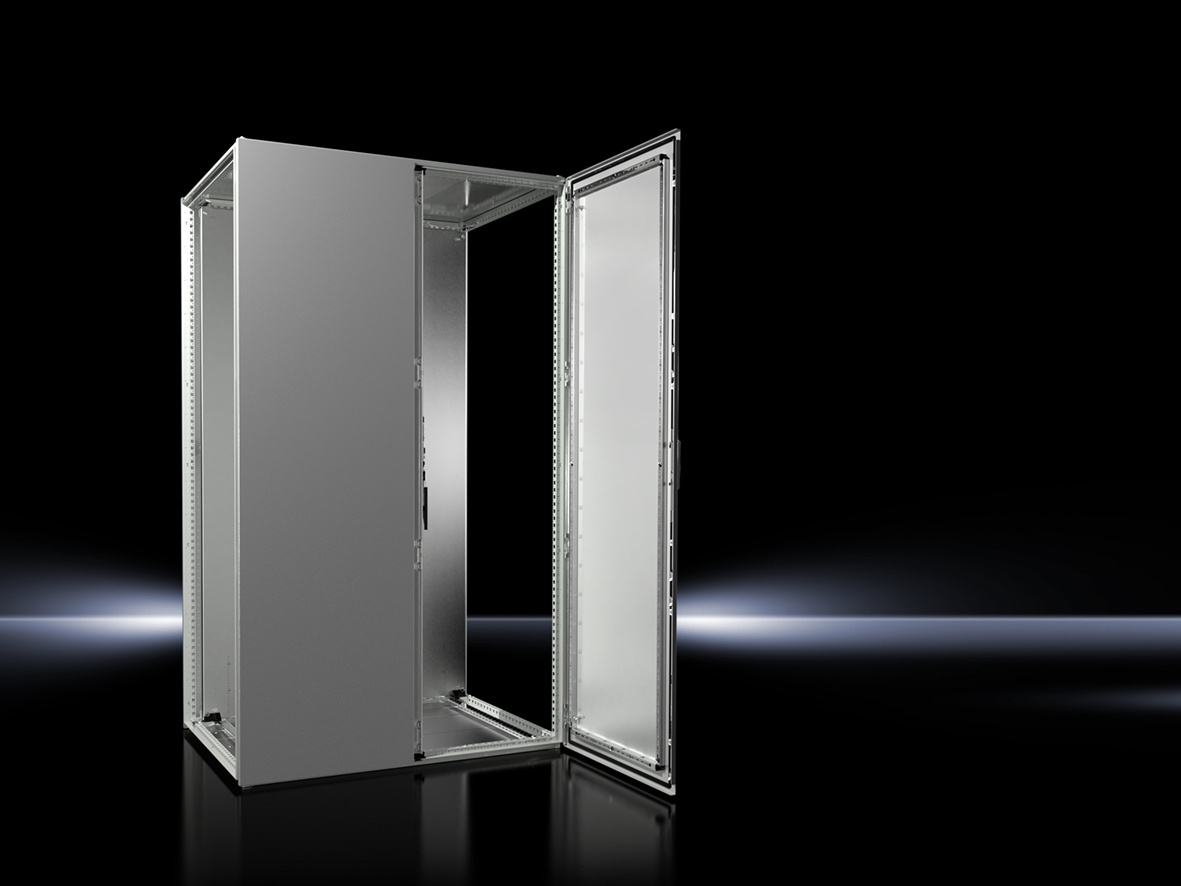

Rittal 8208000 VX bayed enclosure system, 2-door, W x H x D: 1200x2000x800 mm
|
1.020,05 EUR 1.032,29 EUR |
|
|
( 1.213,86 EUR incl. VAT ) ≈ £853.78 | ≈ $1,121.03 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440697 |
| Mfg Part No: | 8208000 |
| UPC/EAN: | 4028177813595 |
| Weight: | 200.8 kg |
| Type: | VX 8208.000 |
Product information for Rittal 8208000:
Applications
This enclosure system is designed for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical stability and protection against dust and splashing water are required. The protection rating IP 55 according to EN 60 529 ensures effective protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The NEMA classification includes NEMA 1 and NEMA 12, indicating suitability for dry indoor environments as well as environments with light dirt or splashing water. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for indoor use and environments with limited dirt. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system consists of a cabinet frame made of sheet steel with a wall thickness of 1.5 mm, coated with a dip-primed surface. The doors are made of sheet steel with a wall thickness of 2.0 mm and are externally powder-coated with a textured lacquer in RAL 7035. The rear panel, roof, and base plates are also made of 1.5 mm sheet steel and dip-primed, with the roof and rear panel additionally powder-coated. The mounting plate is made of 3.0 mm sheet steel and zinc-coated, ensuring high corrosion resistance. The mounting plate is depth-adjustable in 25 mm increments and features integrated plastic glides as well as reusable mounting rails. The dimensions of the mounting plate are 1,099 mm width and 1,896 mm height.
Technology Explained Simply
The doors are fitted with a foamed PU foam seal to ensure a tight closure. The lock door is on the right and equipped with a four-point locking bar lock using a 3 mm double-bar lock insert according to DIN 43668. The secondary door is additionally secured with a swing lever double locking. The hinges are fitted with screwed stops, allowing the door opening angle to be extended from 130° to 180° without tools. The door hinge direction is reversible, allowing the doors to be mounted on the left as well. The clearance from the floor is 17 mm. The rear panel and roof plate are removable and fitted with PU foam seals, enabling easy assembly and maintenance. The rear panel features a positioning aid, and the roof is equipped with M12 roof mounting screws.
Compatibility and Accessories
The enclosure system includes two mounting rails 18 x 39 mm in the delivery scope, which can be used for securing components and devices. Compatible accessories include mounting brackets, levelling feet, C-profile rails, transport eyes, mounting plate spacers, base plates, comfort handles, covers for baying, dust protection strips, cable entry ferrules, multi-locking systems, circuit diagram pockets, plug-through ferrules, multitools, system chassis, and other components that support installation and operation.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The profiles are rounded and feature a hole pattern in 25 mm increments. The horizontal profiles have an additional groove above the PU foam seal. The mounting plate is depth-adjustable and allows flexible positioning of components. The base plates are three-part, removable, and replaceable. The enclosure system is load-bearing up to 15,000 N and can be connected in baying on all sides.
Advantages in Operation
The enclosure system offers high mechanical stability and reliable protection against dust and splashing water. The powder-coated surface in RAL 7035 ensures an attractive appearance and high corrosion resistance. The depth-adjustable mounting plate and integrated mounting rails simplify installation and maintenance. The removable rear panel and roof plate allow easy access for maintenance work. The conductive connection of the flat parts to the frame ensures automatic equipotential bonding according to DIN 62 208 and is prepared for mounting earthing straps. The integrated plastic glides and reusable mounting rails ensure secure and flexible mounting of components.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 513.24 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
