Rittal 4697000 Mounting shelves VX/TS width/depth 800 mm 20 pcs
|
98,67 EUR 102,63 EUR |
|
|
( 117,42 EUR incl. VAT ) ≈ £82.49 | ≈ $109.82 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 112558 |
| Mfg Part No: | 4697000 |
| UPC/EAN: | 4028177108172 |
| Weight: | 7.817 kg |
| Type: | TS 4697000 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 4697000:

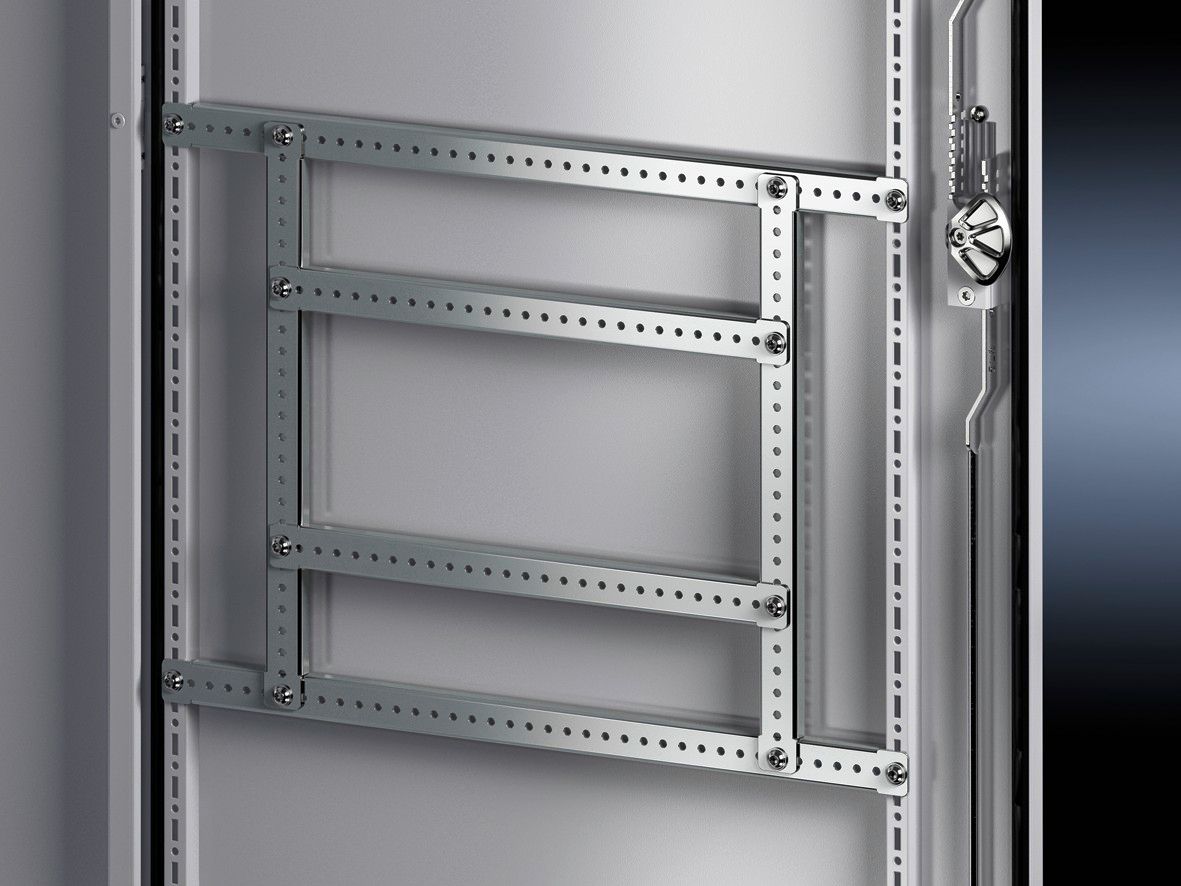

Applications: For attachment of
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177108172
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: For the outer mounting level
To fit: Width/depth: 800 mm
Dimensions: Length: 740 mm
Installation options: On the vertical and horizontal TS enclosure section on the outer mounting level, all-round, at the same height
Weight/pack: 7.64 kg
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177108172
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: For the outer mounting level
To fit: Width/depth: 800 mm
Dimensions: Length: 740 mm
Installation options: On the vertical and horizontal TS enclosure section on the outer mounting level, all-round, at the same height
Weight/pack: 7.64 kg
| General | |
| Technical data | Drilling Ø 4.5 mm on 25 mm grid |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Length | 740 mm |
| Mounting options VX | In cabinet width/depth 800 mm |
| Mounting options VX SE | In cabinet width/depth 800 mm |
| Mounting options AX | In door width 800 mm, with pre-drilling tool |
| Mounting options AX stainless steel | In door width 800 mm, with pre-drilling, in combination with door frame strip |
| PC mounting options | In cabinet width 800 mm, on the outer mounting plane |
| Mounting options TS | In cabinet width/depth 800 mm, on the outer mounting plane |
| Mounting options AE | In housing width/height 800 mm, in combination with rail for indoor installation AE |
| Mounting options VX socket | Installation in 800 mm wide/deep base panels, in combination with base mounting angles |
| Suitable for | Housing type: VX, TS, VX SE, PC, AX, AE, width/depth: 800 mm |
| PCF/VE (Cradle-to-Gate) | 34.91 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
