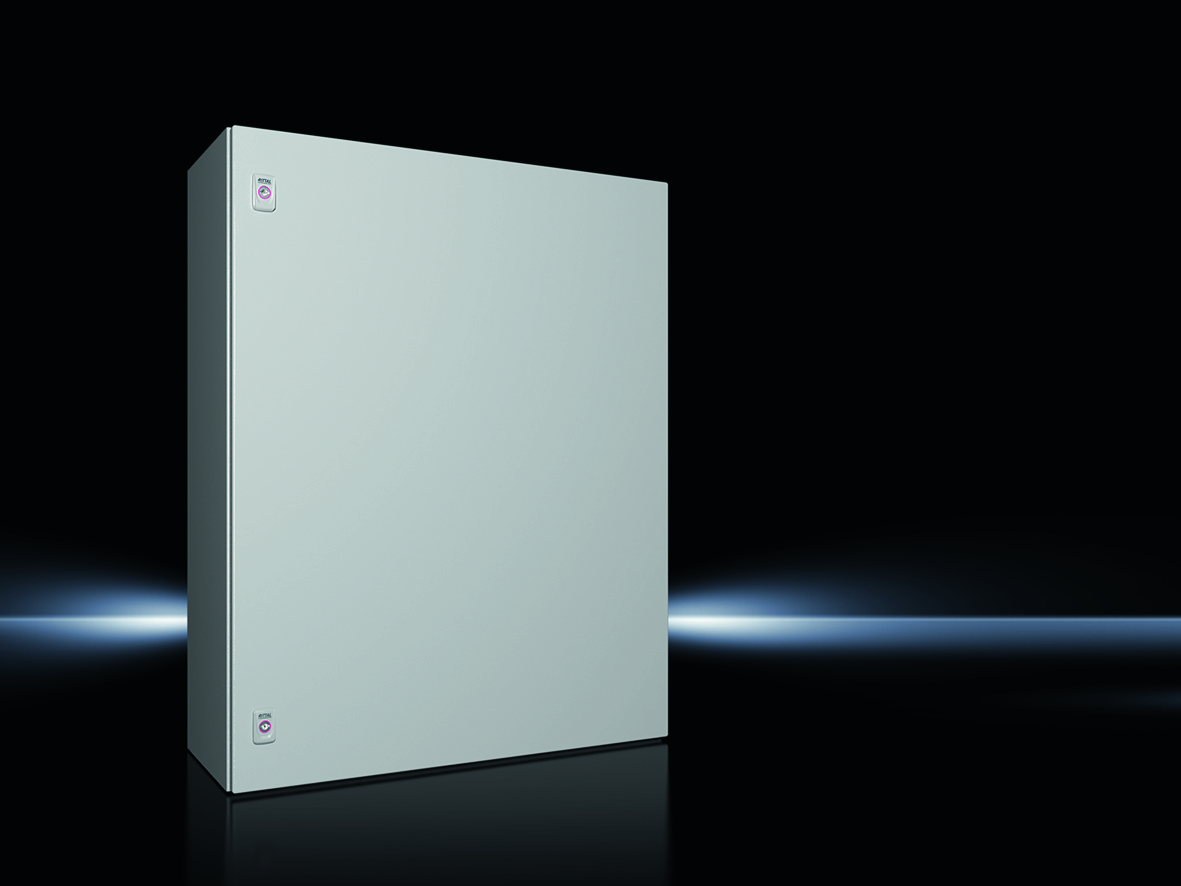

Rittal 1180000 Compact enclosure AX W x H x D 800x1000x300 mm IP66 (freight shipping)
|
229,30 EUR 229,41 EUR |
|
|
( 272,87 EUR incl. VAT ) ≈ £191.92 | ≈ $252.00 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598142 |
| Mfg Part No: | 1180000 |
| UPC/EAN: | 4028177813243 |
| Weight: | 52 kg |
| Type: | AX 1180000 |
Product information for Rittal 1180000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water, making it suitable for outdoor use or in damp industrial facilities. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various environmental conditions, including damp or dusty rooms. The IK code IK10 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the door is made of 2 mm thick sheet steel. The mounting plate has a material thickness of 2.5 mm and dimensions of 745 mm (W) × 975 mm (H). The delivery includes the enclosure with door, two gland plates (size 5) in the enclosure base, the mounting plate, a door hole strip, and two pre-drilled locks with 3 mm double-barrel lock inserts. The door hinge is reversible, allowing the door to be mounted on either the left or right side. The door opens up to 130°, with an option for retrofitting to 180°.
Technology Explained Simply
A central feature of the AX enclosure is the integrated 25 mm system grid, created by embossed enclosure lugs on the roof, base, and sides. This patented system enables easy, drill-free mounting of internal mounting rails and other accessories. The base mounting rail provides an additional mounting level and increases load capacity. The rail can be mounted without drilling, preserving the protection rating (UL approval). The mounting plate is equipped with keyhole slots for earthing and dimension markings, and is secured with ring weld nuts.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, which enables easy planning and configuration. Suitable accessories include mounting rails VX/TS for width/depth 800 mm, lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, knob handles, handles with security cylinder, plinth trim panels and corner pieces, and mounting rails for internal mounting level. These components extend the functionality and customization options of the enclosure.
Mounting and Installation
Mounting is performed using the integrated enclosure lugs and the base mounting rail. The mounting plate allows for secure fastening of internal components. The door can be replaced without tools, and the locks are easy to operate. The gland plates in the enclosure base facilitate the installation of cable entry plates. The rear wall of the enclosure features pass-throughs for wall mounting brackets.
Advantages in Operation
The AX 1180000 offers high mechanical stability and durability due to the material thickness and robust construction. The integrated enclosure lugs and drill-free mounting of the internal mounting rail reduce installation time and increase flexibility for modifications. The protection rating IP 66 and NEMA classification ensure reliable operation in demanding environments. The use of sheet steel and textured lacquer ensures high corrosion resistance. QR codes on the enclosure body, door, and type plate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 1.000 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 745 mm x 975 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 175.27 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
