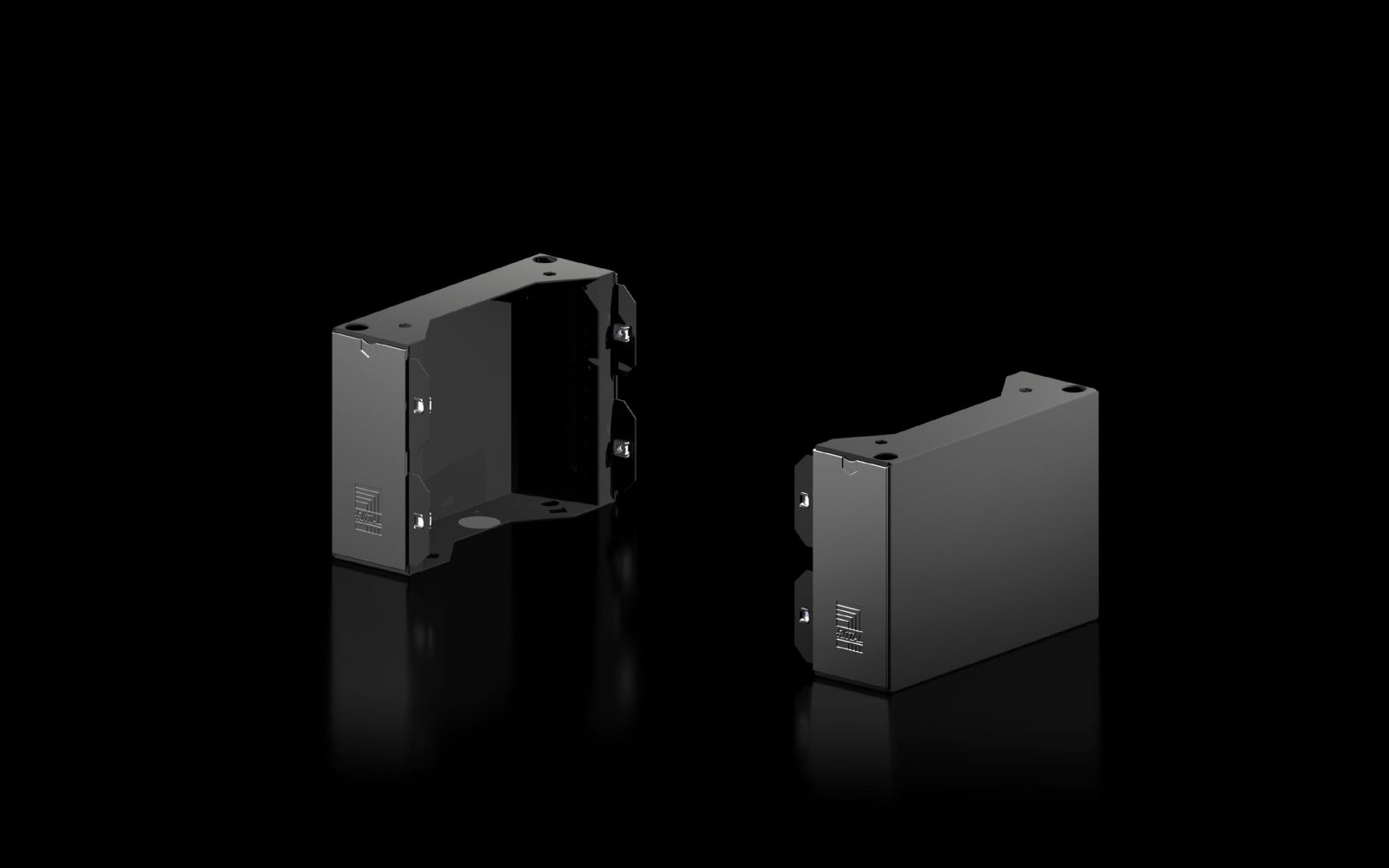

Rittal 2830320 AX AX plinth element, pack of 2, side, height: 200 mm, for depth: 300 mm

Your rating:
Average rating
product review for Rittal 2830320 AX AX plinth element, pack of 2, side, height: 200 mm, for depth: 300 mm
( 4.5 / 5 ) 4 ratings
Rittal 2830320
This image may differ from the desired article.
Rittal 2830320Rittal 2830320Rittal 2830320
-8% 80,04 EUR 87,22 EUR
( 95,25 EUR incl. VAT )
≈ £66.99  |  ≈ $87.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 2830320 AX AX plinth element, pack of 2, side, height: 200 mm, for depth: 300 mm
Datasheet:file_download Download
Lieske Part No.:684175
Mfg Part No: 2830320
UPC/EAN: 4028177037663
Weight:3.209 kg
Type:AX 2830320

Product information for Rittal 2830320:

The Rittal AX 2830320 is a plinth element for enclosures of type AX, specifically designed for side mounting in depth and for stabilizing the plinth. It serves as an additional component to improve the stability and alignment of enclosures with a depth of 300 mm. The component is typically used during the installation of enclosure plinths to ensure secure and level positioning of the housing on uneven surfaces. The height of the plinth element is 200 mm, enabling defined support without disproportionately increasing the overall height of the enclosure.

Applications

The plinth element is intended for use in industrial environments where enclosures are mounted on solid or slightly uneven surfaces. It is particularly suitable when additional stability is required to counteract vibrations or mechanical loads. Use in combination with other plinth components such as levelling feet or double swivel castors enables precise height adjustment and secure fastening. Compatibility is limited to enclosures of the AX system with an exact depth of 300 mm.

Functions and Equipment in Detail

The product consists of two plinth elements made of sheet steel, providing high mechanical strength. The caps are made of plastic and serve for aesthetic finishing as well as protection against dust and mechanical damage. The colour of the components is RAL 9005, corresponding to a dark grey, which matches visually with most standard enclosure colours. The delivery includes two plinth elements, two caps, and the required mounting hardware intended for installation on the enclosure plinth.

Technology Explained Simply

The plinth elements are installed laterally into the depth of the enclosure plinth to ensure vertical stabilization. The height of 200 mm provides sufficient support without significantly altering the mounting height of the enclosure. The use of sheet steel ensures high load capacity and resistance to mechanical stress. The plastic caps provide a clean finish and protect the fastening elements from contamination. Installation is carried out using the mounting hardware included in the delivery, ensuring a secure connection.

Compatibility and Accessories

The plinth element is exclusively intended for enclosures of the AX system with a depth of 300 mm. It can be used in combination with additional accessories such as levelling feet M12 (adjustable height 18–43 mm) or plinth adapters for double swivel castors and levelling feet, enabling flexible and adaptable installation. These combinations allow precise height adjustment and secure fastening of the enclosure on various surfaces.

Installation and Mounting

Installation is performed by inserting the plinth elements into the side openings of the enclosure plinth, using the mounting hardware included in the delivery. The caps are then fitted to ensure an aesthetic finish. Installation requires no special tools other than a screwdriver or appropriate wrench to tighten the fastening elements. Positioning is done in the depth of the plinth to achieve optimal stabilization.

Advantages in Operation

Using the plinth element improves the mechanical stability of the enclosure, which is particularly beneficial in the presence of vibrations or when mounted on uneven surfaces. The defined height of 200 mm enables consistent mounting height, simplifying maintenance and operation. Combination with levelling feet or adapters expands application possibilities and allows precise adaptation to different surfaces. The materials sheet steel and plastic ensure long service life and resistance to wear.

General
MaterialSocket elements: sheet steel, cover caps: plastic
ColourRAL 9005
Scope of delivery2 socket elements, 2 covers, including mounting material
Height200 mm
Suitable forEnclosure type: AX, depth: = 300 mm


Product data sheet
Datasheet for Rittal 2830320, EAN: 4028177037663
