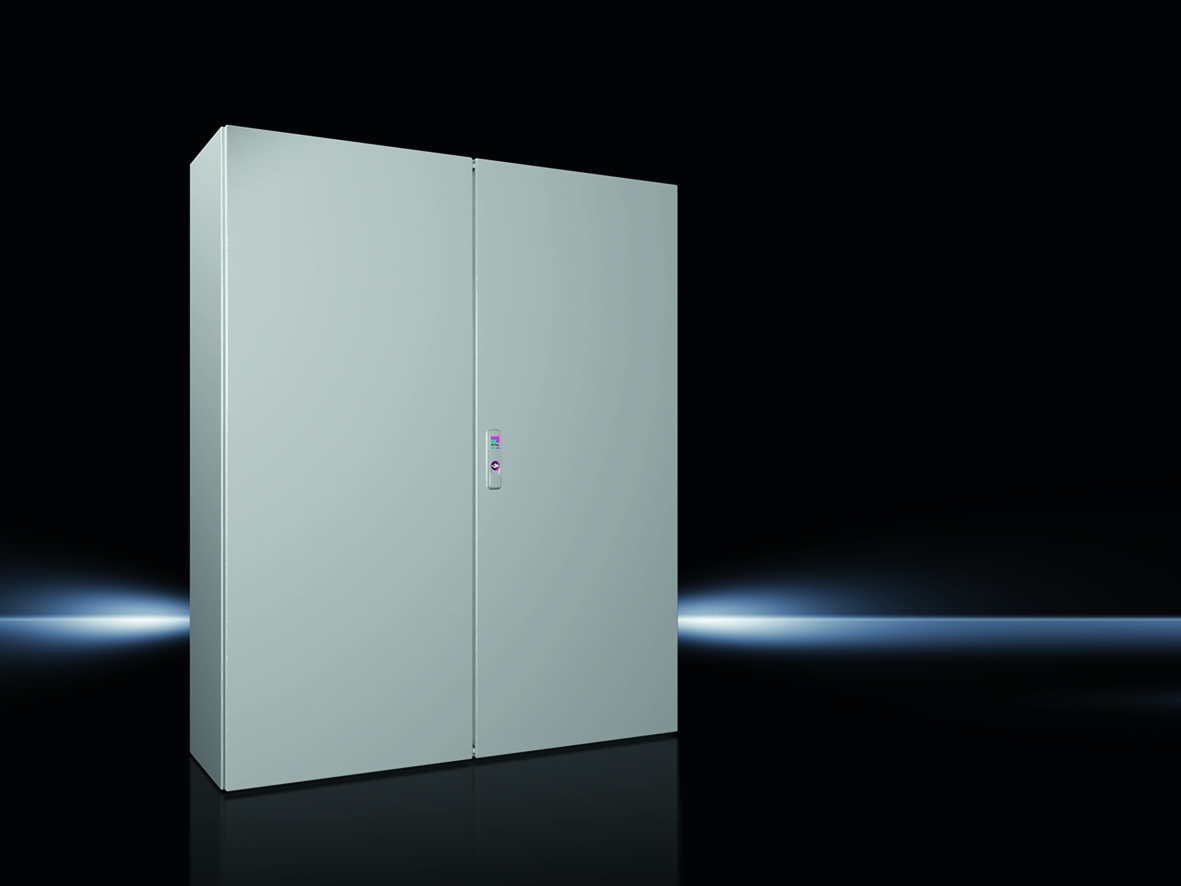

Rittal 1213000 Compact enclosure AX, 2-door, 1000x1200x300 mm
|
381,66 EUR 382,85 EUR |
|
|
( 454,18 EUR incl. VAT ) ≈ £319.45 | ≈ $419.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598183 |
| Mfg Part No: | 1213000 |
| UPC/EAN: | 4028177813205 |
| Weight: | 73.8 kg |
| Type: | AX 1213000 |
Product information for Rittal 1213000:
Applications
This enclosure is designed for use in indoor environments and in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for industrial installations. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and areas with solid foreign objects and dirt. The IK code IK10 indicates high mechanical strength against mechanical impacts.
Functions and Equipment in Detail
The enclosure is made of steel sheet with a material thickness of 1.5 mm, while the doors are made of 2 mm thick steel sheet. The mounting plate has a material thickness of 2.5 mm. The integrated enclosure lugs in a 25 mm system grid allow flexible and drill-free mounting of internal mounting rails and accessories. The base mounting rail provides an additional mounting level and increases load capacity. The doors open up to 130° (upgradable to 180°) and are fitted with screwed hinges. The mounting plate features keyhole slots for earthing and dimension markings and is secured with ring weld nuts.
Technical Explanation
The integrated enclosure lugs in the 25 mm grid enable modular interior fitting without drilling, thereby maintaining the protection rating (UL approval). The PU seal ensures a tight closure and prevents ingress of dust and moisture. The 3-point locking system ensures secure and stable latching. The powder-coated surface provides corrosion protection and is resistant to mineral oils and lubricants.
Compatibility and Accessories
The enclosure can be easily planned and configured using the Rittal RiPanel configurator. Compatible accessories include lock inserts made of zinc die-cast, TS mounting rails for internal and external mounting levels, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, VX system chassis, plinth trim panels and plinth elements, as well as stainless steel protection roofs. These components allow individual adaptation to specific requirements.
Mounting and Installation
Mounting is done via the integrated enclosure lugs and the base mounting rail. The gland plates in the enclosure base allow secure wall fixation. The mounting plate features keyhole slots for earthing and dimension markings, simplifying installation. The doors are fitted with door hole strips, enabling flexible mounting of control components.
Operational Advantages
The enclosure offers high mechanical strength (IK10), reliable protection against dust and splashing water IP 55), and flexible interior fitting without drilling. The modular construction and compatibility with a wide range of accessories enable individual adaptation to different requirements. The surface treatment ensures long service life and resistance to environmental influences. A QR code on the enclosure body, door, and type plate enables unique identification and easy access to relevant product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.200 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 1.175 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 6, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 244.81 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
