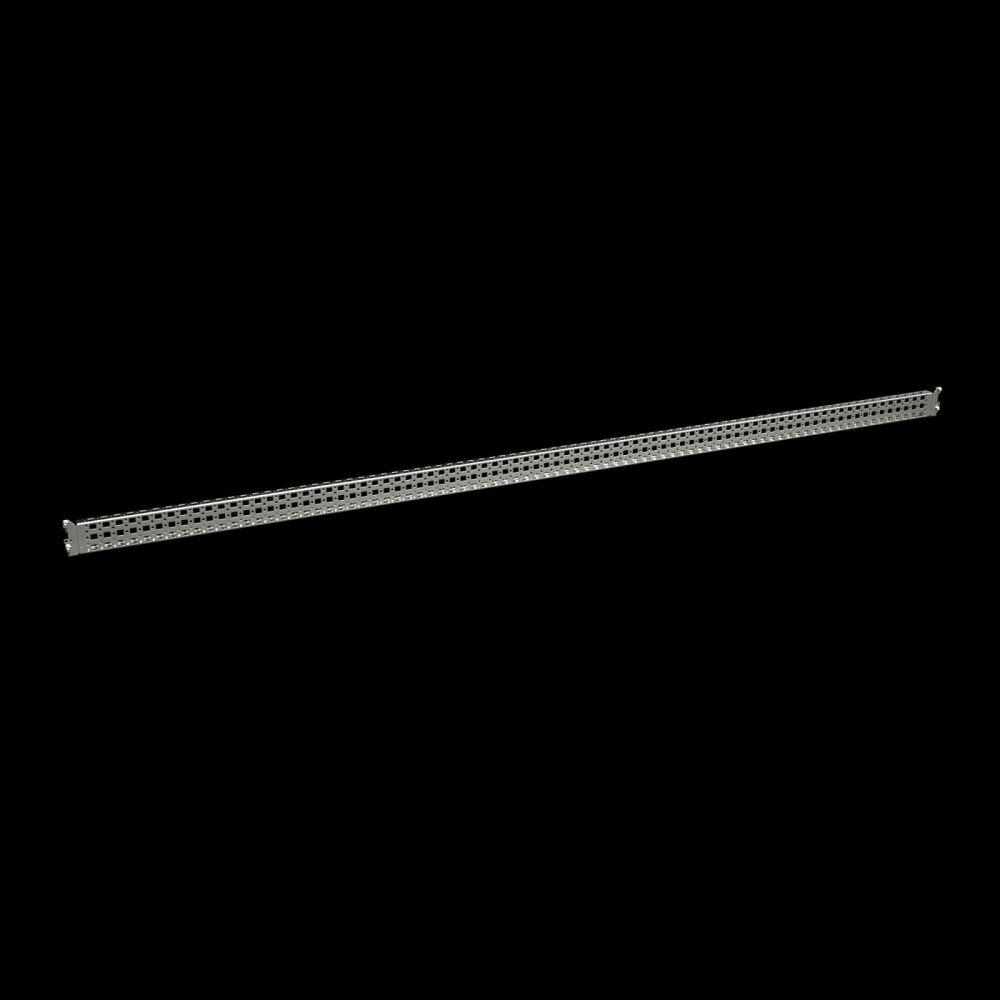

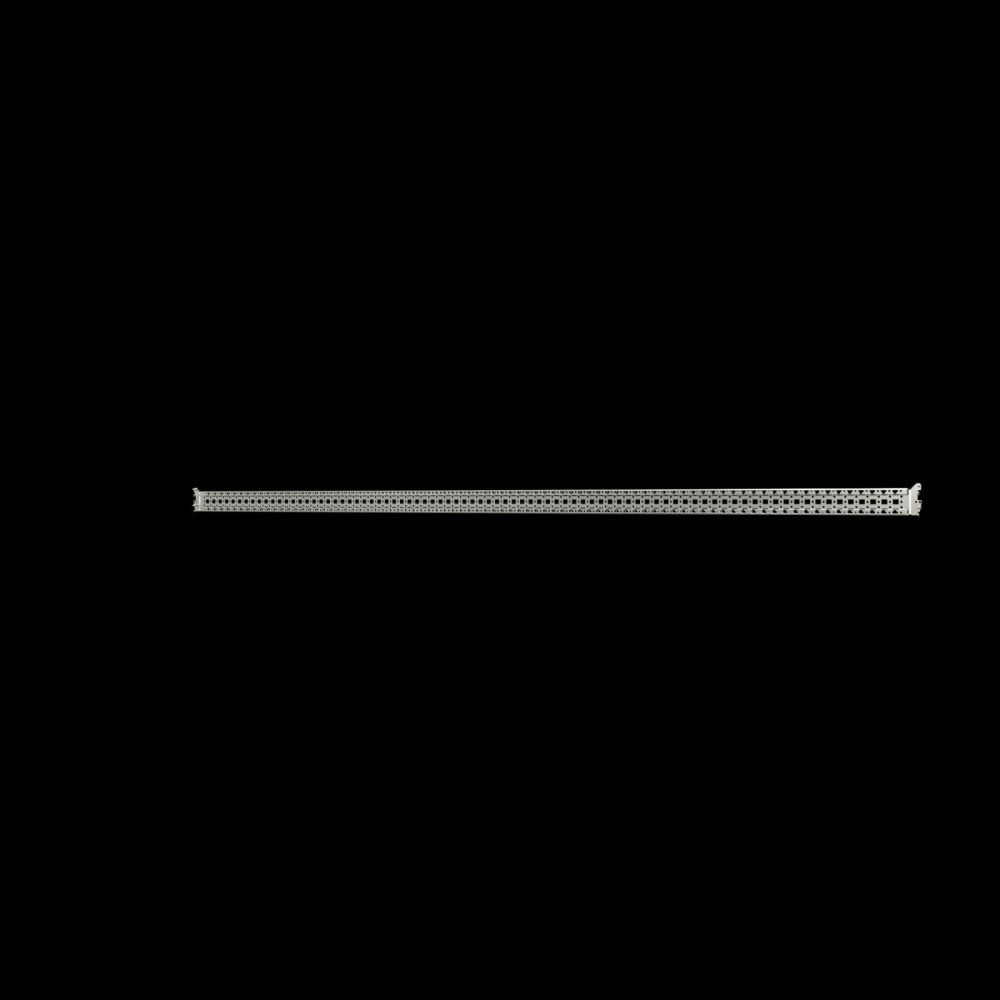

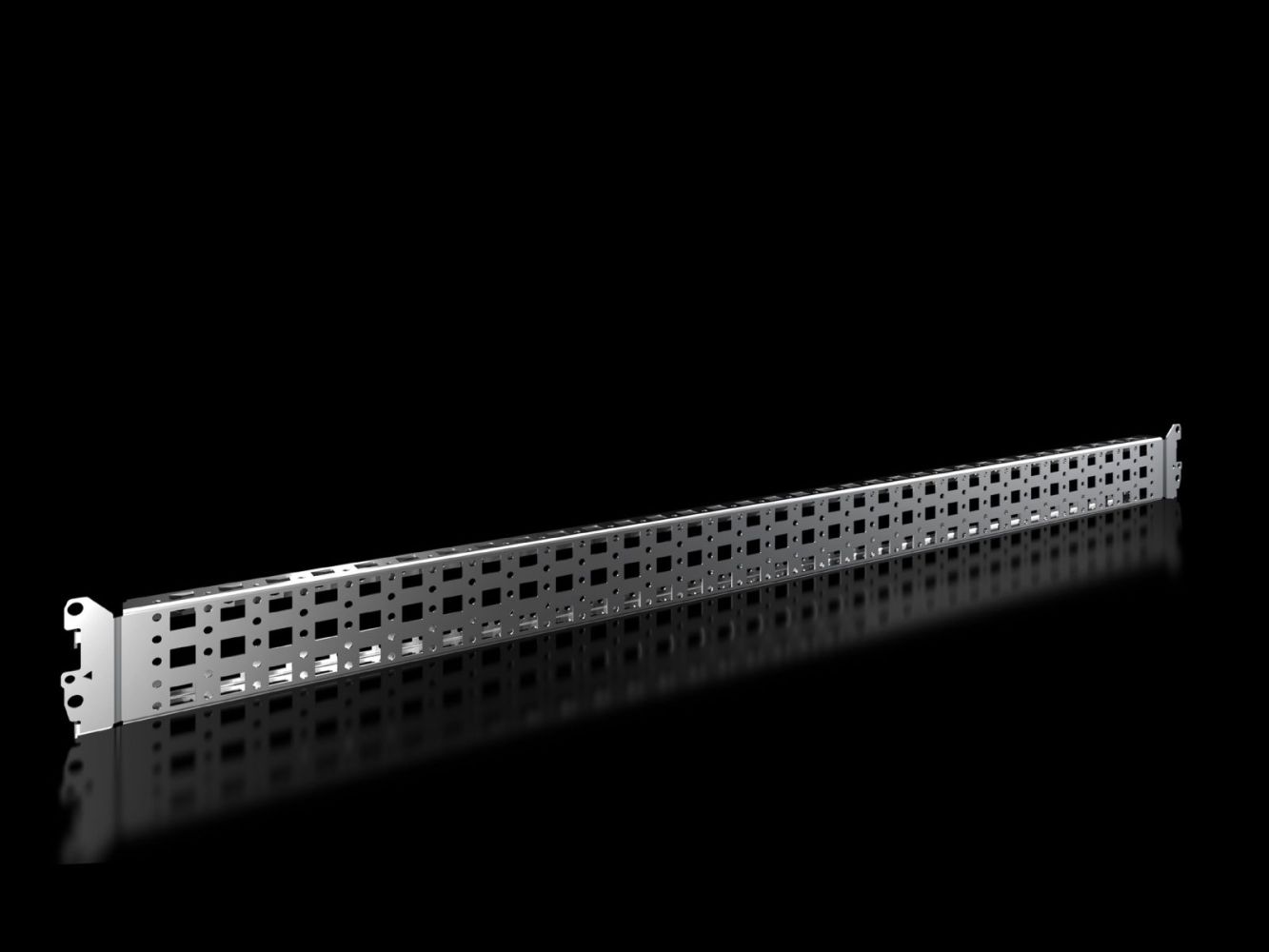

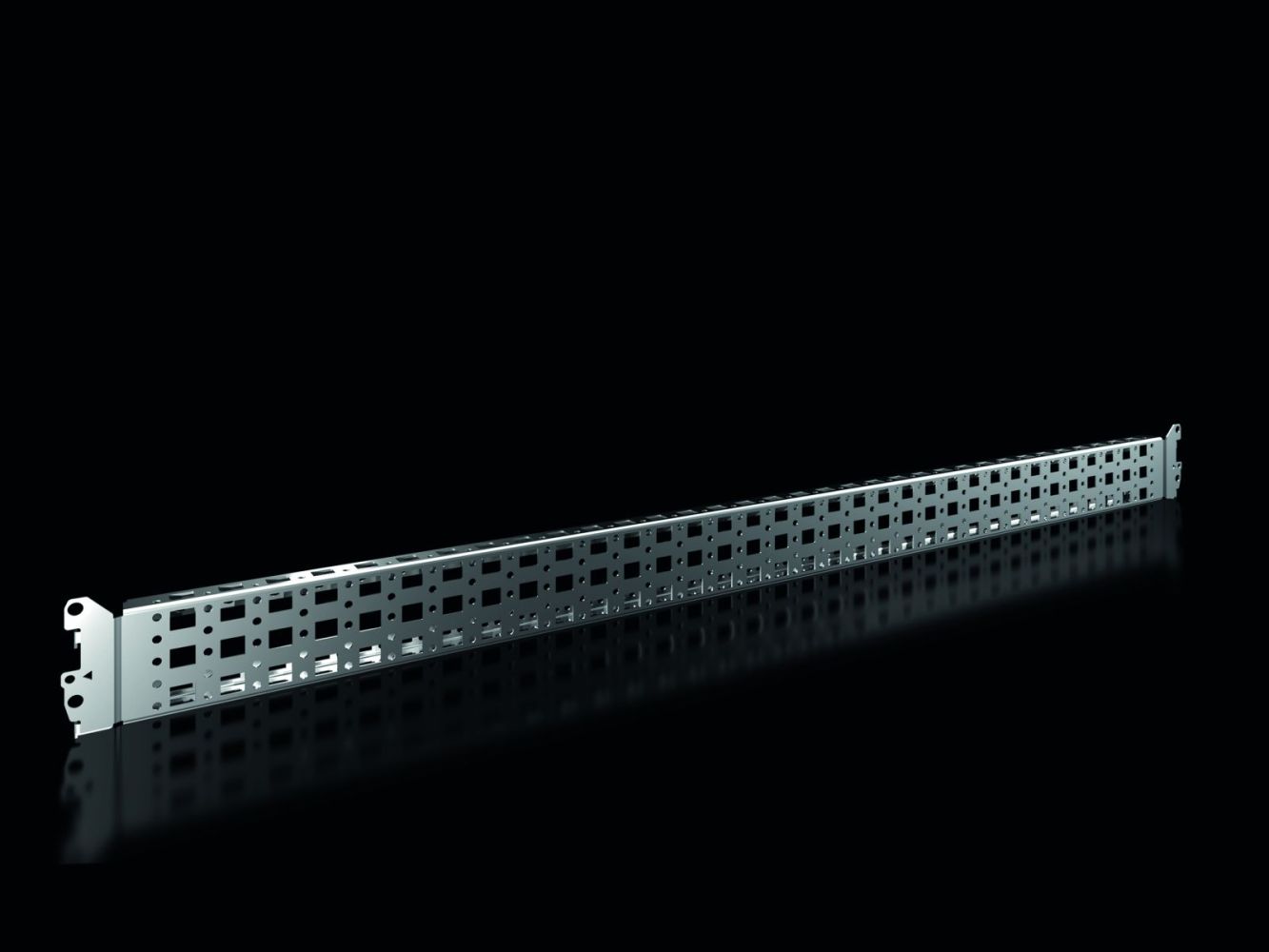

Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm
|
88,09 EUR 90,90 EUR |
|
|
( 104,83 EUR incl. VAT ) ≈ £73.73 | ≈ $96.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441092 |
| Mfg Part No: | 8617150 |
| UPC/EAN: | 4028177829152 |
| Weight: | 4.22 kg |
| Type: | VX 8617.150 |
Product information for Rittal 8617150:
Applications
The system chassis is used in industrial electrical and IT installations where modular and adaptable interior fitting is required. It is particularly suitable for enclosures with a width, height, or depth of 1,000 mm, with mounting taking place on the inner mounting plane. Its use in combination with various enclosure types such as VX, VX SE, or AX allows for flexible application in different enclosure configurations. For AX enclosures, mounting is possible in conjunction with the AX interior fitting rail and the AX base fitting rail. For AX stainless steel enclosures, the base fitting rail is required, while for VX plinth systems, mounting is done on plinth trim panels or corner pieces in combination with plinth fitting angles.
Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling easy and quick mounting into the existing perforation of the enclosure frame. Mounting is done by inserting into the system perforation and then screwing in place. Additional perforations for cage nuts are integrated at the top and bottom, allowing components to be secured using metric screws. This increases flexibility when mounting devices such as switches, relays, or controls.
Technology Explained Simply
The system chassis is made of sheet steel and galvanized, providing high mechanical stability and corrosion protection. The galvanized surface protects the material from environmental influences, especially in industrial environments. The dimensions of 23 x 64 mm refer to the perforation and mounting flanges intended for securing components. The perforation on all four sides allows for versatile mounting and adaptation to different requirements. The cage nut perforations at the top and bottom offer additional mounting options for components that cannot be mounted directly to the perforation.
Compatibility and Accessories
The chassis is compatible with enclosure types VX, VX IT, VX SE, and AX. For VX SE enclosures, the use of an adapter rail for VX compatibility is required. For AX enclosures, the AX interior fitting rail and the AX base fitting rail are needed. For AX stainless steel enclosures, the base fitting rail is required, while for VX plinth systems, mounting is done on plinth trim panels or corner pieces in combination with plinth fitting angles. Suitable accessories include cable ties L150 mm and universal angles for AX plastic, which serve for additional mounting and securing of cables and components.
Mounting and Installation

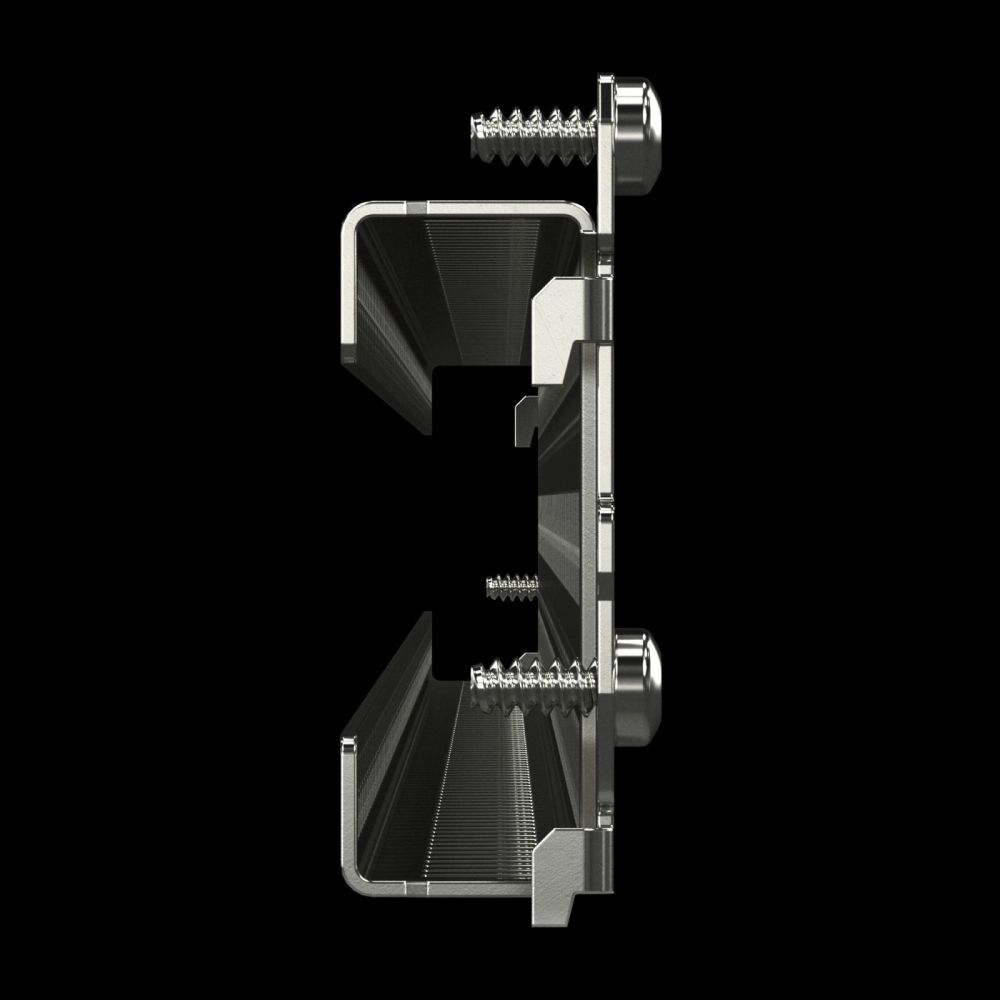

Mounting is done by inserting the chassis into the system perforation of the enclosure frame on the inner mounting plane. It is then screwed in place using the included fastening material. The system perforation on all four sides allows for flexible positioning. The cage nut perforations at the top and bottom offer additional mounting options for components. Mounting is simple and requires no special tools, except a screwdriver or an appropriate key for the screws.
Advantages in Operation
The system chassis offers a flexible and modular solution for the interior fitting of enclosures. The simple mounting by inserting and screwing reduces installation time. The system perforation on all four sides and the cage nut perforations increase flexibility when securing components. The use of sheet steel with a galvanized surface ensures high mechanical stability and corrosion protection. Compatibility with various enclosure types and the possibility to use the chassis in combination with accessories such as cable ties or universal angles increases adaptability to different requirements in industrial applications.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width/depth 1000 mm, on the inner mounting plane |
| Mounting options VX SE | In cabinet width 1000 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility |
| Mounting options AX | In enclosure width/height 1000 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | In housing width/height 1000 mm, in combination with floor mounting rail |
| Mounting options VX socket | In base width/depth 1000 mm at the base panels, in combination with base mounting brackets, In base width 1100 mm when mounted on base corner pieces |
| Suitable for | Cabinet type: VX, VX IT, VX SE, AX; Suitable for width or height or depth: 1,000 mm |
| PCF/VE (Cradle-to-Gate) | 21,96 |
Questions & answers
What is the delivery time of Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm?
The article Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617150 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
