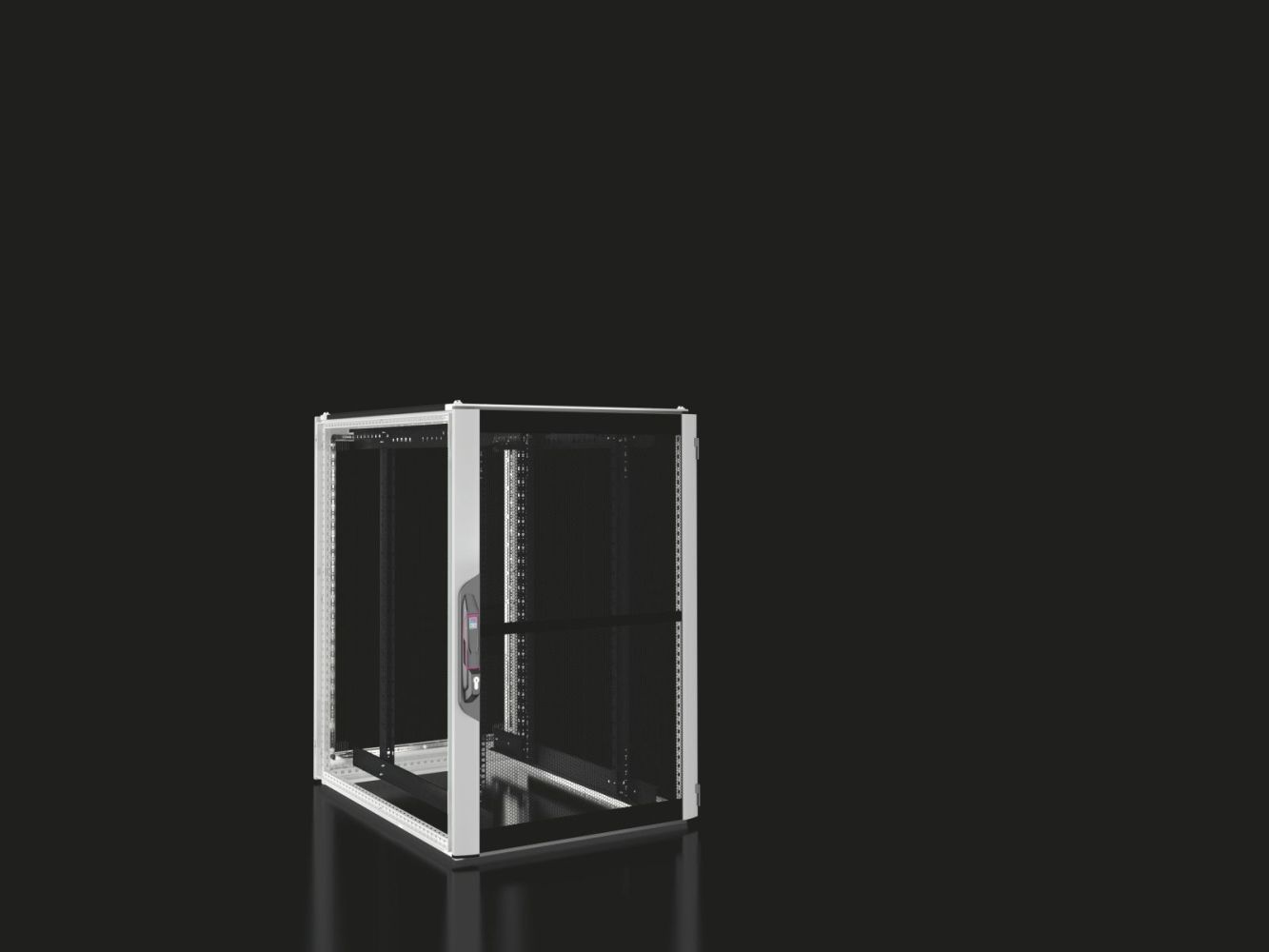

Rittal 5304116 Server rack VX IT ventilated 800x1200x1000 mm 24 U
|
1.281,22 EUR |
|
|
( 1.524,65 EUR incl. VAT ) ≈ £1,072.38 | ≈ $1,408.06 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775559 |
| Mfg Part No: | 5304116 |
| UPC/EAN: | 4028177944886 |
| Weight: | 73.2 kg |
| Type: | VX 5304116 |
Product information for Rittal 5304116:
Applications
This rack is suitable for use in data centers, server rooms, IT distributions, and other environments where IT devices such as network switches, routers, servers, or storage systems are installed in a closed but ventilated housing. The ventilated doors at front and rear ensure efficient airflow, with the open area in the perforated section of both doors amounting to approximately 85%. The front door is made of aluminium (1.25 mm) and sheet steel, is single-piece and equipped with 180° hinges, allowing full opening. The rear door is also ventilated and made of sheet steel (1.5 mm), also with 180° hinges. The door opening may vary depending on installation location and should be considered during planning.
Functions and Equipment in Detail
The rack features a torsion-resistant frame structure made of rolled, 9-fold flanged, closed hollow profiles, welded symmetrically on all sides. The profile edges are rounded, and the frame is equipped with integrated blind rivet nuts M6 to securely fasten fittings in accordance with protection rating. The surface of the rack frame is dip-primed, the interior finish is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminium, anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The frame, rear door, and roof are painted in RAL 7035. The front ventilation grille, handle, and hinges are painted in RAL 9005.
Technology Explained Simply
The 48,3 cm ( 19 inch )-profile rails enable mounting of IT devices in standard 48,3 cm ( 19 inch ) format. The spacing between planes is 720 mm in the delivered state, with front mounting clearance of 87 mm and rear clearance of 720 mm. The rack depth of 1000 mm provides sufficient space for installing deeper devices. The roof is multi-part and equipped with side cable entries on both sides at depth. It is prepared for mounting a fan plate, enabling integration of fan modules for additional cooling. The base is open, allowing flexible installation beneath the rack.
Compatibility and Accessories
Various accessories are available for this rack to extend functionality. These include 48,3 cm ( 19 inch )-fasteners 1 U (12 pieces included), spacers for raising a roof plate above the fan outlet (included), and internal hex socket screws (25 pieces, conductive). Compatible accessories include plinth corner pieces with plinth trim panels, drawers in various heights (2 U, 3 U), component shelves in various versions (e.g. 0.5 U, 1 U, 1.5 U), cable ducts, blanking panels (e.g. 48,3 cm ( 19 inch ) toolless fixing, 3 U), cable routing brackets, glide rails, and fan modules. These components can be used as required to optimize installation and maintenance.
Mounting and Installation
Mounting is done by screwing to the depth rails at top and bottom. The 48,3 cm ( 19 inch )-profile rails are depth-variable, allowing flexible adjustment to device height. The front and rear doors are equipped with comfort handles suitable for half cylinders and security locking 3524 E. Installation requires no special tools, as mounting elements are standardized. The open base construction allows easy integration into existing floor structures or installation of plinth trim panels.
Operational Advantages
The rack offers a high load capacity of 15,000 N, with maximum static load capacity per rack according to UL 2416 being 12,000 N. The powder-coated surface ensures high corrosion resistance and visual quality. The ventilated doors support efficient cooling of installed devices, increasing operational safety. The 180° hinges allow full door opening, facilitating maintenance and installation. The integrated blind rivet nuts enable quick and secure mounting of fittings without compromising the protection rating. The side cable entries in the roof simplify cabling and reduce the number of cable entries inside the rack.
The rack is designed for use in IT environments with room climate control and offers a robust, ventilated solution for mounting network and server systems. The combination of stable sheet steel and aluminium construction, ventilated doors, and standardized 48,3 cm ( 19 inch )-profile rails makes it a reliable choice for professional applications.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 1.000 mm |
| Height units | 24 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 720 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 180.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5304116 Server rack VX IT ventilated 800x1200x1000 mm 24 U?
The article Rittal 5304116 Server rack VX IT ventilated 800x1200x1000 mm 24 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5304116 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5304116 Server rack VX IT ventilated 800x1200x1000 mm 24 U always at the best possible price. We can give you a discount of 2% on Rittal 5304116 Server rack VX IT ventilated 800x1200x1000 mm 24 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
