Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U

Your rating:
Average rating
product review for Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U
( 4.3 / 5 ) 6 ratings

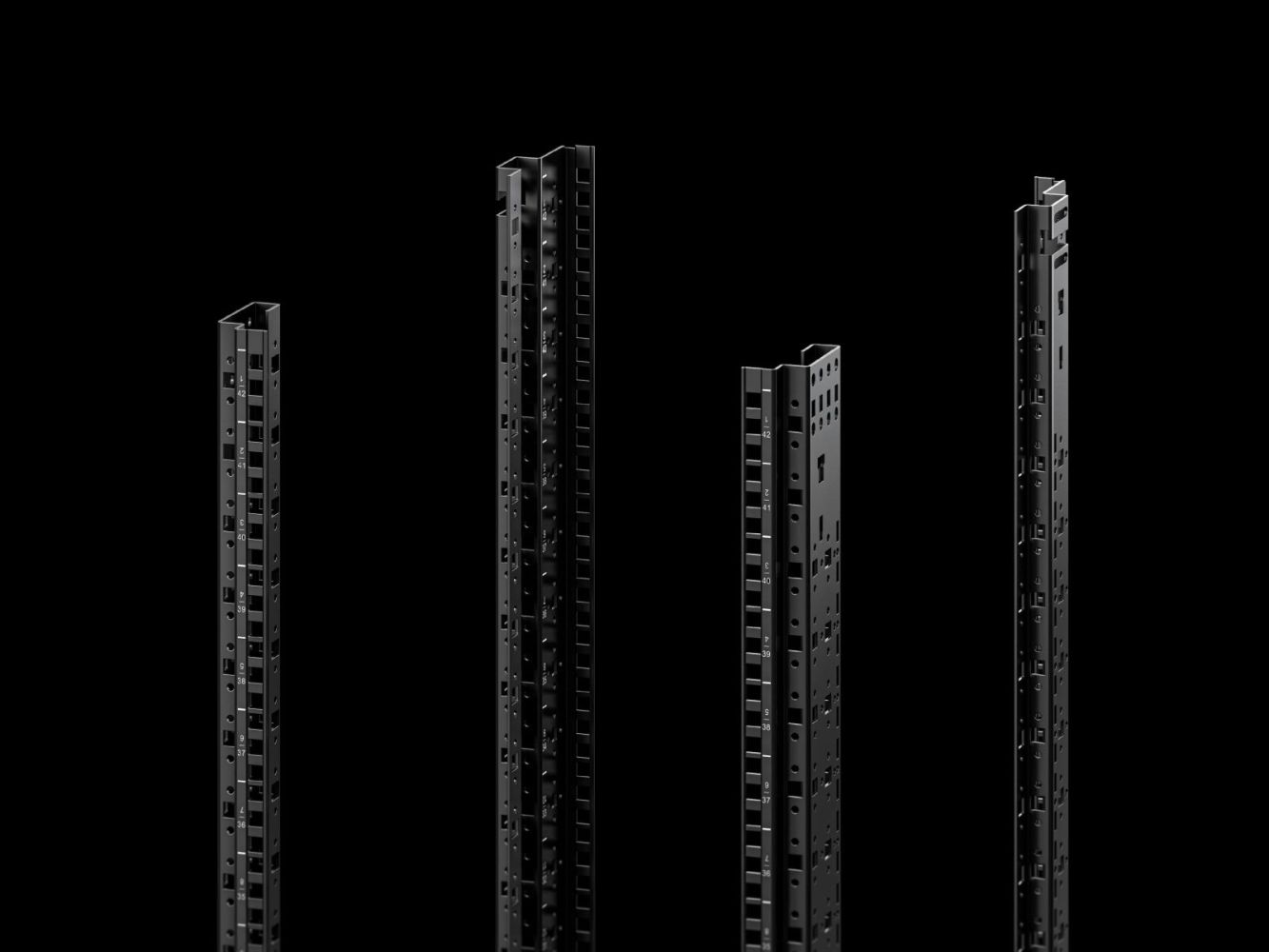

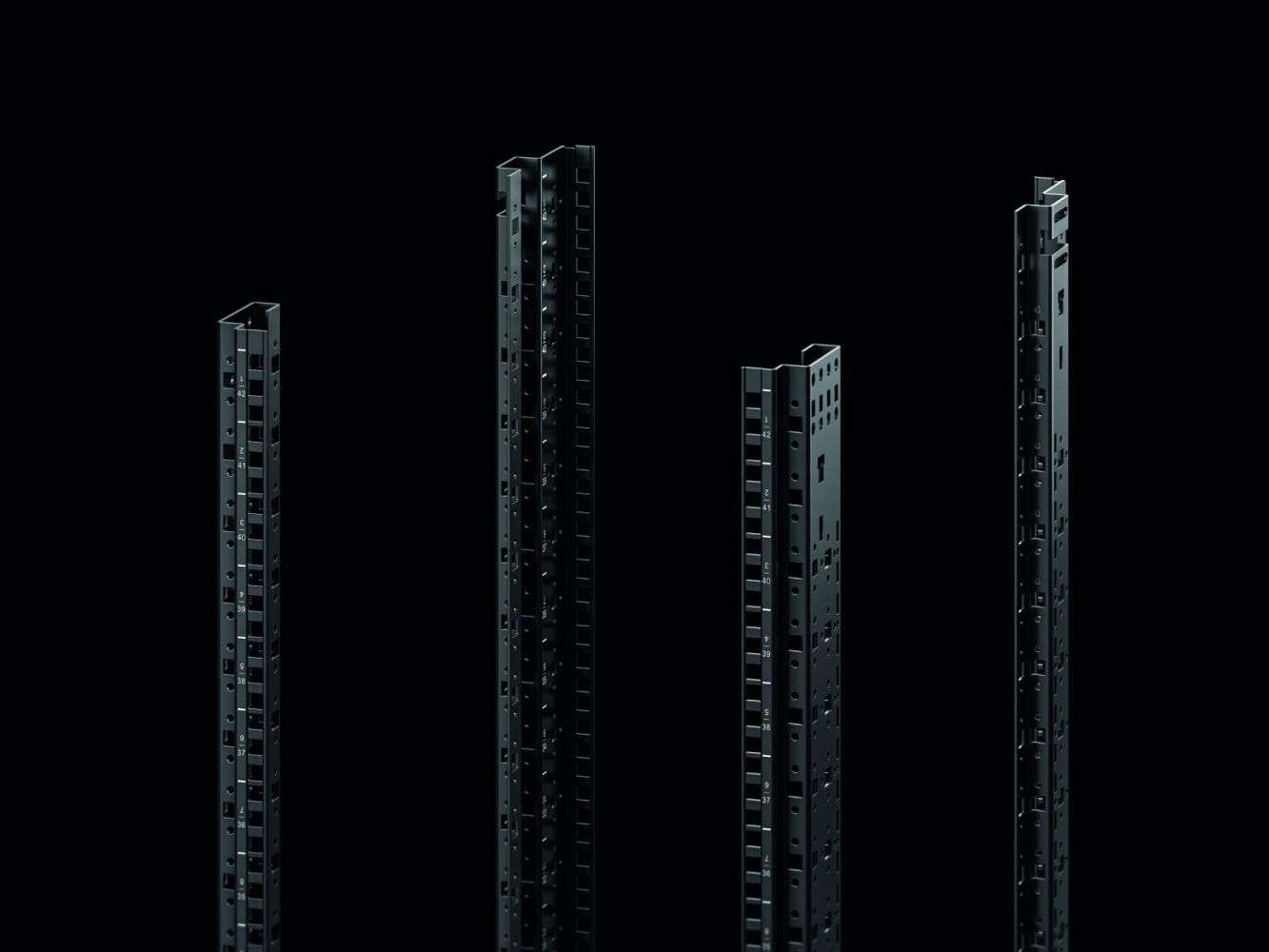

Rittal 5302103
This image may differ from the desired article.
Rittal 5302103Rittal 5302103
52,68 EUR
( 62,69 EUR incl. VAT )
≈ £44.09  |  ≈ $57.90
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U
Datasheet:file_download Download
Lieske Part No.:1714671
Mfg Part No: 5302103
UPC/EAN: 4028177955417
Weight:5.24 kg
Type:VXIT 5302103

Product information for Rittal 5302103:

The Rittal VXIT 5302103 is a 48,3 cm ( 19 inch )-profile rail standard for the VX IT enclosure system, designed for use in the rear area of the enclosure. It serves to create a metric mounting plane within the enclosure and enables the installation of server and IT components that are mounted on a 48,3 cm ( 19 inch ) system hole pattern. The L-shaped design ensures direct and stable reception of mounting kits, allowing for efficient and structured installation of devices within the enclosure.

Applications

The profile rail is specifically designed for enclosures with a height of 24 U (1,200 mm) and is mounted in the rear area of the enclosure. It is suitable for metric partial expansion or for complete installation of a mounting plane within the VX IT system. The mounting width can vary between 53,3 cm ( 21 inch ) and 61 cm ( 24 inch ) depending on the chosen mounting method and enclosure dimensions, enabling flexible adaptation to different enclosure configurations.

Functions and Equipment in Detail

The rail features integrated system holes in U grid on the front and side surfaces, enabling precise, U-based mounting of cable management elements and other components. The bidirectional U labeling supports orientation and structuring of the installation. The side round and square holes in U grid allow flexible mounting of components. An equipotential bonding within the mounting plane and with the frame is achieved via the mounting elements, ensuring a safe electrical connection.

Technology Explained Simply

The profile rail is made of sheet steel with a thickness of 2 mm, coated with a primed surface in the color RAL 9005. This coating provides sufficient corrosion protection and is suitable for use in industrial environments. The metric mounting hole pattern corresponds to the EIA 310 E standard and includes a U center mounting, ensuring compatibility with common server and IT systems. Mounting is done in combination with a cross brace, depth brace, or mounting angle, with the choice of mounting method depending on the specific enclosure dimensions.

Compatibility and Accessories

The profile rail is designed for the VX IT enclosure system and can be combined with suitable accessories to ensure stable mounting. These include, for example, the VX IT depth brace for 48,3 cm ( 19 inch ) standard 700/800x1200 mm, the VX IT cross brace for 48,3 cm ( 19 inch ) stand/dyn 800 mm, and the VX IT mounting angle for 48,3 cm ( 19 inch ) standard, W: 600 mm. These elements enable secure and flexible mounting of the rail within the enclosure.

Mounting and Installation

The profile rail is mounted in the rear area of the enclosure. A combination with a cross brace, depth brace, or mounting angle is required to securely fix the rail. The exact selection of mounting elements depends on the specific enclosure dimensions. The rail is mounted using the included mounting material, which is part of the delivery scope.

Operational Advantages

The VXIT 5302103 provides a stable and precise mounting base for IT and server components in the VX IT system. The integrated system holes and bidirectional labeling facilitate structuring and orientation within the enclosure. Compatibility with the EIA 310 E standard and the flexible mounting width from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ) increase adaptability to different requirements. The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and durability.

The packaging unit includes 2 pcs of the profile rails, with the net weight per packaging unit being 5 kg. The product is designed for use in industrial enclosures and meets the requirements for safe and structured mounting of IT components.

General
Modelfor VX IT 19" standard profile rail
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionBack side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 24 U, = 1,200 mm
PCF/VE (Cradle-to-Gate)19.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302103, EAN: 4028177955417

Questions & answers

What is the delivery time of Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U?

The article Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U always at the best possible price. We can give you a discount of 2% on Rittal 5302103 48,3 cm ( 19 inch ) profile rails standard, rear, 24 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
