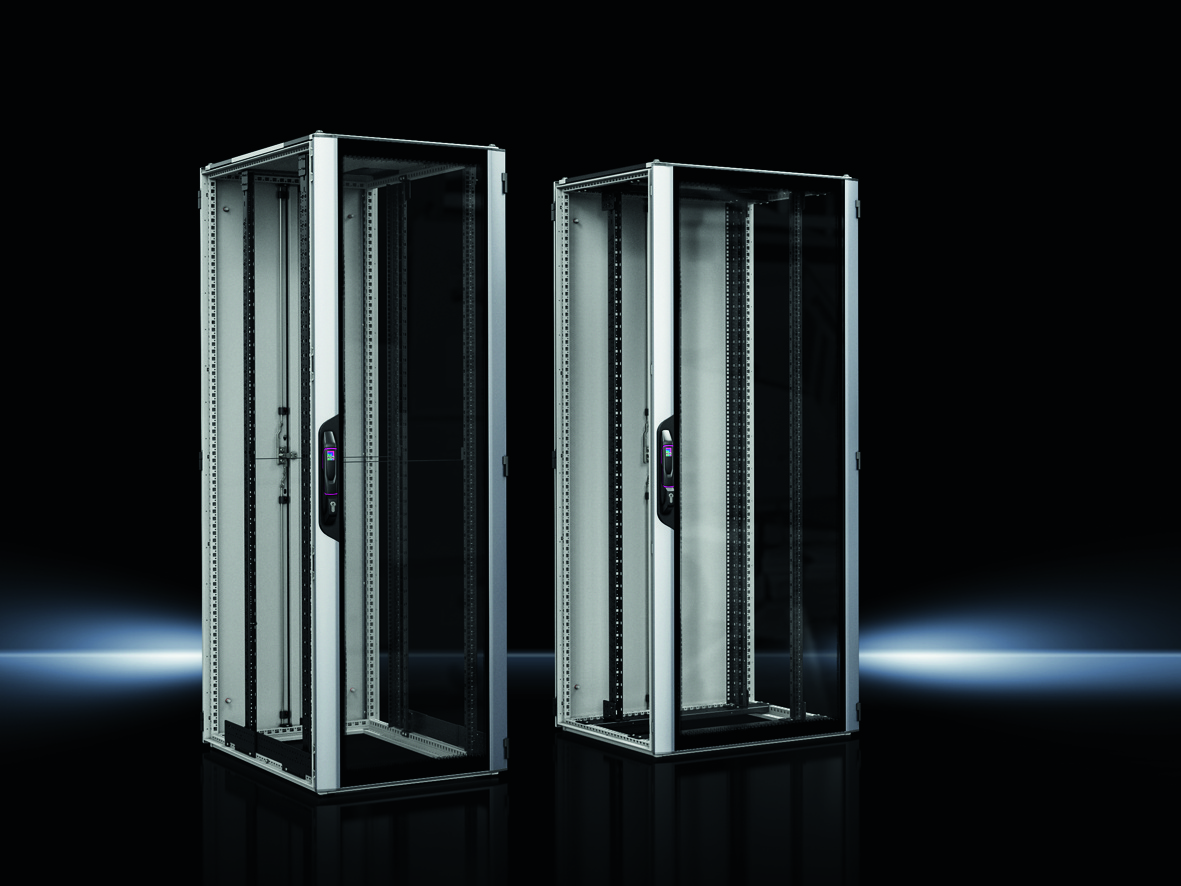

Rittal 5326121 Server rack VX IT closed 600x1200x600 mm 24 U
|
962,90 EUR |
|
|
( 1.145,85 EUR incl. VAT ) ≈ £805.95 | ≈ $1,058.23 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775803 |
| Mfg Part No: | 5326121 |
| UPC/EAN: | 4028177945432 |
| Weight: | 51.8 kg |
| Type: | VX 5326121 |
Product information for Rittal 5326121:
Applications
This enclosure is suitable for use in data centers, server rooms, IT distribution areas, and other environments where a closed, robust, and yet easily accessible rack solution is required. The closed design with a viewing door at the front and a steel sheet door at the rear provides protection against dust, foreign objects, and unauthorized access. The aluminum viewing door at the front, equipped with 180° hinges, allows for a full opening angle, ensuring excellent visibility and accessibility to the devices inside. The rear steel sheet door with 130° hinges provides secure closure and is suitable for use in enclosed rooms. The door locks are fitted with comfort handles for half cylinders, enabling secure and convenient operation.
Functions and Equipment in Detail
The enclosure consists of a torsionally rigid frame structure made of rolled, 9-fold bent, closed hollow profiles arranged symmetrically on all sides. The perforation follows a 25 mm grid, enabling flexible mounting. The profiles are fitted with integrated blind rivet nuts M6 to allow attachment of fittings without compromising the protection rating. The front door is made of aluminum with a thickness of 1.25 mm and is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The rear door is made of steel sheet with a thickness of 1.5 mm and is dip-primed and powder-coated. The roof plate is multi-part and includes a cable entry at the rear transversely, as well as preparation for a fan plate, facilitating the integration of fans or climate control units.
Technology Explained Simply
The load capacity of the enclosure is 7,500 N, with a maximum static load capacity per enclosure according to UL 2416 of 6,000 N. This ensures safe use even under high loads. The IK code classification IK08 means that the enclosure is protected against mechanical impacts such as shocks or vibrations up to a certain degree, making it suitable for use in industrial or technical environments. The surface of the frame structure is dip-primed, the interior fittings are painted, while the rear door and roof are powder-coated. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, with interior fittings and handle components in RAL 9005.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories that meet individual requirements for installation and operation. These include, for example, cable management panels, cable managers, socket strips, drawers, cable ducts, levelling elements, castors, and magnetic labelling frames. These components enable optimized cable routing, improved accessibility, and efficient use of the enclosure space. The 48,3 cm ( 19 inch ) fasteners (12 pieces) and conductive internal hex socket screws (25 pieces) are included in the delivery scope and serve for secure mounting of devices.
Mounting and Installation
Mounting is performed via the designated mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch ) plane is positioned at the front, creating a mounting clearance of 87 mm at the front and 435 mm at the rear. This allows for flexible device arrangement and sufficient air circulation. The floor of the enclosure is open, enabling installation of floor plates or levelling elements. The roof construction is multi-part and features a cable entry at the rear transversely, facilitating cabling from above.
Advantages in Operation
The enclosure offers high mechanical stability, secure locking, and optimized accessibility. The viewing door allows for quick visual inspection of the devices, while the closed rear side provides protection against dust and foreign objects. The integrated spacers (height 50 mm) allow for raising a cover plate above the fan outlet in the roof plate, supporting passive ventilation. The comfort handles for half cylinders ensure convenient and secure operation of the doors. The IK08 protection class ensures high mechanical robustness, making the enclosure suitable for demanding operating conditions.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 1.200 mm |
| Depth | 600 mm |
| Height units | 24 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 435 mm |
| Mounting position 19" rack | Front side |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | multi-part, with cable entry at rear transverse and prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front side |
| Mounting type for profile rail | 19"-level front |
| Load capacity | 7.500 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 6.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 127.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5326121 Server rack VX IT closed 600x1200x600 mm 24 U?
The article Rittal 5326121 Server rack VX IT closed 600x1200x600 mm 24 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5326121 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5326121 Server rack VX IT closed 600x1200x600 mm 24 U always at the best possible price. We can give you a discount of 2% on Rittal 5326121 Server rack VX IT closed 600x1200x600 mm 24 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
