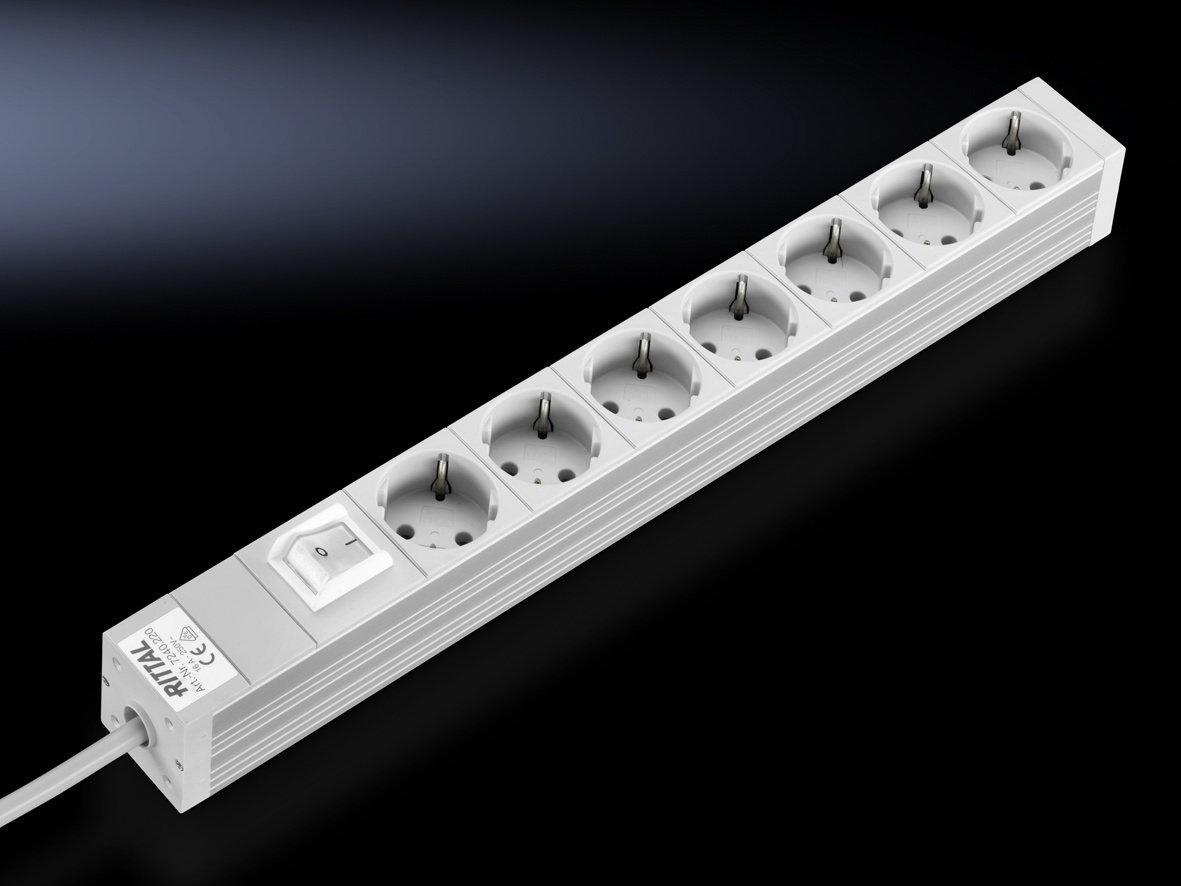

Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A
|
53,72 EUR |
|||||||||||
|
( 63,93 EUR incl. VAT ) ≈ £44.97 | ≈ $59.04 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 994724 | ||||||||||
| Mfg Part No: | 7240220 | ||||||||||
| UPC/EAN: | 4028177221178 | ||||||||||
| Weight: | 0.88 kg | ||||||||||
| Type: | DK 7240220 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7240220:
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: DIN 49 440-1
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177221178
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: With rocker switch
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
Enclosure frame
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 7
Jack/socket (type): D, earthing-pin (type F, CEE 7/3)
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.9 kg
| General | |
| Material | Aluminium profile, natural anodised, socket inserts: polycarbonate |
| Scope of delivery | Power strip, 2 mounting brackets, including fastening material, including connection cable, without plug, 2 m, H05VV-F3G1,5 |
| Model | With toggle switch |
| Socket outlets | 7 x D, Schuko (Type F, CEE 7/3) |
| Height | 44 mm |
| Depth | 44 mm |
| Length | 482,6 mm |
| Connection cable length | 2 m |
| Connection cable (type) | H05VV-F3G1,5 |
| Mounting dimension | 452,5 mm |
| Tolerance mounting dimension | ± 25 mm |
| Rated operating voltage | 250 V AC, 50 Hz |
| Nominal voltage | 250 V AC, 50 Hz |
| Rated current (max.) | 16 A |
| Electrical connection type | Cable end sleeves |
| Mounting options | Components with 25 mm pitch, cabinet frame, IT wall distributor, rear, transverse (if sufficiently wide), 482.6 mm (19") plane |
| Note | A load current reserve to prevent false tripping due to inrush current peaks is recommended depending on the application; mounting spacing variable within a range of 25 mm; the dimension indicated is center-to-center distance of mounting brackets |
| Standards | DIN 49 440-1 |
| Socket top colour | Grey |
Questions & answers
What is the delivery time of Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A ?
The article Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7240220 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A always at the best possible price. We can give you a discount of 2% on Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Rittal 7240220 Socket strip 48.3 cm 7-way with switch 230 V/16 A we can offer you a price of 53,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
