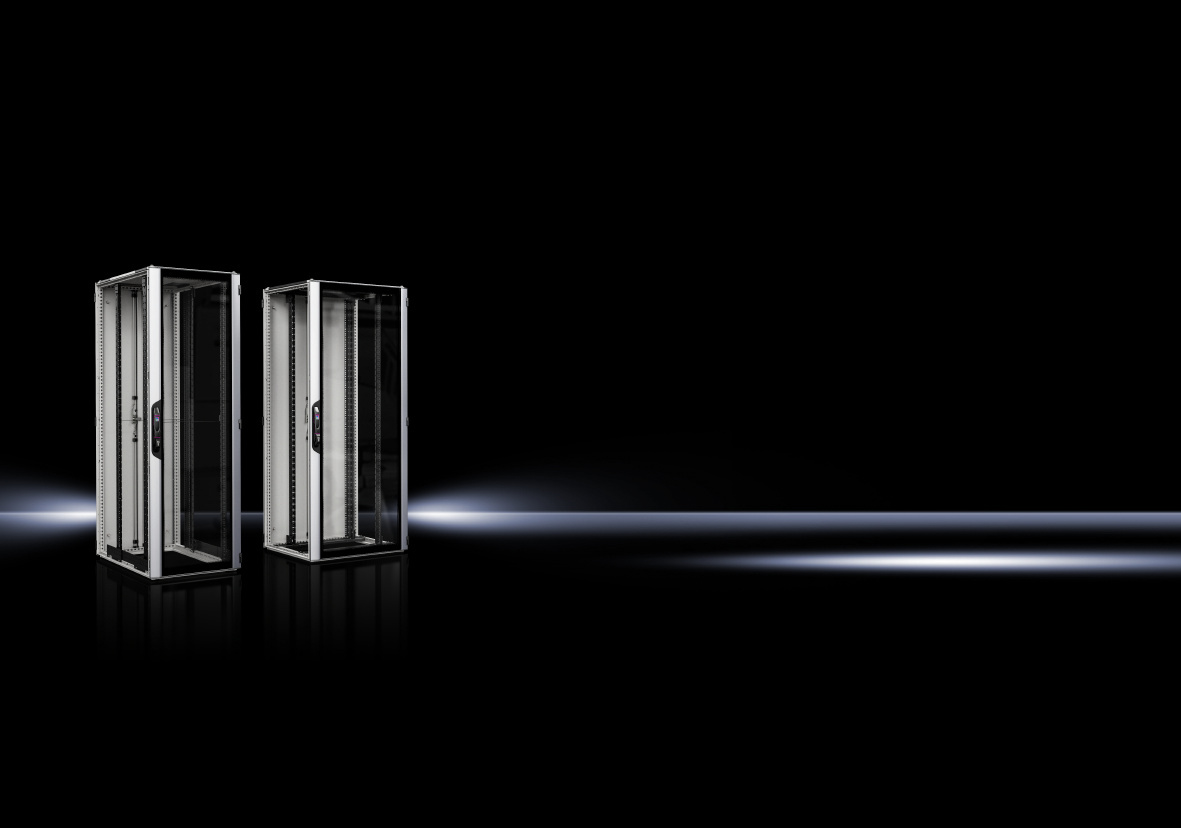

Rittal 5314126 Serverschrank VX IT closed 800x2200x1000 mm 47 U
|
1.451,76 EUR |
|
|
( 1.727,59 EUR incl. VAT ) ≈ £1,215.12 | ≈ $1,595.48 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775793 |
| Mfg Part No: | 5314126 |
| UPC/EAN: | 4028177945326 |
| Weight: | 115 kg |
| Type: | VX 5314126 |
Product information for Rittal 5314126:
Applications
The rack is designed for direct cabinet-based climate control and is suitable for use in IT and network installations where stable and secure mounting of servers, switches, routers, and other 48,3 cm ( 19 inch ) devices is required. The open floor construction and multi-part roof structure with side cable entry on both sides allow for flexible cable routing. The roof is also prepared for mounting a fan plate, facilitating integration of climate control solutions.
Functions and Equipment in Detail
The rack features 48,3 cm ( 19 inch ) profile rails standard in VX IT, which are screwed to the depth rails at the top and bottom. The mounting position of the 48,3 cm ( 19 inch ) plane is possible both at the front and rear, ensuring flexible device mounting on both sides of the rack. The spacing between planes is 720 mm in the delivered state, with the mounting clearance to the 48,3 cm ( 19 inch ) plane being 87 mm at the front and 193 mm at the rear. This enables secure and stable fixation of devices without additional adjustments.
Technology Explained Simply
The enclosure is made of steel sheet and aluminum, with the rack frame being dip-primed and the rear door and roof powder-coated. The internal components are painted, and the front door made of aluminum is anodized/painted. The base color of the rack is RAL 7035, with the front door featuring vertical silver-colored profiles and horizontal profiles in RAL 9005. Internal components, handles, and hinges are also finished in RAL 9005. The rack's load capacity is 15,000 N, with the maximum static load capacity according to UL 2416 per rack being 12,000 N. The IK code is IK08, indicating high mechanical strength against mechanical impacts such as shocks or vibrations.
Compatibility and Accessories
The rack is compatible with a wide range of accessories that extend its functionality. These include, for example, profile rails 1=2 19z rear for H:47HE, routing panels, slide rails, cable managers, socket strips, and component shelves in various heights. These components allow for individual adaptation to specific requirements such as cable management, device mounting, or additional power supply.
Mounting and Installation
Mounting is performed via the integrated depth rails, to which the profile rails are screwed at the top and bottom. The rack construction is torsionally stiff and made of welded, 9-fold bent hollow profiles, with the perforation arranged in a 25 mm grid. The integrated blind rivet nuts M6 allow for protection-rated fastening of fittings without compromising the protection rating. The dimensions are 800 mm width, 2,200 mm height, and 1,000 mm depth, with a net weight of 105 kg.
Advantages in Operation
The rack offers high mechanical stability and a robust construction suitable for use in professional environments. The 180° hinges allow for full door opening, facilitating maintenance and inspection of devices. The combination of a viewing door and a closed rear door ensures an optimal balance between visibility and protection. The roof structure prepared for fan plates supports integration of climate control systems, which is important for the thermal load on IT devices. The load capacity of 15,000 N and the IK code IK08 guarantee high safety and longevity of the rack under real operating conditions.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 1.000 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Model | Standard |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 283.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
