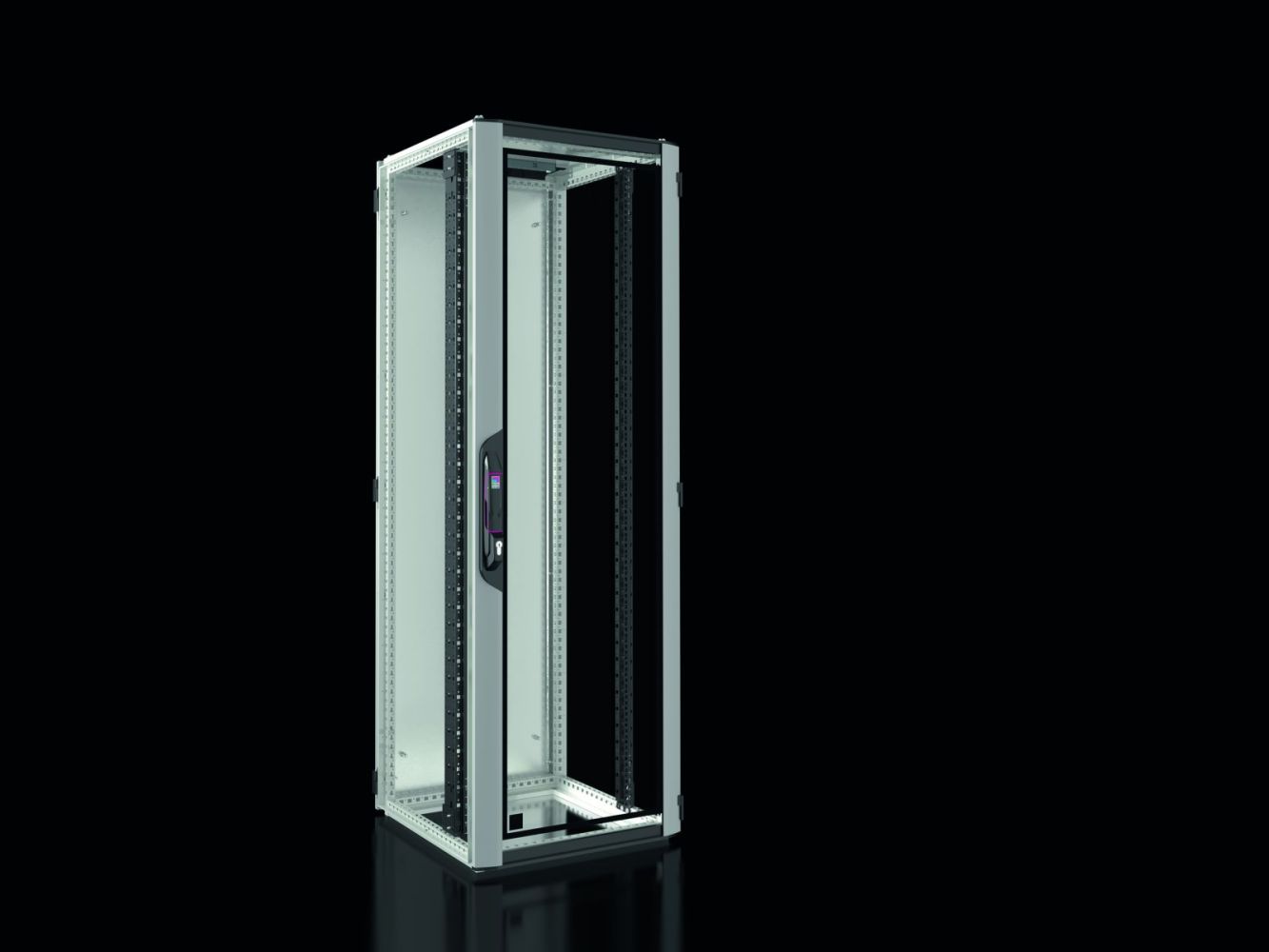

Rittal 5327121 Serverschrank VX IT closed 600x1800x600 mm 38 U
|
-8% 1.129,30 EUR 1.223,06 EUR |
|
|
( 1.343,87 EUR incl. VAT ) ≈ £945.22 | ≈ $1,241.10 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775800 |
| Mfg Part No: | 5327121 |
| UPC/EAN: | 4028177945470 |
| Weight: | 65 kg |
| Type: | VX 5327121 |
Product information for Rittal 5327121:
Applications
This rack is suitable for use in IT and network installations where a closed, structured and secure housing for servers, switches, routers and other 48,3 cm ( 19 inch )-devices is required. The configuration with a viewing door at the front and a steel sheet door at the rear enables secure access to the devices, while the integrated cable routing and preparation for fan plate in the roof area support efficient air circulation and cooling. The load capacity of 7,500 N and static maximum load of 6,000 N according to UL 2416 make it suitable for medium to high loads.
Functions and equipment in detail
The front of the rack is covered by an aluminium viewing door with 180° hinges, made of 1.25 mm aluminium and fitted with single-pane safety glass (3 mm). The rear is equipped with a steel sheet door made of 1.5 mm steel sheet, also with 180° hinges, vertically divided. Both doors are fitted with comfort handles for half cylinders, enabling secure and convenient access. The colour scheme is RAL 7035 for the enclosure frame, rear door and roof, while the front door is vertically silver and horizontally RAL 9005. Interior fittings, handles and hinges are also painted in RAL 9005.
Technology explained clearly
The rack frame is made of steel sheet and is dip-primed, creating a good corrosion protection layer. The interior fittings are painted, while the rear door and roof are powder-coated, ensuring high resistance to environmental influences. The aluminium front door is anodized/painted, providing an additional protective layer against abrasion and corrosion. The 48,3 cm ( 19 inch )-profile rails are standardly integrated in the VX IT and depth-variable, enabling flexible device mounting. The mounting clearance is 87 mm at the front and 435 mm at the rear, providing sufficient space for cables and air circulation. The roof is multi-part and features a transverse cable entry at the rear, prepared for mounting a fan plate.
Compatibility and accessories
The rack is compatible with a wide range of accessories that facilitate operation and maintenance. These include routing panels, 48,3 cm ( 19 inch )-fasteners, cable managers, Velcro tape holders, socket strips, drawers, cable ducts, cable routing trough panels, elastic clamp profiles, document clamps, transport castors, levelling elements, plinth baying brackets, plinth mounting angles, door position switches and slide rails. These components allow individual adaptation to specific operational requirements.
Mounting and installation
Mounting is done via mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch )-profile rails are depth-variable and can be adjusted according to device height. The floor construction is open, enabling flexible installation on various subfloors. The roof construction is multi-part and offers a transverse cable entry at the rear, ensuring orderly cable routing. The door opening angles may vary depending on the type and location of installation, with both front and rear doors featuring 180° hinges.
Advantages in operation
The rack offers high mechanical stability with a load capacity of 7,500 N and a static maximum load of 6,000 N according to UL 2416. The IK08 protection rating protects against mechanical impacts such as shocks and vibrations. The integrated cable routing and preparation for fan plate in the roof area support efficient cooling and air circulation. The colour scheme in RAL 7035 and RAL 9005 ensures a professional appearance that fits well in modern IT environments. The comfort handles for half cylinders enable secure and convenient access to the devices.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 600 mm |
| Height units | 38 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 435 mm |
| Mounting position 19" rack | Front side |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | multi-part, with cable entry at rear transverse and prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front side |
| Mounting type for profile rail | 19"-level front |
| Load capacity | 7.500 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 6.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 164.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5327121 Serverschrank VX IT closed 600x1800x600 mm 38 U?
The article Rittal 5327121 Serverschrank VX IT closed 600x1800x600 mm 38 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5327121 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5327121 Serverschrank VX IT closed 600x1800x600 mm 38 U always at the best possible price. We can give you a discount of 2% on Rittal 5327121 Serverschrank VX IT closed 600x1800x600 mm 38 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
