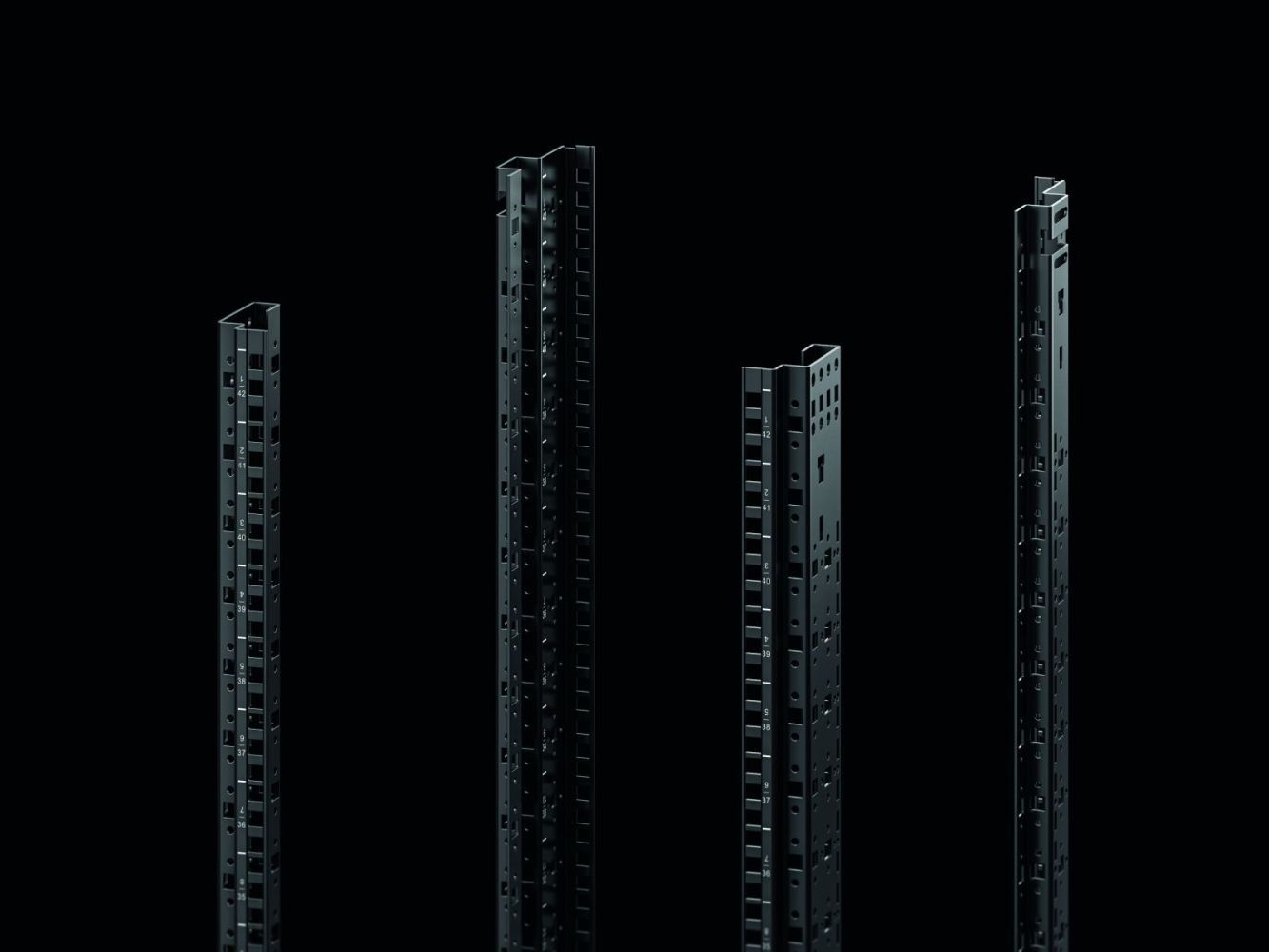

Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U

Your rating:
Average rating
product review for Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U
( 4 / 5 ) 1 ratings
Rittal 5302105
This image may differ from the desired article.
Rittal 5302105Rittal 5302105
64,40 EUR
( 76,64 EUR incl. VAT )
≈ £53.90  |  ≈ $70.78
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U
Datasheet:file_download Download
Lieske Part No.:1055451
Mfg Part No: 5302105
UPC/EAN: 4028177955431
Weight:8.14 kg
Type:VXIT 5302105

Product information for Rittal 5302105:

The Rittal VXIT 5302105 is a 48,3 cm ( 19 inch )-profile rail standard for the VX IT housing system, designed to create an inch-based mounting plane in the rear area of the enclosure. It serves as a mounting base for server and IT components that are secured to the 48,3 cm ( 19 inch ) system hole pattern. The L-shaped design allows for direct installation of common mounting kits from server systems, ensuring a stable and standard-compliant installation. The profile rail is specifically designed for enclosures with a height of 38 U (1,800 mm) and is mounted on the rear wall of the housing.

Applications

The profile rail is intended for use in the VX IT housing system, particularly for creating an inch-based mounting plane or for partial inch-based expansion. It is suitable for applications requiring structured and standardized mounting of IT and server components. The integrated, bidirectional U marking supports orientation and identification of mounting positions within the enclosure.

Functions and Equipment in Detail

The rail features integrated system holes in the U grid on the front and side surfaces, enabling U-based mounting of cable management elements and structuring cabling. The side round and square holes in the U grid offer various mounting options. Equipotential bonding within the mounting plane and with the mounting frame is achieved via the fastening elements, ensuring electrical safety. The inch-based mounting hole pattern, including U center mounting, complies with the EIA 310 E standard.

Technology Explained Simply

The profile rail is made of sheet steel with a thickness of 2 mm, primed and painted in the color RAL 9005. This surface treatment provides good corrosion protection and is suitable for use in technical environments. The L-shaped construction ensures stable fastening and enables direct mounting of devices onto the 48,3 cm ( 19 inch ) hole pattern. The integrated labeling facilitates orientation during installation and maintenance.

Compatibility and Accessories

The profile rail is designed for use with other components of the VX IT system. For mounting, a combination with a cross brace, a depth brace, or a mounting angle is required. The choice of mounting method depends on the specific enclosure dimensions. Alternative mounting widths of 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ) are achievable depending on the selected mounting method and enclosure dimensions. Suitable accessories include, for example, the VX IT depth brace for 48,3 cm ( 19 inch ) standard 700/800x1200 mm, the VX IT cross brace for 48,3 cm ( 19 inch ) stand/dyn 800 mm, and the VX IT mounting angle for 48,3 cm ( 19 inch ) standard, W: 600 mm.

Mounting and Installation

Mounting is carried out on the rear wall of the VX IT housing. The fastening requires the combination with one of the mentioned fastening elements (cross brace, depth brace, or mounting angle), with the choice depending on the enclosure configuration. The delivery includes fastening material, simplifying installation. The installation position is fixed to the rear side of the enclosure.

Advantages in Operation

The profile rail provides a stable and standard-compliant mounting base, simplifying the installation of IT and server components. The integrated holes and labeling support structured cabling and facilitate maintenance. The use of standard EIA holes ensures compatibility with a wide range of devices and accessories. The material quality and surface treatment ensure long service life and high reliability in operation.

General
Modelfor VX IT 19" standard profile rail
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionBack side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 38 U, = 1,800 mm
PCF/VE (Cradle-to-Gate)31 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302105, EAN: 4028177955431

Questions & answers

What is the delivery time of Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U?

The article Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302105 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U always at the best possible price. We can give you a discount of 2% on Rittal 5302105 48,3 cm ( 19 inch ) profile rails standard, rear, 38 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
