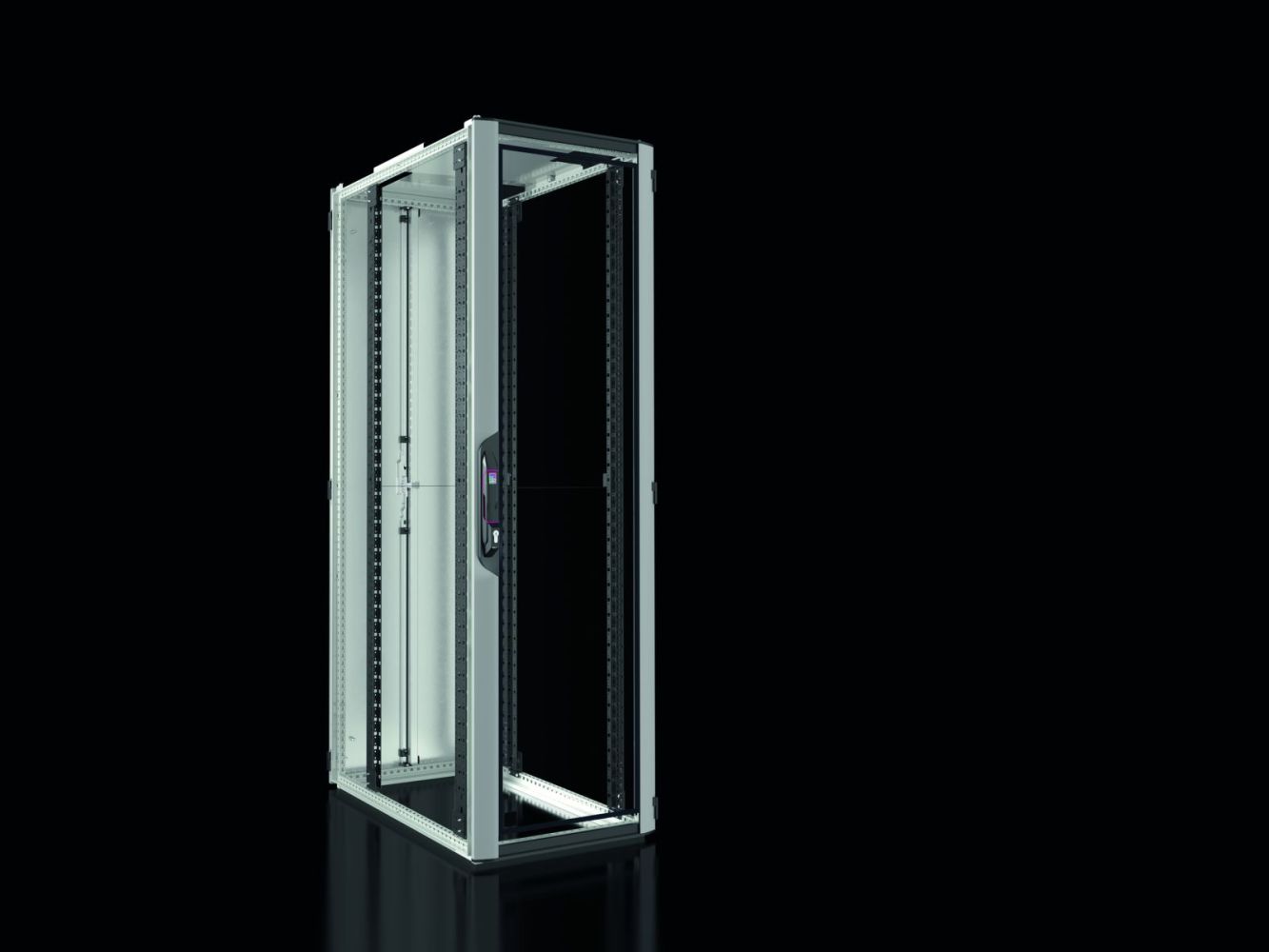

Rittal 5328123 Server rack VX IT closed 600x1800x800 mm 38 U
|
-8% 1.169,55 EUR 1.266,65 EUR |
|
|
( 1.391,76 EUR incl. VAT ) ≈ £978.91 | ≈ $1,285.34 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775798 |
| Mfg Part No: | 5328123 |
| UPC/EAN: | 4028177945494 |
| Weight: | 79 kg |
| Type: | VX 5328123 |
Product information for Rittal 5328123:
Applications include housing network and server equipment requiring direct rack-based climate control. The enclosure is designed for indoor use and is suitable for applications requiring high mechanical stability and proper device installation. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and allow mounting of IT equipment according to the 48,3 cm ( 19 inch ) standard. The rails are depth-adjustable and can be adapted to the respective device height. The mounting position of the 48,3 cm ( 19 inch ) plane is available both at the front and rear, enabling flexible installation of devices with varying mounting space requirements. The mounting clearance is 87 mm at the front and 193 mm at the rear, providing sufficient space for cable connections and cooling.
Functions and equipment in detail include a robust frame structure made of steel sheet, dip-primed, as well as an interior build that is painted. The rear door and roof are also dip-primed and powder-coated, achieving high corrosion resistance. The front door is made of aluminium and is anodized/painted, creating an aesthetically pleasing and durable surface. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical profiles in silver and horizontal profiles in RAL 9005. The interior build, as well as handles and hinges, are in RAL 9005, ensuring a consistent visual design.
Technology explained simply shows that the enclosure has a static load capacity of 15,000 N, making it suitable for use with heavy IT systems. The maximum static load capacity according to UL 2416 is 12,000 N per enclosure, ensuring safety during installation and use. The IK code IK08 indicates the mechanical protection rating and means the enclosure is protected against mechanical impacts such as shocks and vibrations up to a certain degree. The roof is multi-part and features cable entries in the corner areas at the front and rear, facilitating cable routing. The floor is open, enabling flexible installation.
Compatibility and accessories include a variety of matching components that extend the functionality of the enclosure. These include routing panels, cable managers, component shelves, drawers, cable ducts, and glide rails, which ensure organization and routing of cables as well as mounting of additional devices. The 48,3 cm ( 19 inch ) fasteners and conductive hex socket screws are included in the delivery scope and serve for secure device fastening.
Mounting and installation are performed via mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are already integrated into the enclosure and can be adjusted as needed. The spacing between mounting levels in the delivered state is 520 mm, enabling standard installation. The door opening angles may vary depending on the type and location of installation and should be considered during planning.
Operational advantages lie in high mechanical stability, easy installation and maintenance, and clear visibility of installed devices through the viewing door. The combination of robust steel sheet and high-quality aluminium and glass components ensures long service life and a professional appearance. The integrated cable entries and matching accessories facilitate installation and maintenance of IT systems.
The enclosure is designed for indoor use and meets requirements for mechanical stability and protection rating. The surface treatment ensures high corrosion resistance, and the color design in RAL 7035 and RAL 9005 fits into most technical environments. The delivery includes the enclosure frame, doors, roof plate, profile rails, spacers, 48,3 cm ( 19 inch ) fasteners, and conductive screws. The packaging unit is 1 piece, the net weight is 70 kg, and the gross weight is 79 kg. The PCF value (Cradle-to-Gate) is 194.6 kg CO2 eq (Category B), indicating the environmental impact of the product.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 800 mm |
| Height units | 38 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | multi-part, with cable entry in corner areas front and rear |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 194.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
