Rittal 8619470 VX plinth extension angle plinth trim panels H: 100/200 mm
|
19,09 EUR 19,32 EUR |
|
|
( 22,72 EUR incl. VAT ) ≈ £15.98 | ≈ $20.98 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103857 |
| Mfg Part No: | 8619470 |
| UPC/EAN: | 4028177984820 |
| Weight: | 0.289 kg |
| Type: | VX 8619470 |
Product information for Rittal 8619470:
Applications

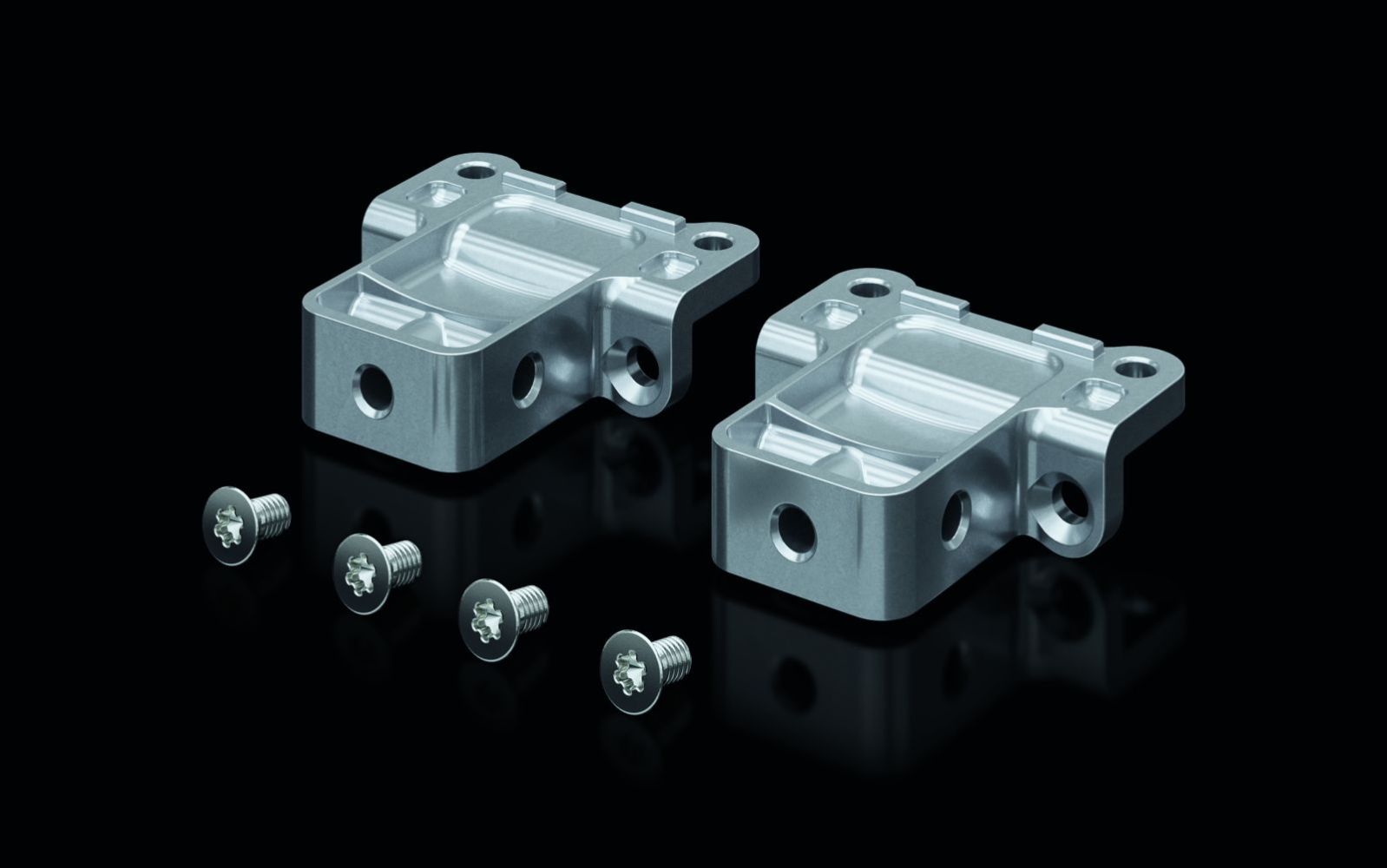

This holding/spacing piece is designed for use in industrial enclosures, particularly in systems with VX and TS enclosure profiles. It is suitable for mounting C-profile rails, cable strain relief rails, or similar components on horizontal and vertical profiles. Installation is possible on the VX enclosure profile, on the system chassis for the internal mounting plane, on vertical TS or VX SE profiles using TS 8800.806 push-on nuts or adapter rails, as well as on horizontal TS and VX SE profiles. Additionally, it can be mounted on enclosures and rails with rectangular system perforation 12.5 x 11 mm, as well as on plinth corner pieces with plinth trim panels (front and rear) and on side plinth trim panels.
Functions and Equipment in Detail
The product is made of zinc die-cast, a material suitable for its high strength and corrosion resistance in industrial environments. The delivery includes two holding or spacing pieces and the necessary fastening material. Installation is done via M8 thread, requiring M8 x 16 mm machine screws with washers for mounting a C-profile rail. The use of adapter rails is necessary with VX SE enclosure profiles to ensure compatibility.
Technology Explained Simply
The holding/spacing piece serves as a mechanical connection point, enabling components such as C-profiles or cable strain relief rails to be mounted at various positions within the enclosure. The use of zinc die-cast ensures high mechanical stability and durability, even under industrial loads. The M8 thread connection offers a universal mounting option that can be realized with standard screwdrivers. The wide range of installation options allows flexible adaptation to different enclosure configurations.
Compatibility and Accessories
The product is compatible with enclosure types VX, TS, and VX SE. It can be mounted on horizontal and vertical profiles, including the system chassis plane. For VX SE enclosure profiles, the use of an adapter rail is required to enable installation. Installation options also include plinth corner pieces with plinth trim panels and side plinth trim panels, facilitating integration into existing plinth systems.
Mounting and Installation
Installation is carried out at the designated fastening points of the enclosure profiles or rails. For VX SE enclosure profiles, the use of an adapter rail is necessary. Fastening is done via M8 thread, requiring M8 x 16 mm machine screws with washers for mounting a C-profile rail. Installation locations are diverse and include horizontal and vertical profiles, system chassis, plinth trim panels, and rails with rectangular system perforation 12.5 x 11 mm.
Operational Advantages
The holding/spacing piece offers a flexible and robust mounting solution for C-profiles and cable strain relief rails within enclosures. The use of zinc die-cast ensures high mechanical stability and long service life. The wide range of installation options allows individual adaptation to different enclosure configurations. The inclusion of fastening material and clear installation instructions facilitate installation in operation.
| General | |
| Material | zinc die-cast |
| Scope of delivery | 2 mounting or spacing brackets, including fastening material |
| Suitable for | Cabinet type: VX, TS, VX SE |
| Weight/PU | 0,298 kg |
| Mounting options | On horizontal and vertical VX cabinet profiles, on system chassis for internal mounting plane, on vertical TS, VX SE cabinet profiles using TS 8800.806 mounting nut or adapter rail for VX compatibility, on horizontal TS cabinet profile, on horizontal VX SE cabinet profile bottom, on horizontal VX SE cabinet profile top, in depth, on cabinets and rails with rectangular system hole pattern 12.5 x 11 mm, on base corner piece with base cover, front and rear, on base covers, side |
| For thread | M8 |
| Mounting note | In VX SE on cabinet profile in combination with VX adapter rail. For mounting a C-profile rail, M8 x 16 mm cylinder screws with washers are required. |
Questions & answers
What is the delivery time of Rittal 8619470 VX plinth extension angle plinth trim panels H: 100/200 mm?
The article Rittal 8619470 VX plinth extension angle plinth trim panels H: 100/200 mm is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619470 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619470 VX plinth extension angle plinth trim panels H: 100/200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619470 VX plinth extension angle plinth trim panels H: 100/200 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
