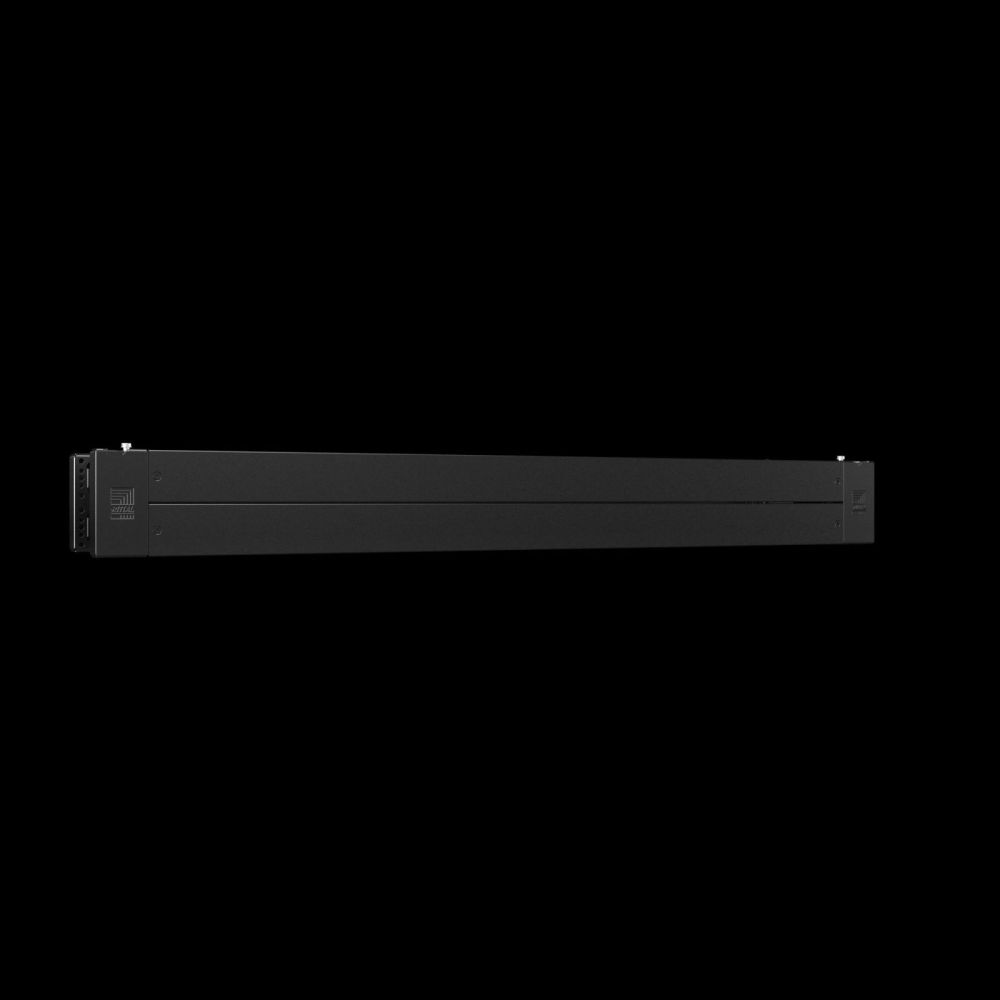

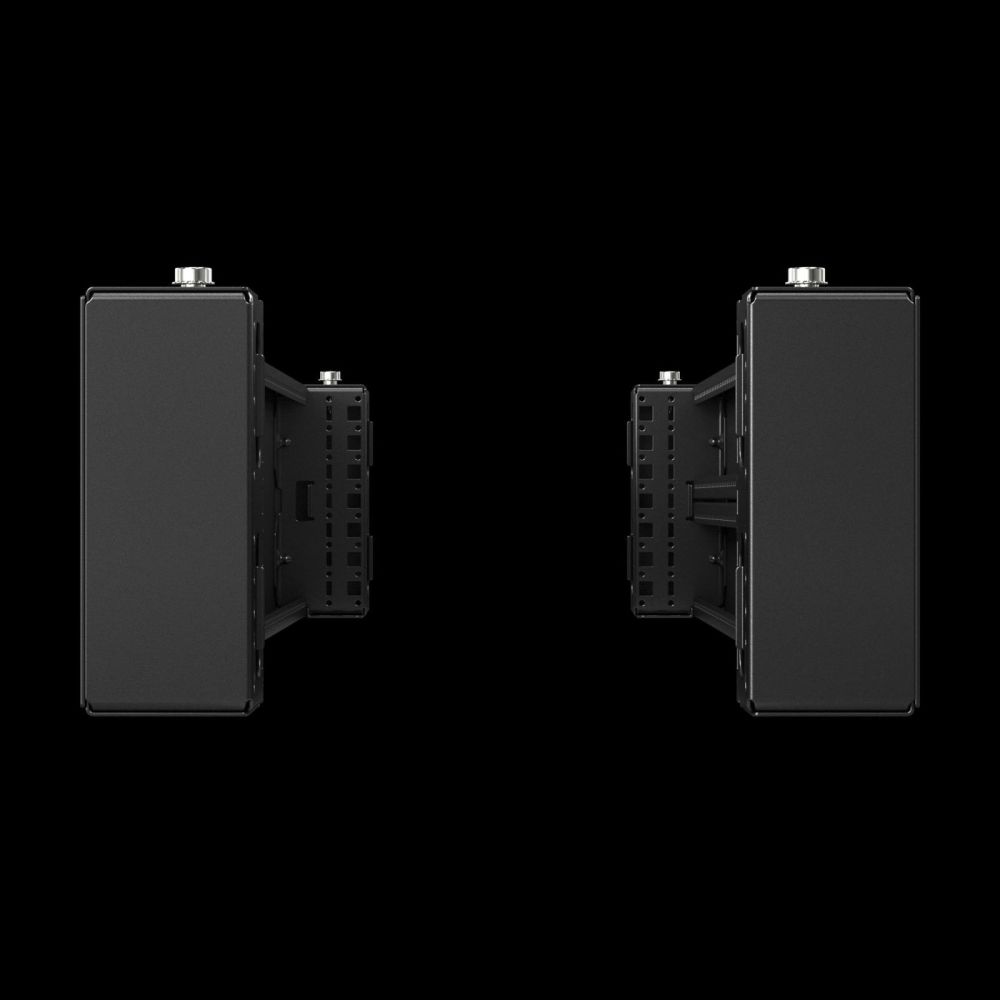

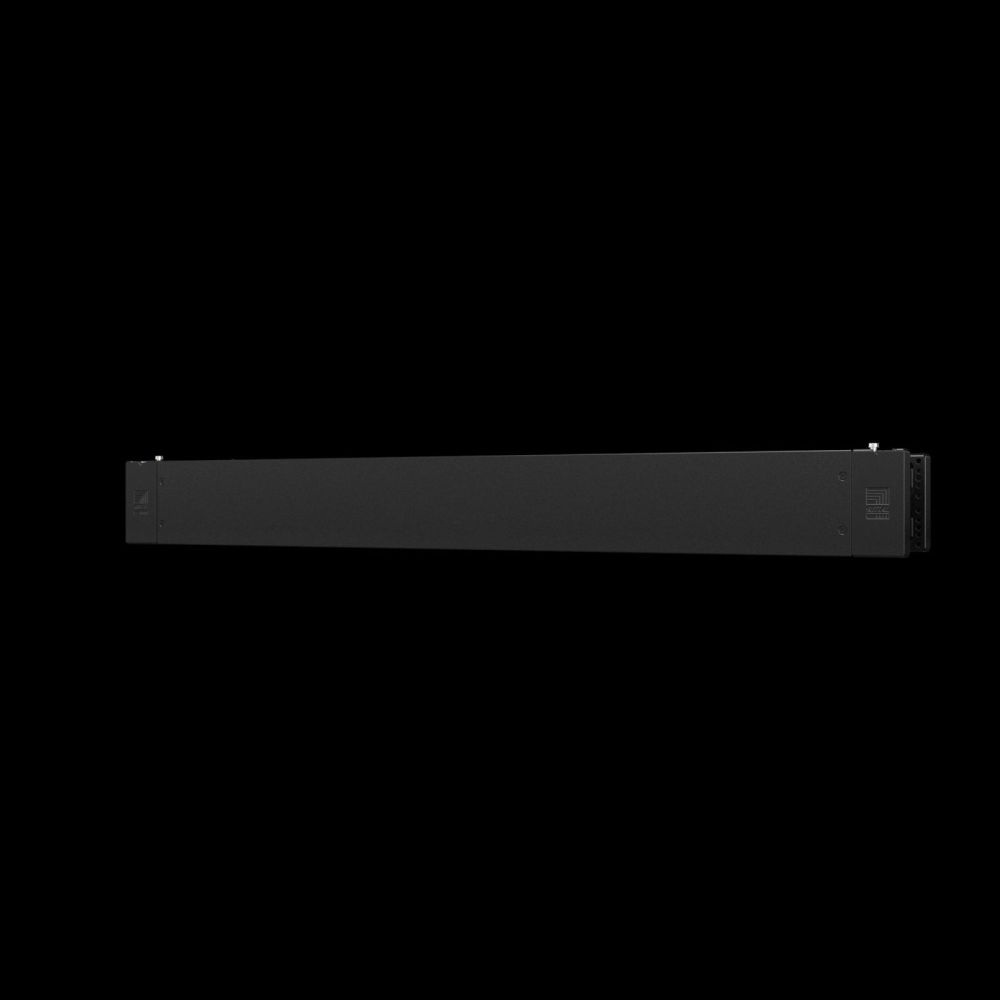

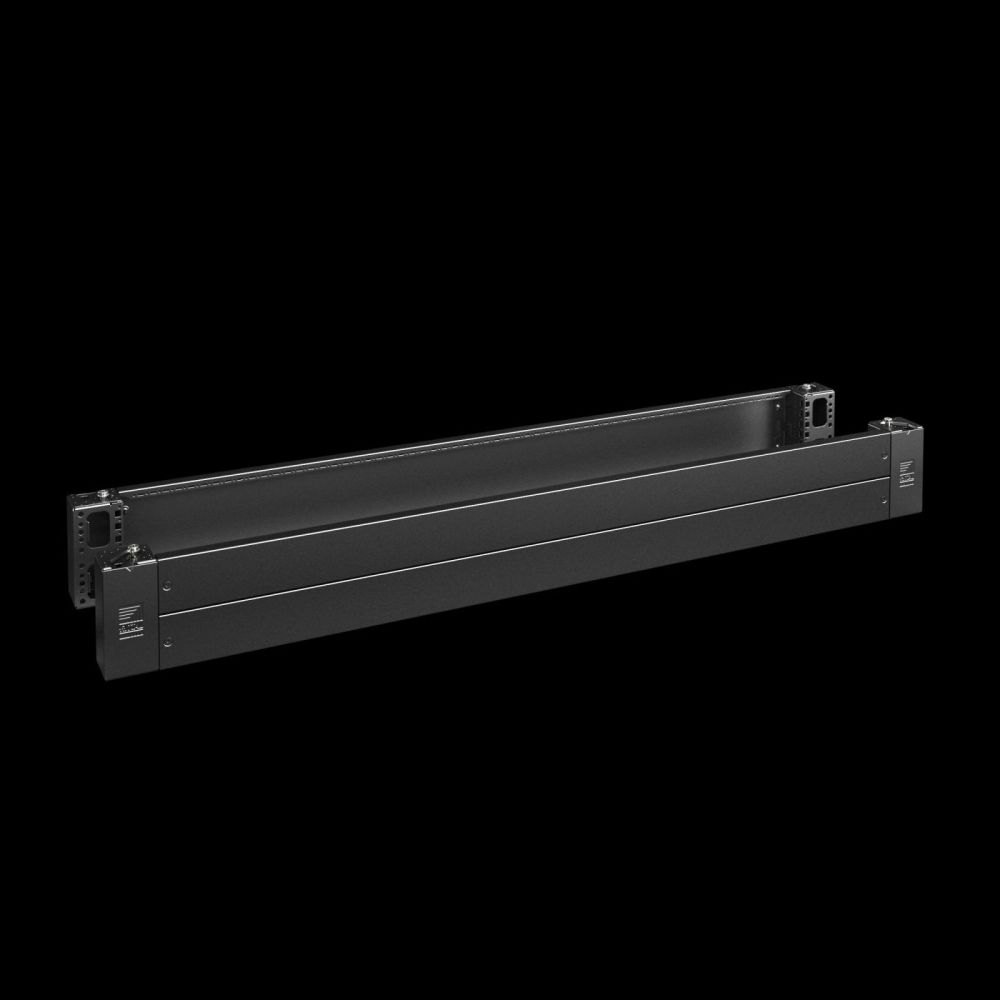

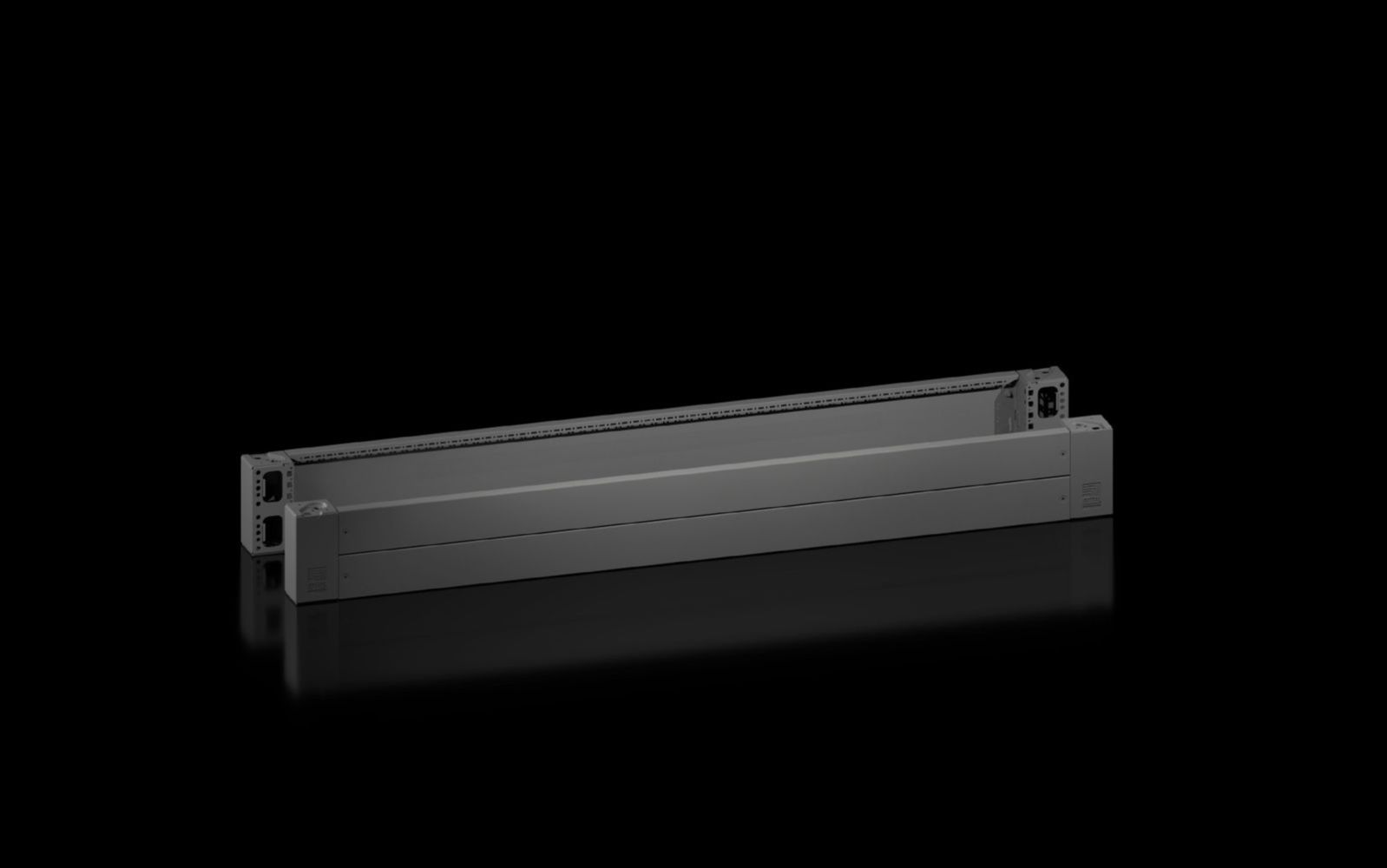

Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200

Your rating:
Average rating
product review for Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200
( 4 / 5 ) 3 ratings
Rittal 8660027
This image may differ from the desired article.
Rittal 8660027Rittal 8660027Rittal 8660027Rittal 8660027Rittal 8660027
-10% 134,09 EUR 149,57 EUR
( 159,57 EUR incl. VAT )
≈ £112.23  |  ≈ $147.36
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200
Datasheet:file_download Download
Lieske Part No.:682739
Mfg Part No: 8660027
UPC/EAN: 4028177978195
Weight:16.1 kg
Type:VX 8660027

Product information for Rittal 8660027:

The Rittal VX 8660027 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for plinth systems with a width of 1,800 mm. It serves as a stable end cap and connecting element between individual plinth modules within switchgear and system enclosure installations. The component consists of sheet steel for the corner pieces and trim panels, and plastic for the corner and baying covers, with the entire surface finished in RAL 9005. The height is 200 mm, enabling a standardized installation solution for most VX systems.

Applications
This product is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is particularly used in industrial environments where high stability and a clean, flush finish between baying points are required. The plinth trim panels serve not only as an aesthetic finish but also contribute to additional stabilization between plinths and allow for internal expansion options. Use is restricted to systems with an exact width of 1,800 mm.

Functions and Equipment in Detail
The delivery includes 4 plinth corner pieces with a height of 200 mm, 1 plinth trim panel front/rear at 200 mm height, and 2 plinth trim panels front/rear at 100 mm height. Additionally, 4 corner covers and the necessary mounting hardware are included. The plinth trim panels, particularly the side ones, serve as end caps for a plinth unit, provide additional stabilization between plinths, or enable internal expansion. The use of sheet steel for the corner pieces and trim panels ensures high mechanical strength and durability.

Technology Explained Simply
The construction from sheet steel offers high load-bearing capacity and resistance to mechanical stress. The plastic covers at the corners and baying points ensure a clean visual finish and protect the edges from damage. The RAL 9005 color is a dark gray standard tone that integrates well in industrial environments. The height of 200 mm corresponds to the standard dimension for many VX systems and enables a uniform mounting height. Mounting is done using the included hardware, ensuring secure attachment to the plinth modules.

Compatibility and Accessories
The plinth corner piece is compatible with the mentioned enclosure types and fits precisely into systems with a width of 1,800 mm. It can be combined with additional VX accessories, such as levelling feet M12, VX castors, VX levelling elements (H: 200 mm), plinth baying brackets, VX plinth expansion brackets (for trim panels H: 100 mm or H: 100/200 mm), double swivel castors M12, optional trim panel mounting brackets, VX 8660100 mounting brackets for the base, VX system chassis (23 x 64 mm, W x H x D: 1800 mm), and VX cable strain relief rail angle profile (W: 1800 mm). These components extend the functionality and customization options of the plinth system.

Installation and Mounting
Mounting is done at the corners of the plinth modules, where the plinth corner pieces are fastened to the plinth surfaces using the included mounting hardware. The trim panels are attached to the front and rear sides, with the 200 mm high panels forming the main covering and the 100 mm high panels used for additional finishing or stabilization purposes. The corner covers ensure a clean finish at the corners. Installation requires no special tools other than a screwdriver or screwdriver for fastening.

Operational Advantages
The use of the Rittal VX 8660027 provides high stability for the plinth, which is particularly beneficial for heavy or mobile switchgear. The flexible internal expansion function allows individual adaptation to specific requirements, such as cable routing or additional mounting surfaces. The flush finish between baying points ensures a professional appearance and prevents dust or foreign objects from entering. The materials are designed for industrial environments and offer a long service life.

Type rating according to UL 50E
The product meets the requirements of the UL 50E standard in categories Type 1 and Type 12. Type 1 is suitable for enclosed enclosures protected from weather and dust, while Type 12 provides additional protection against splashing water and dust. These certifications make the product suitable for use in indoor and outdoor environments, provided the respective environmental conditions comply with the standards.

Weight and Environmental Impact
The packaging unit contains 2 pieces, with a net weight of 16.02 kg and a gross weight of 16.1 kg. The PCF value (Cradle-to-Gate) is 51.66 kg CO2 eq per packaging unit, with class B indicating that the value is approximately calculated based on product weight and self-declared. These details provide transparency regarding the environmental impact of the product.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height200 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1,800 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU16,2 kg
PCF/VE (Cradle-to-Gate)51,66 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660027, EAN: 4028177978195

Questions & answers

What is the delivery time of Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200?

The article Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660027 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200 always at the best possible price. We can give you a discount of 2% on Rittal 8660027 VX plinth corner piece with trim panel, front/rear, H: 200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
