Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm

Your rating:
Average rating
product review for Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm
( 4.5 / 5 ) 6 ratings
Rittal 8617190
This image may differ from the desired article.
Rittal 8617190Rittal 8617190Rittal 8617190Rittal 8617190Rittal 8617190Rittal 8617190
151,80 EUR
( 180,64 EUR incl. VAT )
≈ £127.06  |  ≈ $166.83
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm
Datasheet:file_download Download
Lieske Part No.:1441088
Mfg Part No: 8617190
UPC/EAN: 4028177829190
Weight:7.72 kg
Type:VX 8617.190

Product information for Rittal 8617190:

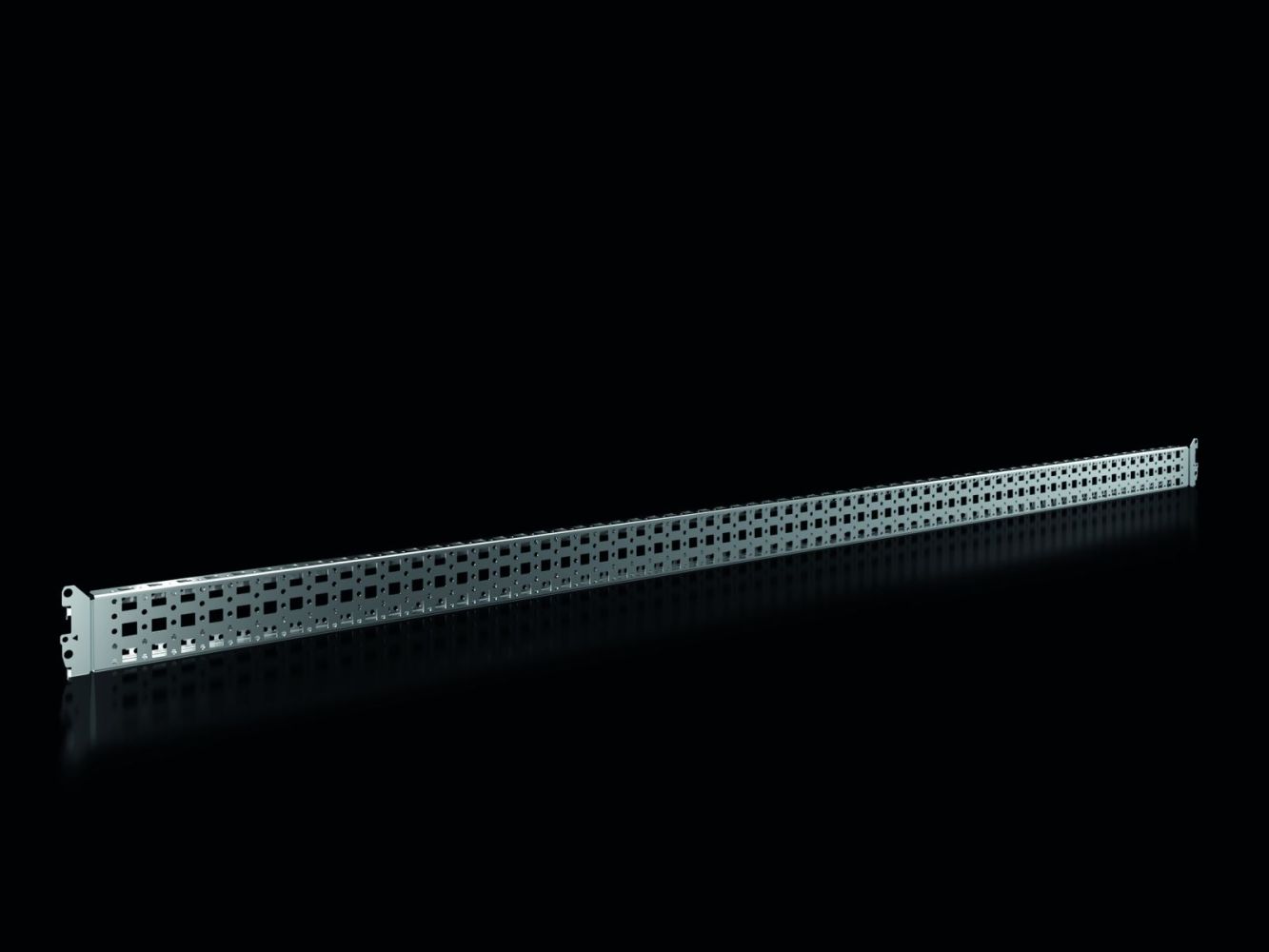

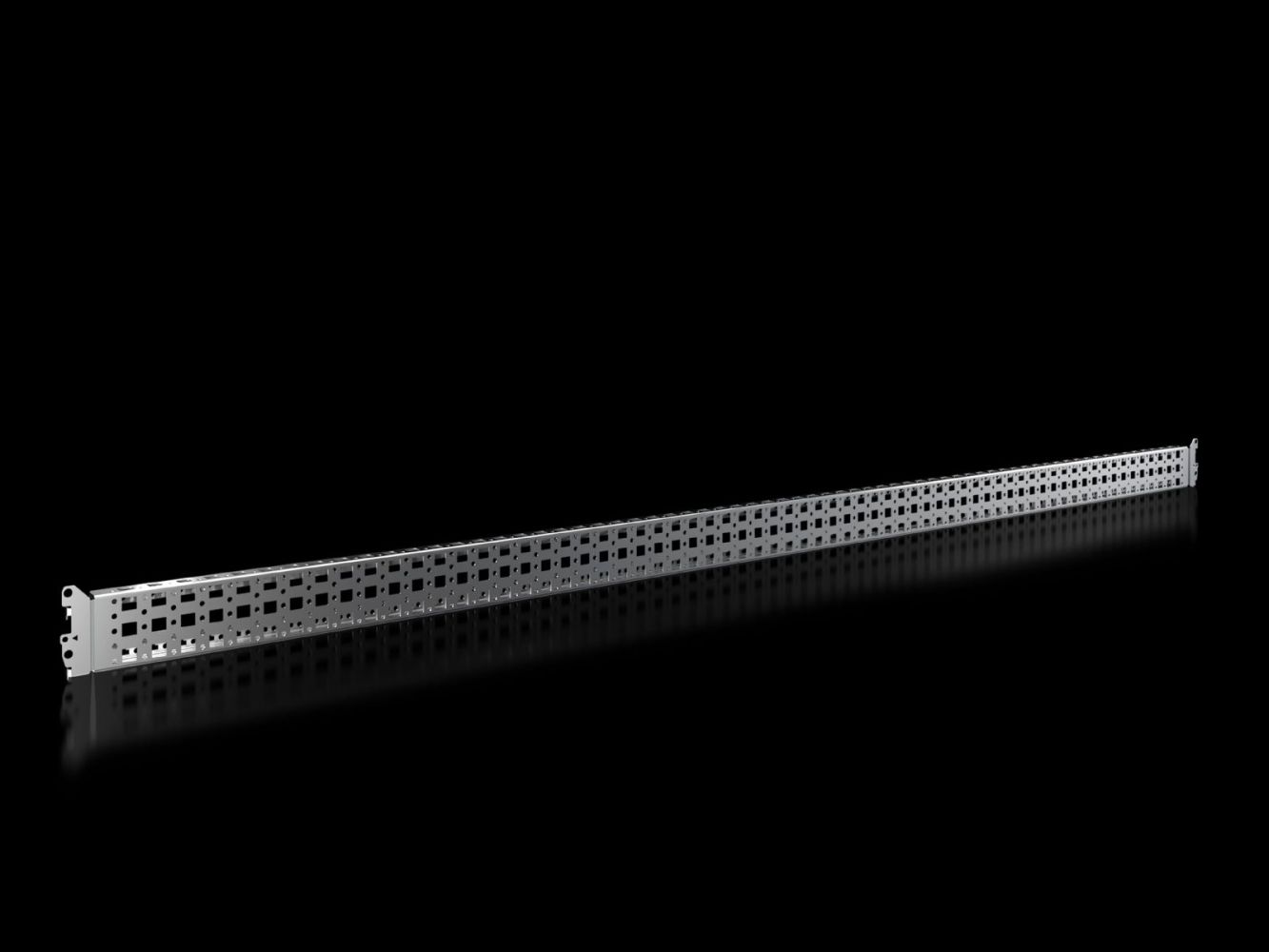

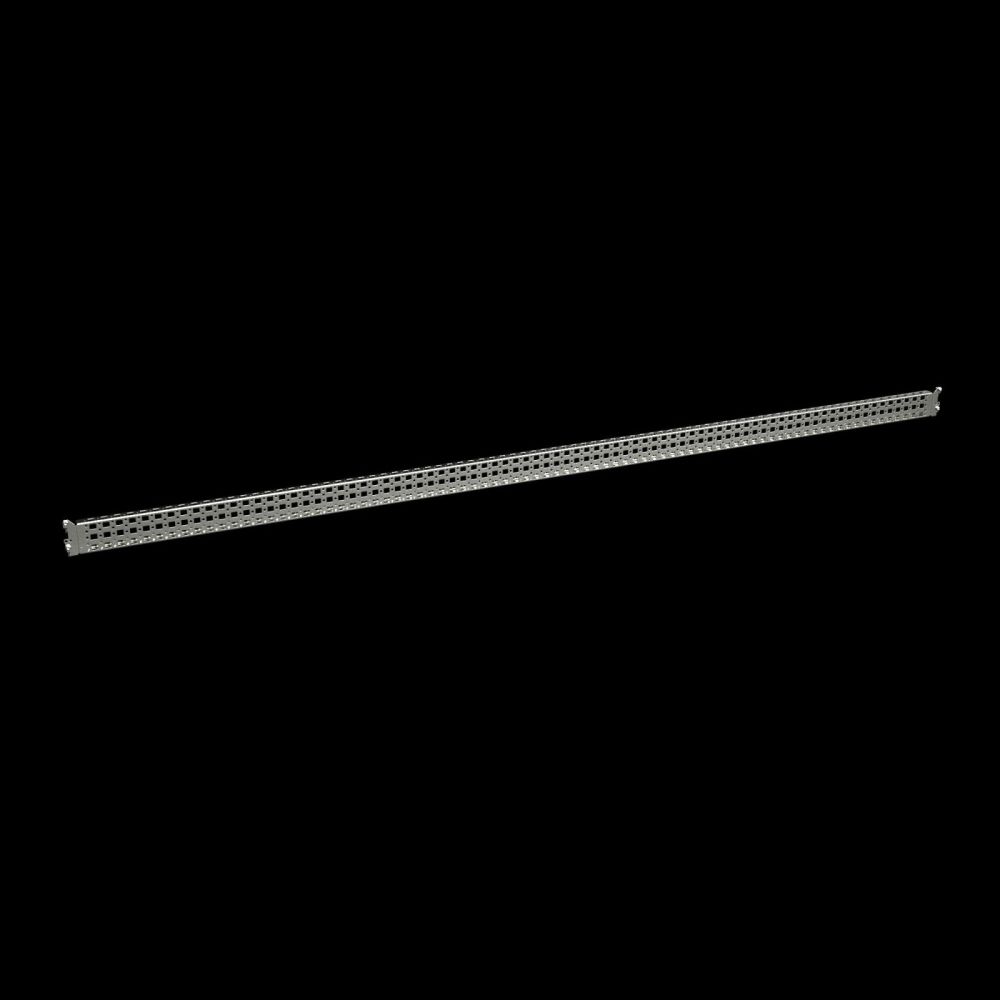

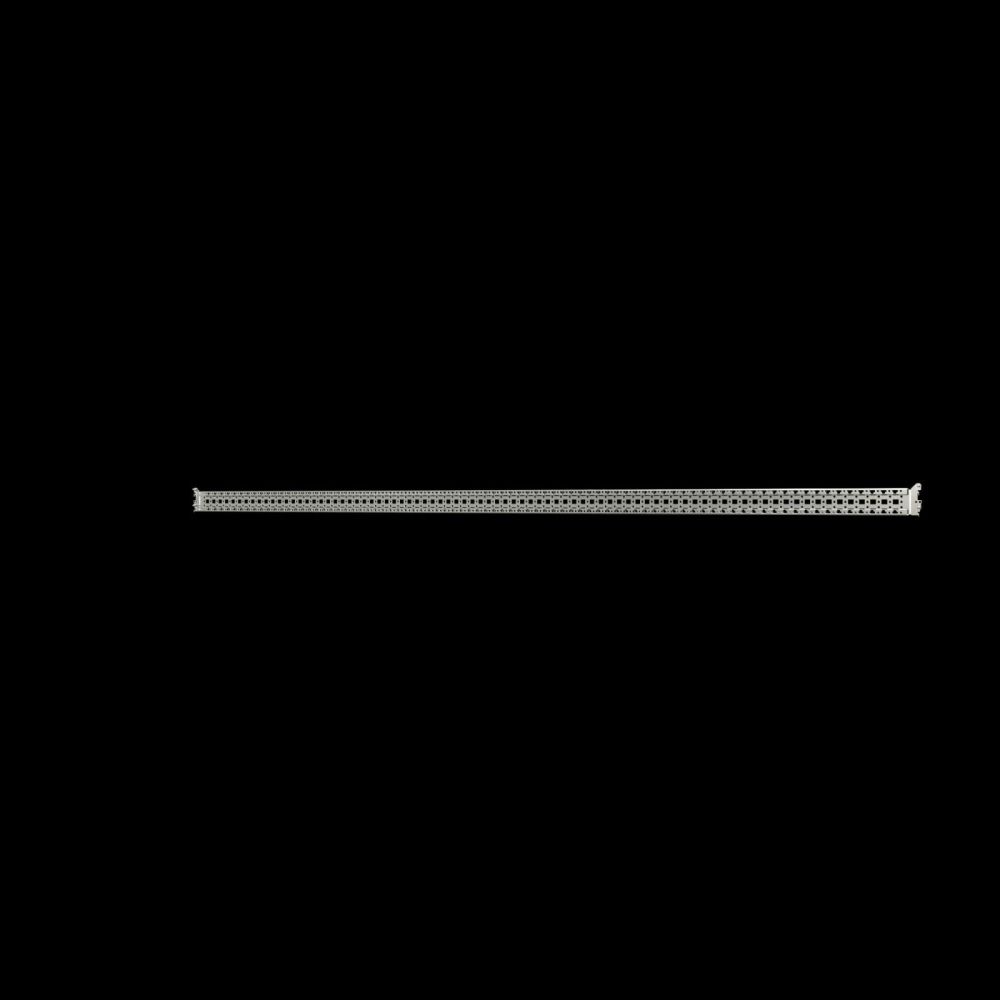

The Rittal VX 8617.190 is a system chassis made of sheet steel with a zinc-coated surface, specifically designed for variable and individual interior fitting of enclosure frames. It serves as a mounting base within compact enclosures and enables flexible fixation of components on the inner mounting plane. The chassis is dimensioned at 23 x 64 mm and is intended for enclosures with a width, height, or depth of 1800 mm. It is supplied in a packaging unit of 4 pieces and includes mounting hardware that allows installation into the system perforation.

Applications
The system chassis is suitable for use in enclosures of the VX, VX IT, and VX SE series. It can be installed on the inner mounting plane in enclosure heights of 1800 mm. For VX SE enclosures, the use of an adapter rail is required to ensure compatibility with the VX system. For installation in plinth systems with a plinth width of 1800 mm, mounting to the plinth trim panels in combination with a plinth expansion angle is provided. Thus, the application is in industrial environments where modular and flexible interior fitting of enclosures is necessary.

Functions and Equipment in Detail

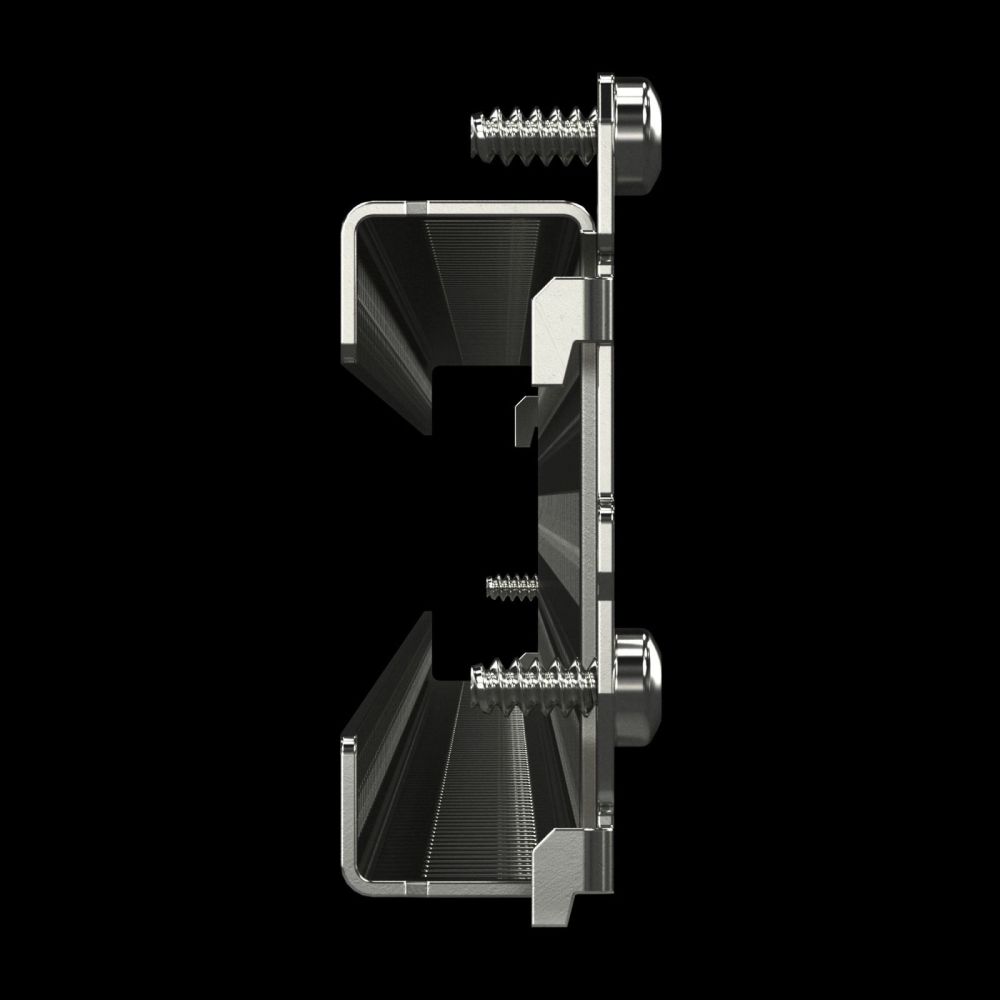

The chassis features a system perforation on all four sides, enabling versatile mounting of modules. At the top and bottom, special perforations for cage nuts are integrated, allowing components to be secured using metric screws. Mounting is done by inserting into the system perforation of the enclosure frame and then screwing in place. The zinc-coated surface provides protection against corrosion and is suitable for use in industrial installations.

Technology Explained Simply
The construction of the chassis from sheet steel ensures high mechanical stability. The zinc-coated surface protects the material from oxidative degradation, especially in damp or corrosive environments. The system perforation on all four sides allows flexible positioning of components, enabling the mounting of controls, power electronics, or other devices without additional mounting aids. The integrated cage nuts at the top and bottom edges facilitate the fixation of components mounted with metric screws.

Compatibility and Accessories
The system chassis is designed for the VX, VX IT, and VX SE series. For VX SE enclosures, the use of an adapter rail is necessary to ensure mounting compatibility. For plinth systems with a width of 1800 mm, mounting to the plinth trim panels in combination with a plinth expansion angle is provided. As suitable accessories, a cable tie with a length of 150 mm is offered, which can be used to secure cables or wiring within the enclosure.

Mounting and Installation
Mounting is done by inserting the chassis into the system perforation of the enclosure frame and then screwing it in place. Fixation is achieved using the mounting hardware included in the delivery scope. Positioning is intended on the inner mounting plane, with exact placement varying depending on enclosure type and mounting configuration. Mounting is possible without special tools, as the system perforation and fastening elements are standardized.

Advantages in Operation
The system chassis offers a modular and flexible mounting option within enclosures. The integrated system perforation and cage nuts at the edges enable quick and secure fixation of components. The zinc-coated surface ensures a longer service life of the chassis in industrial environments. Compatibility with various enclosure types (VX, VX IT, VX SE) and plinth systems increases applicability and reduces the need for additional adapters or modifications. Delivery with mounting hardware accelerates installation and reduces effort for the installer.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet height 1800 mm, on the inner mounting plane
Mounting options VX SEIn cabinet width/height 1800 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility
Mounting options VX socketIn base width 1800 mm on base panels, in combination with base extension brackets
Suitable forCabinet type: VX, VX IT, VX SE, suitable for width or height or depth: 1,800 mm
PCF/VE (Cradle-to-Gate)40,25


Product data sheet
Datasheet for Rittal 8617190, EAN: 4028177829190

Questions & answers

What is the delivery time of Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm?

The article Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617190 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617190 VX system chassis 23 x 64 mm W x H x D: 1800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
