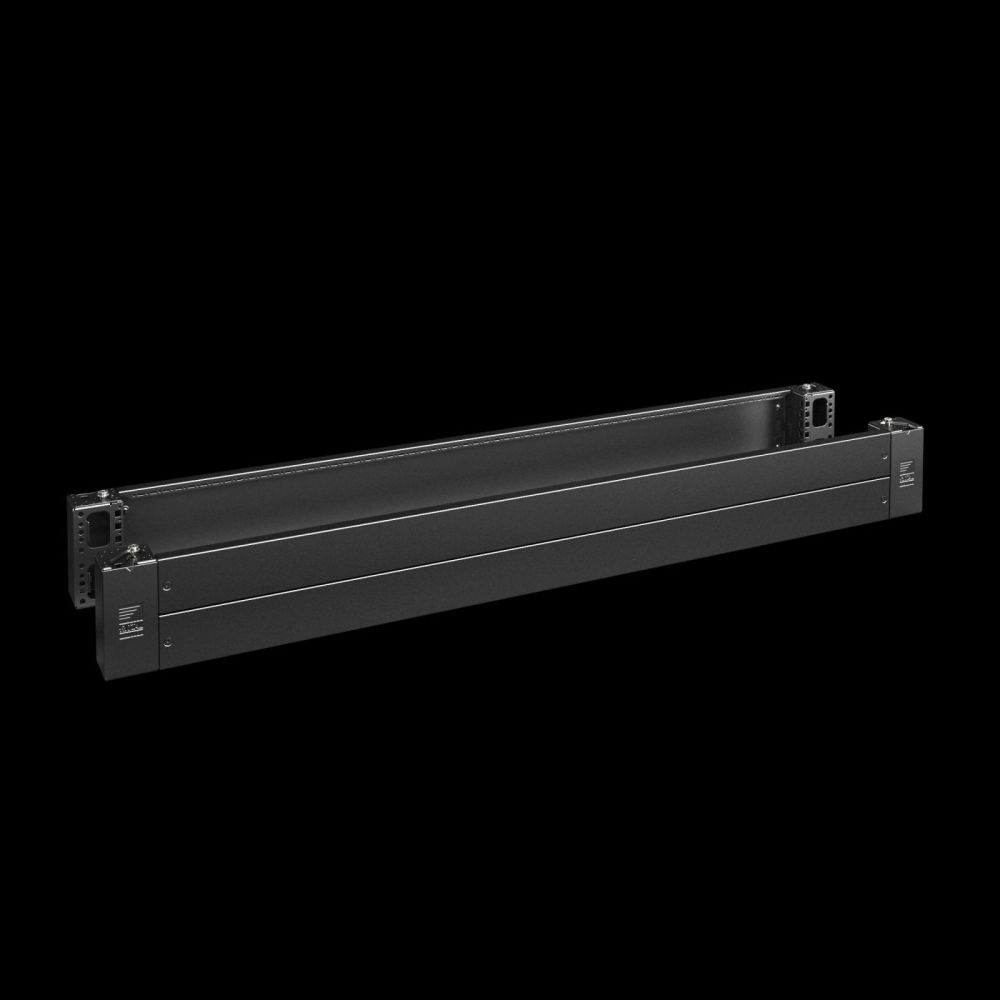

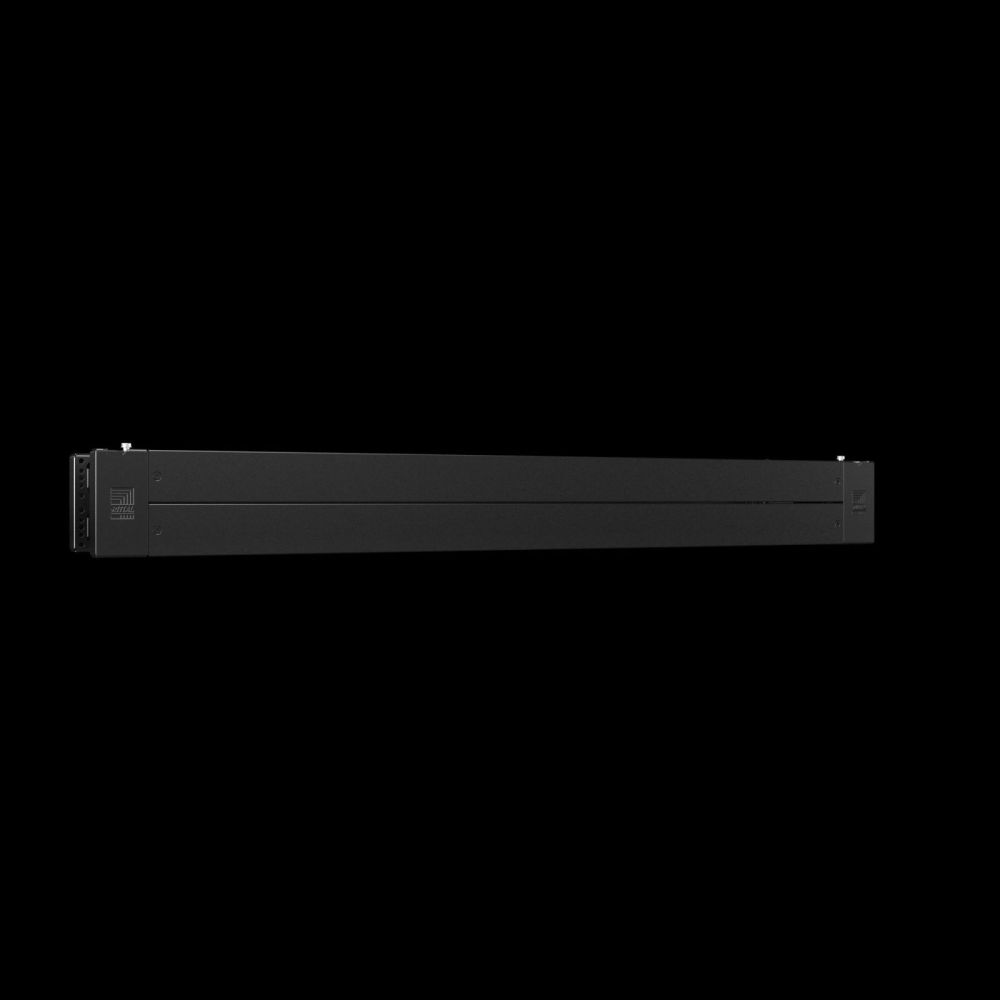

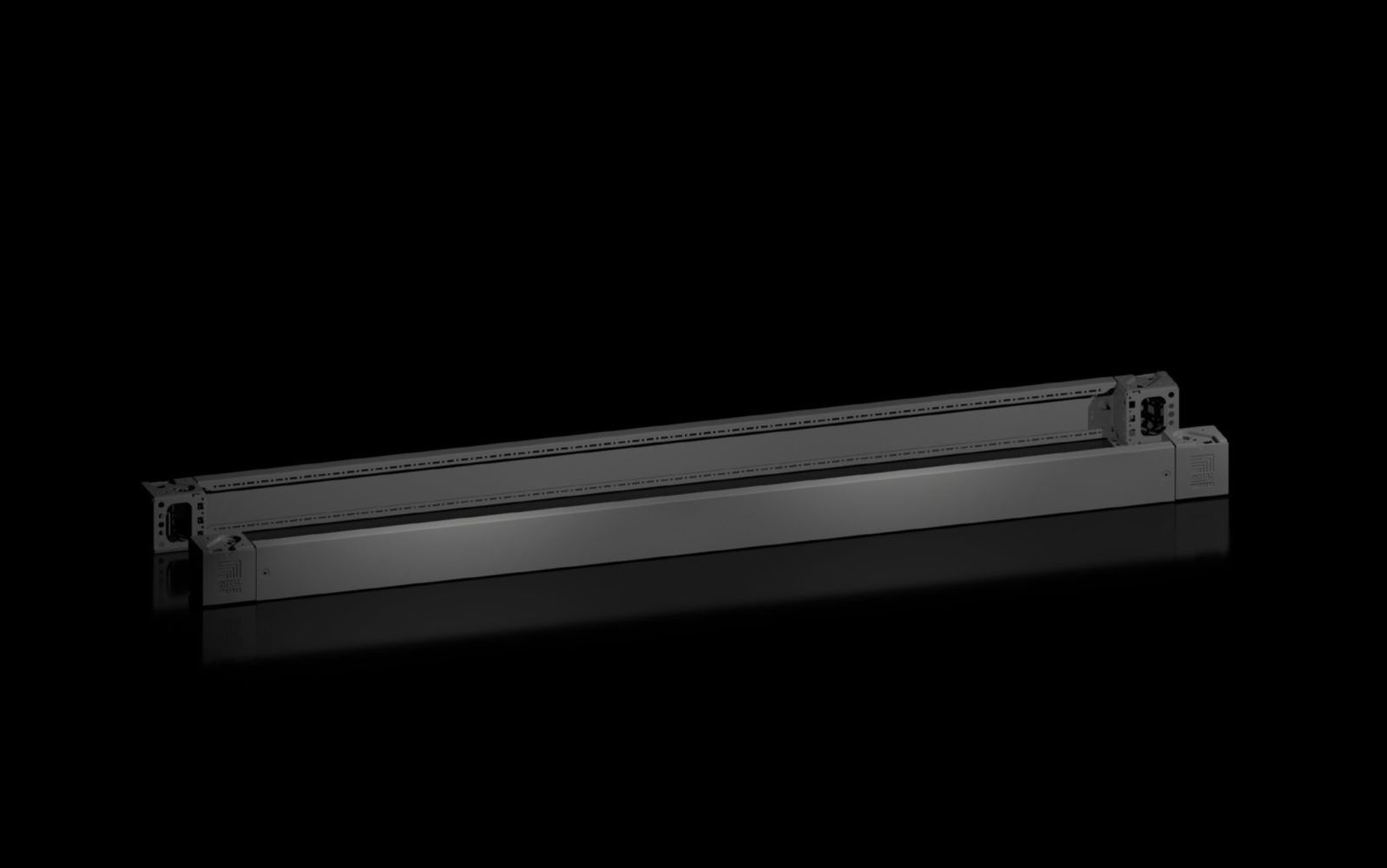

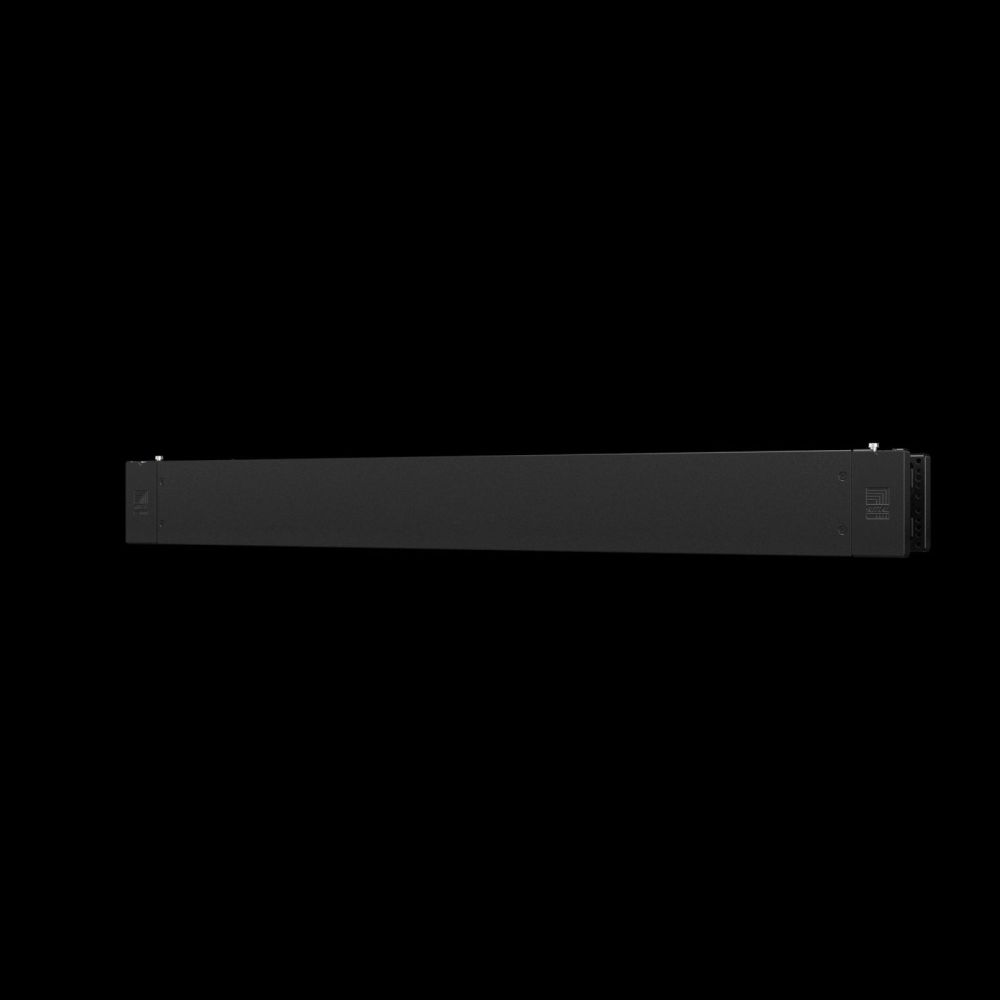

Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100

Your rating:
Average rating
product review for Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100
( 5 / 5 ) 1 ratings
Rittal 8660009
This image may differ from the desired article.
Rittal 8660009Rittal 8660009Rittal 8660009Rittal 8660009Rittal 8660009Rittal 8660009
72,68 EUR
( 86,49 EUR incl. VAT )
≈ £60.83  |  ≈ $79.88
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100
Datasheet:file_download Download
Lieske Part No.:682733
Mfg Part No: 8660009
UPC/EAN: 4028177978102
Weight:9.55 kg
Type:VX 8660009

Product information for Rittal 8660009:

The Rittal VX 8660009 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for plinth systems in industrial and IT applications. It serves as a stable end and connection element for plinth systems with a width of 1,800 mm. The component consists of sheet steel for the corner pieces and trim panels, and plastic for the corner and baying covers. The colour is RAL 9005, a dark grey standard tone that integrates well in industrial environments. The height is 100 mm, representing a standard installation size for plinth systems.

Applications
The plinth corner piece is typically mounted at the corners of plinth systems to create a clean, flush end edge. It is particularly suitable for installations where multiple plinth modules are arranged in a row, as it enables a stable and visually uniform transition between units. The plinth trim panels serve not only as an aesthetic finish but also contribute to additional stabilisation of the plinth elements, especially when multiple plinths are arranged vertically or horizontally. Additionally, they can be used in internal construction to organise cables or other components within the plinth area.

Functions and Equipment in Detail

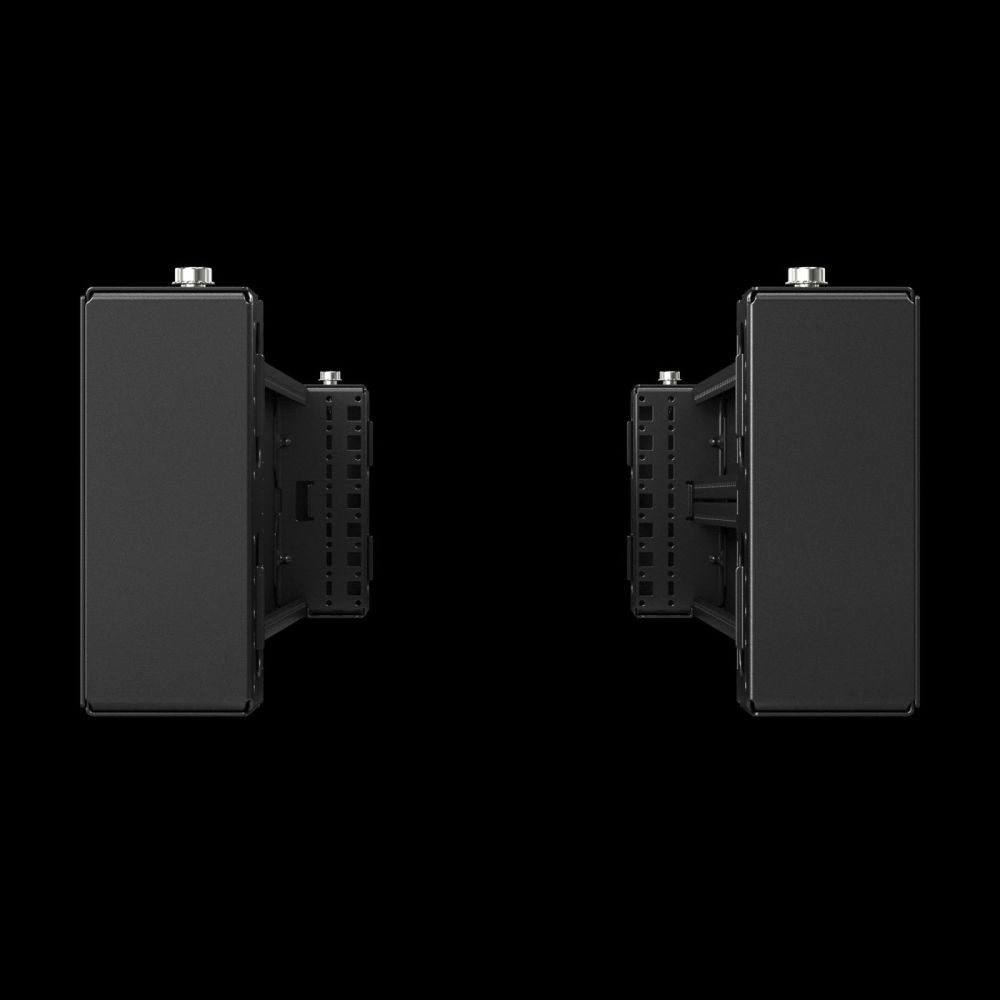

The product includes 4 plinth corner pieces, each 100 mm high, as well as 2 plinth trim panels for the front and rear sides. Additionally, 4 corner covers and the required mounting hardware are included in the delivery scope. The plinth trim panels are side-mountable and serve both to finish a plinth unit and to provide additional stabilisation between multiple plinths. The use of sheet steel for the corner pieces and trim panels ensures high mechanical strength and durability, even under industrial loads. The plastic covers provide a clean visual finish and protect the connection points from contamination.

Technology Explained Simply
The construction of the plinth corner piece allows for easy installation at the corners of plinth systems. The sheet steel components offer high stability, which is important for the secure mounting of enclosures and other devices in the plinth area. The integrated trim panels ensure a closed, clean finish, which is beneficial both aesthetically and functionally. The height of 100 mm corresponds to a standard dimension used in many plinth systems to ensure uniform execution. The use of plastic for the covers reduces weight while simultaneously providing good protection against external influences.

Compatibility and Accessories
The plinth corner piece is compatible with various enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width is 1,800 mm. It can be combined with additional VX accessories, such as levelling feet M12, VX castors, plinth baying brackets, VX plinth expansion angles, or double swivel castors M12. These components allow for flexible adaptation of the plinth system to different requirements, such as mounting enclosures, use in mobile installations, or integration into existing infrastructures. The use of VX system components ensures high interoperability and standardisation.

Mounting and Installation
Mounting is performed at the corners of the plinth system, where the plinth corner pieces are secured using the included mounting hardware. The plinth trim panels are attached to the front and rear sides to ensure a closed finish. The corner covers serve as a visual finish at the corners. Installation requires no special tools, as the fastening elements are standardised. The components are designed to be easily adaptable, even when multiple plinth modules are arranged in a row.

Advantages in Operation
The plinth corner piece offers high stability, which is crucial for the secure mounting of enclosures and other devices in the plinth area. The integrated trim panels allow for flexible cable entry and support internal construction. The use of sheet steel and plastic ensures long service life and resistance to mechanical stress. Compatibility with various enclosure types and accessories increases flexibility in planning and installing plinth systems. The flush end edge between baying points improves appearance and reduces the risk of contamination or mechanical damage at the edges.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 1,800 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU9,55 kg
PCF/VE (Cradle-to-Gate)31.42 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660009, EAN: 4028177978102

Questions & answers

What is the delivery time of Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100?

The article Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660009 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100 always at the best possible price. We can give you a discount of 2% on Rittal 8660009 VX plinth corner piece with trim panel, front/rear, H: 100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
