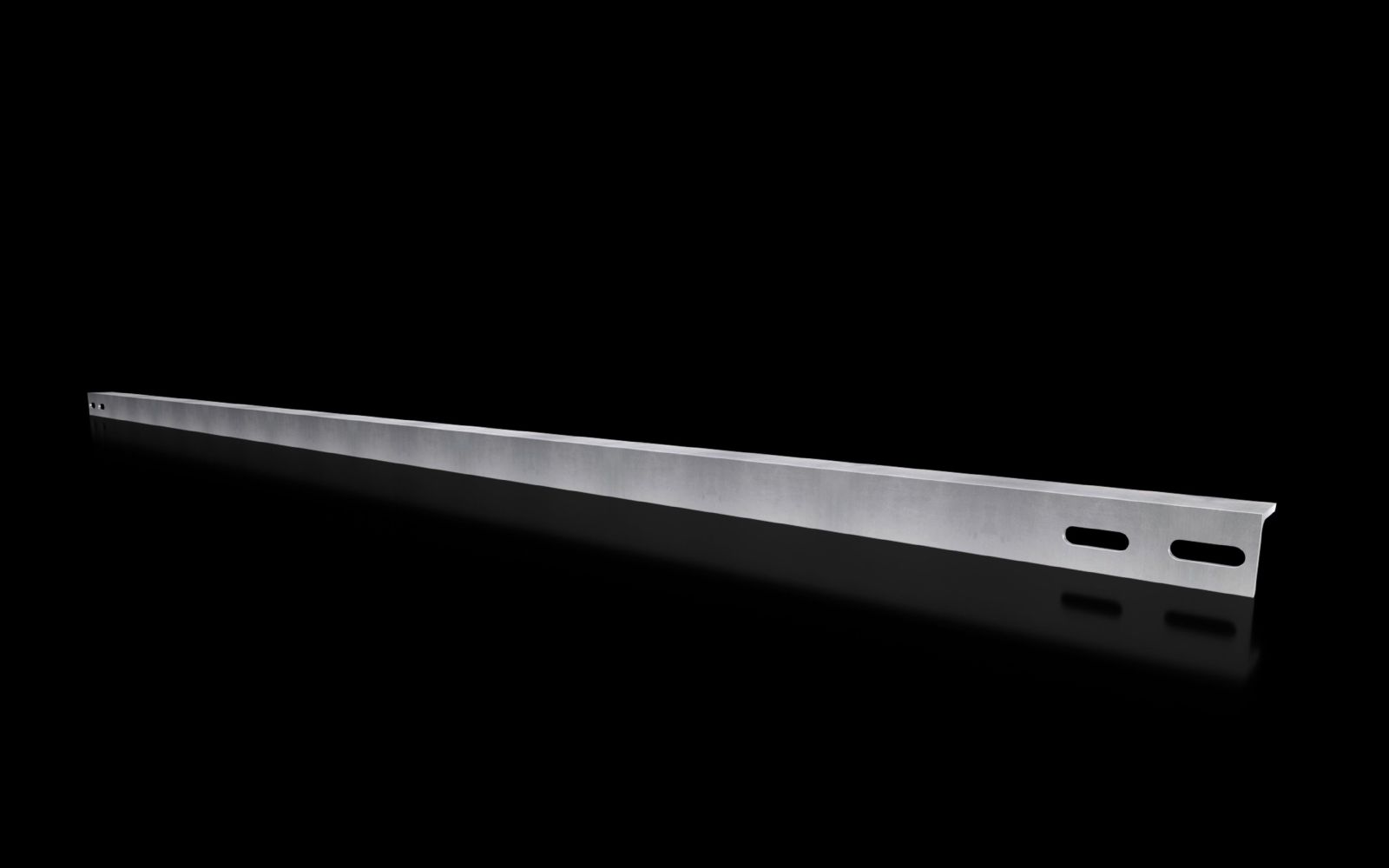

Rittal 8619460 VX cable strain relief rail angle profile, W: 1800 mm
|
-10% 79,12 EUR 88,26 EUR |
|
|
( 94,15 EUR incl. VAT ) ≈ £66.22 | ≈ $86.95 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441175 |
| Mfg Part No: | 8619460 |
| UPC/EAN: | 4028177921986 |
| Weight: | 9.38 kg |
| Type: | VX 8619.460 |
Product information for Rittal 8619460:
Applications
The cable strain relief rail is primarily used in industrial electrical engineering, where secure and orderly cable routing in enclosures is required. It is particularly suitable for enclosures with a width of 1800 mm, integrated in the VX plinth system or the VX SE system. The rail ensures that cables are not damaged by mechanical stress during entry and exit from the enclosure, increasing the reliability of the installation.
Functions and Equipment in Detail
The rail is designed as an angle profile and allows depth-variable mounting on a 25 mm grid. This provides flexibility in adapting to different enclosure configurations. Mounting is done either on the horizontal enclosure profile or in the plinth area. When used in the VX plinth system, mounting in combination with a holder or spacer is possible. The length of the rail is 1.754 mm, matching the width of the enclosure at 1800 mm. The rail is designed for use in enclosures with an exact width of 1.800 mm.
Technology Explained Simply
The function of the cable strain relief rail is based on mechanical guidance and stabilization of cables. By mounting on a 25 mm grid, the rail can be installed at various depth positions to optimally adapt cable routing to the specific enclosure construction. The zinc-coated steel surface provides protection against moisture and corrosion, which is particularly beneficial in humid or industrial environments. Strain relief prevents cables from being damaged during operation or due to vibrations.
Compatibility and Accessories
The rail is specifically designed for the VX plinth system and conforms to the standard dimensions of this system. It is compatible with enclosures of types VX, TS, VX SE, AX, and PC. As suitable accessories, the VX plinth expansion angle plinth trim panels H: 100/200 mm are offered, which can be used for visual and mechanical finishing of the plinth area. Combining with these panels enables a clean and professional cabling solution.
Mounting and Installation
Mounting is done by fastening to the horizontal enclosure wall or in the plinth area. The depth-variable mounting on a 25 mm grid allows precise adaptation to the respective enclosure depth. When used in the VX plinth system, mounting in combination with a holder or spacer is required.
Advantages in Operation
Using the cable strain relief rail reduces the risk of cable damage due to tensile stress, increasing operational safety. The modular mounting on a 25 mm grid offers flexibility in adapting to different enclosure configurations. The zinc-coated steel surface ensures long service life even in demanding environments. The rail is available in a packaging unit of 2 pieces, enabling efficient outfitting of multiple enclosures.
| General | |
| Material | Steel |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX SE | In cabinet width 1800 mm, in floor |
| Mounting options VX socket | In socket width 1800 mm, in combination with mounting/spacer piece |
| Suitable for | VX socket system |
| Length | 1.754 mm |
| Suitable for width | = 1.800 mm |
Questions & answers
What is the delivery time of Rittal 8619460 VX cable strain relief rail angle profile, W: 1800 mm?
The article Rittal 8619460 VX cable strain relief rail angle profile, W: 1800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619460 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619460 VX cable strain relief rail angle profile, W: 1800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619460 VX cable strain relief rail angle profile, W: 1800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
