Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200

Your rating:
Average rating
product review for Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200
( 4 / 5 ) 1 ratings
Rittal 8660021
This image may differ from the desired article.
Rittal 8660021Rittal 8660021Rittal 8660021Rittal 8660021Rittal 8660021
57,84 EUR
( 68,83 EUR incl. VAT )
≈ £48.41  |  ≈ $63.57
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200
Datasheet:file_download Download
Lieske Part No.:1062786
Mfg Part No: 8660021
UPC/EAN: 4028177978126
Weight:5.85 kg
Type:VX 8660021

Product information for Rittal 8660021:

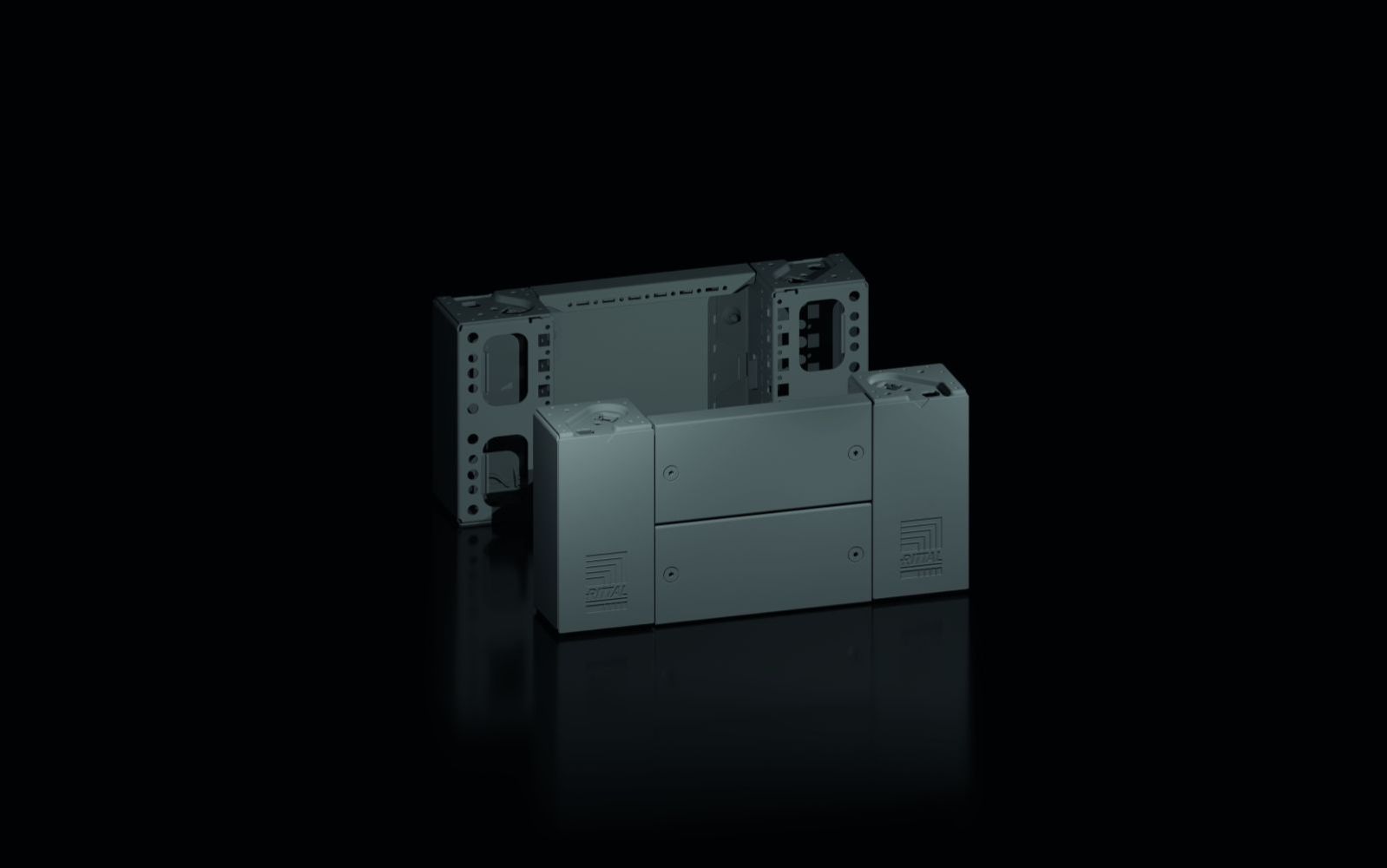

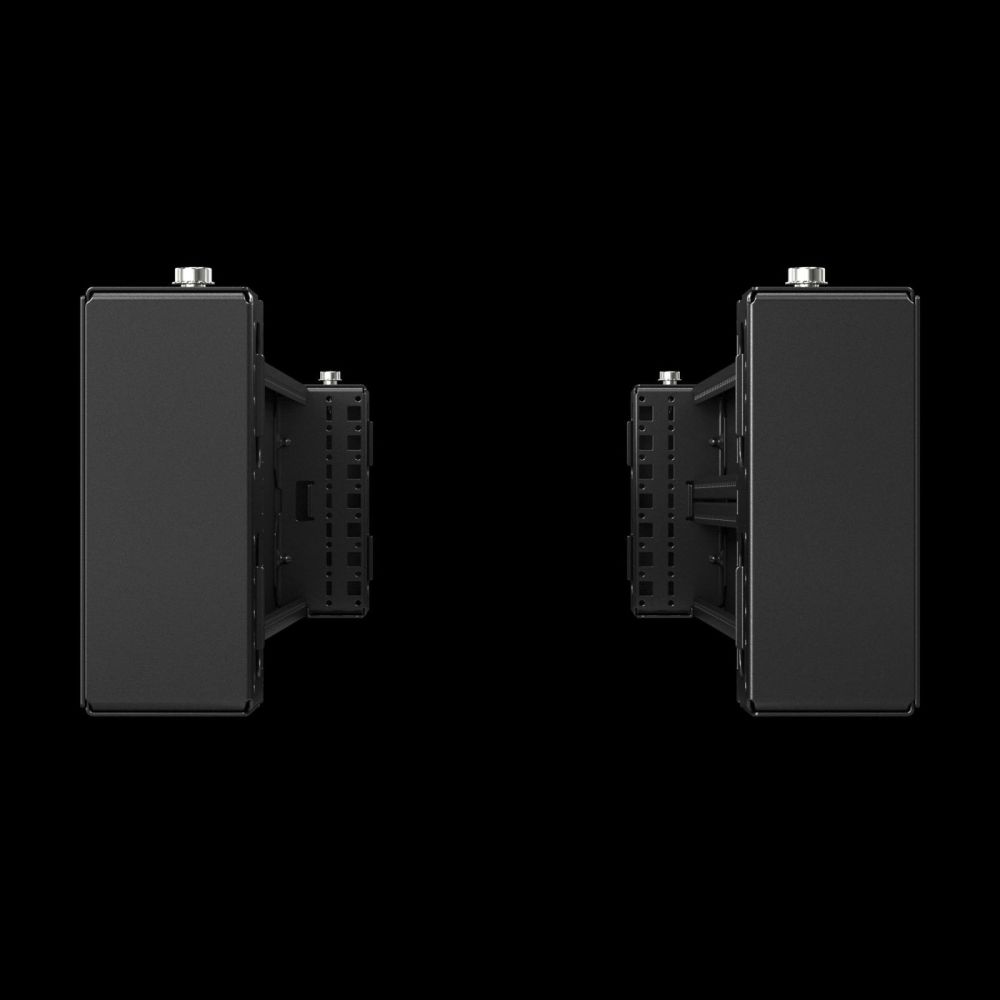

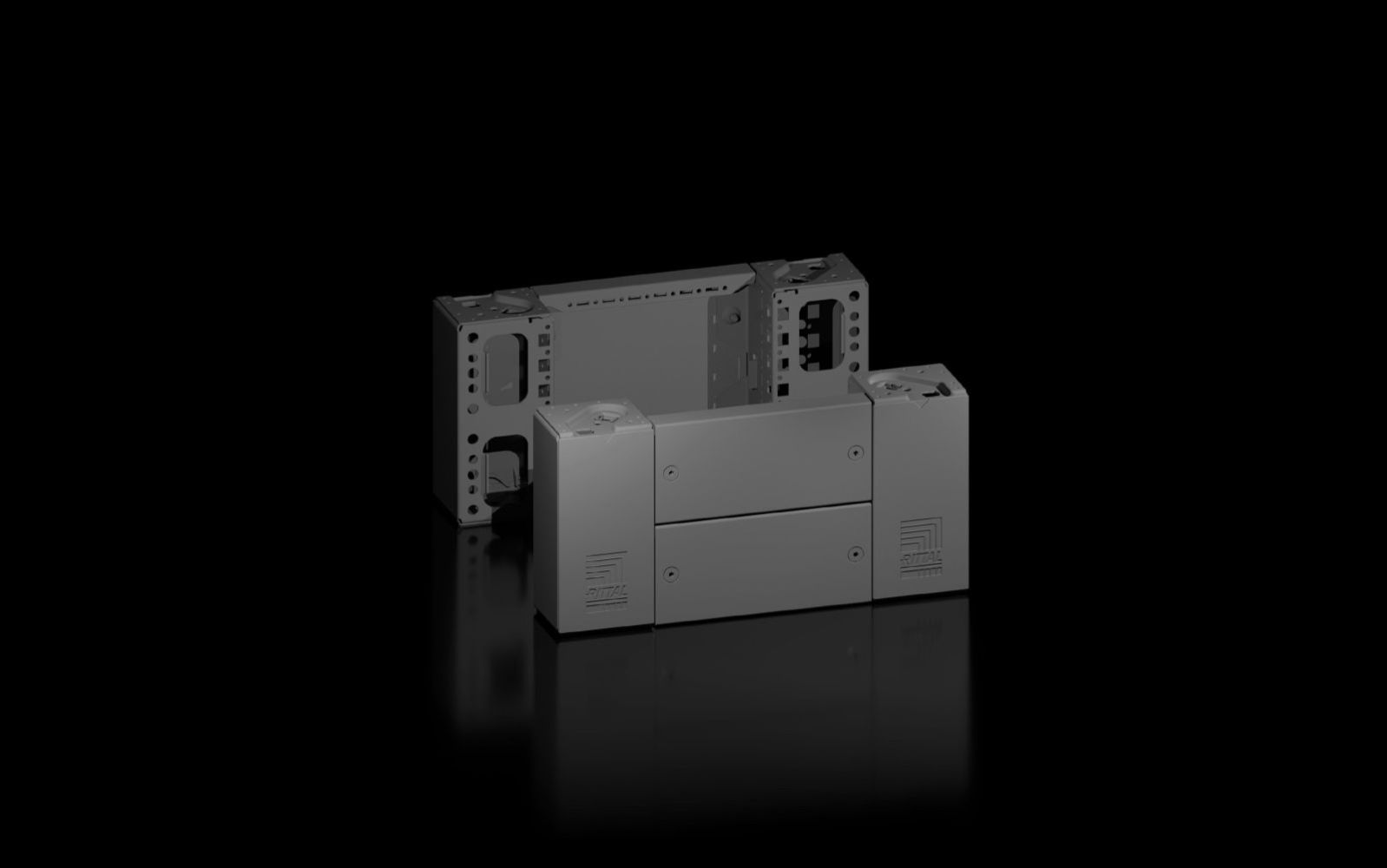

The Rittal VX 8660021 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for plinth systems with a width of 400 mm. It serves as a stable termination of the corners of a plinth system and enables a clean, flush connection between multiple plinth units. The component is made of sheet steel and finished in RAL 9005, ensuring a uniform visual appearance in industrial environments. The plinth trim panels not only provide an aesthetic finish but also contribute to additional stabilization of the plinth elements, particularly when multiple units are bayed. The height is 200 mm, providing sufficient coverage for the lower areas of the enclosure.

Applications
This product is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. Compatibility with these enclosure types allows for flexible use in various industrial applications, especially in environments where high mechanical stability and a clean external finish are required. The plinth trim panels can also be used for internal plinth outfitting, such as cable routing or structural reinforcement.

Functions and Equipment in Detail

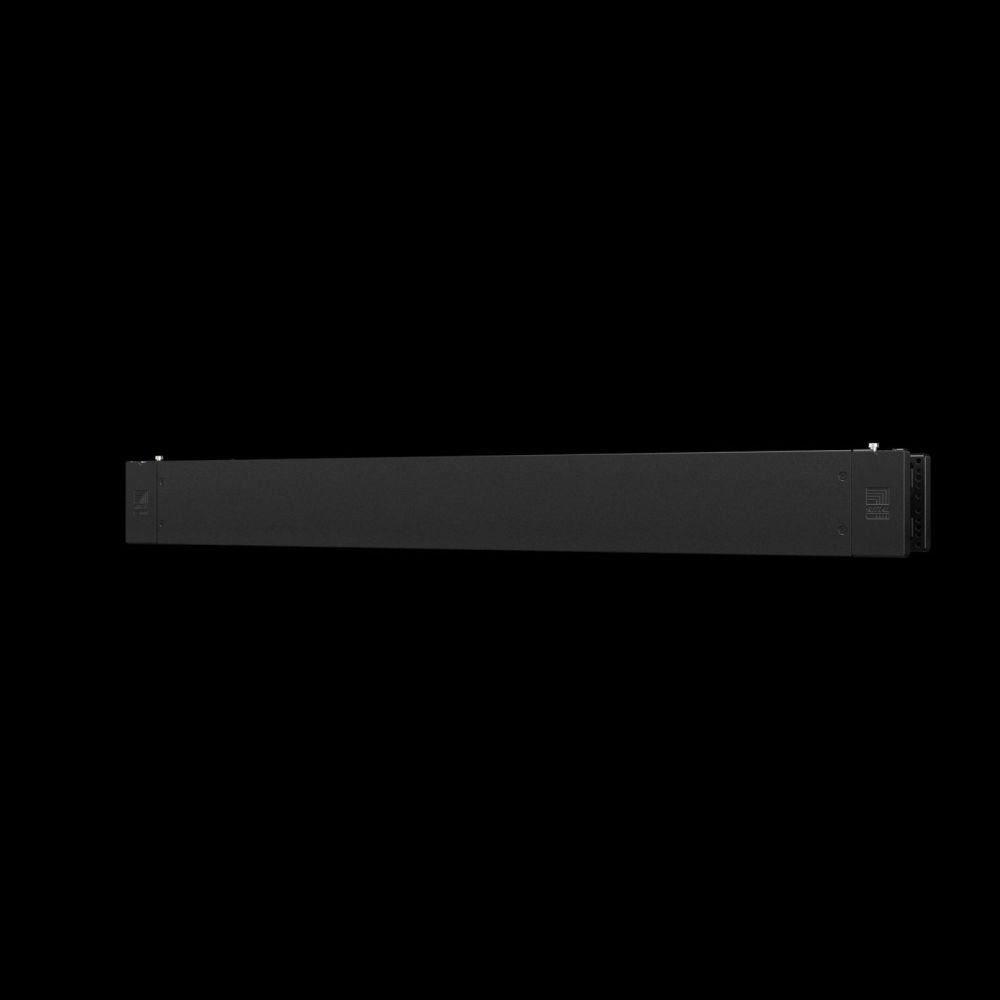

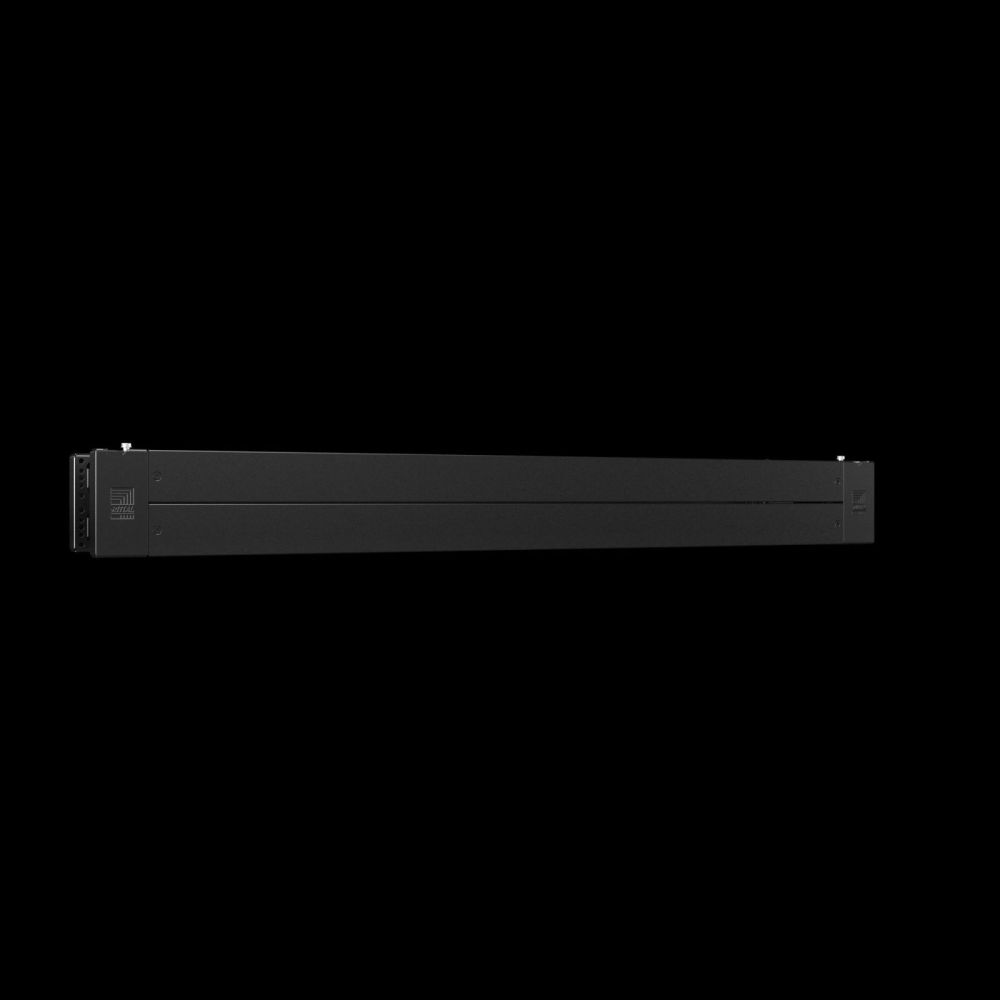

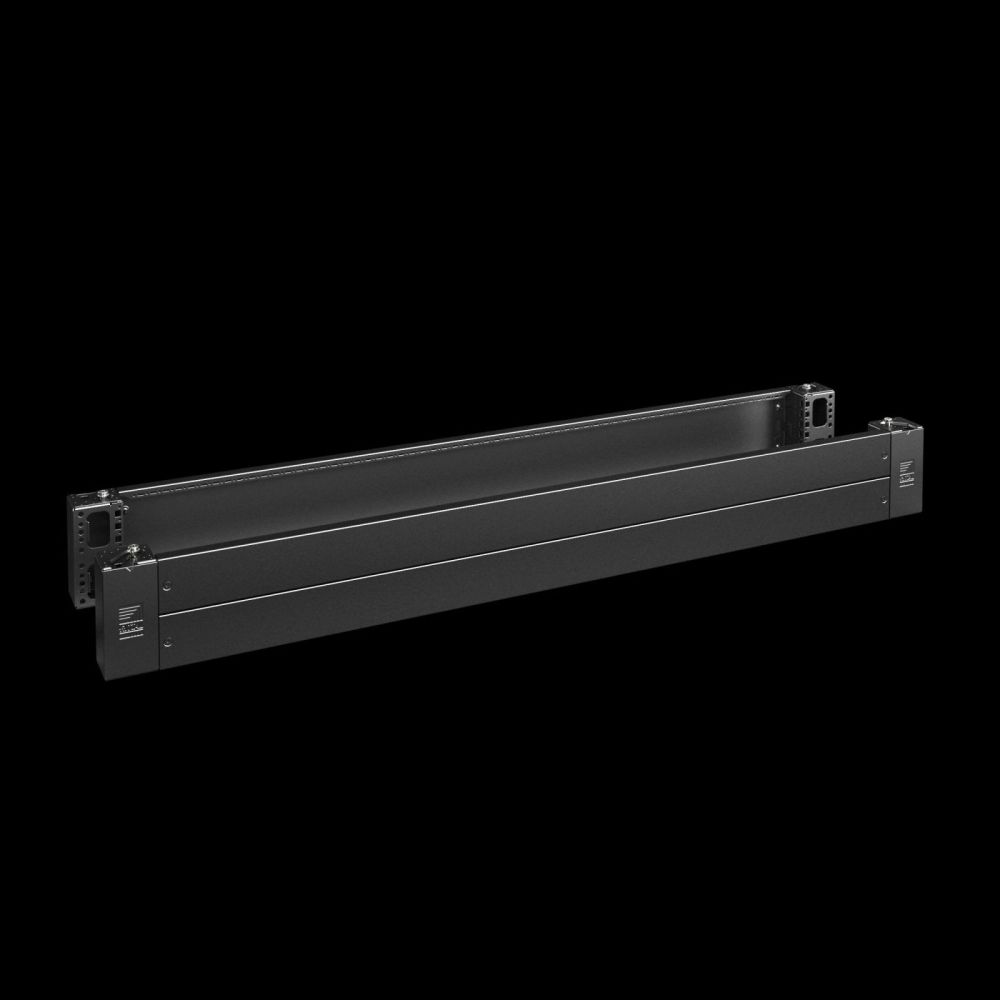

The delivery includes 4 plinth corner pieces with a height of 200 mm, 1 plinth trim panel front/rear at a height of 200 mm, 2 plinth trim panels front/rear at a height of 100 mm, and 4 plastic corner caps. Additionally, the necessary mounting materials are included to securely attach the individual parts to the plinth. The sheet steel plinth trim panels offer robust coverage, while the plastic corner caps ensure a clean, rounded finish at the corners.

Technology Explained Simply
The construction from sheet steel ensures high mechanical strength and resistance to mechanical stress. The RAL 9005 color is a dark gray standard tone commonly used in industrial environments to achieve a uniform appearance. The plinth trim panels are designed to serve both as an aesthetic finish and as structural reinforcement. The height of 200 mm provides sufficient protection for the lower areas of the enclosure and enables secure mounting. The plastic corner caps ensure a clean transition between the plinth corner pieces and prevent sharp edges.

Compatibility and Accessories
The plinth corner piece is specifically designed for enclosure systems with a width of 400 mm and fits enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It can be combined with additional VX accessories, such as levelling feet, mounting brackets, castors, or plinth baying brackets, to enhance the functionality and stability of the system. The plinth trim panels can also be supplemented with plinth expansion angles or optional mounting brackets to meet individual requirements for internal outfitting.

Installation and Mounting
Mounting is done by securing the plinth corner pieces to the corners of the plinth using the included fastening materials. The plinth trim panels are attached to the front and rear sides of the plinth, with the 200 mm panel intended for main coverage and the 100 mm panels for additional finishing surfaces or internal outfitting. The corner caps are inserted over the corners of the plinth corner pieces to achieve a clean, rounded finish. Installation requires no special tools, as the fastening materials are standard.

Operational Advantages
Using the Rittal VX 8660021 provides high stability for the plinth, which is particularly beneficial for heavy or mobile enclosures. The flexible internal outfitting options via the plinth trim panels allow individual adaptation to specific requirements, such as cable routing or structural reinforcement. The flush termination between baying points ensures a professional appearance and prevents dust or foreign objects from entering. Compatibility with various enclosure types increases reusability and flexibility of the product in different projects. The type rating according to UL 50E in categories Type 1 and Type 12 confirms suitability for indoor use and environments with limited protection requirements against dust and splashing water.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height200 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 400 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU5,85 kg
PCF/VE (Cradle-to-Gate)22.05 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660021, EAN: 4028177978126

Questions & answers

What is the delivery time of Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200?

The article Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200 is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660021 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200 always at the best possible price. We can give you a discount of 2% on Rittal 8660021 VX plinth corner piece with trim panel, front/rear, H: 200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
