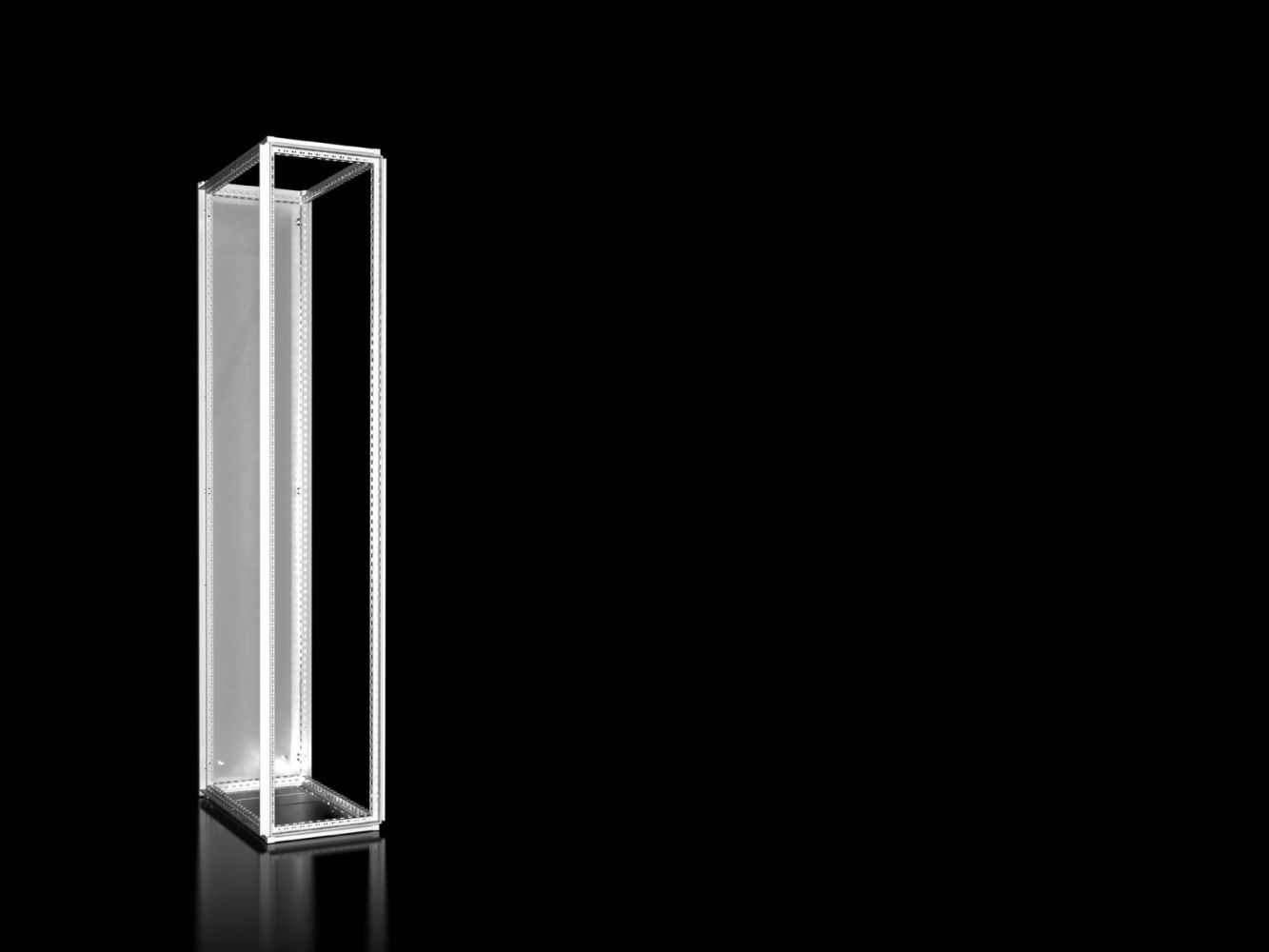

Rittal 9680406 VX modular enclosure, W x H x D: 400x2000x600 mm
|
298,77 EUR |
|
|
( 355,54 EUR incl. VAT ) ≈ £250.07 | ≈ $328.35 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440995 |
| Mfg Part No: | 9680406 |
| UPC/EAN: | 4028177929609 |
| Weight: | 36.4 kg |
| Type: | VX 9680.406 |
Product information for Rittal 9680406:
Applications
The VX 9680.406 is suitable for use in production plants, automation systems and other industrial environments where a modular enclosure solution is required. It is particularly suitable for installations requiring high mechanical stability and clear structuring of electrical components. The modular design allows for flexible adaptation to different requirements, such as the integration of partial doors or internal partitions.
Functions and equipment in detail
The enclosure frame provides a stable base for mounting enclosure components. The rear panel is externally powder-coated, ensuring high corrosion resistance and uniform surface quality. The base plates are galvanized to provide an additional protective layer against moisture and corrosion. The delivery includes the enclosure frame, rear panel and base plates, which together form the basic structure of the enclosure.
Technology explained simply
The enclosure achieves a protection rating up to IP 54, with the exact IP rating depending on the cladding. IP 54 means the enclosure is protected against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The design and safety of the enclosure are based on IEC 61 439-1/-2 and IEC 61 641, confirming compliance with international standards for enclosures and electrical equipment. The use of 1.5 mm sheet steel ensures sufficient mechanical strength to securely hold components mounted in the enclosure.
Compatibility and accessories
The VX 9680.406 is part of the bayed system VX and can be expanded with various accessories. These include levelling feet M12 with an adjustment height of 18 to 43 mm, SV roof plates for IP 54 protection, and various SV partial doors in different heights (e.g. 1000 mm, 1600 mm, 1800 mm) and SV front trim panels in various sizes (e.g. 400x100 mm, 400x300 mm). Additionally, plinth corner pieces with trim panels, plinth trim panels in various heights (100 mm, 200 mm) and baying connectors (e.g. 1200 mm) are available to adapt the enclosure arrangement to specific requirements. The baying lugs and baying blocks enable a secure connection of multiple enclosures into a row.
Mounting and installation
Assembly is carried out by combining the supplied components: enclosure frame, rear panel and base plates. The base plates provide a stable foundation, while the enclosure frame ensures structural integrity. The rear panel is attached to the frame, with the powder-coated outer side facing outward. Installation is typically performed by skilled personnel familiar with enclosure mounting.
Advantages in operation
The enclosure offers high mechanical stability and clear structuring of electrical components. The modular design allows for flexible adaptation to different requirements, simplifying maintenance and expansion of the installation. The IP 54 protection rating provides sufficient protection against dust and splashing water, increasing reliability in industrial environments. The use of sheet steel with a thickness of 1.5 mm ensures a long service life and high strength. The surface treatment with dip priming and powder coating ensures high corrosion resistance.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 400 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| PCF/VE (Cradle-to-Gate) | 107.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
