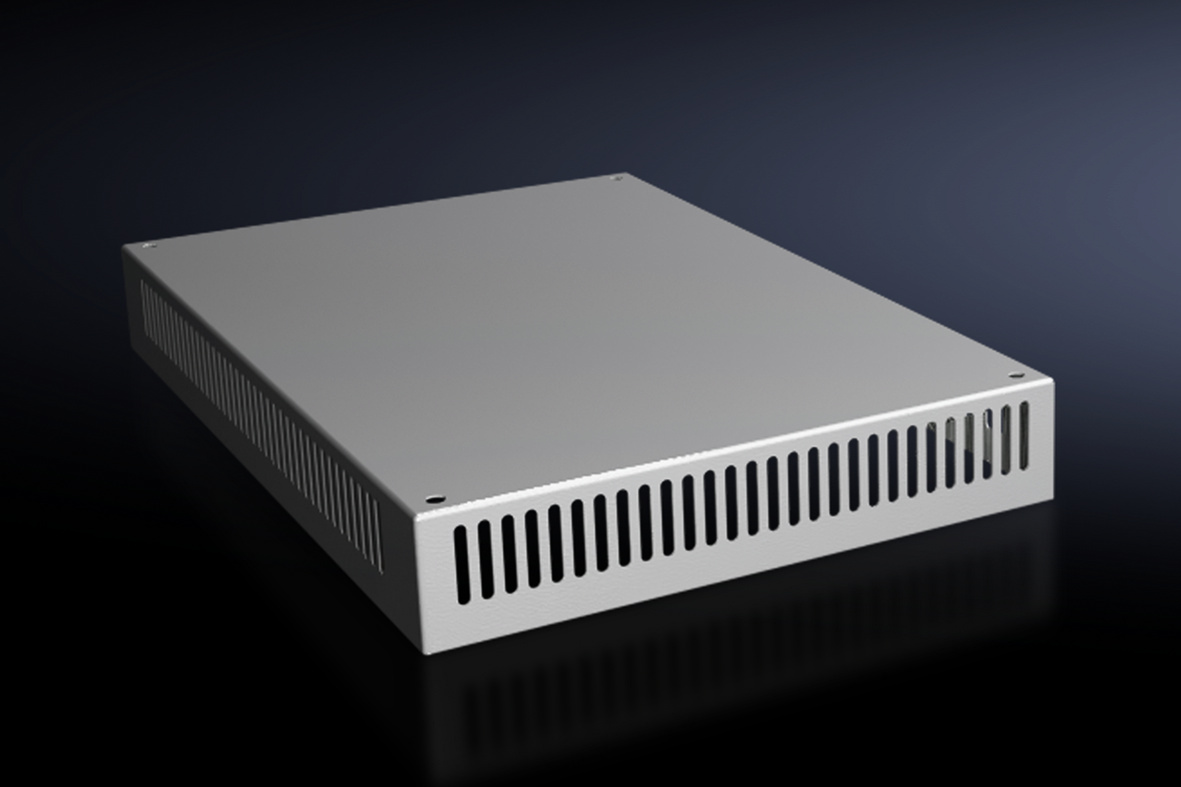

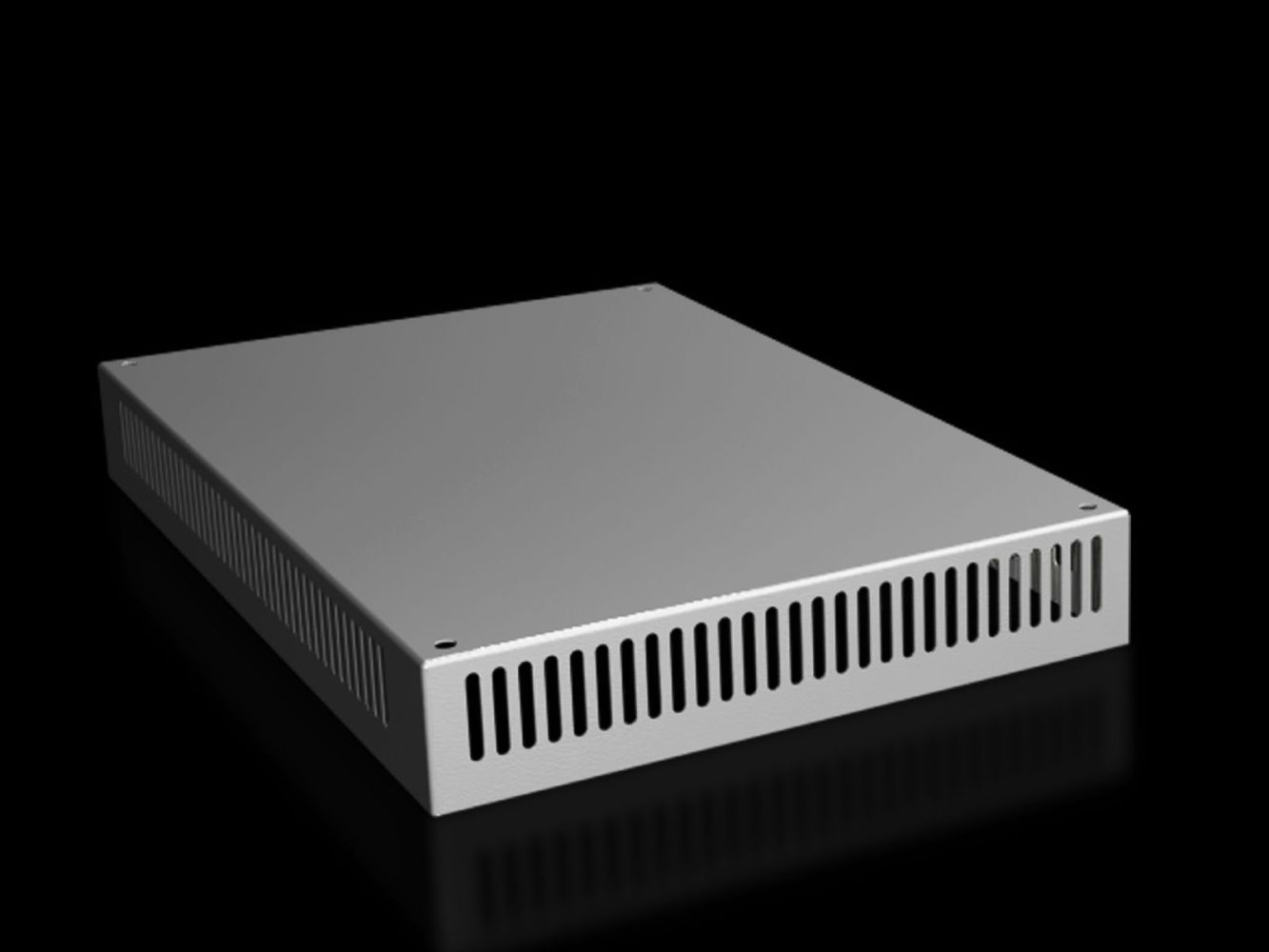

Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X
( 4.5 / 5 ) 2 ratings
Rittal 9681846
This image may differ from the desired article.
Rittal 9681846Rittal 9681846Rittal 9681846
58,77 EUR
( 69,94 EUR incl. VAT )
≈ £49.19  |  ≈ $64.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903711
Mfg Part No: 9681846
UPC/EAN: 4028177926738
Weight:4.88 kg
Type:SV 9681846

Product information for Rittal 9681846:

The Rittal SV 9681846 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 400 mm and a depth of 600 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a wall thickness of 1.5 mm, providing a robust and durable construction for industrial applications. The surface is coated with a textured paint, ensuring an even, crack-free, and durable finish in the color RAL 7035. The build height is 72 mm, enabling a compact installation without disproportionately increasing the overall height of the enclosure.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is suitable for installations where mechanical shielding of the upper enclosure area is required to protect against mechanical impacts, dust, or unauthorized access. The IP 2X protection rating ensures protection against contact with fingers and larger solid objects, making it suitable for indoor use where no direct weather exposure is expected. The ventilation opening in the roof plate allows sufficient air circulation to prevent overheating of components installed in the enclosure.

Features and Equipment in Detail

The roof plate includes an integrated ventilation opening that supports passive cooling of the enclosure's internal components. This opening is dimensioned to ensure adequate airflow without compromising the IP 2X protection rating. Installation is carried out using included mounting hardware, which is part of the delivery scope. This hardware enables secure and durable fastening to the enclosure frame, with installation possible without additional tools or components. The use of steel sheet with a thickness of 1.5 mm ensures high mechanical stability and resistance to deformation.

Technology Explained Simply

The IP 2X protection rating means the roof plate is protected against contact with fingers and larger solid objects. It is not waterproof or dustproof, and is designed for indoor use where no direct weather influences occur. The ventilation opening is an integral part of the design to minimize thermal stress on devices installed in the enclosure. The textured paint finish provides an even surface that is resistant to mechanical stress and minor chemical influences. The color RAL 7035 corresponds to a gray, neutral tone that integrates well in industrial environments.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 400 mm and a depth of 600 mm. It is compatible with Rittal's VX and VX IT enclosure models. The fit is designed to allow direct mounting onto existing enclosure frames without requiring additional modifications or adaptations. It can be used as a replacement for the standard roof of other enclosures, enabling standardization of enclosure equipment. Using the roof plate in combination with other components of the VX series ensures a consistent and uniform execution of the enclosure construction.

Installation and Mounting

Mounting is performed using the included mounting hardware. The fastening points are arranged to ensure even load distribution. Installation can be carried out without special tools, with the provided holes and fastening elements enabling quick and secure installation. The build height of 72 mm is dimensioned to minimally increase the overall height of the enclosure, preserving space requirements in the operating environment.

Operational Advantages

The roof plate provides mechanical shielding of the upper enclosure area, enhancing the safety and integrity of installed components. The ventilation opening supports cooling of devices installed in the enclosure, which can extend the lifespan of electronic components. The use of steel sheet with a thickness of 1.5 mm ensures high mechanical stability, even during frequent mounting and dismounting operations. The textured paint finish in RAL 7035 provides an even, durable surface that integrates well in industrial environments and is easy to maintain. Compatibility with VX enclosure models enables flexible and standardized equipment of enclosures.

Delivery Scope

The product is delivered with mounting hardware required for installation on the enclosure frame. The packaging unit is 1 piece.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 400 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681846, EAN: 4028177926738

Questions & answers

What is the delivery time of Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X?

The article Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681846 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681846 SV roof plate for VX, width: 400x600 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
