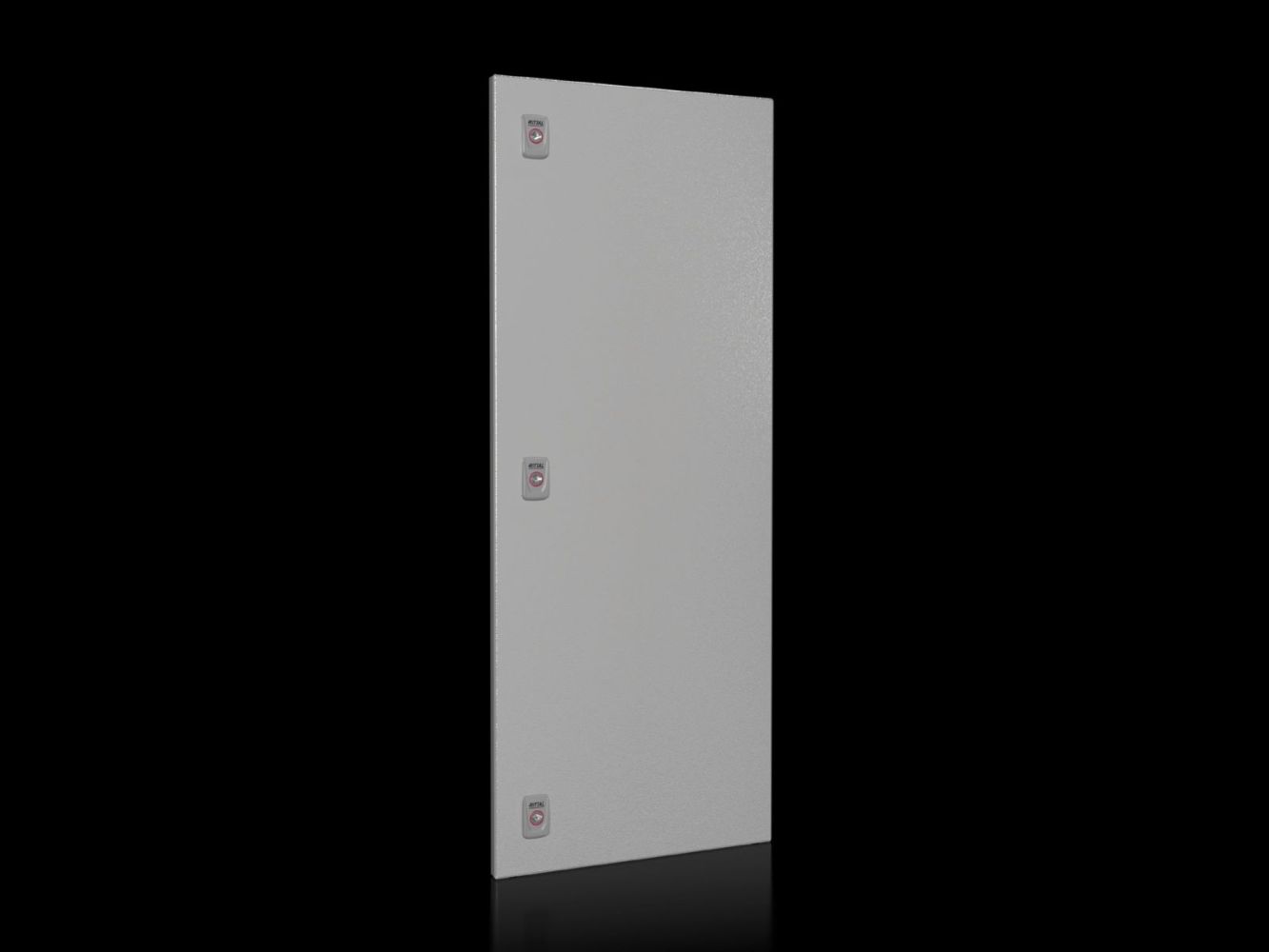

Rittal 9682140 SV partial door for VX, W x H: 400x1000 mm

Your rating:
Average rating
product review for Rittal 9682140 SV partial door for VX, W x H: 400x1000 mm
( 0 / 5 ) 0 ratings

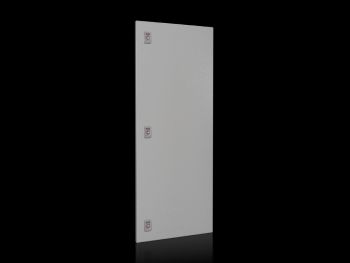

Rittal 9682140
This image may differ from the desired article.
-12% 83,72 EUR 95,31 EUR
( 99,63 EUR incl. VAT )
≈ £70.07  |  ≈ $92.01
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9682140 SV partial door for VX, W x H: 400x1000 mm
Datasheet:file_download Download
Lieske Part No.:591446
Mfg Part No: 9682140
UPC/EAN: 4028177928862
Weight:8.66 kg
Type:SV 9682140

Product information for Rittal 9682140:

The Rittal SV 9682140 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. It enables flexible partitioning of the enclosure interior and can be combined with additional partial doors to create custom separations. The door has a width of 400 mm and a height of 1,000 mm and is specifically designed for enclosures with a width of 400 mm. Installation is carried out using integrated hinges, which can be mounted on the right or left side, ensuring an adjustable door swing direction. The maximum opening angle of the partial door is 130°, providing sufficient access to the enclosure interior.

Applications

The partial door is used in industrial plants, electrical engineering, and automation technology, where modular and flexible enclosure configurations are required. It is suitable for delineating specific areas within an enclosure, for example, to separate control and power sections or to improve accessibility to individual components. Its use in VX enclosures enables standardized integration into existing systems.

Functions and Equipment in Detail

The SV 9682140 is made of sheet steel with a thickness of 2 mm and is coated with a textured paint in the color RAL 7035. This surface coating provides high mechanical stability and resistance to wear. The door is equipped with a standard double-bar lock insert, which includes three locks. This lock can be replaced with lock inserts of type A, allowing adaptation to specific security requirements. The delivery scope includes the partial door, a partition strip, hinges, lock components, and the necessary mounting hardware.

Technology Explained Simply

The protection rating IP 54 according to IEC 60 529 protects the partial door against dust and splashing water, making it suitable for use in industrial environments where some contamination or moisture exposure is expected. The IP rating ensures that no solid foreign objects larger than 1 mm can enter and that splashing water from any direction cannot penetrate the interior. The use of 2 mm thick sheet steel ensures sufficient mechanical strength to protect the door against mechanical stress.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 400 mm. Front trim panels are required at the top and bottom of the partial door to ensure a clean appearance. Suitable accessories include front trim panels in dimensions 400x100 mm and 400x300 mm, which also comply with IP 54. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to modify the lock. For mounting monitors in doors without a viewing window (height 600–1000 mm), the monitor frame 2305.000 is suitable.

Installation and Mounting

Installation of the partial door is carried out using the hinges and mounting hardware included in the delivery scope. The doors can be freely combined with each other, with mounting taking place at the designated mounting points of the VX enclosure. The optional right- or left-hand door swing direction allows flexible adaptation to the specific enclosure configuration. The maximum opening angle of 130° ensures sufficient access for maintenance and servicing.

Operational Advantages

The modular design of the partial door enables flexible and customizable enclosure planning. The IP 54 protection rating provides sufficient protection against dust and splashing water, increasing reliability in industrial applications. The interchangeable locks allow security functions to be adapted to specific requirements. The use of 2 mm thick sheet steel and textured paint ensures high mechanical stability and durability. The integrated hinges and included mounting hardware reduce installation time and simplify the setup process.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 3
Width400 mm
Height1.000 mm
Suitable forWidth: = 400 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)33 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682140, EAN: 4028177928862
