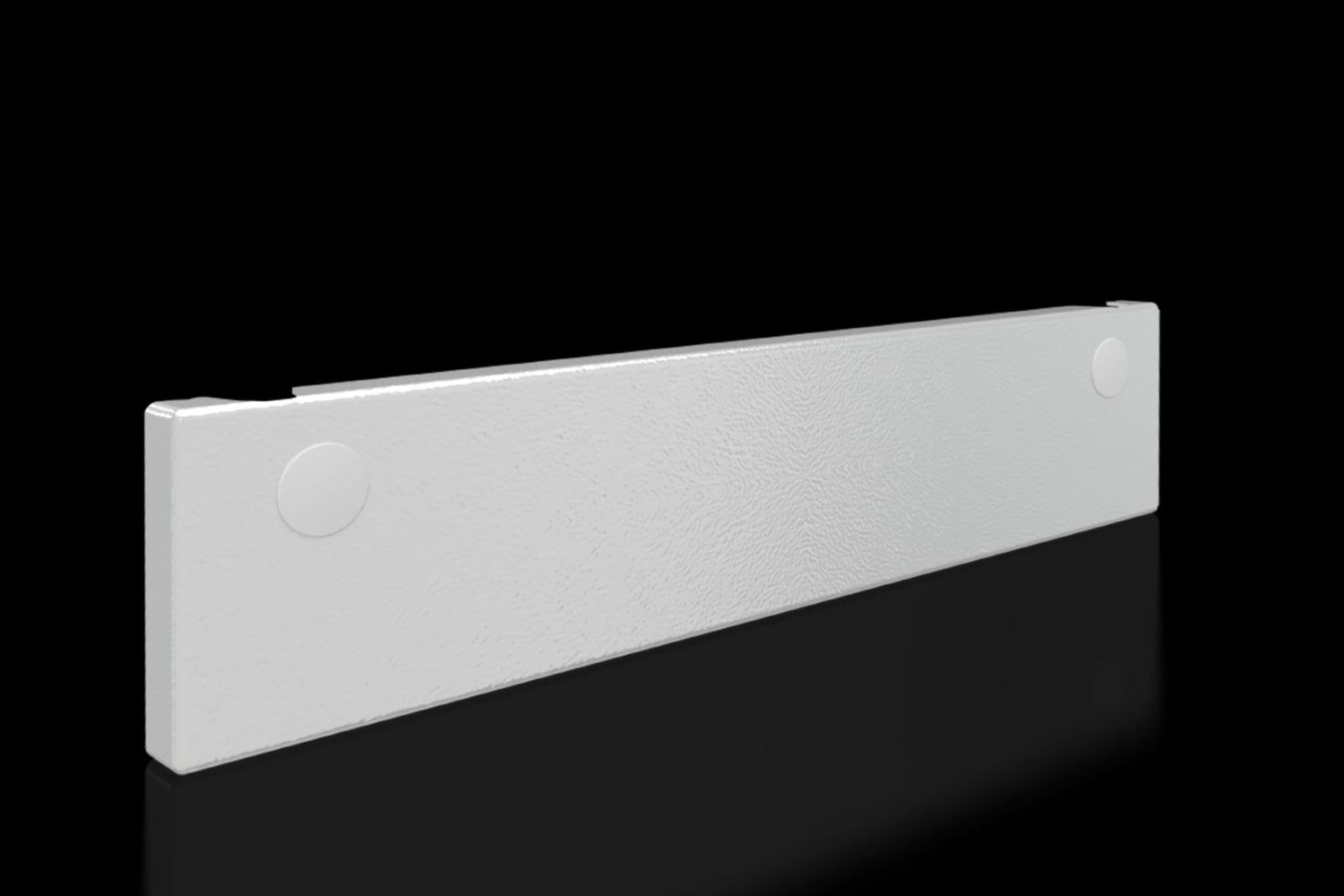

Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm

Your rating:
Average rating
product review for Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm
( 4.4 / 5 ) 8 ratings
Rittal 9682334
This image may differ from the desired article.
Rittal 9682334Rittal 9682334Rittal 9682334
40,25 EUR
( 47,90 EUR incl. VAT )
≈ £33.69  |  ≈ $44.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm
Datasheet:file_download Download
Lieske Part No.:468961
Mfg Part No: 9682334
UPC/EAN: 4028177929791
Weight:1.362 kg
Type:SV 9682334

Product information for Rittal 9682334:

The Rittal SV 9682334 is a front trim panel for enclosures of the VX system, specifically designed as a lower closure when using partial doors. The product enables modular design of the enclosure front and provides a clean, uniform appearance. The front trim panel is made of steel sheet with a thickness of 1.5 mm and features a surface finish of textured paint in the colour RAL 7035, ensuring a robust and even coating. The dimensions are a height of 100 mm and a width of 400 mm, making it specifically designed for enclosures with a width of 400 mm. The front trim panel is equipped with an IP 54 protection rating, meaning it is protected against dust and splashing water, and is therefore suitable for use in industrial environments with increased contamination risk or occasional precipitation.

Applications
The front trim panel is primarily used in industrial electrical engineering and automation technology, where enclosures with modular fronts and partial doors are employed. It serves as a visual and functional closure at the lower edge of the front, improving the aesthetic appearance and simultaneously creating a closed, dirt- and water-repellent surface. Its use is particularly common in production plants, machine construction, and manufacturing technology, where clear structuring of enclosure fronts is required.

Functions and Equipment in Detail
The front trim panel can be removed from the outside by loosening the screws, enabling easy maintenance and replaceability. The delivery includes the front trim panel itself, a partition strip, and the required mounting material. Mounting is done using screws included in the delivery, ensuring secure attachment to the enclosure front. The front trim panel is designed for a width of 400 mm and thus fits exactly into enclosures of this format.

Technology Explained Simply
The steel sheet material with a thickness of 1.5 mm provides sufficient mechanical stability to protect the front trim panel against mechanical impacts. The textured paint surface in RAL 7035 ensures an even, abrasion-resistant coating that remains durable even with frequent handling or industrial use. The IP 54 protection rating means the front trim panel is protected against dust and splashing water, making it suitable for use in environments with increased contamination risk or occasional precipitation. The front trim panel is not intended for outdoor use or in permanently wet environments, as IP 54 does not provide complete waterproofing.

Compatibility and Accessories
The front trim panel is specifically designed for Rittal VX system enclosures and fits exactly into enclosures with a width of 400 mm. It is used in combination with partial doors to enable modular front design. The use of partial doors allows only specific areas of the enclosure to be accessible, while the rest remains closed. The front trim panel serves as the lower closure to maintain optical continuity.

Installation and Mounting
Mounting is done by securing the front trim panel to the enclosure front using the screws included in the delivery. The panel is attached to the lower edge of the front, with the partition strip providing support and secure positioning. The mounting is accessible from the outside, allowing the front trim panel to be removed without having to remove the entire enclosure door. Installation requires no special tools, only a screwdriver or appropriate wrench.

Operational Advantages
The front trim panel offers a simple and efficient way to visually close the front of an enclosure without impairing the functionality of partial doors. The ability to remove the front trim panel from the outside facilitates maintenance and inspection of components behind it. The use of steel sheet and textured paint ensures high mechanical and chemical resistance, extending the component’s service life. The IP 54 protection class provides sufficient protection against dust and splashing water, increasing reliability in industrial applications. The front trim panel is thus a reliable and low-maintenance component for modular enclosure front design in the VX system.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
Height100 mm
Suitable forWidth: = 400 mm
PCF/VE (Cradle-to-Gate)5.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682334, EAN: 4028177929791

Questions & answers

What is the delivery time of Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm?

The article Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682334 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682334 SV front trim panel for VX, bottom, IP 54, W x H: 400x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
