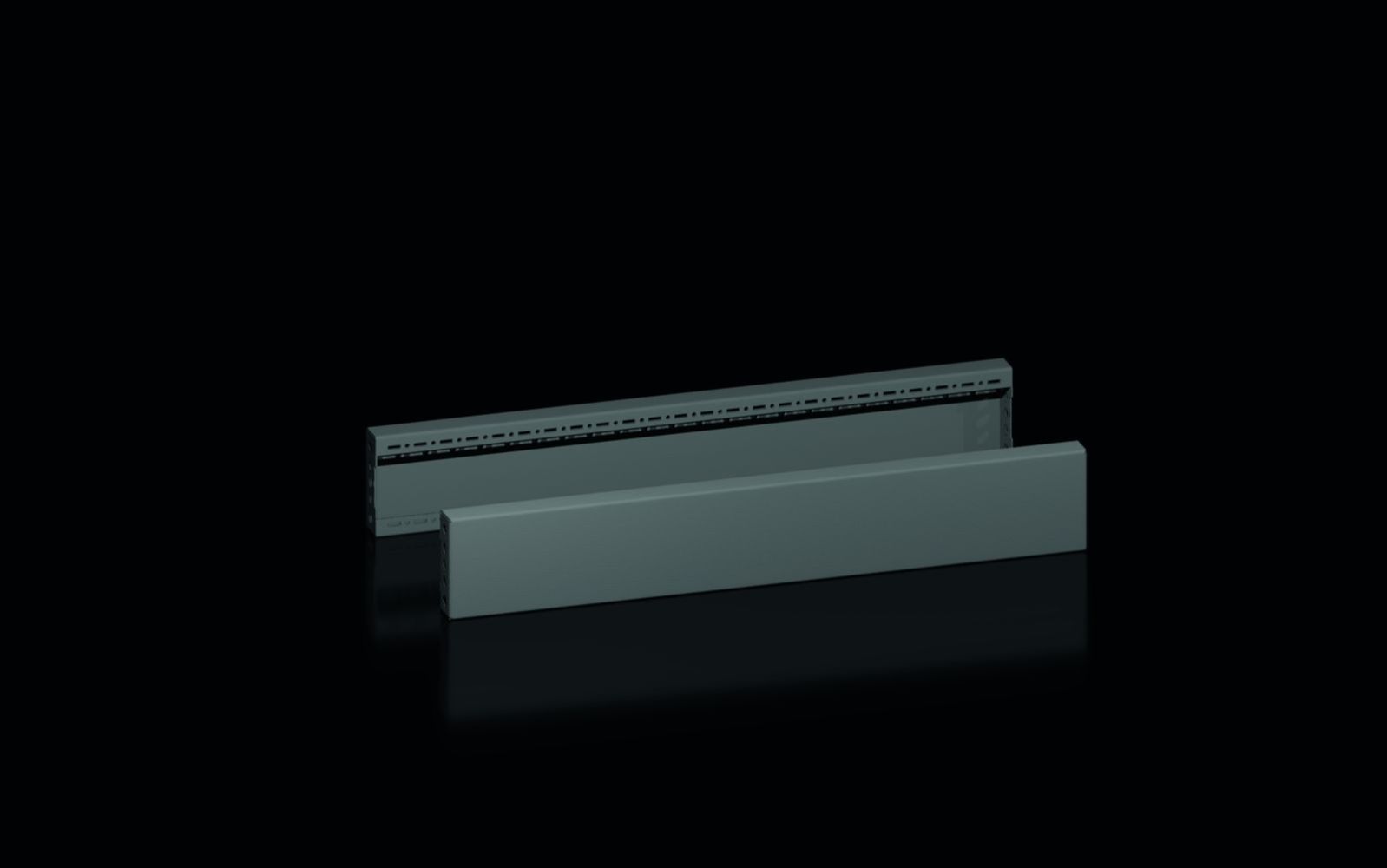

Rittal 8660034 plinth trim panel side 100 x 800 sheet metal
|
32,60 EUR |
|
|
( 38,79 EUR incl. VAT ) ≈ £27.29 | ≈ $35.83 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103908 |
| Mfg Part No: | 8660034 |
| UPC/EAN: | 4028177978249 |
| Weight: | 2.816 kg |
| Type: | VX 8660034 |
Product information for Rittal 8660034:
Applications
The plinth trim panel is primarily used in industrial environments where enclosures, housings, or plinth systems are arranged in rows. It is suitable for various enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. The panel ensures a uniform optical appearance and improves the mechanical stability of the plinth structure, especially when multiple units are arranged side by side. For plinths with a height of 200 mm, either a 200 mm high panel or two 100 mm high panels can be mounted, offering flexibility in design.
Functions and Equipment in Detail
The panel is designed as a closed version, meaning it has no openings or cutouts. It is attached laterally to the plinth structure to cover the side surfaces. The use of sheet steel ensures high mechanical strength and durability. The color RAL 9005 provides a uniform optical match with other components in the enclosure system.
Technology Explained Simply
The plinth trim panel is a passive component without electrical or electronic function. Its main purpose lies in mechanical stabilization and aesthetic finishing. The choice of sheet steel provides sufficient strength to protect the plinth structure against mechanical stress. The height of 100 mm is aligned with standard plinth system heights, ensuring easy installation. The exact fit for a depth of 800 mm ensures precise adaptation to the corresponding enclosures.
Compatibility and Accessories
The panel is compatible with various enclosure types of the Rittal plinth system, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for plinths with a depth of 800 mm. Additional accessories are available, such as mounting brackets, plinth baying brackets, removal angles for plinth trim panels, optional trim panel fasteners, system chassis, and cable strain relief rail angle profile. These elements allow for individual adaptation of the plinth system to specific requirements.
Mounting and Installation
Mounting is performed on the lateral surfaces of the plinth structure. The panel is fastened at the designated attachment points, with the exact fit for a depth of 800 mm enabling secure and clean installation. The installation is simple and does not require special skills.
Operational Advantages
The plinth trim panel improves the mechanical stability of the plinth structure, especially when multiple units are arranged side by side. It ensures a uniform visual appearance and protects the side surfaces from dirt or mechanical damage. The use of sheet steel and integrated fastening enables a robust and maintenance-friendly installation. Compatibility with various enclosure types increases flexibility in planning and implementing enclosure systems.
Type rating according to UL 50E
The plinth trim panel meets the requirements of the type rating according to UL 50E, specifically categories Type 1 and Type 12. Type 1 refers to protection against solid objects and water, suitable for indoor use. Type 12 provides additional protection against splashing water and dust, enabling use in environments with increased contamination risk. These certifications ensure suitability for industrial applications indoors.
Environmental Information
The product life cycle is described by the PCF value (Product Carbon Footprint) according to Cradle-to-Gate. The value is 10.17 kg CO2 equivalents per packaging unit (2 pieces) and is declared in category B, with the value approximately calculated based on product weight and self-declared. This value serves as a reference for the environmental balance of the product.
Dimensions and Weight
The height of the panel is 100 mm, and it is designed for a depth of 800 mm. The gross weight of the packaging unit (2 pieces) is 2.816 kg, the net weight is 2.14 kg. The weight per packaging unit is specified as 2.82 kg, which accounts for the total mass of the two panels and the fastening material.
| General | |
| Material | steel sheet |
| Colour | RAL 9005 |
| Scope of delivery | Including mounting hardware |
| Height | 100 mm |
| Suitable for | Housing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, depth: = 800 mm |
| Type rating according to UL 50E | Type 1, Type 12 |
| Weight/PU | 2,82 kg |
| PCF/VE (Cradle-to-Gate) | 10.17 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
