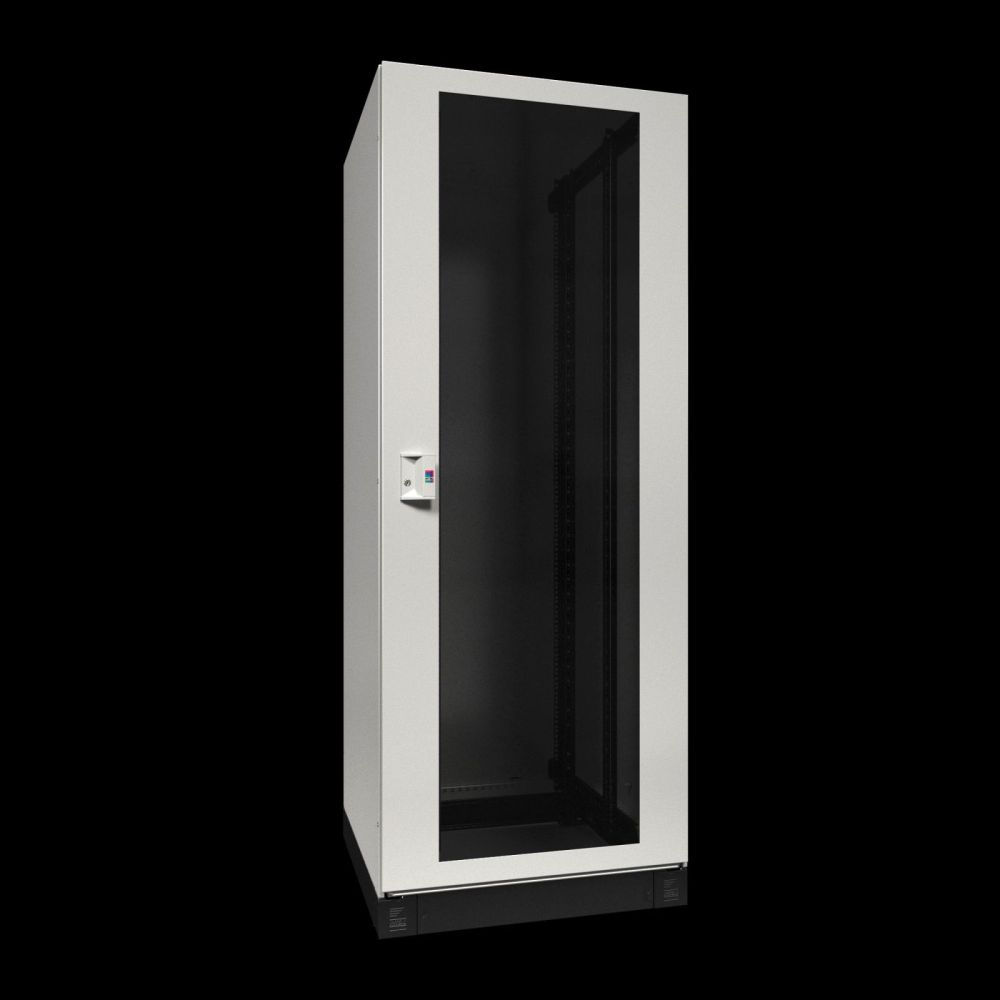

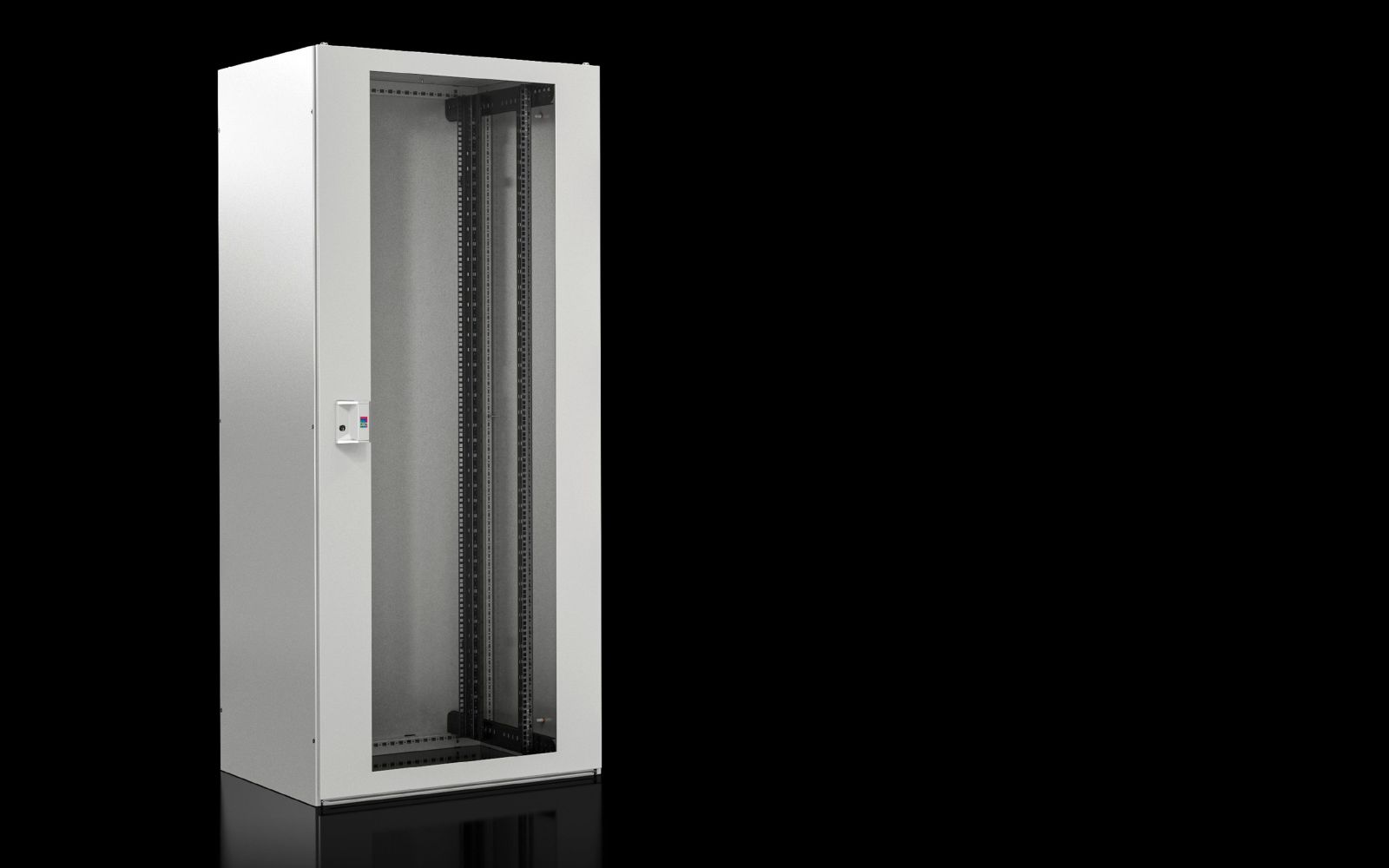

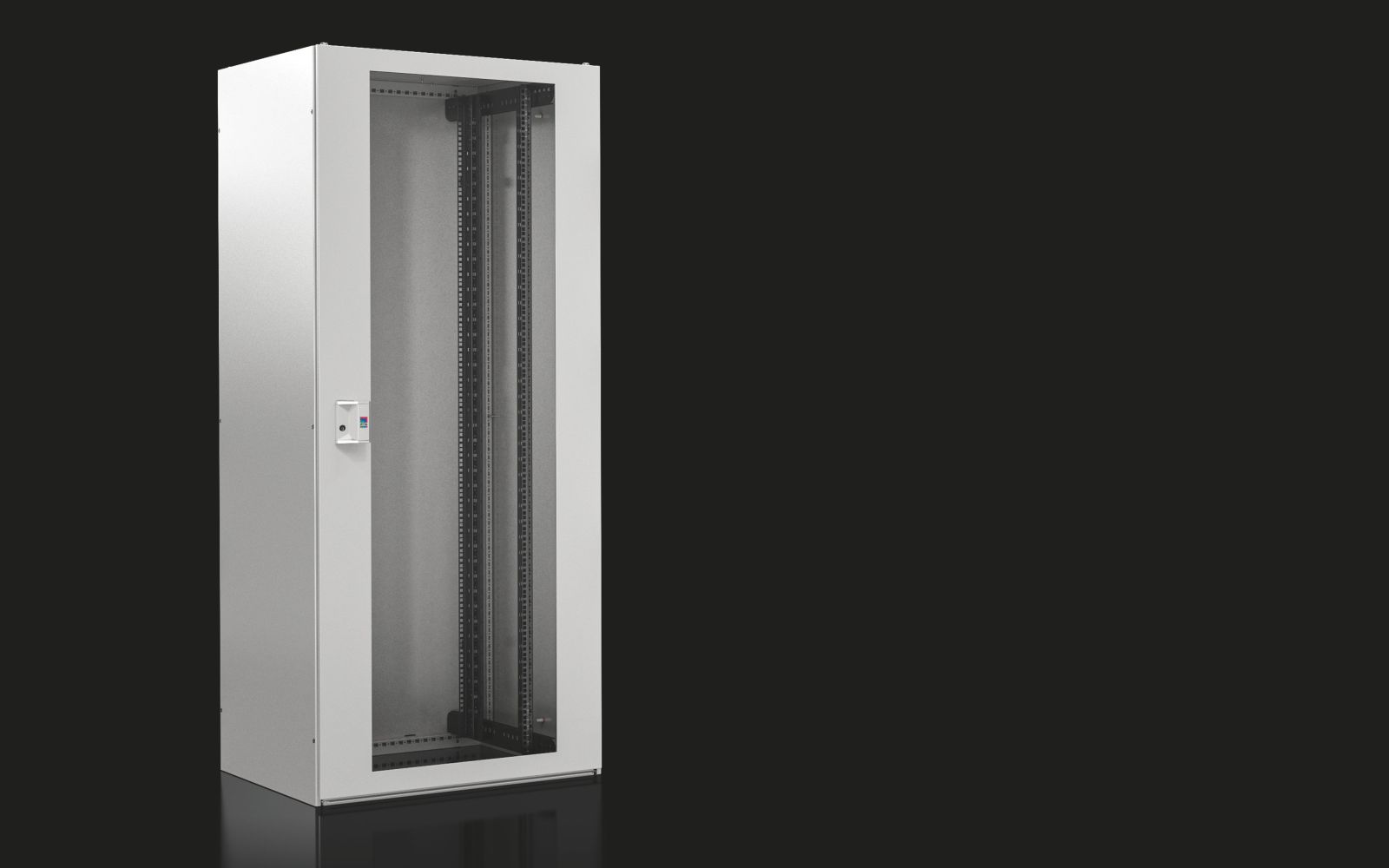

Rittal 7888728 TX CableNet network enclosure 800x2000x800 mm 42 U disassemblable
|
-14% 756,39 EUR 875,13 EUR |
|
|
( 900,10 EUR incl. VAT ) ≈ £633.10 | ≈ $831.27 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 877406 |
| Mfg Part No: | 7888728 |
| UPC/EAN: | 4028177997554 |
| Weight: | 129.5 kg |
| Type: | TX 7888728 |
Product information for Rittal 7888728:
Applications
This enclosure is suitable for use in smaller IT network structures where compact and flexible mounting is required. The disassembled construction enables easy handling during transport and installation, especially in rooms with restricted access. The integrated 48,3 cm ( 19 inch ) profile rails are adjustable in width and depth and support an asymmetric internal layout, facilitating adaptation to different device geometries.
Functions and Equipment in Detail

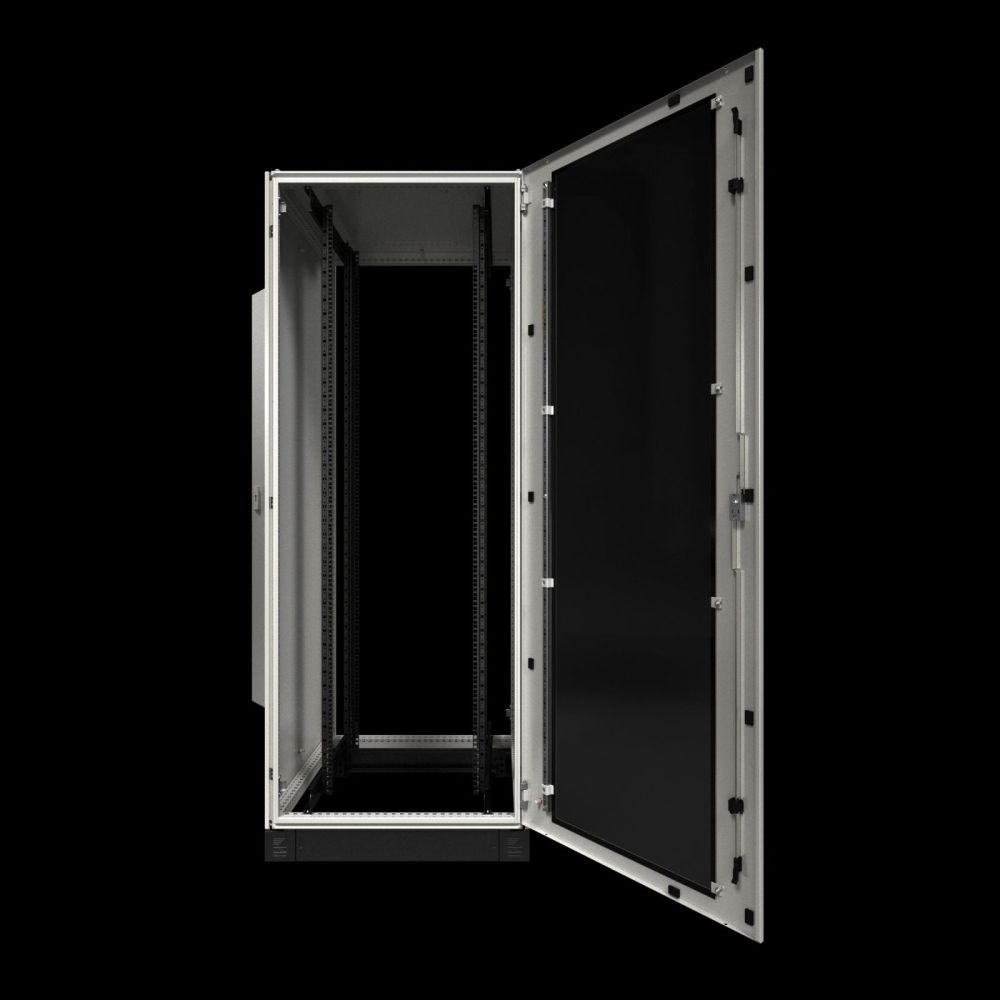

The enclosure is made of steel sheet, with the door and side panels having a thickness of 1.2 mm. The 48,3 cm ( 19 inch ) profile rails are made of 2 mm thick steel sheet. The surface of the enclosure frame is dip-primed, and flat parts are dip-primed and powder-coated. The base color is RAL 7035. The front door is a viewing door, single-piece design, with single-pane safety glass (3 mm thickness), enabling visual inspection of installed components. The rear door is a single-piece, solid steel sheet door. The door opening angle during baying is up to 105°.
Technology Explained Simply

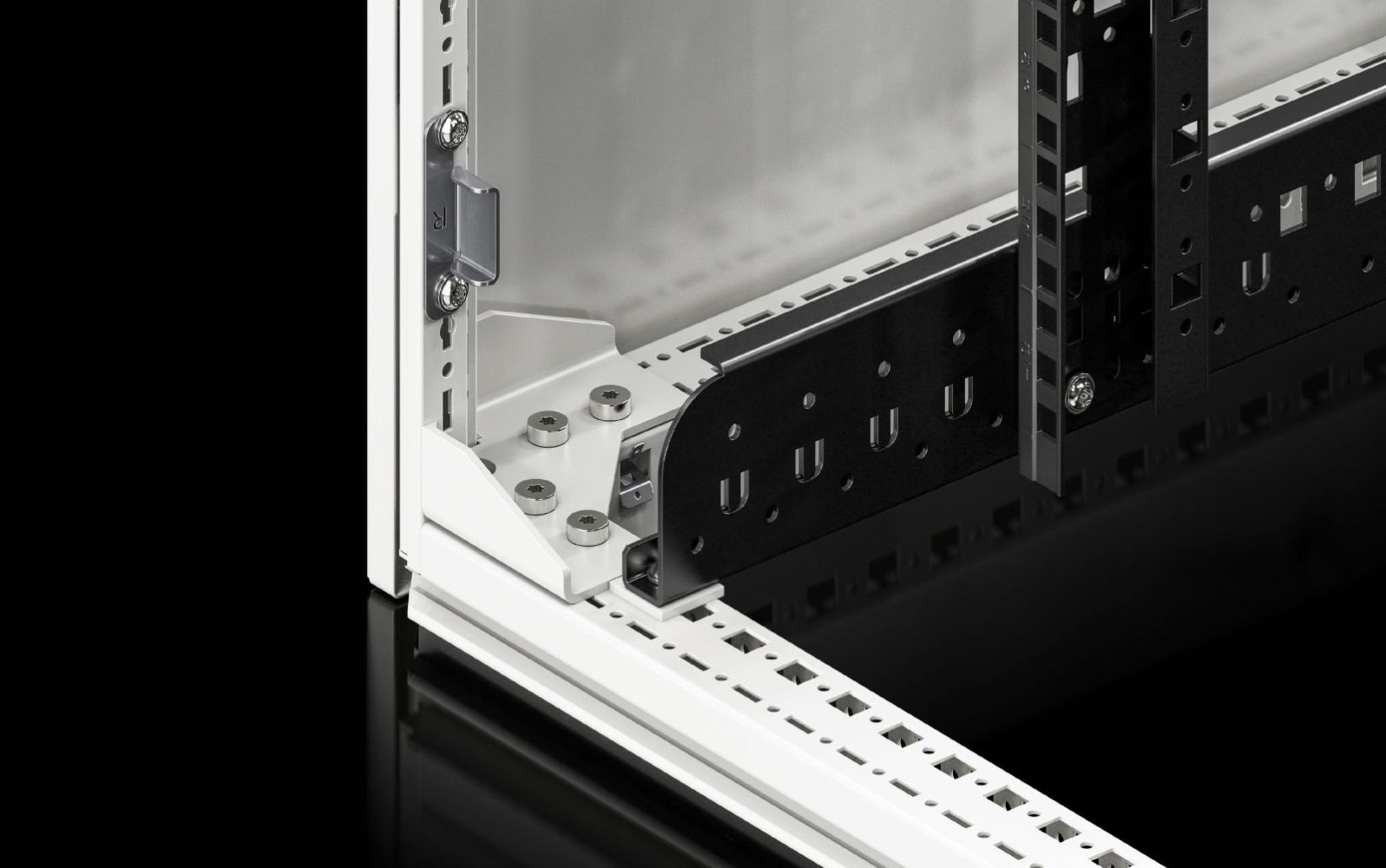

The construction of the enclosure is based on a torsion-resistant, welded frame structure made of rolled and 16-fold flanged vertical profiles, connected to a horizontal frame at the bottom and horizontal cross profiles. The frame profiles feature an integrated system hole pattern on a 25 mm grid, enabling convenient internal installation through simple hanging and securing of components. The vertical profiles each have two mounting levels offset in depth and width, which can be used flexibly. The screwed roof plate provides a double-sided concealed cable entry across the full enclosure depth, as well as a central concealed opening for easy integration of a fan module. The load capacity is 5000 N, and the static load capacity is 500 kg. The protection rating according to EN 60 529 is IP 20, providing protection against solid foreign objects and splashing water to a limited extent.
Compatibility and Accessories
Various accessories are available for individual internal fitting, including slide rails, levelling feet, component shelves, plinth trim panels, brush kit for TX CableNet, and transport kit. The baying of enclosures is possible front and rear, as well as side-to-side.
Mounting and Installation
Mounting is performed via the disassembled enclosure frame, equipped with 48,3 cm ( 19 inch ) profile rails at the front and rear. The side panels are screwed, allowing quick access. The screwed construction of the roof plate and the integrated system hole pattern facilitate installation and adaptation. The profiles are rounded, making handling and installation safer.
Advantages in Operation
The enclosure offers efficient use of available space due to its compact design and the possibility of individual adaptation of internal equipment. The disassembled construction and adjustable profile rails increase flexibility during mounting and maintenance. The integrated cable entry and opening for fan modules support structured and maintenance-friendly installation. The static load capacity of 500 kg and load capacity of 5000 N ensure safe use even with heavy loads.
| General | |
| Model | 2nd generation, disassemblable, with vision door, with side walls, with roof sheet |
| Material | Enclosure: sheet steel, door: sheet steel, 1.2 mm, side wall: sheet steel, 1.2 mm, 19“-profile rails: sheet steel, 2 mm, side wall: sheet steel, 1.2 mm |
| Surface protection | Cabinet frame: dip-primed, flat parts: dip-primed, powder-coated |
| Basic colour | RAL 7035 |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet with front vision door and rear door, cabinet frame, disassembled, with 19"-profile rails front and rear, side walls, bolted roof sheet with concealed, rear cable entry in transverse direction and central, concealed opening for easy integration of a fan module. |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Layer spacing (as delivered) | 445 mm |
| 19" mounting | disassemblable |
| Door configuration rear | Sheet steel door, single-piece closed |
| Front door configuration | Vision door, single-piece, with single-pane safety glass 3 mm, door opening angle in rowing max. 105° |
| Load capacity | 5000 N |
| Load capacity (static) | 500 kg |
| Degree of protection IP according to EN 60 529 | IP 20 |
| Note | For installation of a fan module, brush strips are required for equipping the cable passage openings, if these are used or the cover plates have been removed. Brush strips for covering the cable entry are available separately and can be conveniently ordered through our accessory range. |
| Base material | steel sheet |
Questions & answers
What is the delivery time of Rittal 7888728 TX CableNet network enclosure 800x2000x800 mm 42 U disassemblable?
The article Rittal 7888728 TX CableNet network enclosure 800x2000x800 mm 42 U disassemblable is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7888728 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7888728 TX CableNet network enclosure 800x2000x800 mm 42 U disassemblable always at the best possible price. We can give you a discount of 2% on Rittal 7888728 TX CableNet network enclosure 800x2000x800 mm 42 U disassemblable if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
