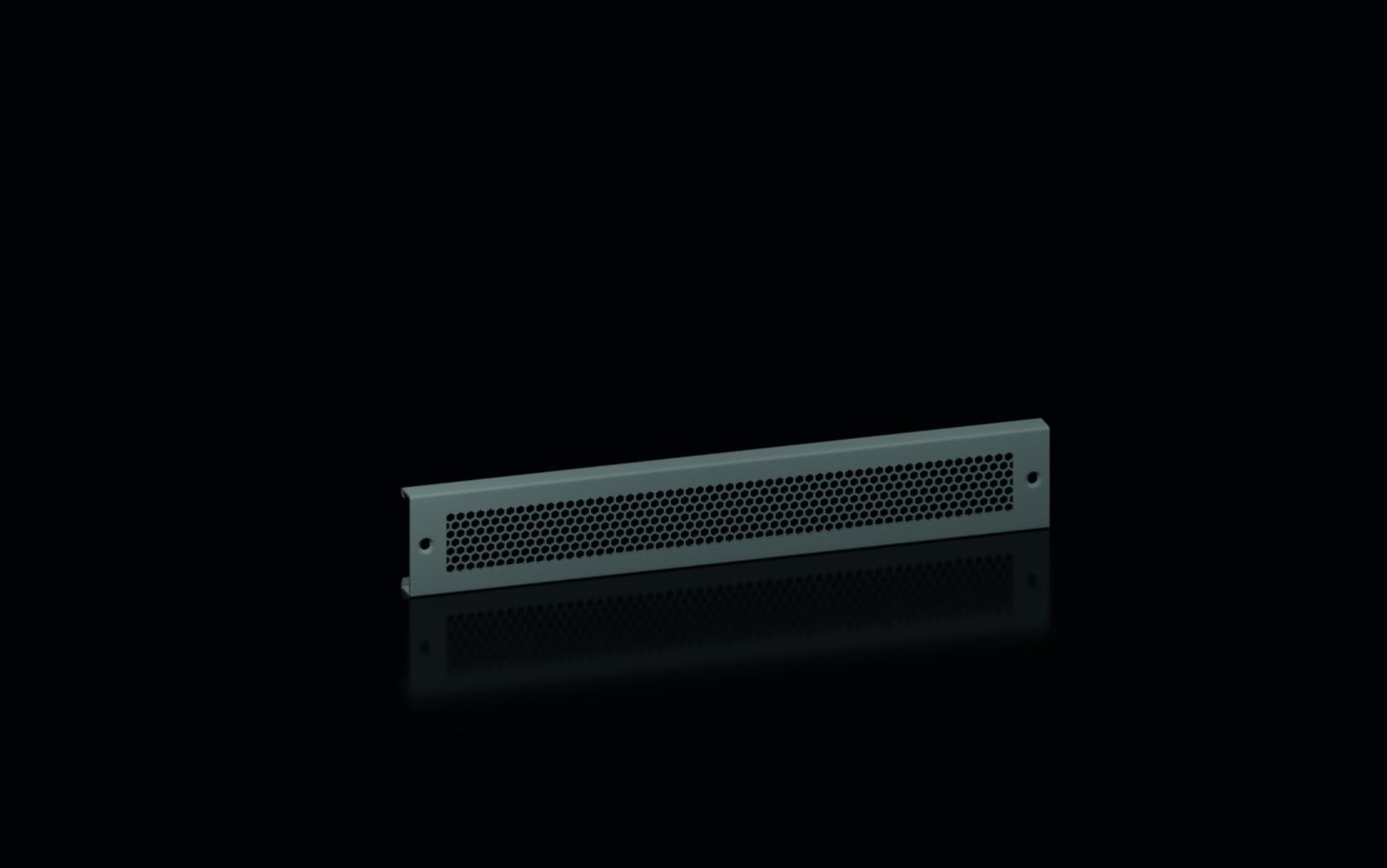

Rittal 8660091 plinth trim panel ventilated for width 800 height 100 mm

Your rating:
Average rating
product review for Rittal 8660091 plinth trim panel ventilated for width 800 height 100 mm
( 4.3 / 5 ) 3 ratings
Rittal 8660091
This image may differ from the desired article.
-6% 81,65 EUR 87,30 EUR
( 97,16 EUR incl. VAT )
≈ £68.34  |  ≈ $89.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660091 plinth trim panel ventilated for width 800 height 100 mm
Datasheet:file_download Download
Lieske Part No.:1103913
Mfg Part No: 8660091
UPC/EAN: 4028177982932
Weight:1.928 kg
Type:VX 8660091

Product information for Rittal 8660091:

The Rittal VX 8660091 is a plinth trim panel made of sheet metal, finished in the colour RAL 9005, specifically designed for ventilating enclosures via the plinth area. With a height of 100 mm and a width/depth of 800 mm, it fits various enclosure types of the VX system as well as models such as VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX. The panel is ventilated, enabling efficient air circulation in the lower section of the enclosure to support cooling of installed components.

Applications
The plinth trim panel is used in industrial environments where targeted ventilation of the enclosure plinth is required. It is particularly suitable for installations where heat dissipation occurs via the lower section of the enclosure, for example in production plants, automation systems, or when installing network and control technology. Ventilation is achieved through integrated openings that ensure controlled air intake without compromising the protective function of the enclosure.

Functions and Equipment in Detail
The panel is available in the ventilated version and serves air circulation in the plinth area. It is manufactured from sheet metal, ensuring high mechanical stability and durability. The colour RAL 9005 corresponds to a dark grey, which integrates well visually in industrial environments. The delivery includes fastening material required for mounting to the plinth or to the corners of the enclosure. The panel is designed for a plinth height of 200 mm, where one or two panels can be used depending on requirements.

Technology Explained Simply
The ventilation of the plinth trim panel enables continuous air intake into the lower section of the enclosure, supporting cooling of installed electronic components. The integrated ventilation openings are dimensioned to allow sufficient airflow without reducing protection against dust and foreign objects. The sheet metal construction ensures high strength and corrosion resistance, which is important for industrial use. The colour RAL 9005 is standard in industry and ensures uniform visual design of enclosures.

Compatibility and Accessories
The plinth trim panel is compatible with various enclosure types of the VX system as well as models such as VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX, provided the width/depth is 800 mm. Available accessories include mounting brackets, plinth expansion angles, optional panel fasteners, system chassis and cable strain relief rails, enabling flexible mounting and integration into existing enclosure configurations. The optional panel fastener allows mounting the panels laterally to the plinth corner pieces, which is advantageous for special arrangements.

Mounting and Installation
Mounting is done using the fastening material included in the delivery. The panel is attached to the plinth or to the corners of the enclosure. For a plinth height of 200 mm, one or two panels can be used depending on ventilation requirements. Installation is simple and does not require special tools. The optional panel fastener enables lateral mounting to the corner pieces, which is helpful for certain arrangements.

Operational Advantages
Ventilation via the plinth area contributes to efficient cooling of enclosure components, extending the service life of installed devices. The use of sheet metal ensures high mechanical stability and durability. The colour RAL 9005 enables uniform visual design of enclosures. Compatibility with various enclosure types and availability of accessory parts facilitate integration into existing systems. Compliance with Type 1 and Type 12 standards according to UL 50E ensures sufficient protection against dust and splashing water, which is important for industrial applications.

General
Modelventilated
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forEnclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width/depth: 800 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU1,93 kg
PCF/VE (Cradle-to-Gate)10,17


Product data sheet
Datasheet for Rittal 8660091, EAN: 4028177982932
