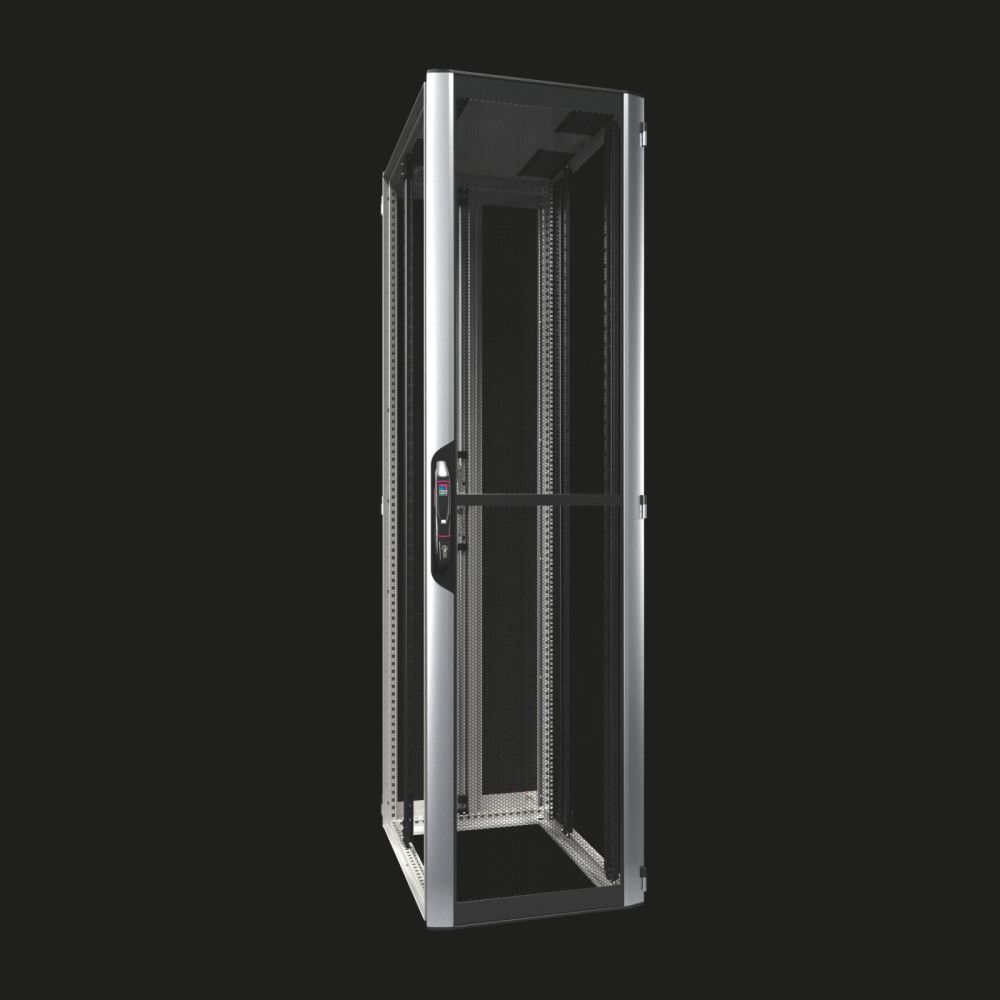

Rittal 5312114 Serverschrank VX IT ventilated 800x2200x800 mm 47 U
|
1.441,64 EUR |
|
|
( 1.715,55 EUR incl. VAT ) ≈ £1,206.65 | ≈ $1,584.36 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775815 |
| Mfg Part No: | 5312114 |
| UPC/EAN: | 4028177945661 |
| Weight: | 95.4 kg |
| Type: | VX 5312114 |
Product information for Rittal 5312114:
Applications
This rack is suitable for use in data centers, server rooms, IT distributions, and other environments where controlled ventilation and stable mounting of network and server equipment are required. The ventilated doors enable passive air circulation, supported by room climate control. The open floor construction provides flexibility for cable routing and integration with floor ventilation systems.
Functions and Equipment in Detail
The front door is made of aluminum (1.25 mm) and sheet steel, ventilated, and designed as a single-piece door with 180° hinges. The rear features a ventilated sheet steel door, vertically divided, also equipped with 180° hinges. The ventilation area covers approximately 85% of the door surface, ensuring sufficient airflow. The rack frame surface is dip-primed, the interior build is painted, while the rear door and roof are powder-coated. The front door is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. Handles and hinges are also painted in RAL 9005. The frame, rear door, and roof color correspond to RAL 7035.
Technology Explained Simply
The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and allow mounting of devices in the usual IT standard width. Fixing is done via cross-braces at the top and bottom using screws. The spacing between mounting levels is 520 mm in the delivered state, with a mounting clearance of 150 mm in front and 130 mm behind the 48,3 cm ( 19 inch ) plane. The roof is multi-part and equipped with side cable entries on both sides, prepared for mounting a fan plate. The static load capacity is 8,000 N, matching the maximum load per rack according to UL 2416. The construction is made of sheet steel, with the base material being sheet steel.
Compatibility and Accessories
Various accessories are available for the rack, extending its functionality. These include profile rails for the rear 48,3 cm ( 19 inch ) plane, plinth corner pieces with plinth trim panels, 48,3 cm ( 19 inch ) fasteners, component shelves in various heights, drawers in 2 HE and 3 HE, cable ducts, slide rails, blank panels, partition panels, cable routing brackets, and extended lengths. These components allow individual customization of the rack to specific requirements such as cable management, device coverage, or additional mounting surfaces.
Mounting and Installation
The rack is pre-assembled and can be transported directly to the installation site. Device mounting is done via the 48,3 cm ( 19 inch ) profile rails, which are screwed to the cross-braces. The door opening angles may vary depending on the type and location of installation. The open floor construction allows flexible cable routing and integration with floor ventilation systems. The roof construction with side cable entries facilitates cabling and fan mounting.
Operational Advantages
The rack offers high load capacity and stable construction, suitable for professional IT environments. The ventilated doors ensure efficient cooling of installed devices, with air circulation supported by room climate control. The open floor construction and side cable entries in the roof simplify cabling and maintenance. The integrated 48,3 cm ( 19 inch ) profile rails enable quick and secure mounting of IT equipment. The color design in RAL 7035 and RAL 9005 ensures uniform visual appearance in IT infrastructures. The delivery includes the rack frame with doors and roof plate, the 48,3 cm ( 19 inch ) profile rails, spacers for raising a deck plate, 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE, 25 conductive internal hexagon socket screws, and an IPPC pallet. The locking mechanism consists of comfort handles for half cylinders and a security lock 3524 E at front and rear.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 800 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 235 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
