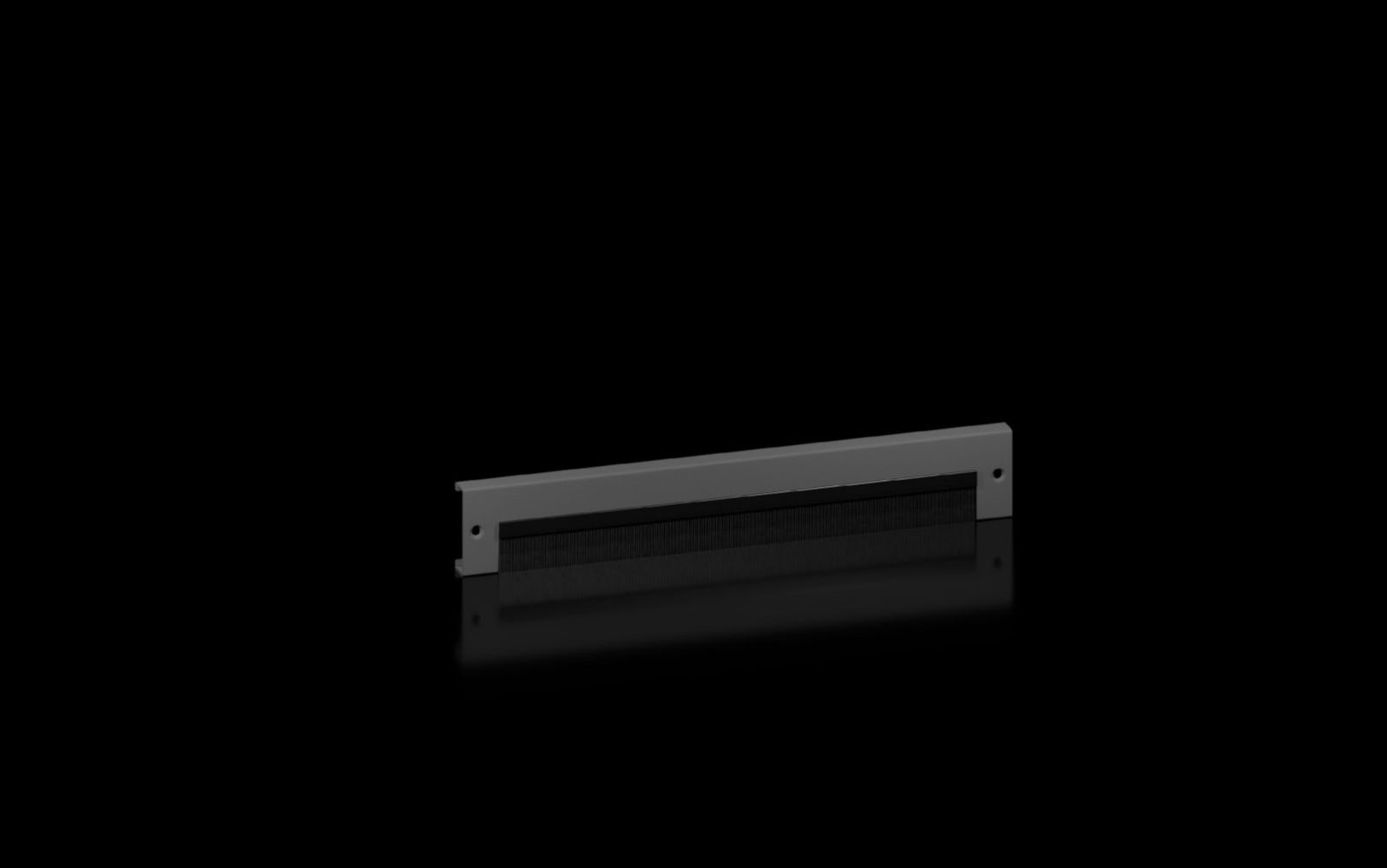

Rittal 8660093 plinth trim panel with brush strip for plinth system VX
|
67,64 EUR |
|
|
( 80,49 EUR incl. VAT ) ≈ £56.61 | ≈ $74.34 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1062791 |
| Mfg Part No: | 8660093 |
| UPC/EAN: | 4028177985483 |
| Weight: | 1.616 kg |
| Type: | VX 8660093 |
Product information for Rittal 8660093:
Applications
The plinth trim panel is designed for a wide range of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is used in industrial plants, automation technology, and IT infrastructures where orderly and secure cable routing in the plinth area is required. The brush strip ensures that cables can be guided flexibly without compromising the mechanical integrity of the enclosure structure. The panel is particularly suitable for installations where clean and structured cable routing in the lower area of the enclosure is necessary.
Functions and Equipment in Detail
The brush strip made of self-extinguishing plastic ensures safe and flexible cable guidance. It prevents dust and foreign objects from entering the plinth area while allowing freedom of movement for the cables. The sheet steel panel provides a robust and durable construction that meets the requirements of industrial environments. The colour RAL 9005 ensures uniform visual design, matching common colour standards in enclosure technology. The panel is available in a packaging unit of 2 pcs, enabling installation on both sides of an enclosure.
Technology Explained Simply
The brush strip is made of an elastic plastic material that can easily stretch to enclose cables without damaging them. The material is self-extinguishing, meaning it does not continue to burn when exposed to flame but self-extinguishes — an important safety feature in electrical installations. The sheet steel panel provides a stable base that withstands mechanical stress. The height of 100 mm is designed for standard plinth heights and allows optimal placement in the lower area of the enclosure. The panel is installed into the depth of the plinth, requiring the optional panel mounting 8660092 to ensure secure installation.
Compatibility and Accessories
The plinth trim panel is compatible with housing types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width/depth is 800 mm. For installation in depth, the optional panel mounting 8660092 is required. Additionally, VX plinth expansion angles can be used to secure the panel for special mounting requirements. The VX cable strain relief rail angle profile for 800 mm width can be used for additional cable routing in the plinth area. The VX/TS mounting brackets for 800 mm width support the installation of accessory parts in the enclosure.
Installation and Mounting
Installation is carried out in the plinth area of the enclosure. When installing in depth, the use of the optional panel mounting 8660092 is required to securely fix the panel. The panel can also be mounted laterally on the plinth corner piece, with the brush strip enabling cable routing. The packaging unit includes 2 pcs, allowing the panels to be mounted on both sides of an enclosure. Installation is performed without additional tools, provided the necessary mounting elements are available.
Operational Advantages
The plinth trim panel with brush strip provides structured and secure cable routing in the lower area of the enclosure. The brush strip ensures flexible and dust-tight guidance, while the sheet steel panel offers a robust construction. The colour RAL 9005 enables uniform visual design. Compatibility with various housing types and the ability to mount the panel at different positions increases installation flexibility. The use of the optional panel mounting ensures secure installation, especially for installations in depth.
| General | |
| Model | With brush bar |
| Material | Socket faceplate: sheet steel, brush strip: plastic, self-extinguishing |
| Colour | RAL 9005 |
| Height | 100 mm |
| Suitable for | Enclosure type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width/depth: 800 mm |
| Mounting note | For installation in depth, the optional panel mounting 8660092 is required. |
Questions & answers
What is the delivery time of Rittal 8660093 plinth trim panel with brush strip for plinth system VX ?
The article Rittal 8660093 plinth trim panel with brush strip for plinth system VX is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660093 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660093 plinth trim panel with brush strip for plinth system VX always at the best possible price. We can give you a discount of 2% on Rittal 8660093 plinth trim panel with brush strip for plinth system VX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
