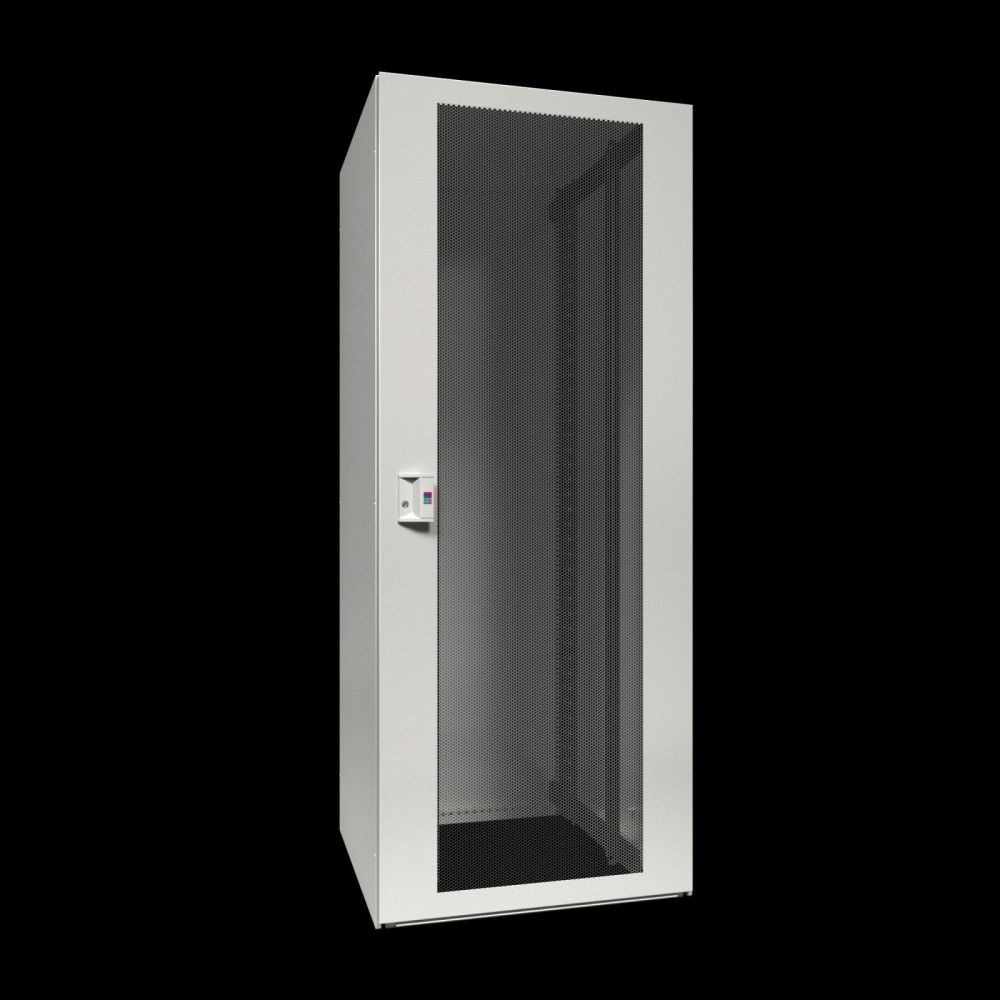

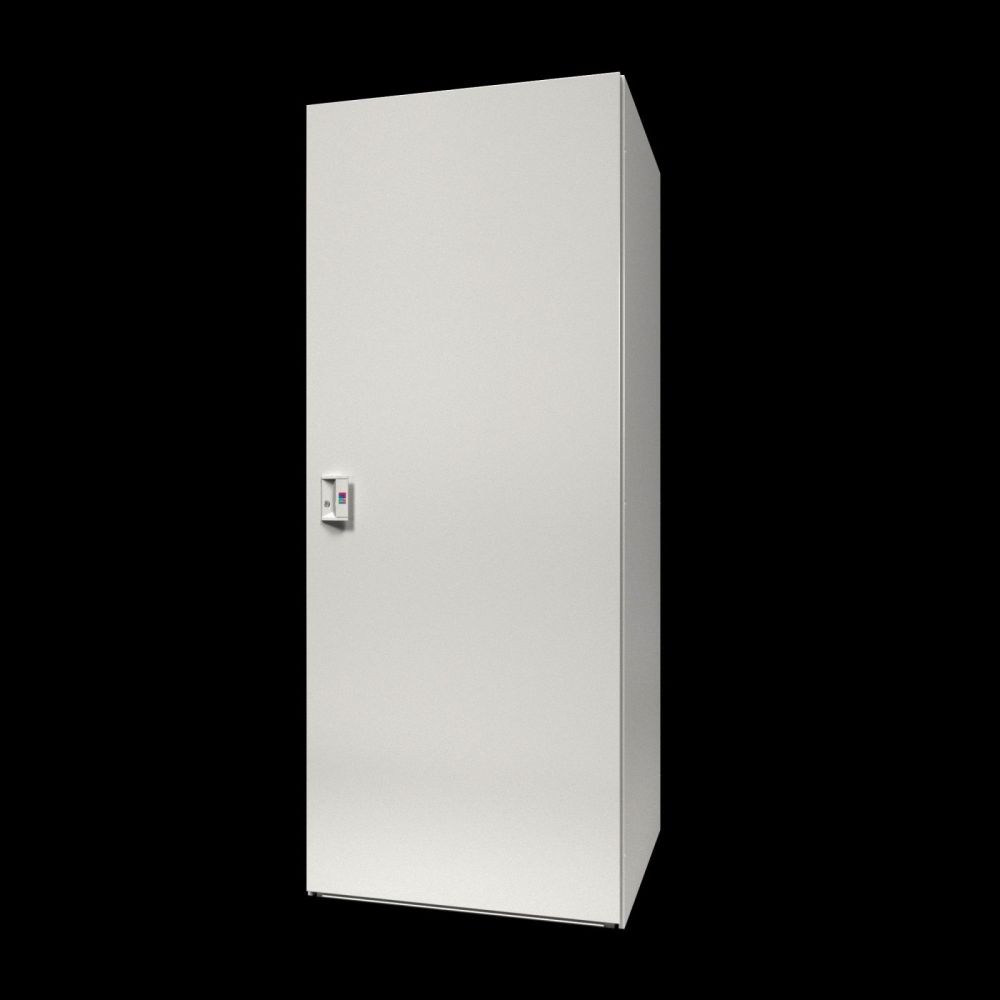

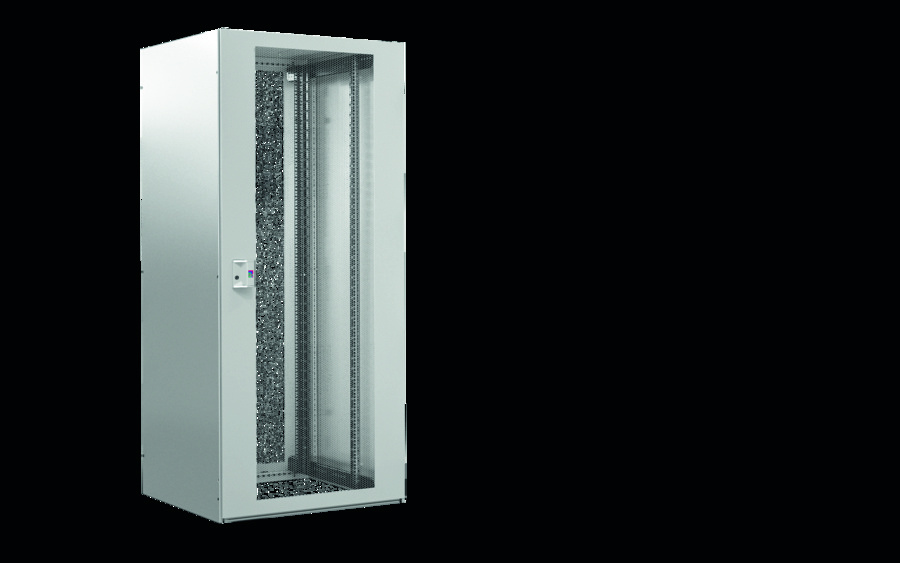

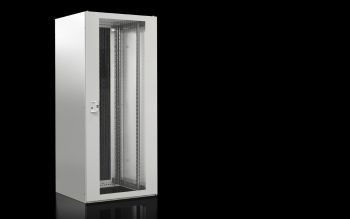

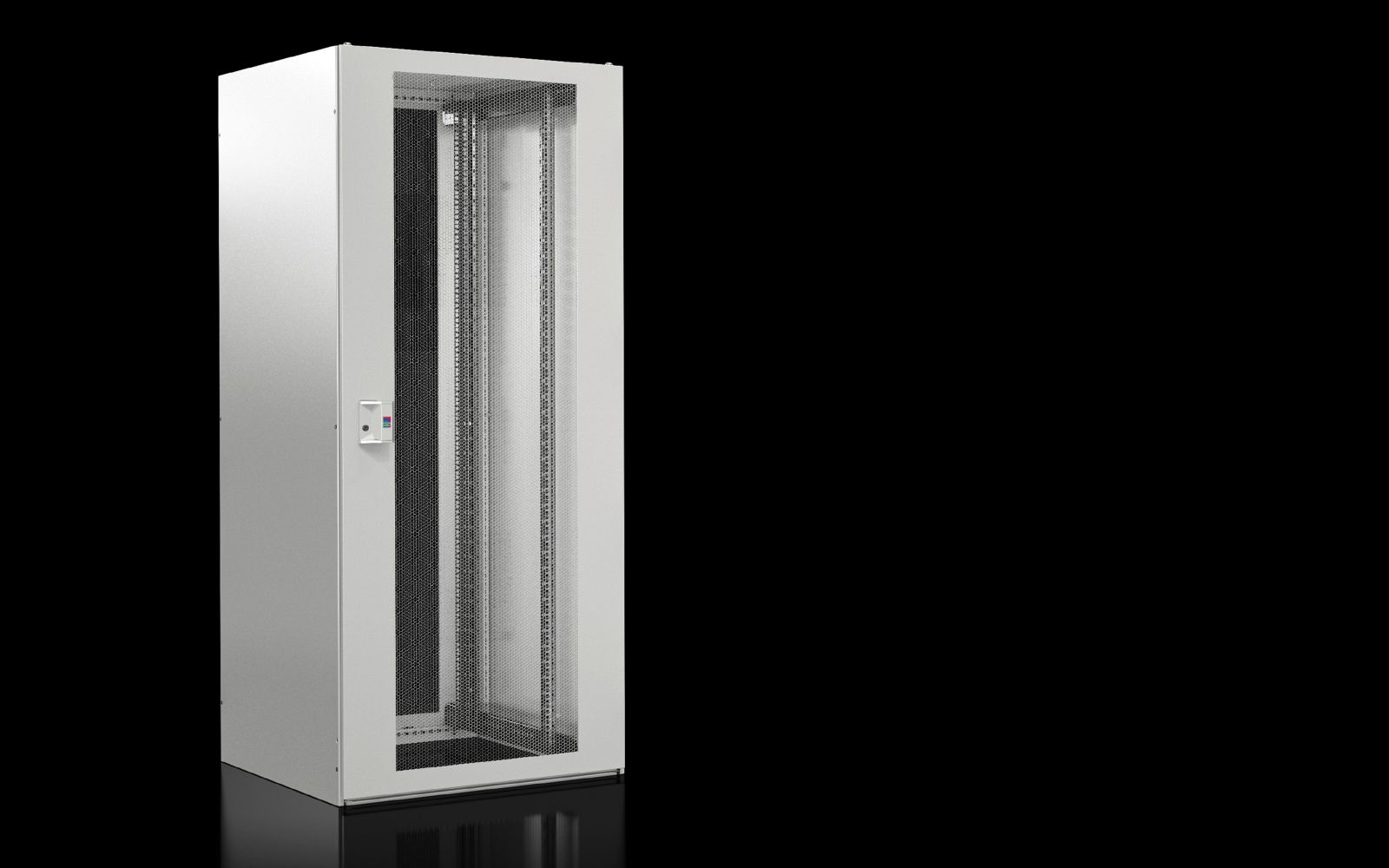

Rittal 7888738 TX CableNet network, loadable, 800x2000x800 mm, 42 U, disassemblable
|
883,74 EUR |
|
|
( 1.051,65 EUR incl. VAT ) ≈ £739.69 | ≈ $971.23 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1567529 |
| Mfg Part No: | 7888738 |
| UPC/EAN: | 4028177997547 |
| Weight: | 114.5 kg |
| Type: | TX 7888738 |
Product information for Rittal 7888738:
Applications
The enclosure is designed for use in IT infrastructures, particularly in environments where space optimisation and flexible mounting are required. It is suitable for housing network devices, servers, switches, and other electrical components. The disassemblable construction enables easy assembly and transportation, especially in rooms with limited access. The side panels are screwed, allowing quick access to the internal equipment. The optimised use of enclosure volume through the roof plate concept supports efficient cabling and reduces power loss during installations with smaller components.
Functions and Equipment in Detail

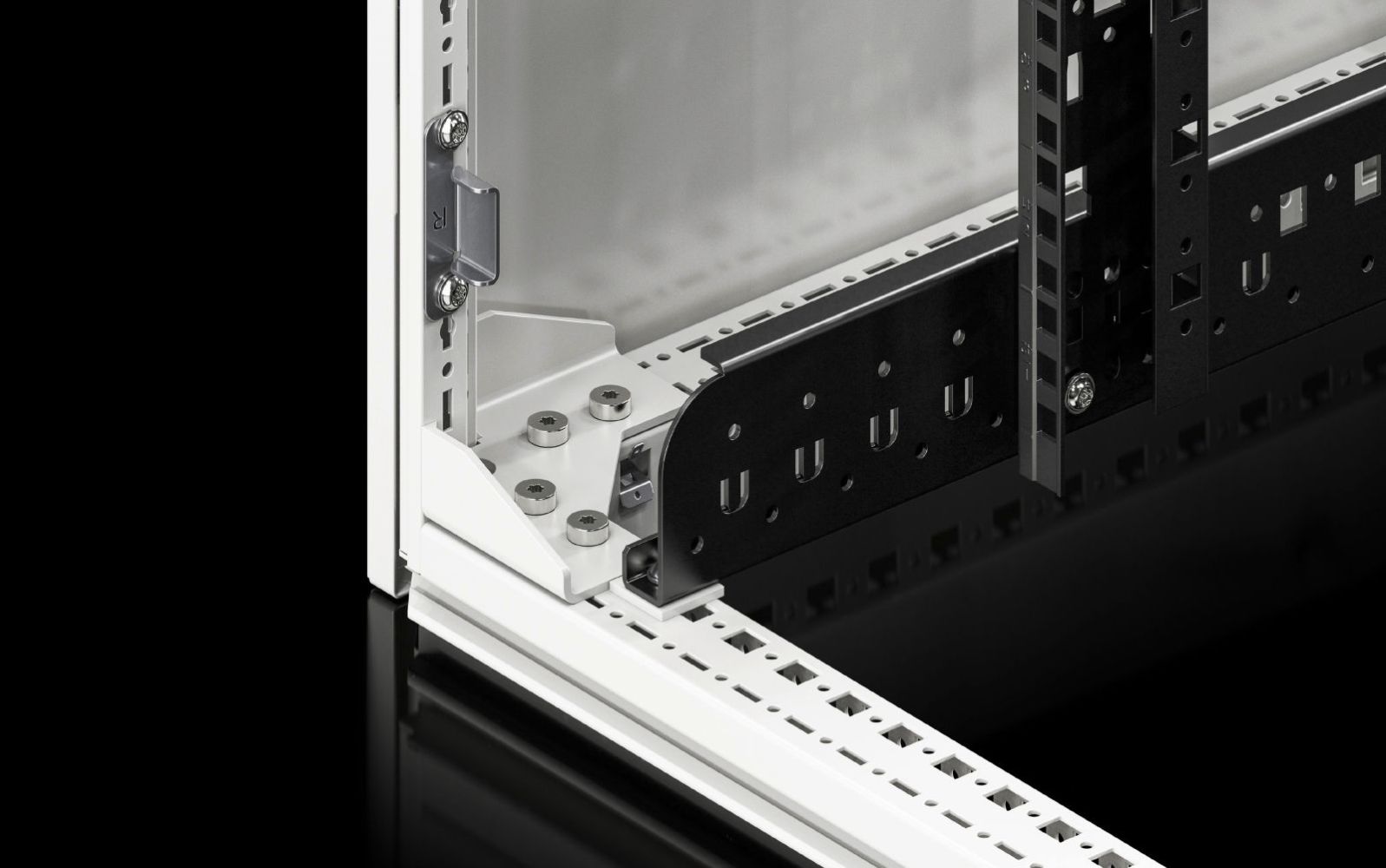

The enclosure frame is torsionally stiff and welded, consisting of rolled and 16-fold flanged vertical profiles connected to a horizontal frame at the bottom and horizontal cross profiles. The profile edges are rounded, and the system perforation in a 25 mm grid allows easy hanging and securing of installation components. The vertical frame profiles feature two mounting planes offset in depth and width, which can be used individually. The baying of enclosures is possible at the front, rear, and sides. The static load capacity is up to 500 kg, with a maximum load of 5000 N. The base frame is open, without base plates, and can optionally be equipped with base modules from the accessory range.
Technology Explained Simply

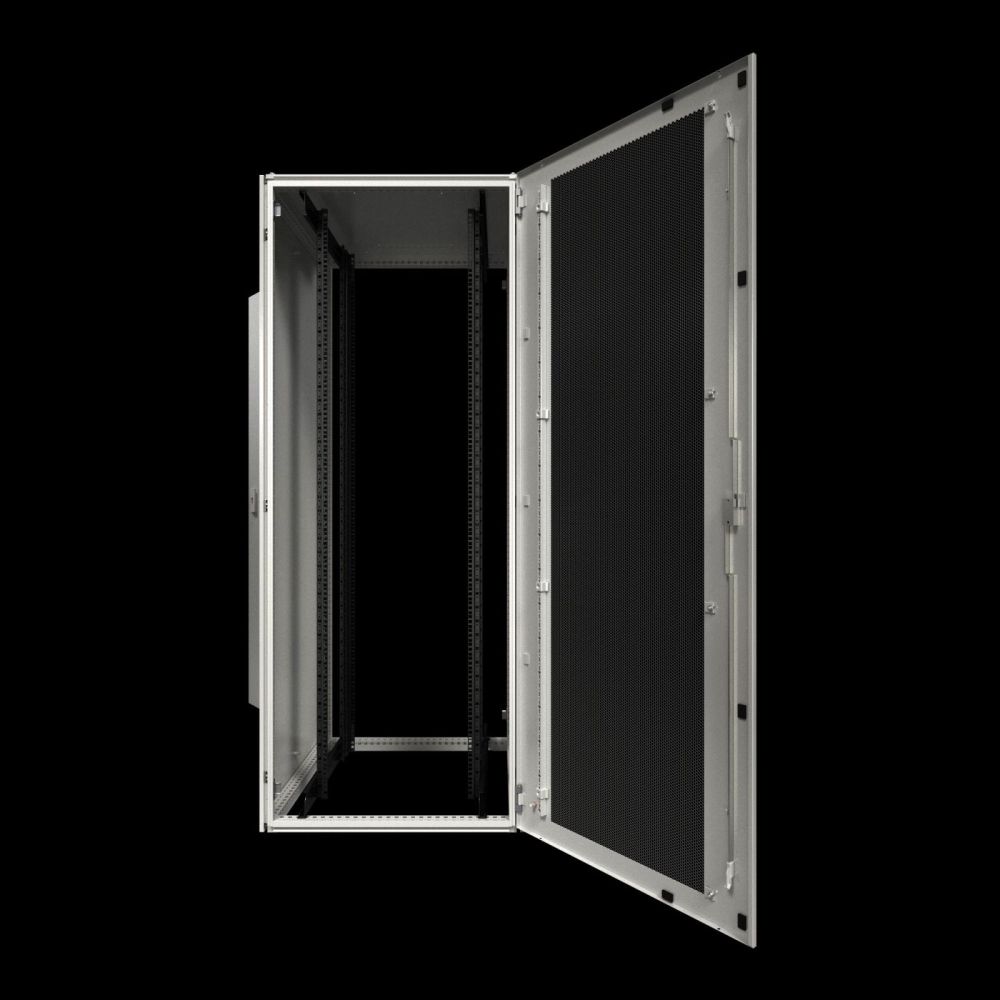

The ventilation of the doors with a free area of approximately 78 % supports efficient air circulation, which is important for cooling the installed devices. The 19“ profile rails are adjustable in depth, enabling flexible mounting of devices. The screwed roof plate with integrated cable entries and a central opening for fan modules simplifies cabling and fan integration. The disassemblable construction reduces assembly effort and enables easy transportation. The surface treatment with dip priming and powder coating ensures corrosion protection and uniform colouring.
Compatibility and Accessories
The enclosure model is compatible with a comprehensive accessory range offering various options for internal equipment. This includes slide rails, component shelves in various height units, levelling feet, plinth corner pieces, base plates, transport kit, and brush kit for the TX CableNet system. The slide rails and component shelves are designed for spacing intervals of 400 to 600 mm or specifically for 445 mm. The plinth trim panels and corner pieces support integration into plinth systems. The transport kit enables safe transportation of the enclosure with a maximum load of 1000 kg.
Assembly and Installation

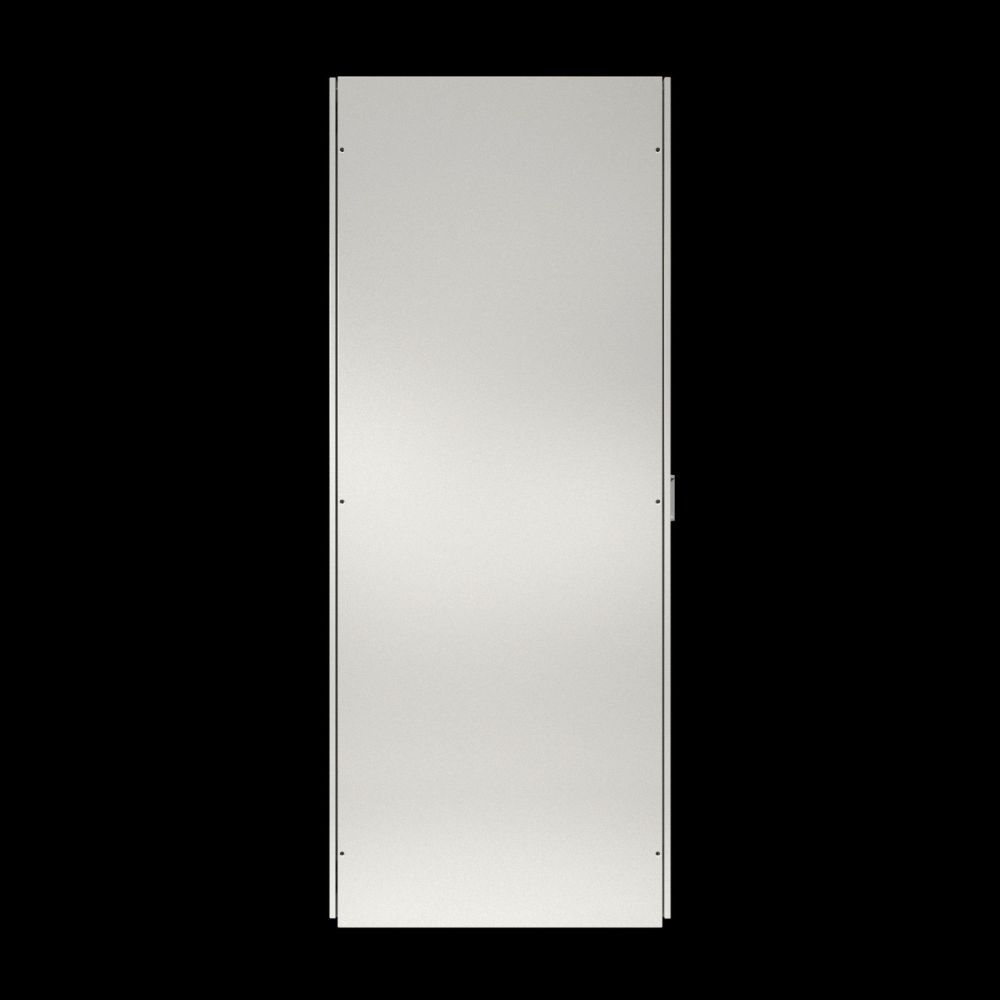

Assembly is performed by putting together the disassemblable components. The side panels are screwed, enabling quick access. The 19“ profile rails are mounted at the front and rear and can be adjusted in depth. The doors are double-hinged, with a design handle and a 2-point bar lock that enables a security locking (3524 E). The hinges are fitted with fixed hinge pins, and the opening angles are 135° for single mounting and 105° for baying. The roof plate is mounted by screwing, with cable entries and the fan opening already integrated.
Operational Advantages
The enclosure offers high flexibility in mounting and adaptation to individual requirements. The disassemblable construction reduces assembly effort and facilitates transportation. The ventilated doors ensure efficient cooling of installed devices. The roof plate concept optimises cabling and enables integration of fan modules. The adjustable 19“ profile rails and the open base construction offer flexibility in internal equipment. The high static load capacity of 500 kg makes the enclosure suitable for demanding applications. The surface treatment ensures long service life and corrosion protection.
| General | |
| Model | 2nd generation, disassemblable, ventilated, with side walls |
| Material | Roof: steel sheet, 1.5 mm, cabinet frame: steel sheet, 1.5 mm, door: steel sheet, 1.2 mm, 19“ profile rails: steel sheet, 2 mm, side wall: steel sheet, 1.2 mm |
| Surface protection | Cabinet frame: dip-primed, flat parts: dip-primed, powder-coated |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet with ventilated front door and rear door, cabinet frame, disassembled, with 19" profile rails front and rear, side panels, bolted roof sheet with double-sided concealed cable entry over full cabinet depth and central concealed opening for easy integration of a fan module. |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Layer spacing (as delivered) | 445 mm |
| 19" mounting | disassemblable |
| Door configuration | ventilated |
| Door configuration rear | Steel sheet door, single-piece ventilated |
| Front door configuration | Steel sheet door, single-piece ventilated, free area in perforated sheet section approx. 78 % |
| Load capacity | 5000 N |
| Load capacity (static) | 500 kg |
| Base material | steel sheet |
