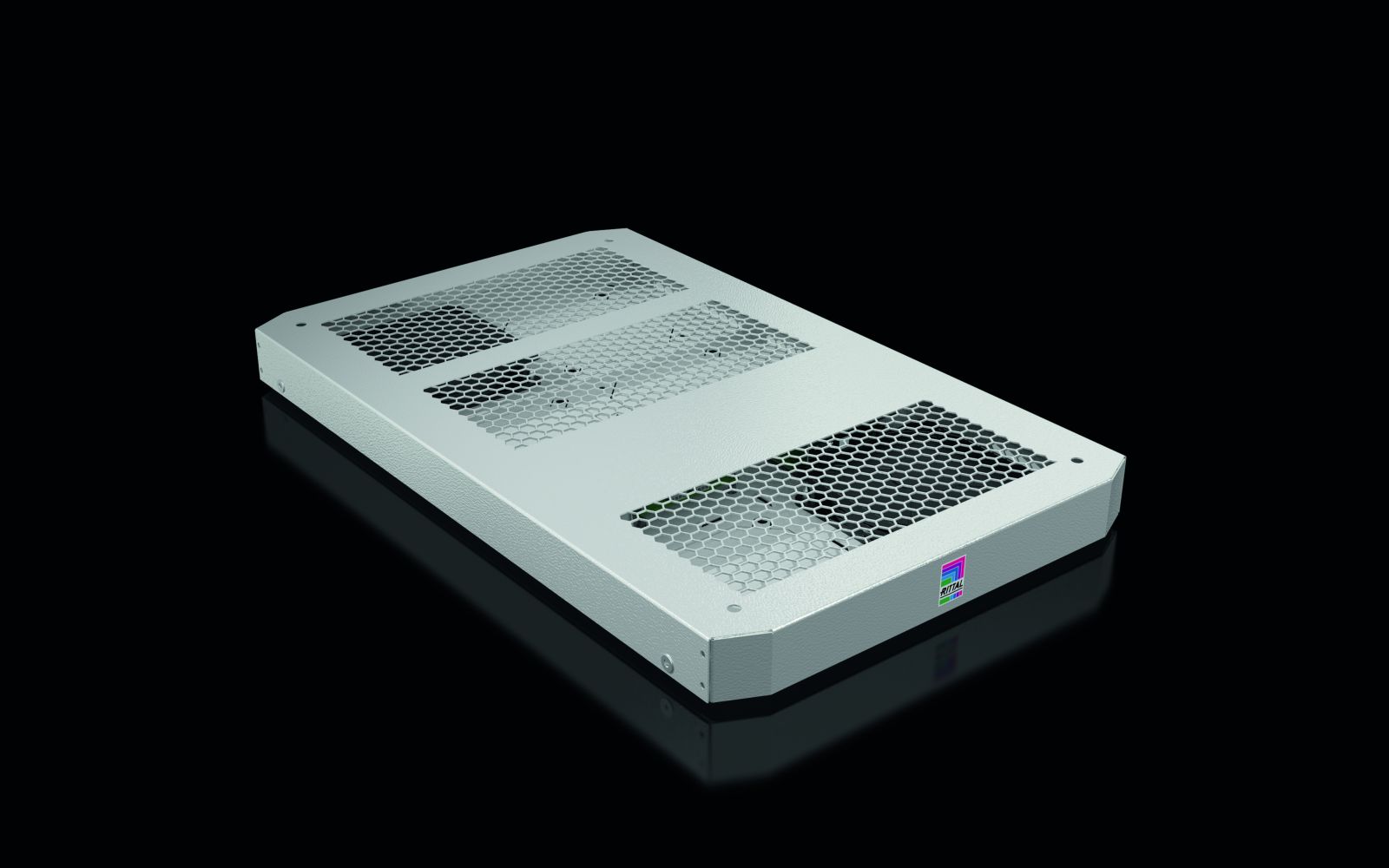

Rittal 5503020 Fan module for VX IT, TS IT, TX CableNet
|
210,63 EUR |
|
|
( 250,65 EUR incl. VAT ) ≈ £176.30 | ≈ $231.48 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1989849 |
| Mfg Part No: | 5503020 |
| UPC/EAN: | 4028177966246 |
| Weight: | 3.52 kg |
| Type: | SK 5503.020 |
Product information for Rittal 5503020:
| General | |
| Model | without roof sheet |
| Material | sheet steel, painted |
| Colour | RAL 7035 |
| Scope of delivery | 1 fan unit, 2 fans, pre-wired, including mounting material, installation and quick operating instructions |
| Airflow (at operating point) | 280 m³/h |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated current max. | At 50 Hz: 0.7 A, At 60 Hz: 0.69 A |
| Width | 550 mm |
| Height | 42 mm |
| Depth | 340 mm |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| Rotational speed | 100 % |
| Fuse | Circuit breaker/fuse: 10 A |
| Mounting options | In VX IT with W x D (mm): 800 x 800 / 800 x 1000 / 800 x 1200, In TS IT with W x D (mm): 800 x 800 / 800 x 1000 / 800 x 1200, In TX CableNet with W x D (mm): 800 x 800 / 800 x 1000 |
| Note | Reduction of specified air performance to 280 m³/h at 25 Pa back pressure |
| Sound pressure level (at operating point) | 46 dB(A) |
| Suitable for | Cabinet type: VX IT, TS IT, TX CableNet |
| Operating temperature range | 5 °C...55 °C |
| Nominal power | 42,5 W |
