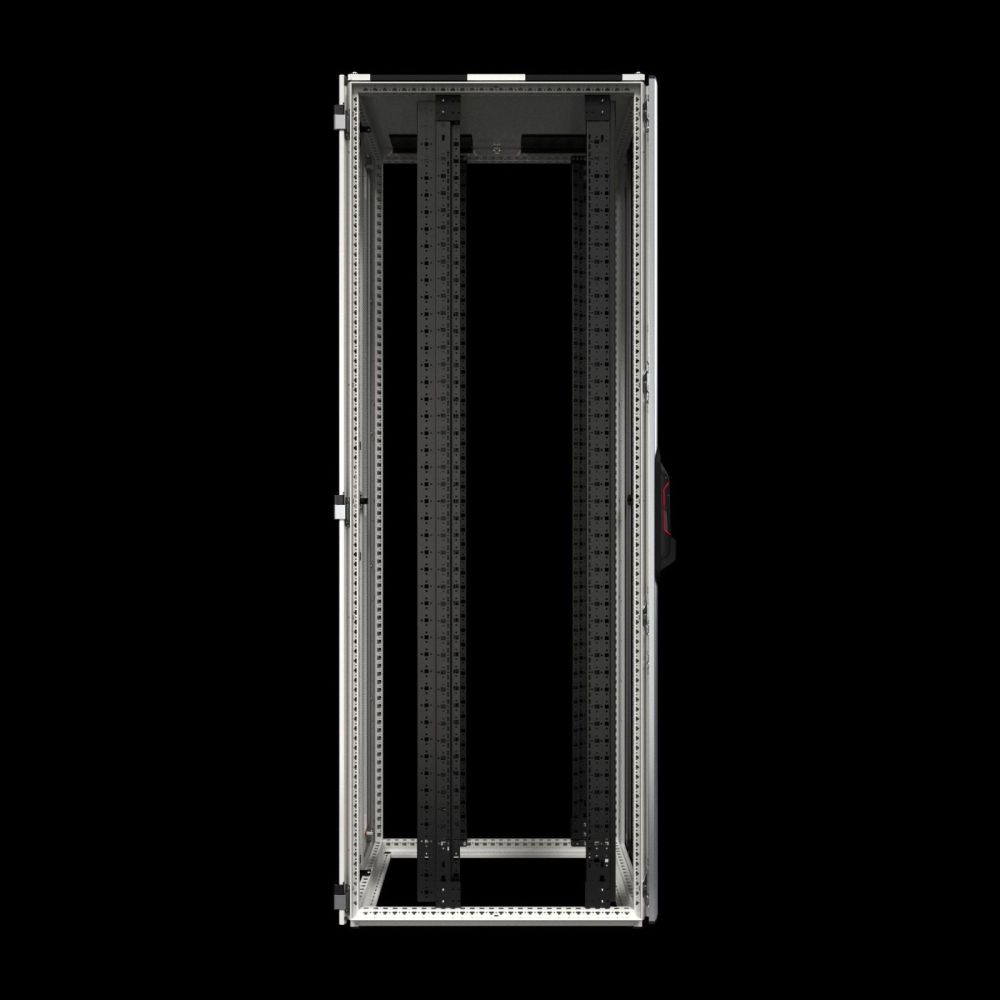

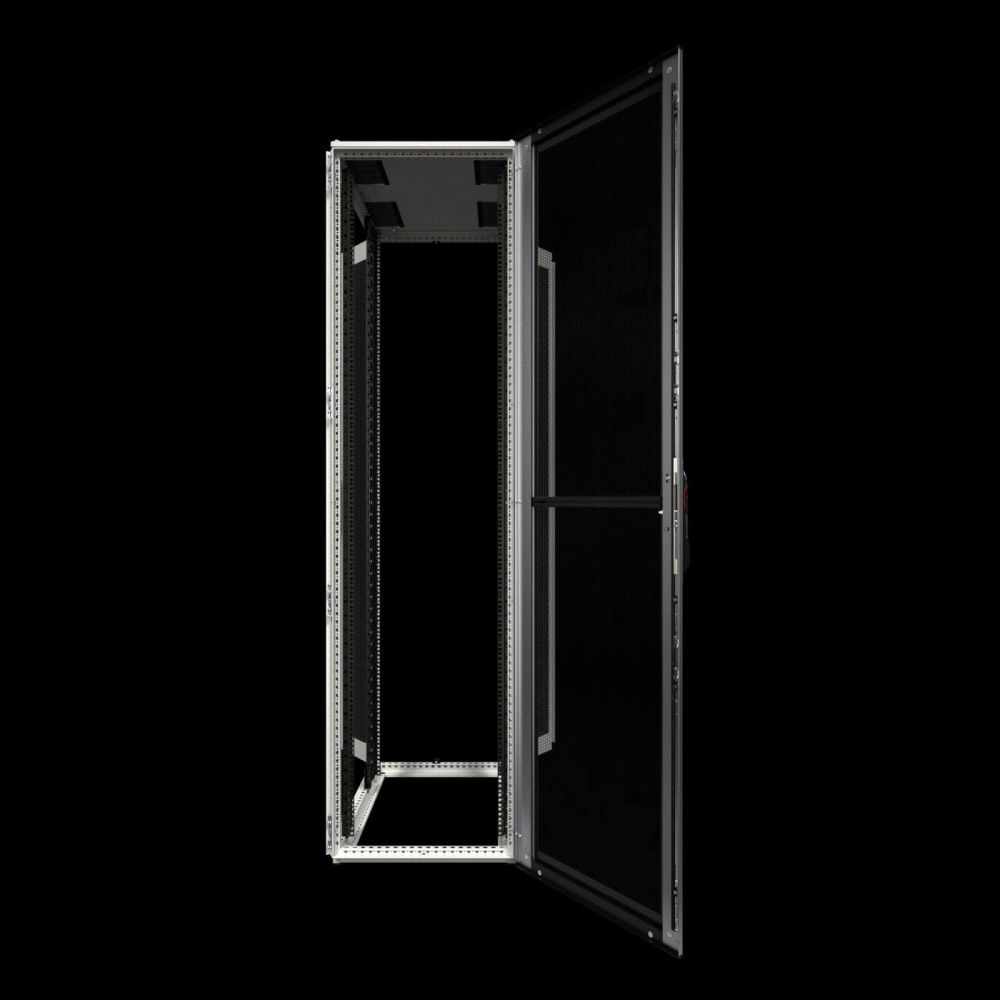

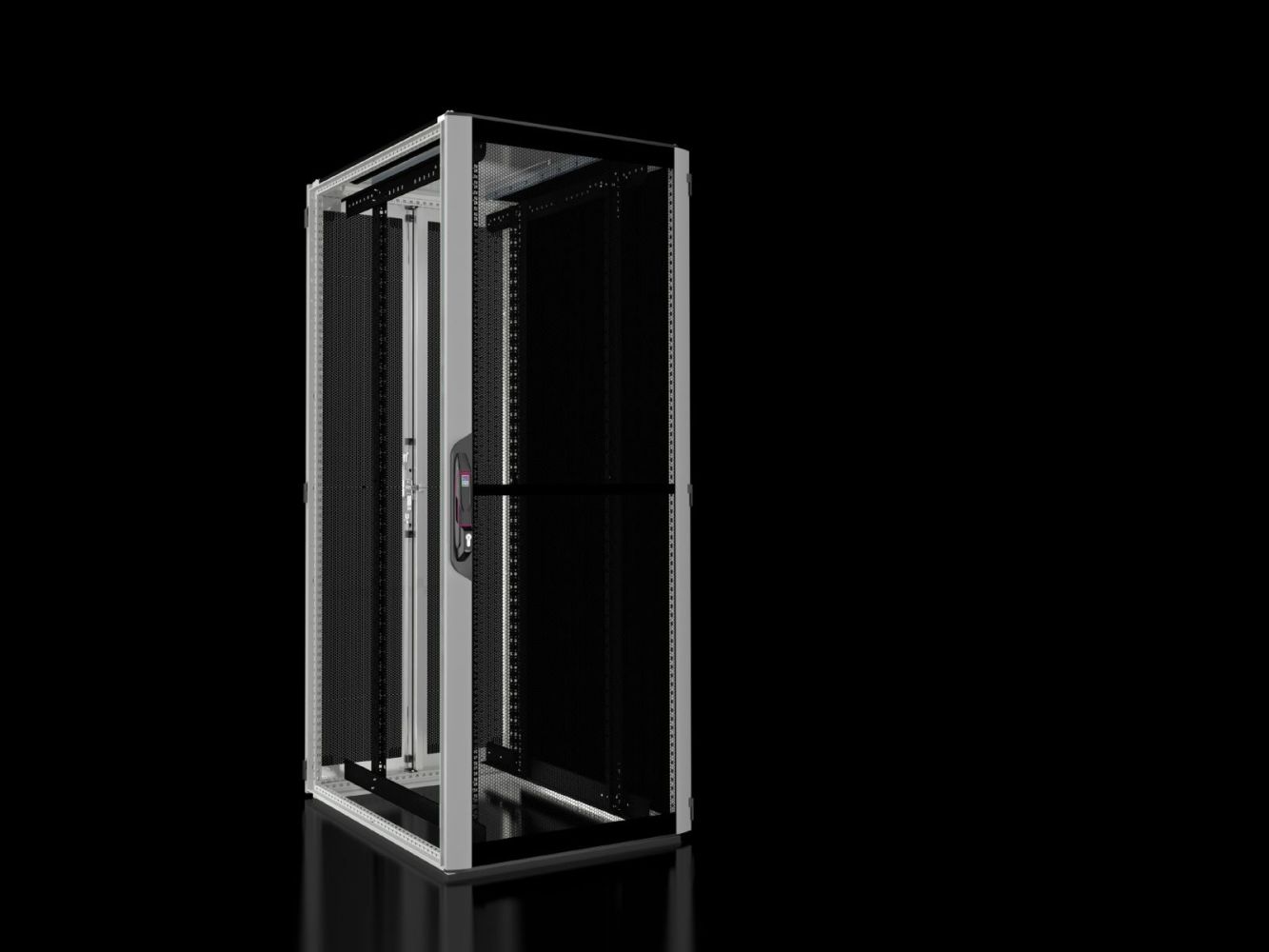

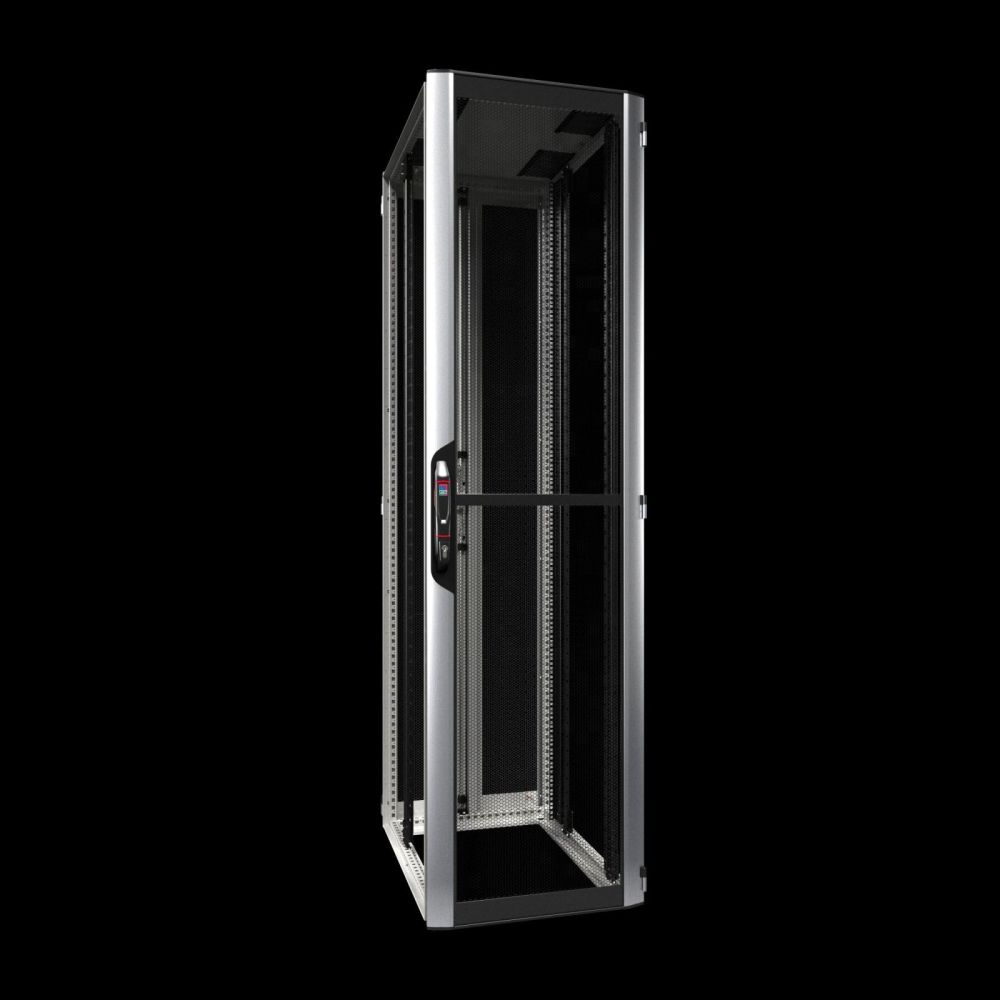

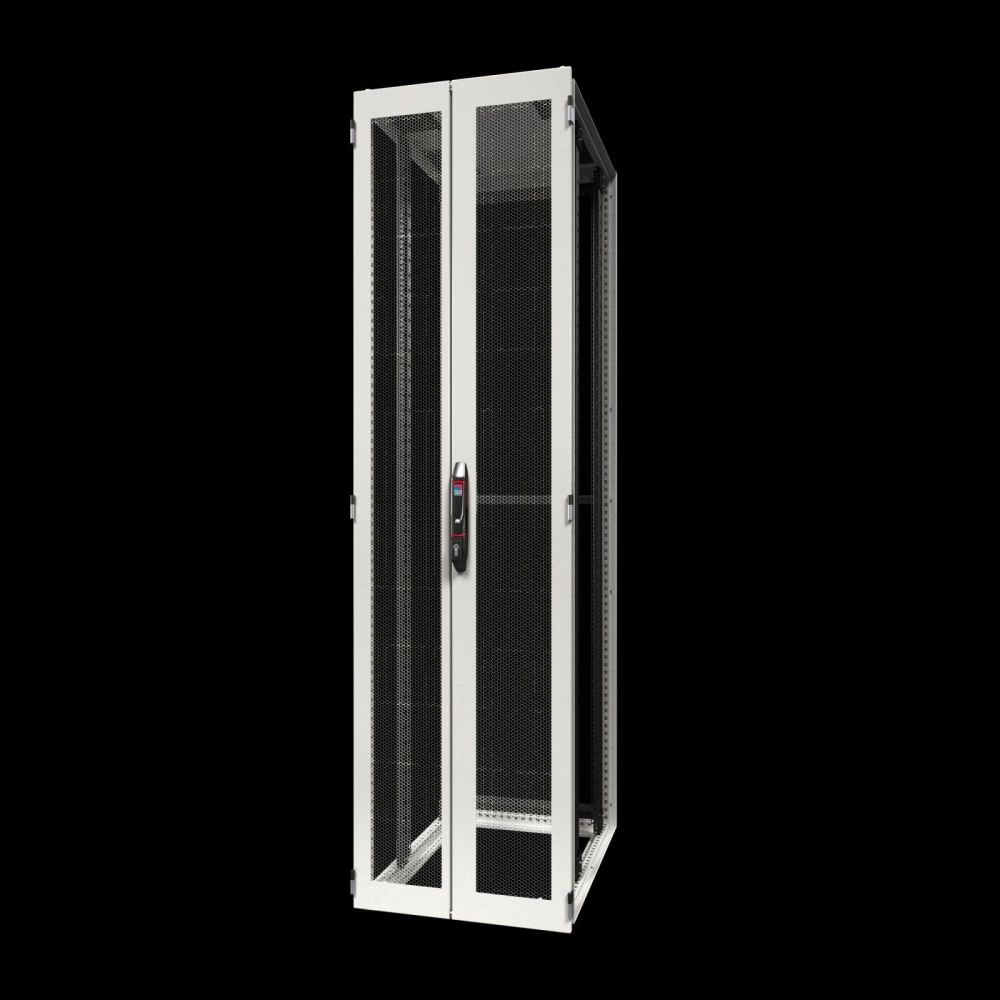

Rittal 5309116 Server rack VX IT 42 U 800x1000 mm ventilated door (freight shipping)
|
1.427,77 EUR |
|
|
( 1.699,05 EUR incl. VAT ) ≈ £1,195.04 | ≈ $1,569.12 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775543 |
| Mfg Part No: | 5309116 |
| UPC/EAN: | 4028177945081 |
| Weight: | 95 kg |
| Type: | VX 5309116 |
Product information for Rittal 5309116:
Applications
The enclosure is suitable for use in data centers, server rooms, IT infrastructures, and other environments where continuous cooling and ventilation of IT devices are required. The ventilated doors at the front and rear ensure optimal airflow, improving heat dissipation from installed devices. The vertically divided steel sheet door at the rear and the single-piece aluminum-steel sheet door at the front provide secure access and are equipped with 180° hinges, allowing full opening. The front door is made of aluminum (1.25 mm) and is anodized/painted, while the rear door is made of steel sheet (1.5 mm) and is powder-coated. The color scheme corresponds to RAL 7035 for enclosure frame, rear door, and roof, with the front door featuring vertical silver-colored profiles and horizontal RAL 9005. The internal fitting and ventilation grilles are in RAL 9005, as are the handle and hinges.
Functions and Equipment in DetailThe enclosure is equipped with 48,3 cm ( 19 inch )-profile rails in standard configuration, screwed to the depth rails at the top and bottom. Mounting clearances are 87 mm at the front and 193 mm at the rear, enabling flexible device installation. The rack spacing is 720 mm in the delivered state. The 48,3 cm ( 19 inch ) rack unit is present both at the front and rear, providing dual mounting options for devices. The roof is multi-part and features side cable entries at the depth, on both sides, and is prepared for mounting a fan plate. The floor is open, enabling flexible cable routing and passive ventilation.
Technology Explained SimplyThe ventilation of the doors (free area in the perforated section approx. 85%) ensures efficient heat dissipation and supports cooling of installed IT components. The 180° hinges allow full door opening, facilitating access to devices. The dip-primed surface of the enclosure frame and the powder-coated rear door and roof construction offer high corrosion resistance. Internal fitting components are painted, ensuring uniform surface quality. The load capacity of the enclosure is 15,000 N, with the maximum static load capacity according to UL 2416 per enclosure being 12,000 N. The 48,3 cm ( 19 inch ) mounting is done on the depth rails, enabling stable device mounting.
Compatibility and AccessoriesThe enclosure is compatible with various accessory parts for individual adaptation to specific requirements. These include, for example, VX plinth corner pieces, 48,3 cm ( 19 inch ) fasteners 1 HE, drawers in various heights (2 HE, 3 HE) and colors (RAL 7035, RAL 9005), component shelves in various configurations (e.g., 0.5 HE, 1.5 HE, 1 HE), cable ducts, blanking panels, VX IT partition panels, cable routing brackets, brush strips, plinth trim panels, and glide rails. These components enable flexible and modular design of the interior, optimally accommodating different devices and requirements.
Mounting and InstallationMounting is done via the provided 48,3 cm ( 19 inch )-profile rails, screwed to the depth rails at the top and bottom. The enclosure construction is pre-assembled and consists of a torsion-resistant, welded frame structure made of rolled, 9-fold flanged, closed hollow profiles. The perforation follows a 25 mm grid, enabling flexible device positioning. The doors are equipped with comfort handles for half-cylinders and a security locking system (3524 E), ensuring secure access control. Delivery is on an IPPC pallet, and the enclosure frame is delivered with doors and roof plate.
Operational AdvantagesThe enclosure offers high mechanical stability and load capacity, making it suitable for professional IT environments. The ventilated construction supports device cooling and reduces the risk of overheating. The modular equipment allows flexible adaptation to different requirements. The surface treatment (dip-primed, powder-coated, painted) ensures high corrosion resistance and longevity. The pre-assembled construction reduces mounting time and simplifies installation. The open floor construction enables flexible cable routing and passive ventilation. Delivery includes spacing pieces (height 50 mm) for raising a deck plate above the fan outlet in the roof plate, as well as 12 x 48,3 cm ( 19 inch ) fasteners 1 HE and 25 internal hexagon socket screws, conductive, facilitating device installation.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.000 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 234.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
