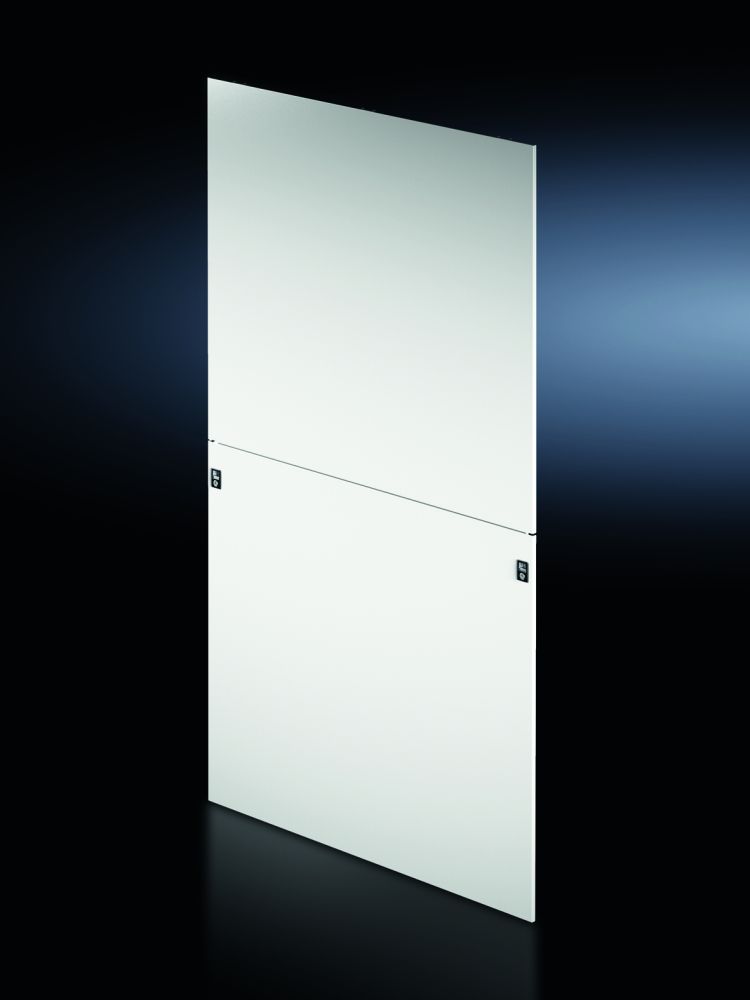

Rittal 5301250 VX IT side panel, horizontally divided, 2000x1000 mm

Your rating:
Average rating
product review for Rittal 5301250 VX IT side panel, horizontally divided, 2000x1000 mm
( 4.6 / 5 ) 7 ratings
Rittal 5301250
This image may differ from the desired article.
Rittal 5301250Rittal 5301250Rittal 5301250
221,84 EUR
( 263,99 EUR incl. VAT )
≈ £185.68  |  ≈ $243.80
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 5301250 VX IT side panel, horizontally divided, 2000x1000 mm
Datasheet:file_download Download
Lieske Part No.:1055449
Mfg Part No: 5301250
UPC/EAN: 4028177950573
Weight:18.6 kg
Type:VX 5301250

Product information for Rittal 5301250:

The Rittal side panel VX 5301250 is a horizontal, divided component for IT enclosure systems of type VX IT. It is used to close enclosures in single installation or in baying, with an enclosure height of 2,000 mm and depth of 1,000 mm. The product is made of sheet steel and features a powder-coated surface in the colour RAL 7035, ensuring robust and uniform surface quality. The protection rating IP 20 according to IEC 60 529 protects against contact with fingers and against solid foreign objects, but not against water or dust – suitable for indoor areas with low environmental stress.

Applications

The side panel is specifically designed for IT enclosure systems used in data centres, server rooms or technical rooms. It enables secure coverage of the side surfaces of enclosures to protect devices from unauthorised access and to visually complete the structure of the enclosure. The horizontal division facilitates installation and maintenance, as the panel can be split into two parts, supporting the installation and replacement of components inside the enclosure.

Functions and equipment in detail

A central feature is tool-free mounting: the side panel can be hung and removed without additional tools, speeding up installation and maintenance. The locking is achieved via a security lock of type 3524 E, ensuring secure and reliable locking. An integrated internal locking mechanism allows the side panel to be secured from inside as well, which is advantageous during installation or maintenance. The delivery includes the upper part, lower part, six mounting brackets, two locking parts, and the required fastening materials.

Technology explained simply

The use of sheet steel as base material provides high mechanical stability and resistance to mechanical stress. The powder-coated surface protects the material against corrosion and ensures uniform, long-lasting colour appearance. The protection rating IP 20 means the side panel is not suitable for outdoor use or in damp environments, but is intended for dry indoor spaces. The horizontal division of the panel enables flexible handling, especially during installation in existing systems or during maintenance of devices inside the enclosure.

Compatibility and accessories

The side panel is specifically designed for enclosures of type VX IT with a height of 2,000 mm and depth of 1,000 mm. As suitable accessory, the internal locking DK 7824510 is offered, enabling additional securing of side panels, especially in baying configurations or areas with increased security requirements. The locking is designed for lockable side panels and can be used to extend security functions.

Mounting and installation

Mounting is tool-free, with pre-fabricated mounting brackets and locking parts enabling secure attachment to the enclosure body. The integrated internal locking mechanism simplifies handling during installation, as the panel can also be secured from inside. The fastening materials included in the delivery are sufficient to securely attach the side panel to the enclosure. The horizontal division of the panel enables easy adaptation to existing enclosure configurations.

Advantages in operation

The side panel provides reliable locking through the security lock 3524 E and the integrated internal locking mechanism. Tool-free mounting reduces installation effort and speeds up maintenance. The use of sheet steel and powder-coated surface ensures long service life and high resistance to mechanical stress. The horizontal division enables flexible handling, especially during installation in existing systems or during maintenance of devices inside the enclosure. The side panel is thus a functional and robust component for IT enclosure systems in indoor environments.

General
Materialsteel sheet
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryTop section, bottom section, 6 mounting brackets, 2 locking parts, including fastening material
Suitable forHousing type: VX IT, height: = 2,000 mm, depth: = 1,000 mm
Degree of protection IP according to IEC 60 529IP 20
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)70.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5301250, EAN: 4028177950573
