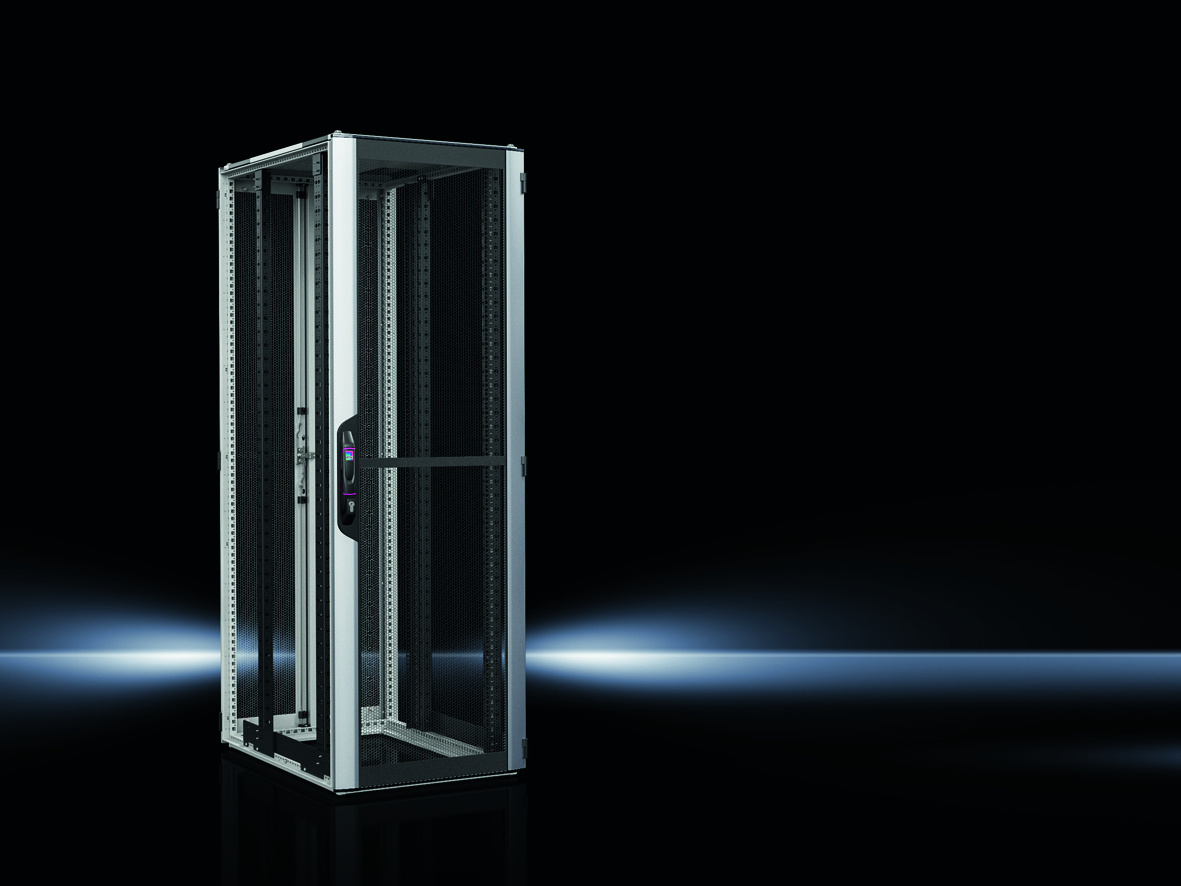

Rittal 5309816 Serverschrank VX IT ventilated 800x2000x1000 mm 42 U
|
1.560,21 EUR |
|
|
( 1.856,65 EUR incl. VAT ) ≈ £1,305.90 | ≈ $1,714.67 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775782 |
| Mfg Part No: | 5309816 |
| UPC/EAN: | 4028177945142 |
| Weight: | 104.8 kg |
| Type: | VX 5309816 |
Product information for Rittal 5309816:
Applications
The enclosure is designed for use in environments with room climate control, where the ventilated doors ensure efficient air circulation. The front door is made of aluminum (1.25 mm) and sheet steel, ventilated and single-piece, with 180° hinges. The rear door is made of sheet steel (1.5 mm), also ventilated, vertically divided, and equipped with 180° hinges. The ventilation area accounts for approximately 85% of the perforated sheet metal section, enabling sufficient cooling for installed devices. The enclosure frame is dip-primed, the interior assembly is painted, while the rear door and roof are powder-coated. The front door is anodized/painted. The base color of the enclosure is RAL 7035, with the front door featuring vertical profiles in silver and horizontal profiles in RAL 9005, as well as the interior assembly, front ventilation grille, handle, and hinges.
Functions and Equipment in Detail
The enclosure features a multi-part roof plate with side cable entry at the depth, on both sides, and is prepared for mounting a fan plate. The floor is open, enabling flexible installation. The load capacity is 18,000 N, with the maximum static load capacity according to UL 2416 per enclosure being 15,000 N. The mounting clearances are 87 mm in front and 213 mm at the rear relative to the 48,3 cm ( 19 inch ) plane. The delivery includes spacers to elevate a cover plate above the fan outlet in the roof plate, enabling passive ventilation. Additionally, 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE, conductive, and 25 internal hexagon screws, conductive, are included. The locking mechanism consists of comfort handles for half cylinders and a security lock 3524 E at the front and rear.
Technology Explained Simply
The dynamic configuration of the profile rails allows for adjustable mounting depth, which is advantageous when installing devices with varying depths. The 48,3 cm ( 19 inch ) mounting is secured to the depth rails, ensuring stable installation. The ventilated doors ensure continuous air circulation, supporting cooling of installed IT components. The materials sheet steel and aluminum provide sufficient stability and corrosion resistance. The surface treatment with dip priming and powder coating ensures a durable and resilient coating. The PCF values (Cradle-to-Gate) amount to 258.7 kg CO2 eq (Category B), with the value being approximately calculated based on product weight and self-declared.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include, for example, plinth corner pieces with plinth trim panels, routing panels in various heights, insert modules such as PSM 6x C13 red, TS IT sliding rails, connection cables for PSM 3-phase or UPS, component shelves, cable ties, system lights, cable clamps, internal hexagon screws, cable managers, socket strips, hook-and-loop fasteners, and PSM power rail. These components can be used according to requirements to optimize installation and maintenance.
Mounting and Installation
Mounting is done by screwing to the depth rails at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are depth-variable and can be adjusted according to device height. The spacers allow elevation of a cover plate above the fan outlet in the roof plate to ensure passive ventilation. The doors open 180°, with the opening angle varying depending on type and location of installation. The internal hexagon screws and 48,3 cm ( 19 inch ) fasteners are included in the delivery and facilitate installation.
Operational Advantages
The enclosure offers high load capacity and is designed for use in professional IT environments. The ventilated doors and dynamic profile rails enable flexible and efficient installation. The surface treatment ensures long service life and resistance to environmental influences. The integrated security locks and comfort handles facilitate access and maintenance. The accessory options extend functionality and support optimal use of the enclosure in various application scenarios.
| General | |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.000 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 213 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 700 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Model | Dynamic |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19"-profile rails dynamic in VX IT |
| Floor version | Open |
| 19" rack configuration | 19"-level front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 18.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 15.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 258.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
