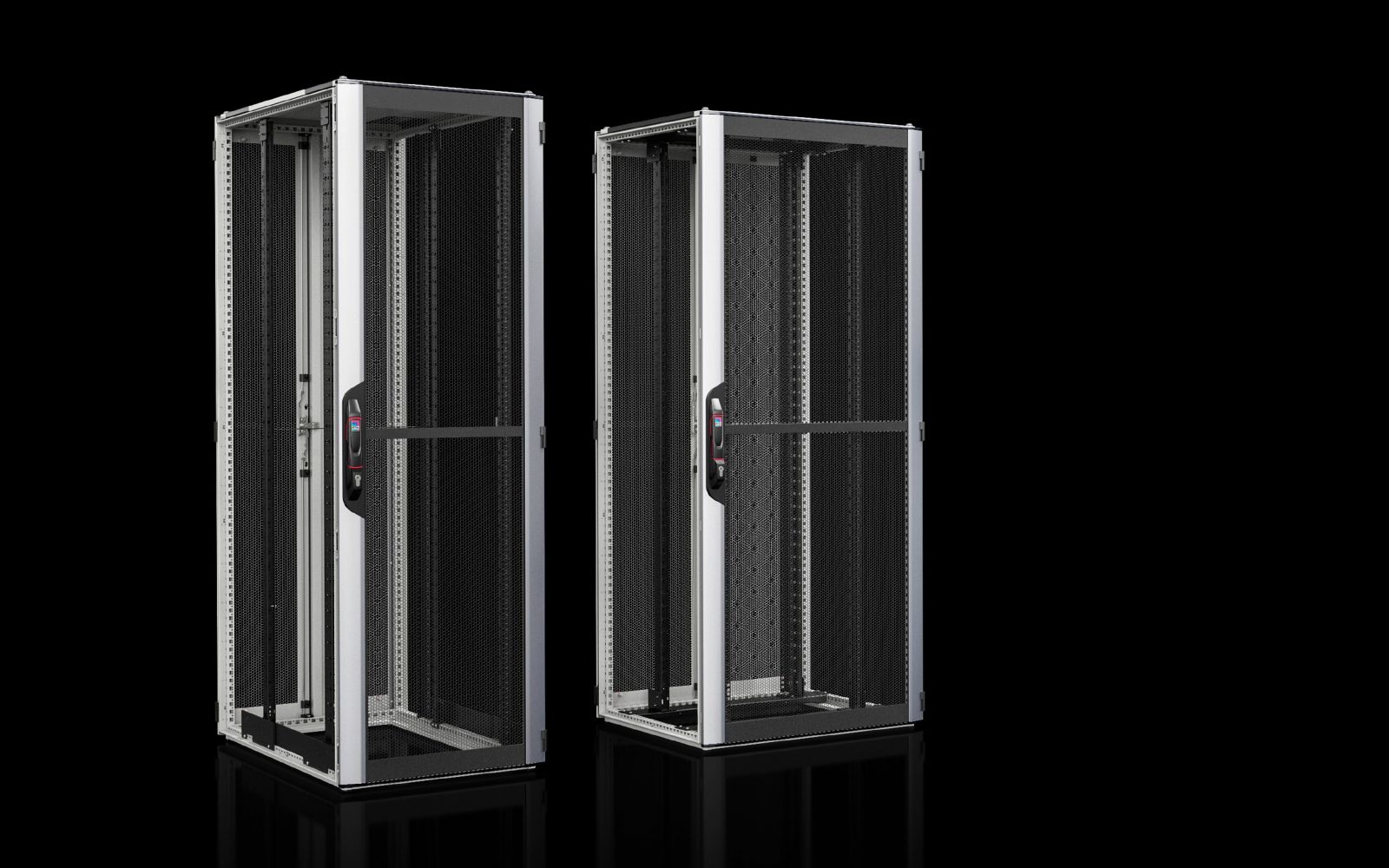

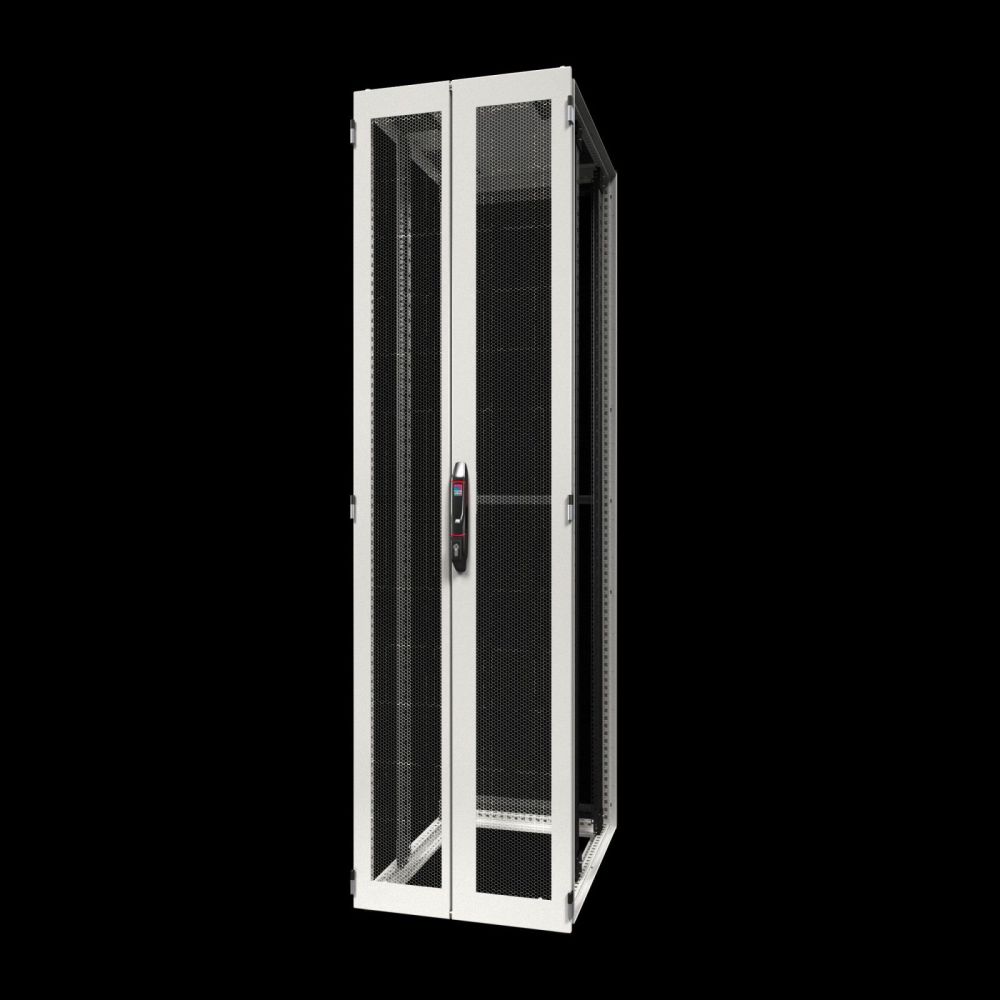

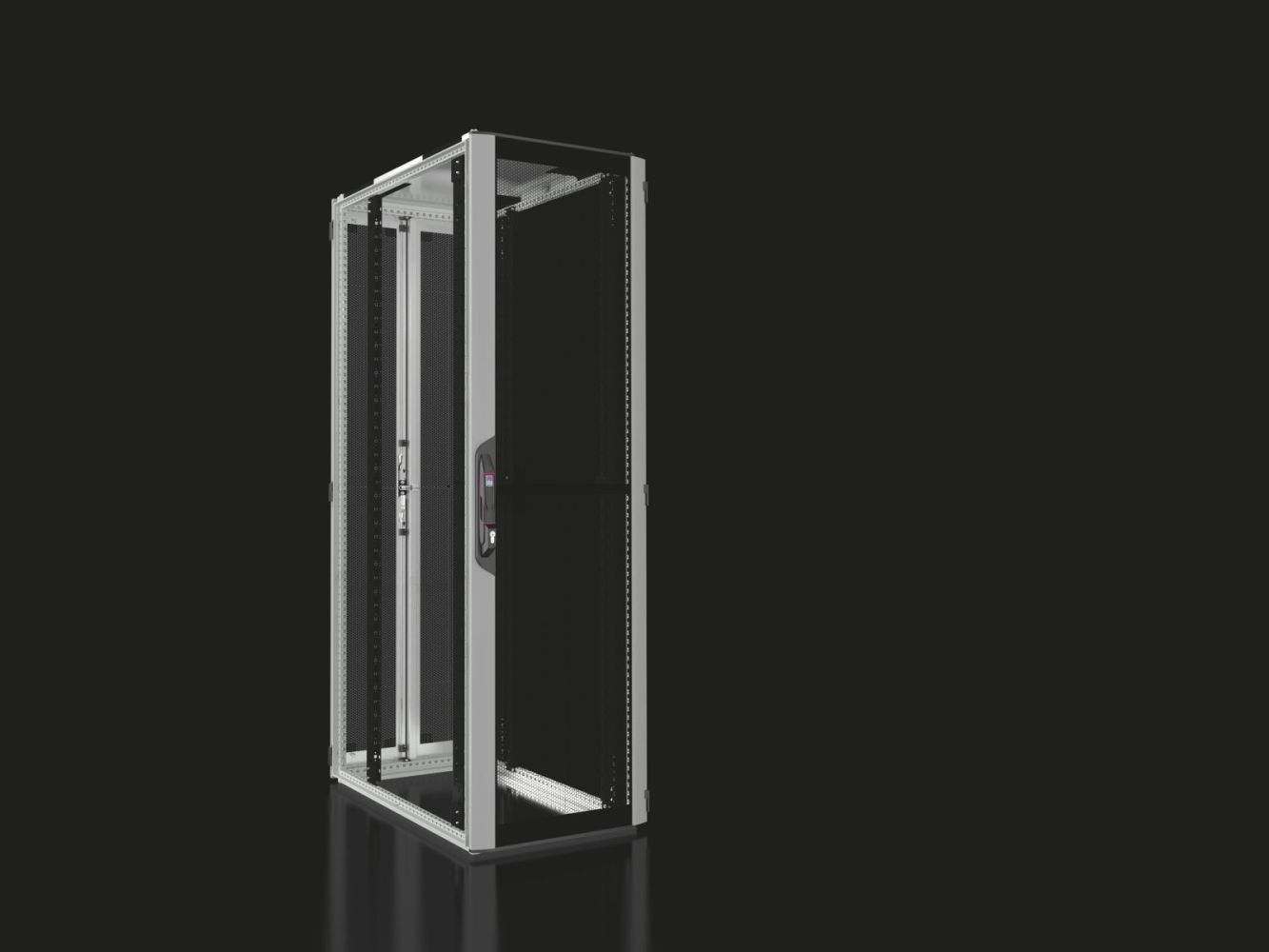

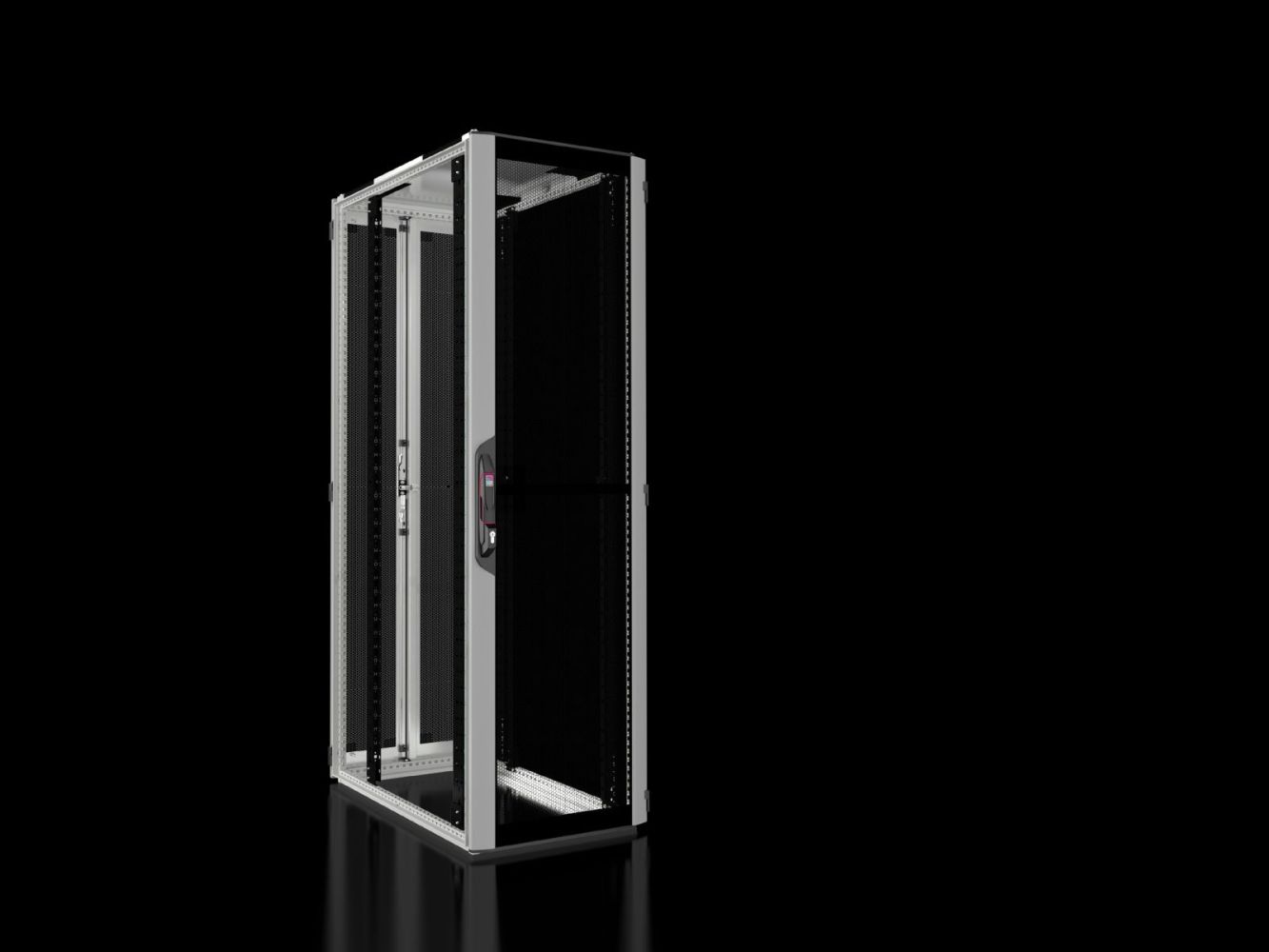

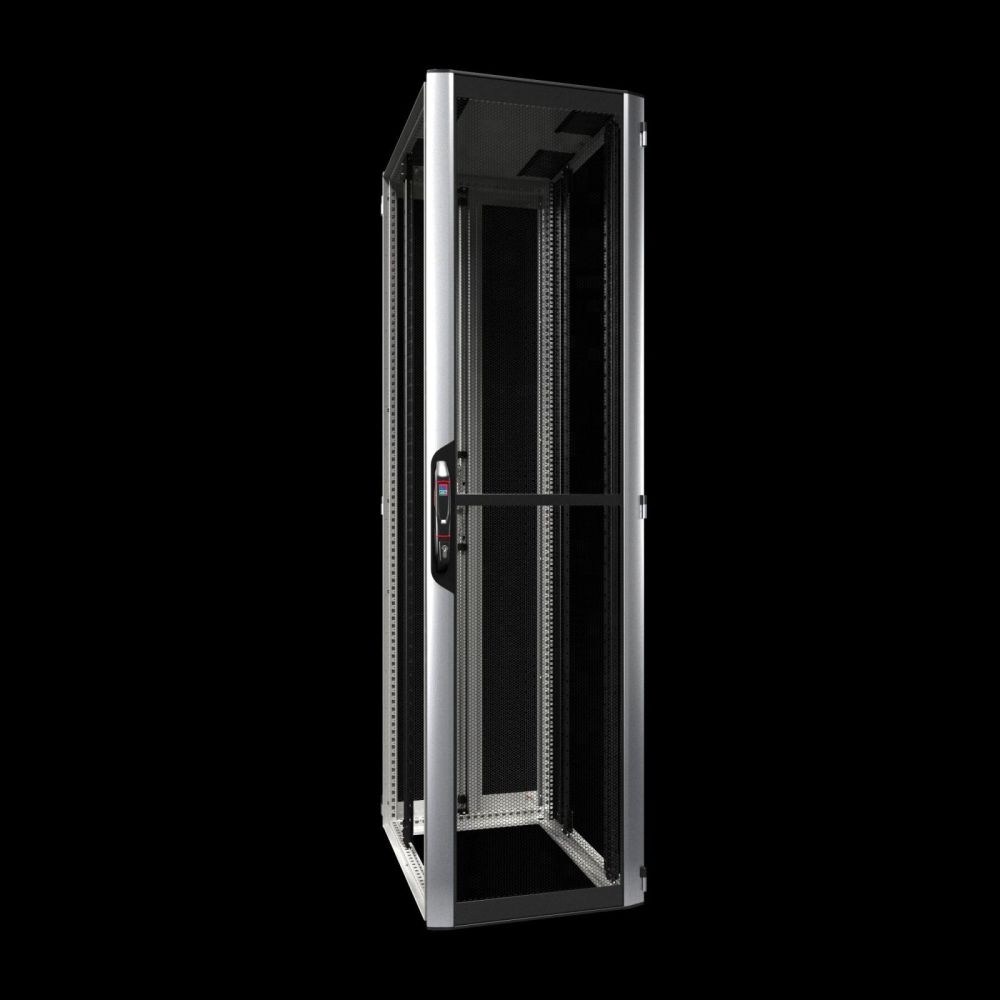

Rittal 5308113 Server rack VX IT, ventilated 600x2000x1000 mm, 42 U (freight shipping)
|
1.402,77 EUR |
|
|
( 1.669,30 EUR incl. VAT ) ≈ £1,174.12 | ≈ $1,541.64 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775548 |
| Mfg Part No: | 5308113 |
| UPC/EAN: | 4028177945029 |
| Weight: | 81.2 kg |
| Type: | VX 5308113 |
Product information for Rittal 5308113:
Applications
This enclosure is suitable for use in data centers, server rooms, IT infrastructures, and other environments where secure and ventilated housing of IT equipment is required. The open floor construction and 48,3 cm ( 19 inch )-plane at front and rear offer flexibility for mounting and cable routing. Ventilation with a free area of approximately 85% in the perforated metal section of the doors supports cooling of installed devices.
Functions and Equipment in Detail

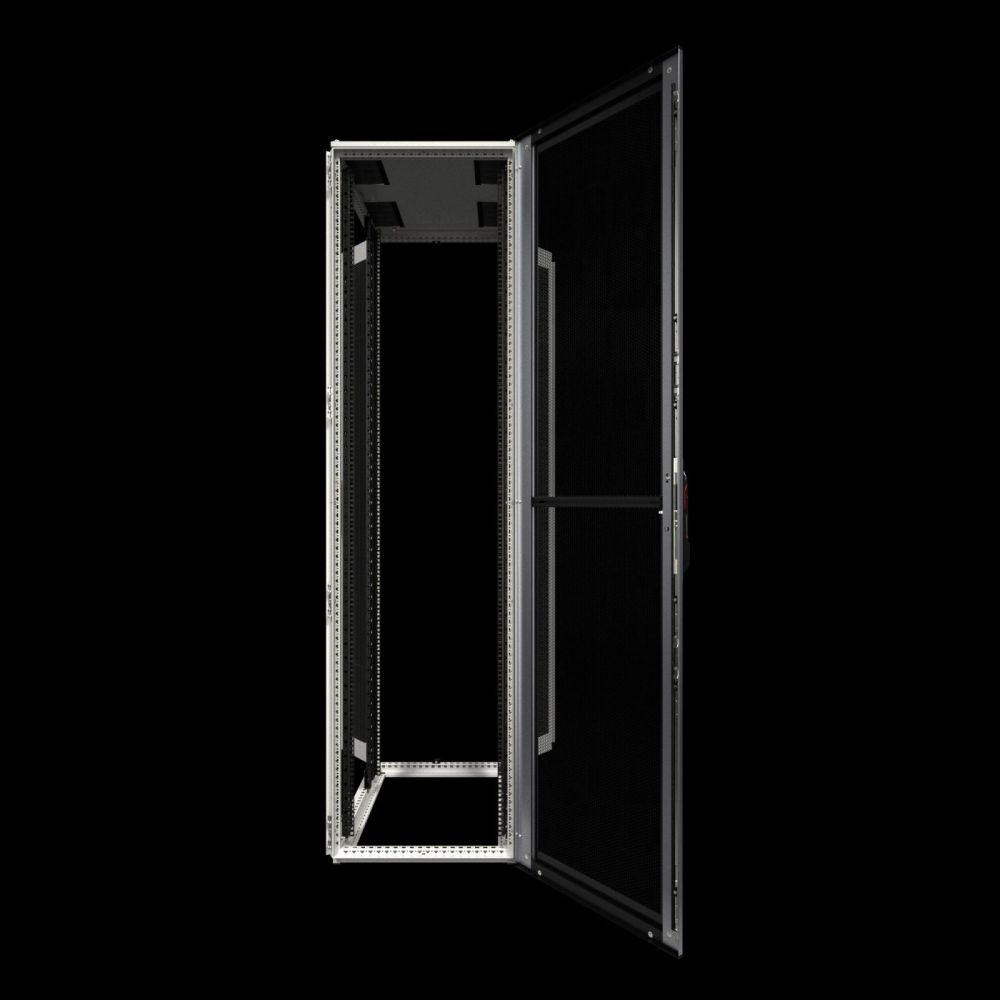

The front door consists of aluminum (1.25 mm) and sheet steel, is ventilated and single-piece, with 180° hinges. The rear door is made of sheet steel (1.5 mm), also ventilated and vertically divided, with 180° hinges. Both doors are equipped with comfort handles for half cylinders and a security locking system 3524 E. The enclosure frame surface is dip-primed, the interior finish is painted, while the rear door and roof are powder-coated. The front door is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The color of the enclosure frame, rear door, and roof corresponds to RAL 7035.
Technology Explained Simply

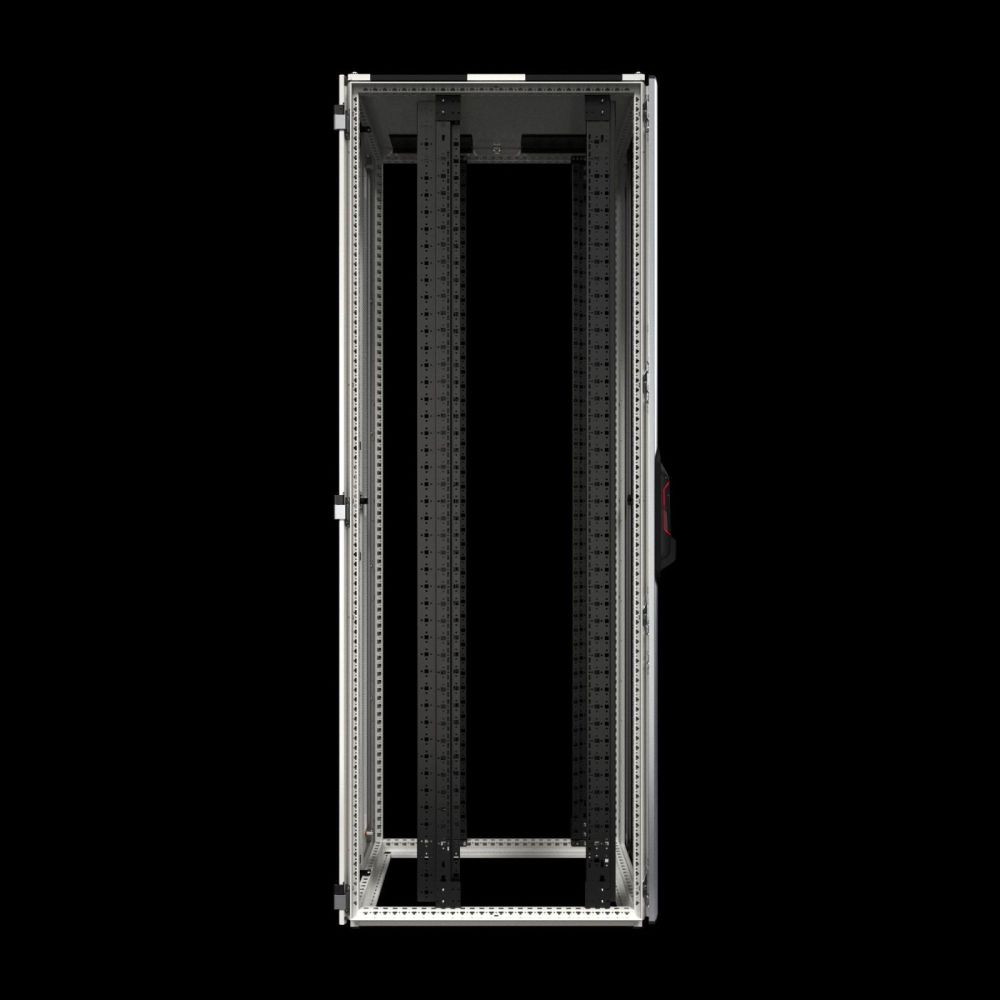

The 48,3 cm ( 19 inch )-profile rails are integrated as standard in the VX IT and allow mounting of devices in 48,3 cm ( 19 inch ) format. Mounting is achieved via mounting brackets, which are screwed to the frame structure at top and bottom. The spacing between mounting levels is 720 mm in the delivered state, with front mounting clearance of 87 mm and rear clearance of 720 mm. The rack’s load capacity is 15,000 N, with a maximum static load capacity per rack according to UL 2416 of 12,000 N. The frame structure consists of rolled, 9-fold bent, closed hollow profiles, welded and symmetrically arranged to ensure high torsional stiffness. Profile edges are rounded, and horizontal profiles feature an integrated groove for protection of the PU foam seal.
Compatibility and Accessories
Various accessories are available for use with the VX 5308113, including 48,3 cm ( 19 inch )-fasteners 1 U, drawers in various heights (2 U, 3 U), component shelves (e.g., 0.5 U, 1 U, 1.5 U), cable ducts, blanking panels, slide rails, cable routing brackets, brush strips, plinth trim panels, and baying partition panels. These components allow application-specific adaptation of the rack to meet specific installation requirements.
Mounting and Installation
Mounting is done via pre-installed 48,3 cm ( 19 inch )-profile rails, secured to the frame structure with mounting brackets. The 48,3 cm ( 19 inch )-plane is available at both front and rear, allowing flexible device placement. The roof structure is multi-part and provides cable entries in corner areas, facilitating cabling. The open floor construction allows easy integration into existing floor or cable systems.
Operational Advantages
The rack offers high mechanical stability due to the welded frame structure and integrated blind rivet nuts M6, which enable protection-rated fastening of fittings. The ventilated doors and roof with cable entries ensure optimal air circulation and cooling of installed devices. The color scheme in RAL 7035 and RAL 9005 supports a professional appearance in technical rooms. Delivery includes spacers (height 50 mm) for raising a roof plate above the fan outlet in the roof plate, as well as 12 pieces of 48,3 cm ( 19 inch )-fasteners 1 U and 25 conductive hex socket screws for device mounting. The packaging unit is 1 piece.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 1.000 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 720 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Roof type | multi-part, with cable entry in corner areas front and rear |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
