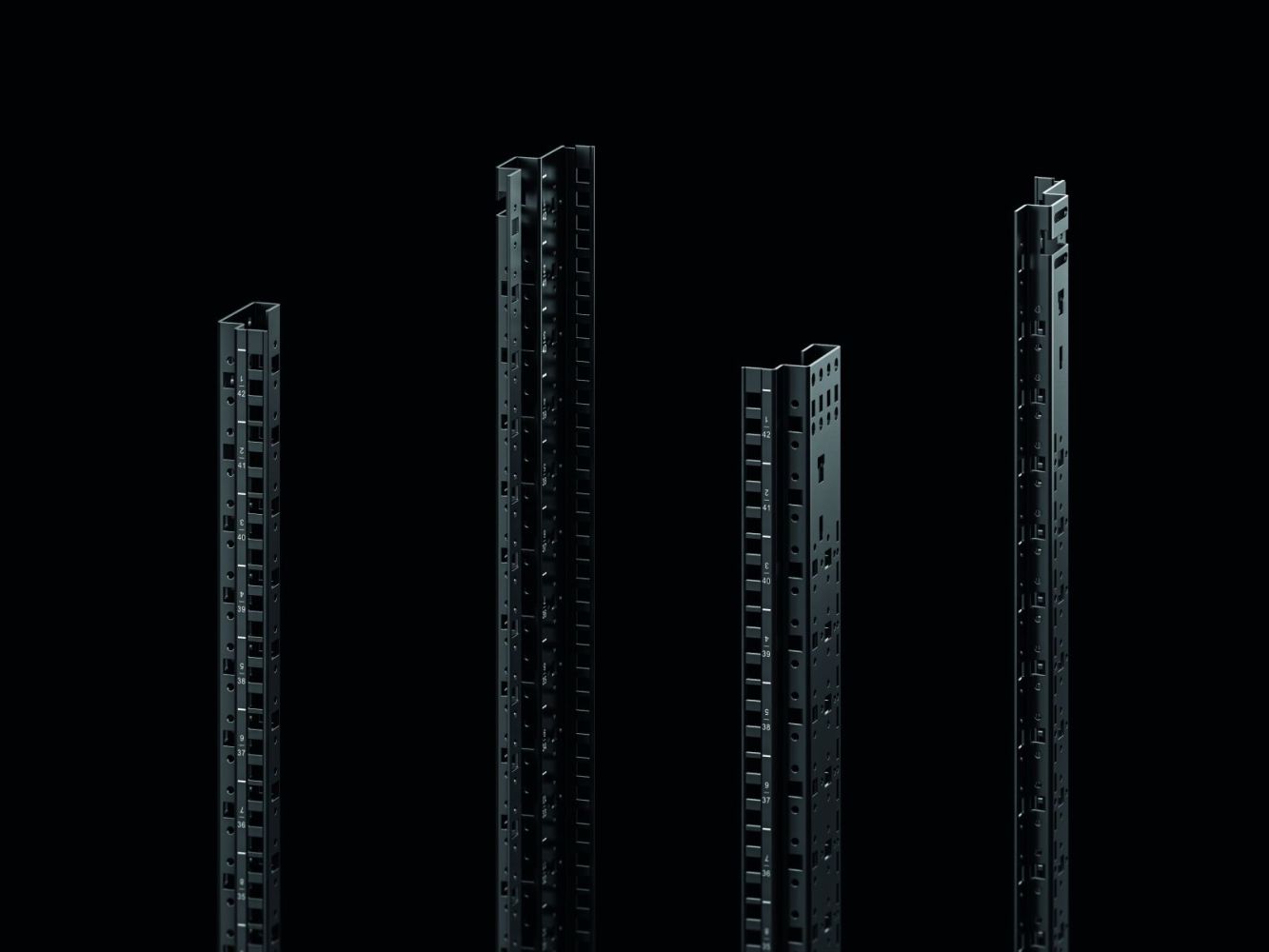

Rittal 5302106 48,3 cm ( 19 inch ) profile rails standard, front, 42 U
|
88,30 EUR |
|
|
( 105,08 EUR incl. VAT ) ≈ £73.91 | ≈ $97.04 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055452 |
| Mfg Part No: | 5302106 |
| UPC/EAN: | 4028177955448 |
| Weight: | 7.86 kg |
| Type: | VXIT 5302106 |
Product information for Rittal 5302106:
Applications
The profile rail is used to create a structured mounting plane within the VX IT system. It is suitable for full or partial installation of server and IT systems mounted on a 48,3 cm ( 19 inch ) mounting plane. The integrated, bidirectional U marking supports orientation and identification of mounting positions. The rail is designed for use in server and network enclosures where standardized, inch-based mounting is required.
Functions and Equipment in Detail
The rail features integrated system holes in the U grid on the front and side surfaces, enabling U-based mounting of cable management components. This allows for organized and structured cable routing. The side round and square holes in the U grid allow for flexible component mounting. Equipotential bonding within the mounting plane and with the mounting frame is achieved via the fastening elements, ensuring a secure electrical connection.
Technology Explained Simply
The rail is made of steel sheet with a thickness of 2 mm and has a primed surface in RAL 9005. The inch-based mounting hole pattern conforms to the EIA 310 E standard and also includes a U center mounting, ensuring precise and stable installation. The L-shaped construction provides a stable base for mounting devices and allows direct attachment to the 48,3 cm ( 19 inch ) system hole pattern.
Compatibility and Accessories
The profile rail is designed for use with other components of the VX IT system. For mounting, a combination with a cross brace, a depth brace, or a mounting angle is required. The choice of mounting option depends on the specific housing dimensions. Installation options include alternative mounting widths of 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and housing dimensions.
Mounting and Installation
Mounting is performed on the front side of the VX IT housing. The rail is installed using the fastening materials included in the delivery scope. The combination with cross brace, depth brace, or mounting angle is necessary to securely fix the rail in the housing. Mounting depends on the housing size and desired mounting width.
Operational Advantages
The rail provides a stable and standardized mounting base for IT and server components. The integrated marking and structured hole pattern simplify planning and execution of installation. The use of fastening elements ensures secure equipotential bonding. Compatibility with various fastening elements allows flexible adaptation to different housing configurations.
The delivery scope includes the profile rails and the necessary fastening materials. The packaging unit is 2 pieces.
| General | |
| Model | for VX IT 19" standard profile rail |
| Technical data | side round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E |
| Applications | For creating a standard mounting surface within the VX IT enclosure system |
| Material | Sheet steel, 2 mm |
| Surface protection | Primed |
| Colour | RAL 9005 |
| Scope of delivery | Including mounting hardware |
| Installation position | Front side |
| Mounting options | Alternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions |
| Mounting note | For mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions. |
| Suitable for | Height: = 42 U, = 2,000 mm |
| PCF/VE (Cradle-to-Gate) | 30.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
