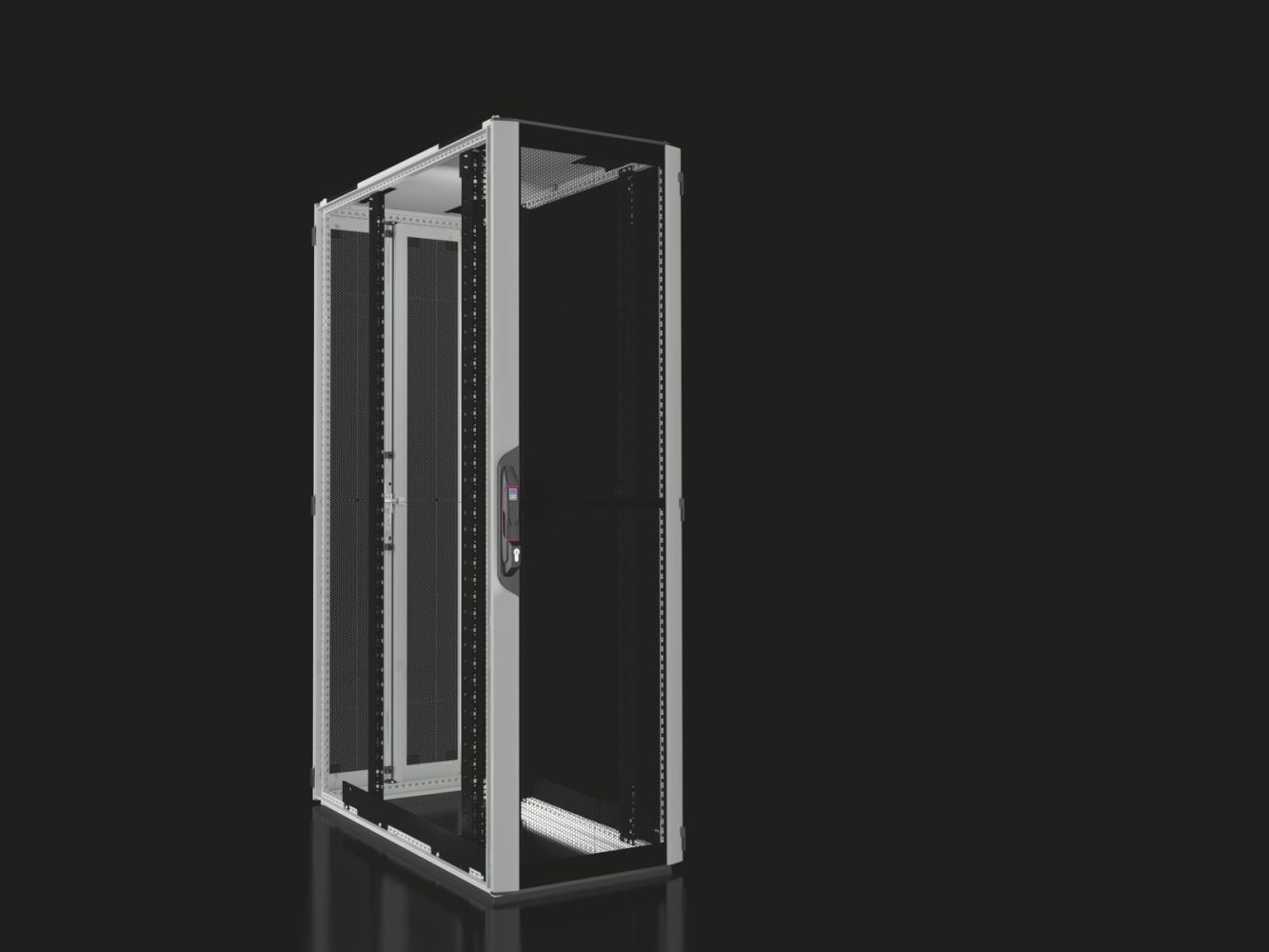

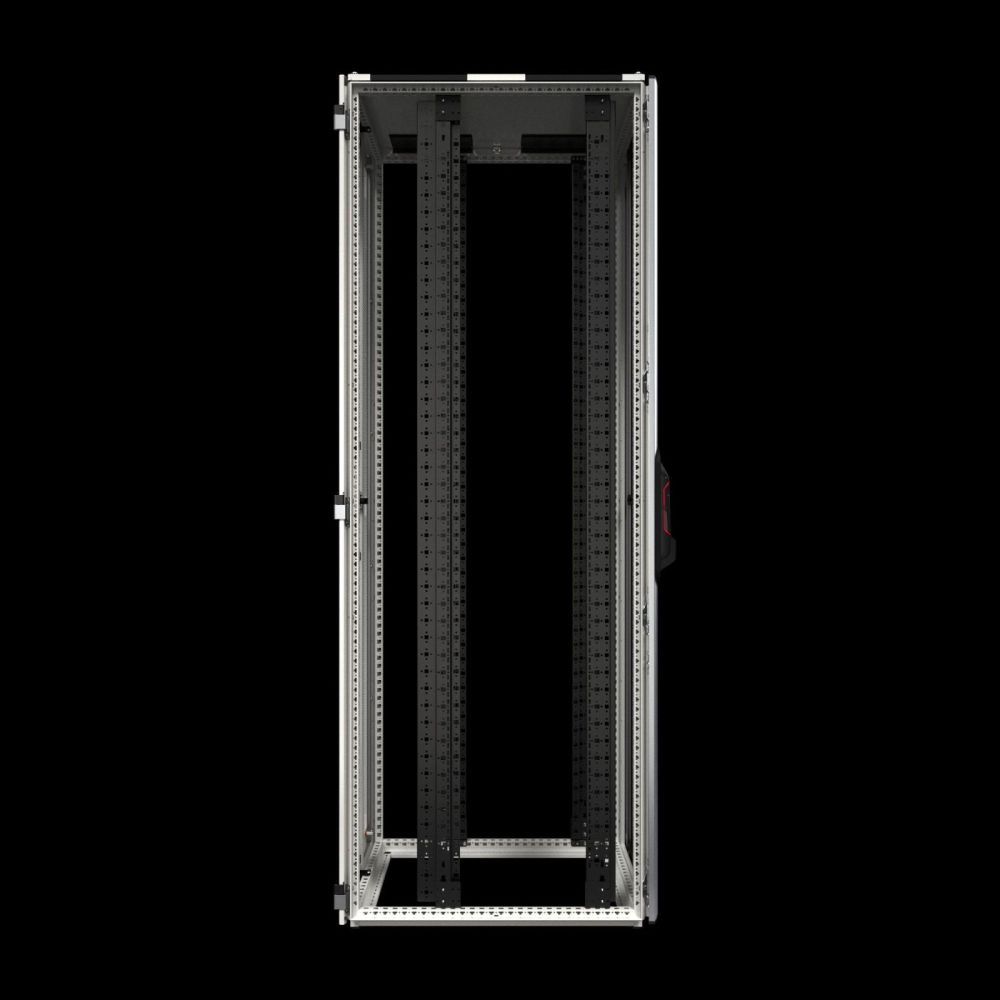

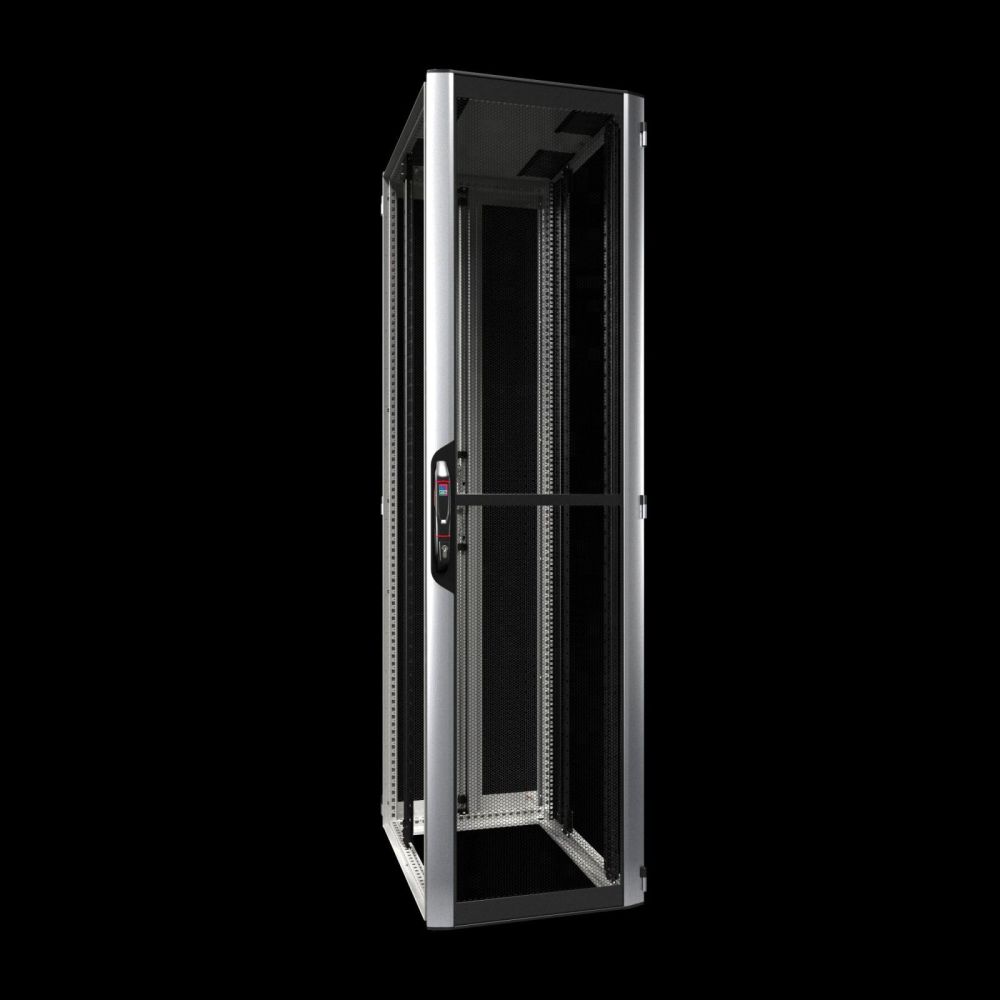

Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U

Your rating:
Average rating
product review for Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U
( 4.5 / 5 ) 2 ratings
Rittal 5310118
This image may differ from the desired article.
Rittal 5310118Rittal 5310118Rittal 5310118Rittal 5310118Rittal 5310118Rittal 5310118Rittal 5310118
1.443,48 EUR
( 1.717,74 EUR incl. VAT )
≈ £1,208.19  |  ≈ $1,586.38
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775821
Mfg Part No: 5310118
UPC/EAN: 4028177945166
Weight:87 kg
Type:VX 5310118

Product information for Rittal 5310118:

The Rittal VX 5310118 is a network/server rack of the VX IT series, designed for use in IT infrastructures and server environments. It features a ventilated design and is standardly equipped with 48,3 cm ( 19 inch )-profile rails, making it suitable for mounting rack servers, network devices, and other IT components. Dimensions are 600 mm width, 2,000 mm height, and 1,200 mm depth, with the enclosure height covering 42 HE (height units). The construction enables efficient air circulation, which is required for cooling electronic components in a room climate.

Applications
This enclosure is designed for use in data centers, server rooms, IT distribution centers, and other environments where continuous and reliable operational safety of IT systems is required. The ventilated doors and open floor construction support passive cooling, which can be supplemented by room air conditioning. The design with 48,3 cm ( 19 inch )-profile rails allows mounting of standard IT devices designed according to rack mounting standards.

Functions and Equipment in Detail

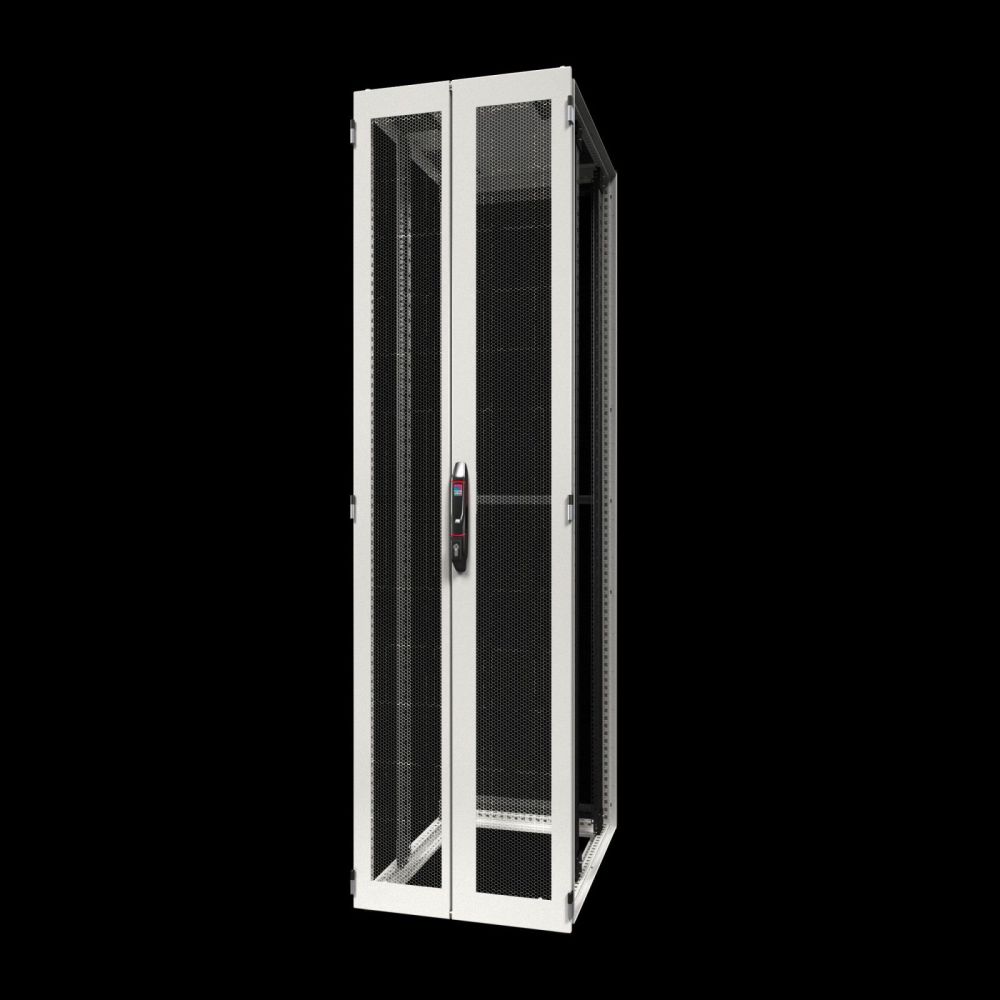

The front door is made of aluminum with a thickness of 1.25 mm and is anodized/painted, providing high corrosion resistance and visual quality. The rear door is made of sheet steel with a thickness of 1.5 mm and is also powder-coated. Both doors are ventilated, with the open area in the perforated section amounting to approximately 85%, ensuring effective air circulation. The doors are equipped with 180° hinges, enabling full opening. The front door is single-piece, while the rear door is vertically divided. The door locks consist of comfort handles for half cylinders and a security locking mechanism (type 3524 E), ensuring secure access.

Technology Explained Simply
The enclosure is made of sheet steel, with the frame structure dip-primed and the interior finish painted. The roof is multi-part and features cable entries in the front and rear corner areas, facilitating cable installation. The 48,3 cm ( 19 inch )-profile rails are depth-variable and can be mounted on the front and rear 48,3 cm ( 19 inch ) planes. Installation is done using mounting brackets, which are screwed to the frame structure at the top and bottom. The plane spacing is 720 mm in the delivered state. Mounting clearances are 150 mm at the front and 330 mm at the rear, providing sufficient space for cable connections and maintenance.

Compatibility and Accessories
The enclosure is compatible with various accessories that extend its functionality. These include 48,3 cm ( 19 inch )-fasteners 1 HE (12 pieces included in delivery), spacers for raising a roof plate above the fan outlet in the roof plate (for passive ventilation), and internal hex socket screws (25 pieces, conductive). Additionally, suitable drawers, blank panels, component shelves, cable ducts, and slide rails are available and can be integrated into the enclosure according to requirements. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door is vertically silver and horizontally RAL 9005. The interior finish, front ventilation grille, handle, and hinges are also painted in RAL 9005.

Mounting and Installation
Mounting is done by screwing the mounting brackets to the frame structure. The 48,3 cm ( 19 inch )-profile rails are already integrated into the enclosure and can be positioned on the front or rear plane as needed. The open floor construction allows flexible cable routing. The enclosure's load capacity is 15,000 N, with the maximum static load capacity according to UL 2416 per enclosure being 12,000 N. Installation does not require special tools, as the mounting components are standardized.

Operational Advantages
The enclosure offers high mechanical stability and is designed for use in industrial and commercial environments. The ventilated doors and open construction support efficient cooling of installed devices. The use of conductive screws and fasteners ensures secure earthing of installed components. The color scheme in RAL 7035 and RAL 9005 enables visual harmonization with other devices in the room. The 180° hinges facilitate maintenance and inspection of devices inside the enclosure. Delivery is on an IPPC pallet, with a net weight of 68 kg.

General
ModelVentilated, standard, with 19" profile rails
MaterialSheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourHousing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005
Width600 mm
Height2.000 mm
Depth1.200 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 330 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)720 mm
19" mountingwith mounting bracket screwed to top and bottom of frame structure
Roof typemulti-part, with cable entry in corner areas front and rear

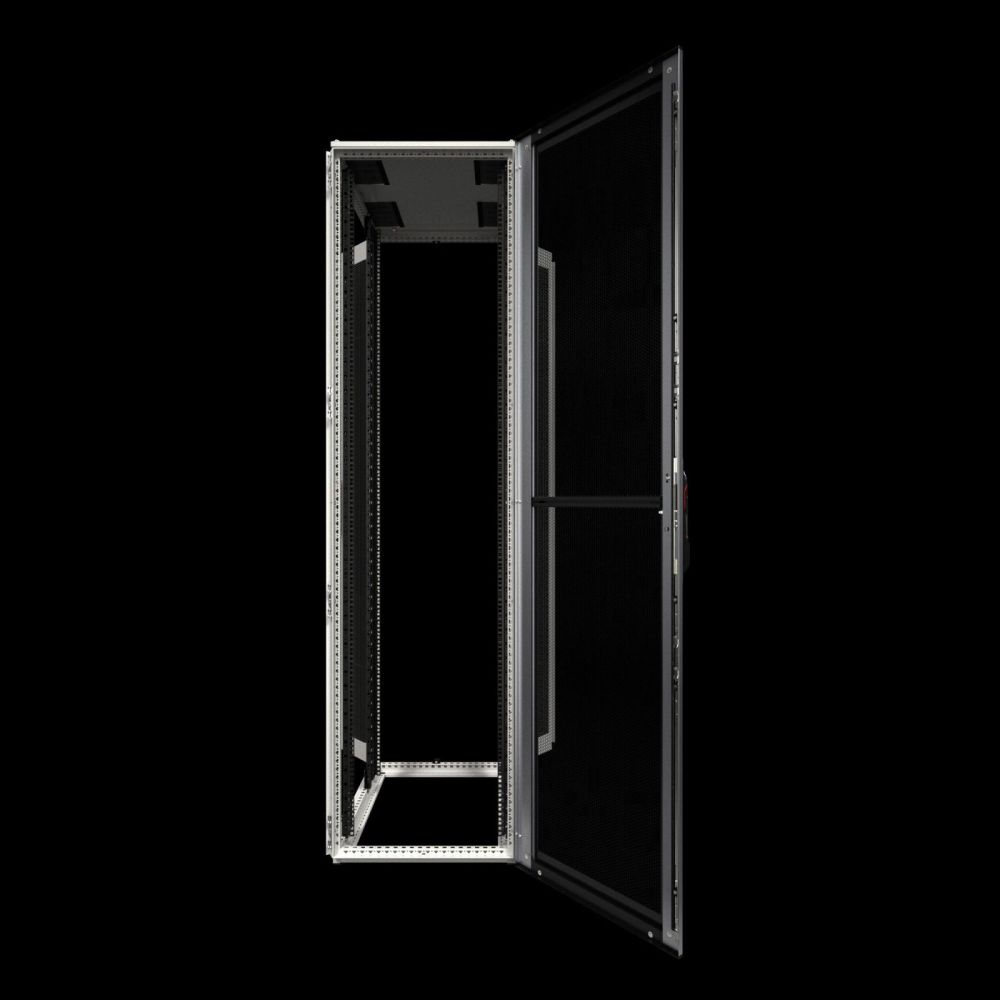

Door configuration rearSteel sheet door, ventilated, vertically divided, 180° hinges
Front door configurationAluminium-steel sheet door, ventilated, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
Max. load capacity (static) according to UL 2416 per cabinet12.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)214.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5310118, EAN: 4028177945166

Questions & answers

What is the delivery time of Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U?

The article Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5310118 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5310118 Server rack VX IT ventilated 600x2000x1200 mm 42 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
