Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55
( 4.5 / 5 ) 2 ratings

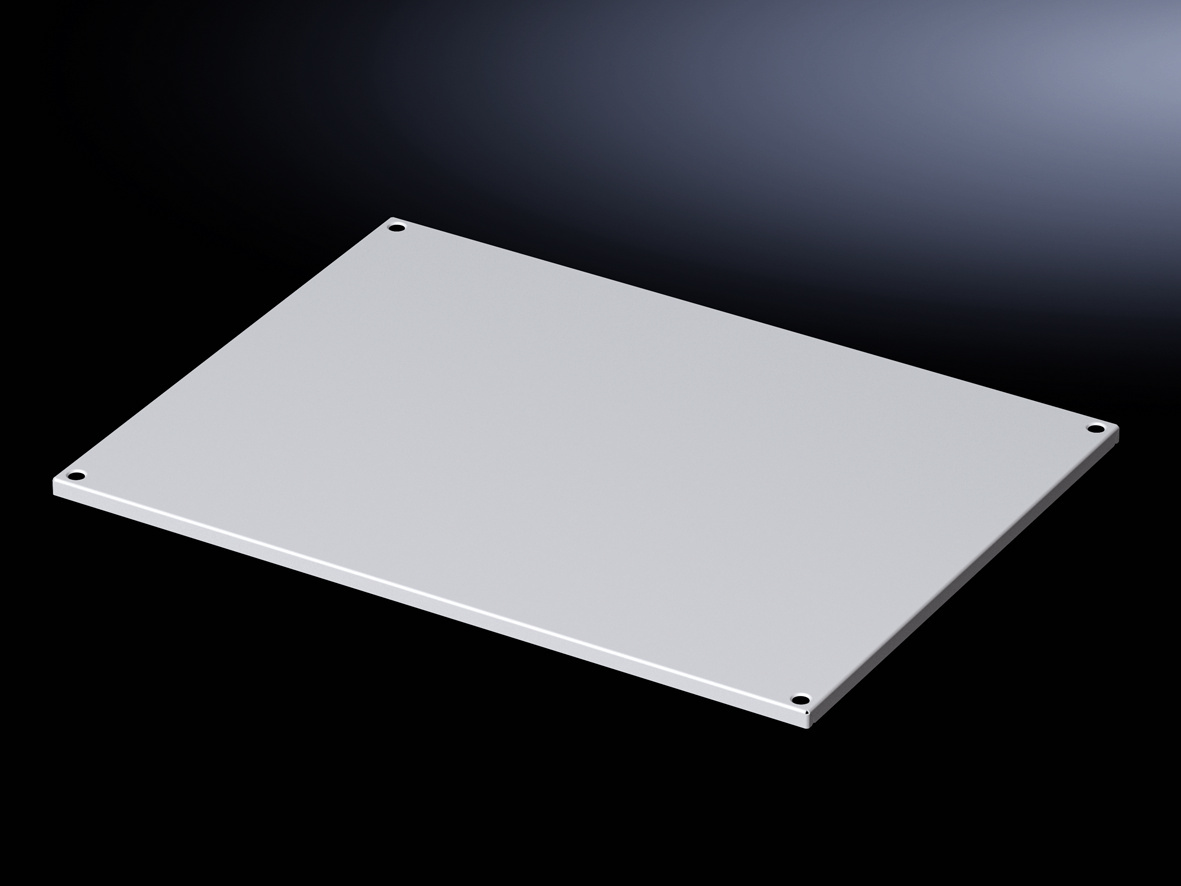

Rittal 9681662
This image may differ from the desired article.
Rittal 9681662Rittal 9681662
-12% 97,18 EUR 110,64 EUR
( 115,64 EUR incl. VAT )
≈ £81.34  |  ≈ $106.80
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1101090
Mfg Part No: 9681662
UPC/EAN: 4028177954069
Weight:10.24 kg
Type:SV 9681662

Product information for Rittal 9681662:

The Rittal SV 9681662 is a roof plate for enclosures of the VX and VX-IT series, designed for a width of 600 mm and a depth of 1,200 mm. It serves as a replacement for missing or worn-out standard roofs and enables the sealing of the top part of the enclosure. The product is designed for use in industrial environments where sufficient protection against dust and splashing water is required. The protection rating IP 55 ensures a high level of protection, which is particularly useful in areas with increased contamination risk or humidity.

Applications

The roof plate is primarily used for enclosures without pre-installed roof plates, but also as a replacement for existing standard roofs in other enclosures of the VX and VX-IT series. It is suitable for installations in production halls, machine building, automation technology, and other industrial applications where a closed, protective closure of the top part of the enclosure is necessary. The dimensions of 600 mm width and 1,200 mm depth fit exactly to the standard sizes of these enclosure types.

Functions and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The surface is coated with a textured paint, forming a robust, scratch- and abrasion-resistant layer. The color corresponds to RAL 7035, a gray-black shade widely used in industry and well-integrated into industrial environments.

Technology Explained Simply

The protection rating IP 55 means that the roof plate is dust-tight and protected against splashing water from any direction. This makes it suitable for use in environments where moisture or dust exposure may occur, for example in production areas or outdoors under protective roofs. The sheet steel material with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads such as wind pressure or minor mechanical impacts. The textured paint coating improves surface quality and prevents corrosion and contamination.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX and VX-IT series with a width of 600 mm and a depth of 1,200 mm. It is not suitable for other enclosure sizes or series. Suitable accessories include transport eyes for VX, TS, and SE, which can be helpful during shipping and installation. Additionally, pressure plugs for roof plates IP 55 are available, which can be used for pressure relief during installation, especially when the roof plate is subjected to pressure or temperature fluctuations.

Mounting and Installation

Installation is carried out using the mounting materials included in the delivery. The roof plate is placed on the top part of the enclosure and secured with the designated fastening elements. The fastening is done at the designated mounting points of the enclosure, with fit accuracy ensured by the exact dimensions.

Advantages in Operation

The roof plate provides reliable protection against external influences such as dust, splashing water, and mechanical loads. The use of sheet steel with textured paint ensures a long service life and low maintenance. Compatibility with VX and VX-IT enclosure types enables easy interchangeability and integration into existing installations. The protection rating IP 55 increases the reliability of installed devices in the enclosure, as electrical components are protected from environmental influences.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 600 mm, Depth: = 1,200 mm


Product data sheet
Datasheet for Rittal 9681662, EAN: 4028177954069

Questions & answers

What is the delivery time of Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55?

The article Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681662 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55 always at the best possible price. We can give you a discount of 2% on Rittal 9681662 roof plate for VX, W x D: 600x1200 mm, IP 55 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
