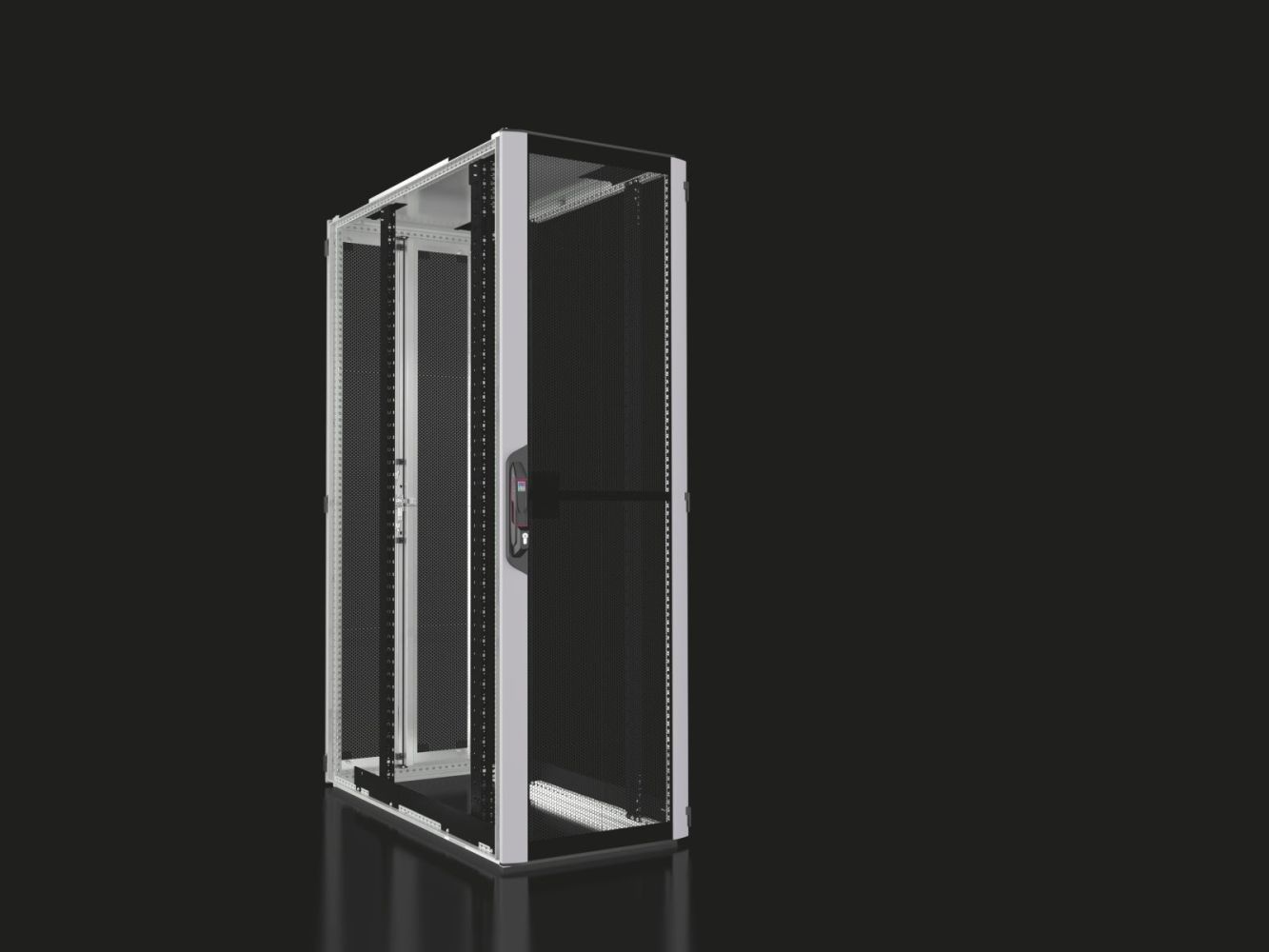

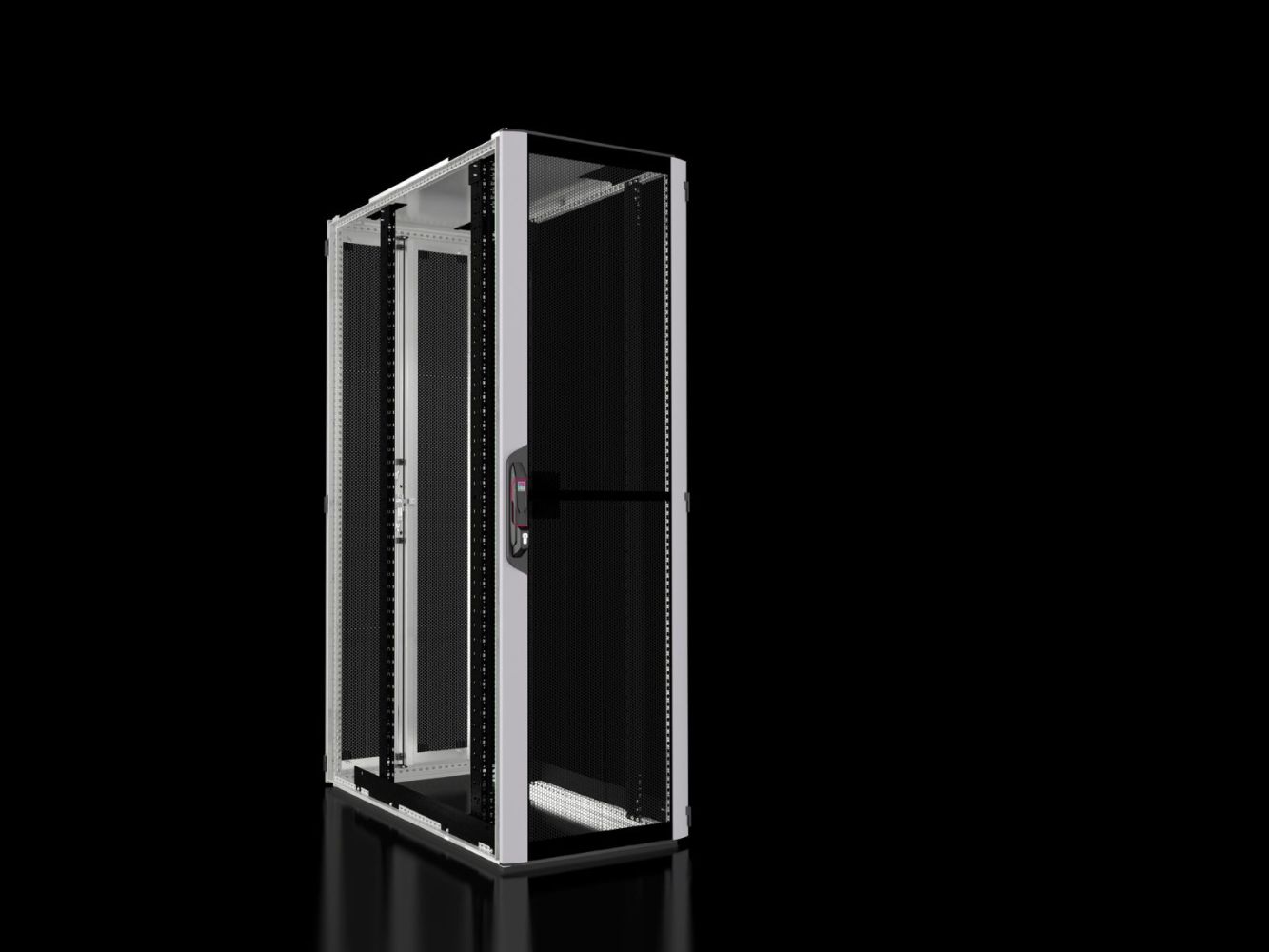

Rittal 5315118 Server rack VX IT ventilated 600x2200x1200 mm 47 U
|
1.587,92 EUR |
|
|
( 1.889,62 EUR incl. VAT ) ≈ £1,329.09 | ≈ $1,745.12 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775765 |
| Mfg Part No: | 5315118 |
| UPC/EAN: | 4028177945364 |
| Weight: | 92.8 kg |
| Type: | VX 5315118 |
Product information for Rittal 5315118:
Applications
This rack is suitable for use in data centers, server rooms, IT distribution centers, and industrial environments where structured and secure mounting of IT and network equipment is required. The ventilated doors ensure continuous air circulation, supporting cooling of installed devices. The open floor construction allows for easy cable routing and integration with existing floor duct or cable management systems. The multi-part roof construction with cable entries in the front and rear corner areas facilitates cabling and integration of fans or other cooling components.
Functions and Equipment in Detail

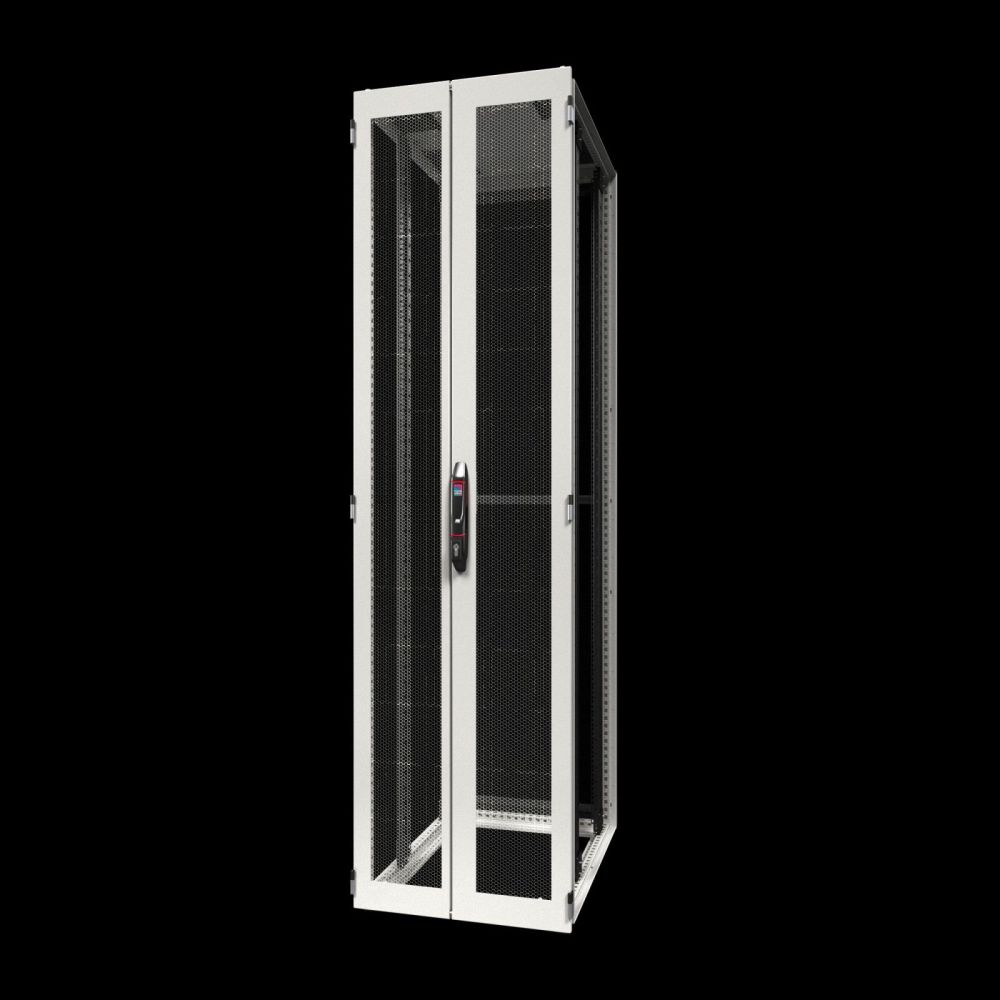

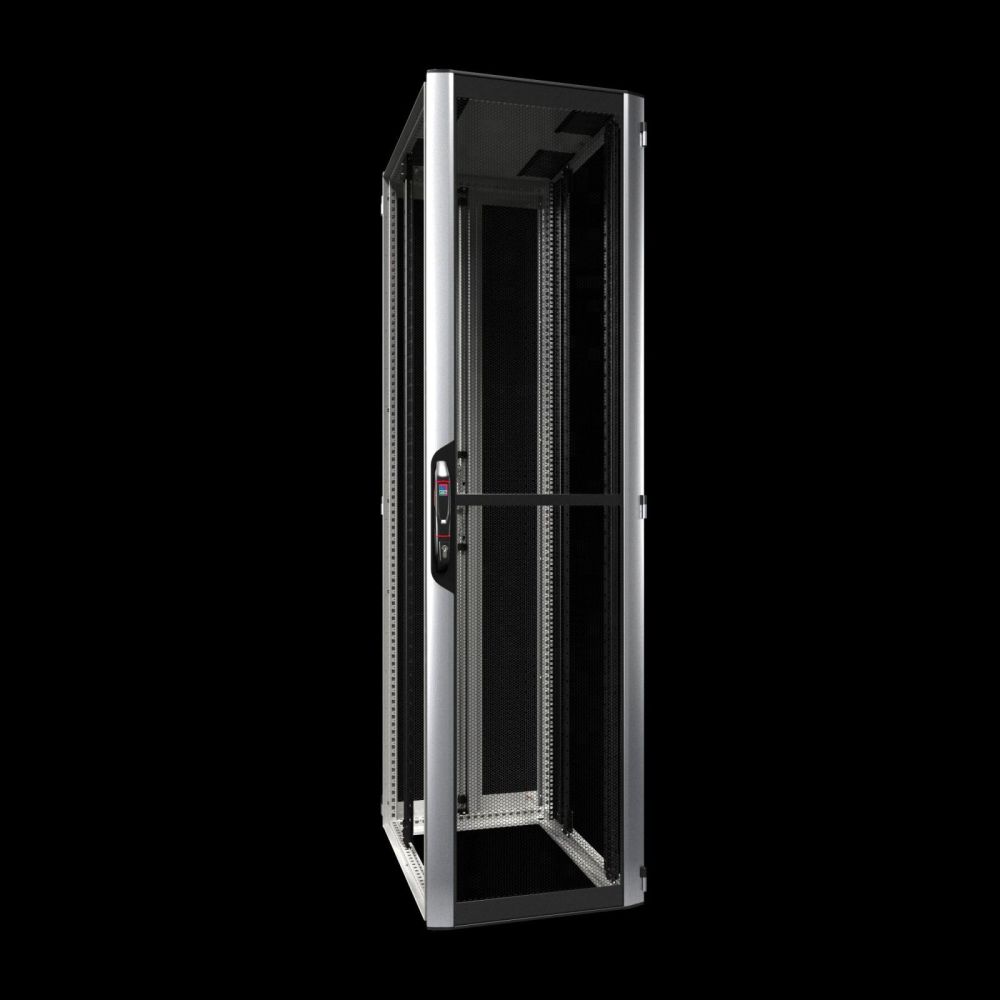

The front door is made of an aluminum-steel sheet composite, ventilated, and single-piece, with a ventilation area in the perforated sheet section of approximately 85%. The door opens via 180° hinges and is equipped with a comfort handle for half cylinder and a safety lock 3524 E. The rear door is made of steel sheet, also ventilated, vertically divided, and fitted with 180° hinges, enabling optimal accessibility and maintenance. The front door features a two-tone design: vertical profiles are silver-colored, horizontal profiles are in RAL 9005. The internal mounting and ventilation grilles at the front are also painted in RAL 9005, as are the handle and hinges. The enclosure frame, rear door, and roof are in RAL 7035.
Technology Explained Simply
The rack is made of steel sheet, with the front door made of aluminum (1.25 mm) and the rear door made of steel sheet (1.5 mm). The surface of the rack frame is dip-primed, the internal mounting is painted, while the rear door and roof are dip-primed and powder-coated. The 48,3 cm ( 19 inch )-profile rails are standard-integrated in the VX IT system and can be mounted on both sides (front and rear). Mounting is done via mounting brackets, which are screwed to the frame structure at the top and bottom. The plane spacing is 720 mm in the delivered state, with mounting clearance to the 48,3 cm ( 19 inch )-plane being 150 mm in front and 330 mm at the rear. The load capacity of the rack is 15,000 N, with the maximum static load capacity according to UL 2416 per rack being 12,000 N. The 48,3 cm ( 19 inch )-fasteners (1 HE, contacting) and internal hex socket screws (conductive) are included in the delivery and serve for secure device mounting.
Compatibility and Accessories
The rack is compatible with a wide range of accessories that allow individual adaptation to specific requirements. These include, for example, drawers in various heights (2 HE, 3 HE), component shelves (0.5 HE, 1 HE, 1.5 HE), blank panels (48,3 cm ( 19 inch )), cable ducts (6 HE), slide rails, and routing brackets. The profile rails are depth-variable and allow flexible adaptation to different devices. The spacers (50 mm) included in the delivery are used to raise a cover plate above the fan opening in the roof plate, enabling passive ventilation. For variants without an opening, these are not required.
Mounting and Installation

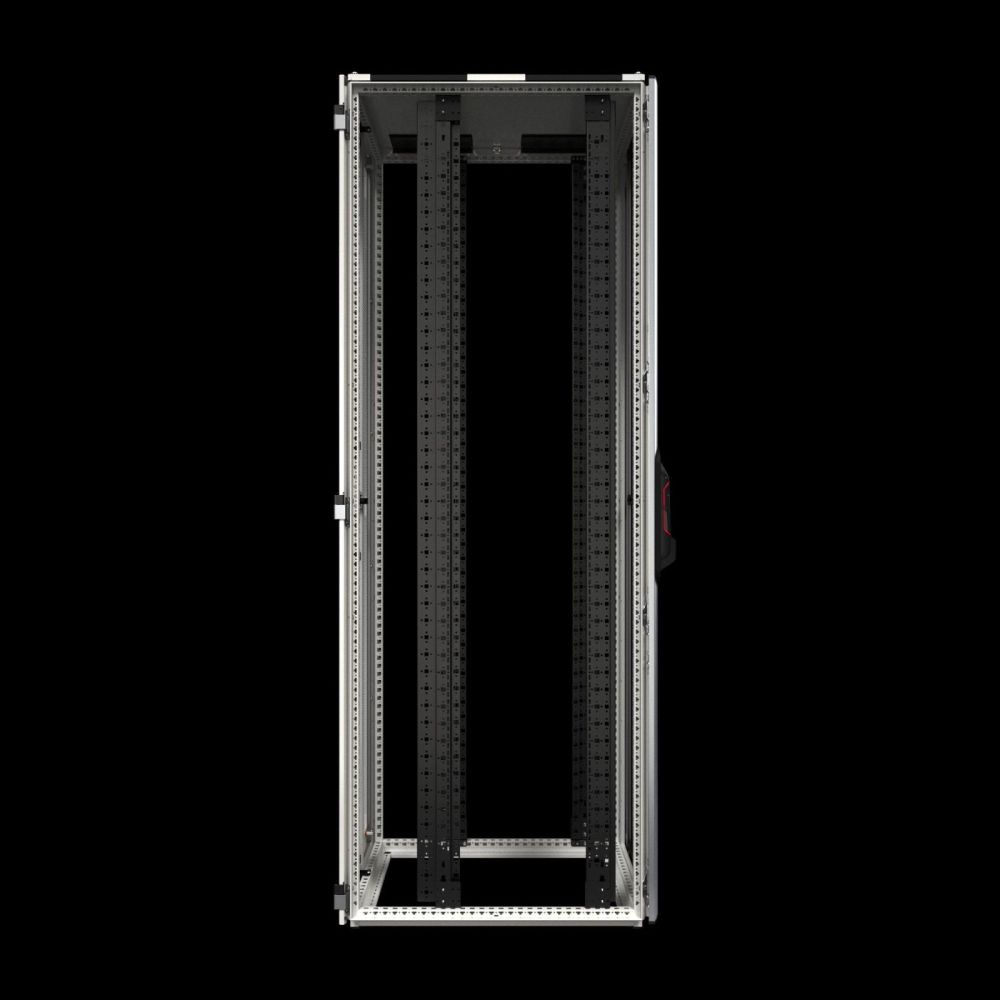

Mounting is done via the integrated mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch )-profile rails are standard-installed front and rear, ensuring symmetrical and stable mounting of devices. The open floor construction facilitates installation and cable routing. The 180° hinges on front and rear doors allow full opening, simplifying maintenance and device installation. The cable entries in the roof in the front and rear corner areas support structured cabling. The dip-primed and powder-coated surface ensures high corrosion resistance and durability.
Operational Advantages
The rack offers high stability and load capacity (15,000 N), making it suitable for demanding environments. The ventilated doors with a free area of approximately 85% ensure efficient cooling of installed devices. The 48,3 cm ( 19 inch )-profile rails are depth-variable and allow flexible adaptation to different devices. The integrated mounting brackets and conductive screws ensure secure and electrically conductive mounting. The two-tone design of the front door (silver-colored and RAL 9005) and the uniform color scheme (RAL 7035) provide a professional appearance. The comfort handles and safety lock facilitate access and increase security. The multi-part roof construction with cable entries enables flexible integration of cooling and cabling systems.
Delivery Contents
The rack is delivered with the rack frame, front and rear doors, roof plate, 12 x 48,3 cm ( 19 inch )-fasteners (1 HE, contacting), 25 internal hex socket screws (conductive), and spacers (50 mm). The spacers are used to raise a cover plate above the fan opening in the roof plate to enable passive ventilation. For variants without an opening, these are not required. Delivery is on an IPPC pallet.
Certifications
The rack is UL + C-UL (listed) certified, confirming compliance with safety and quality standards. The surface treatment meets requirements for corrosion resistance and durability. The declaration of conformity and manufacturer’s declaration are part of the product documentation.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 1.200 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 330 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Roof type | multi-part, with cable entry in corner areas front and rear |

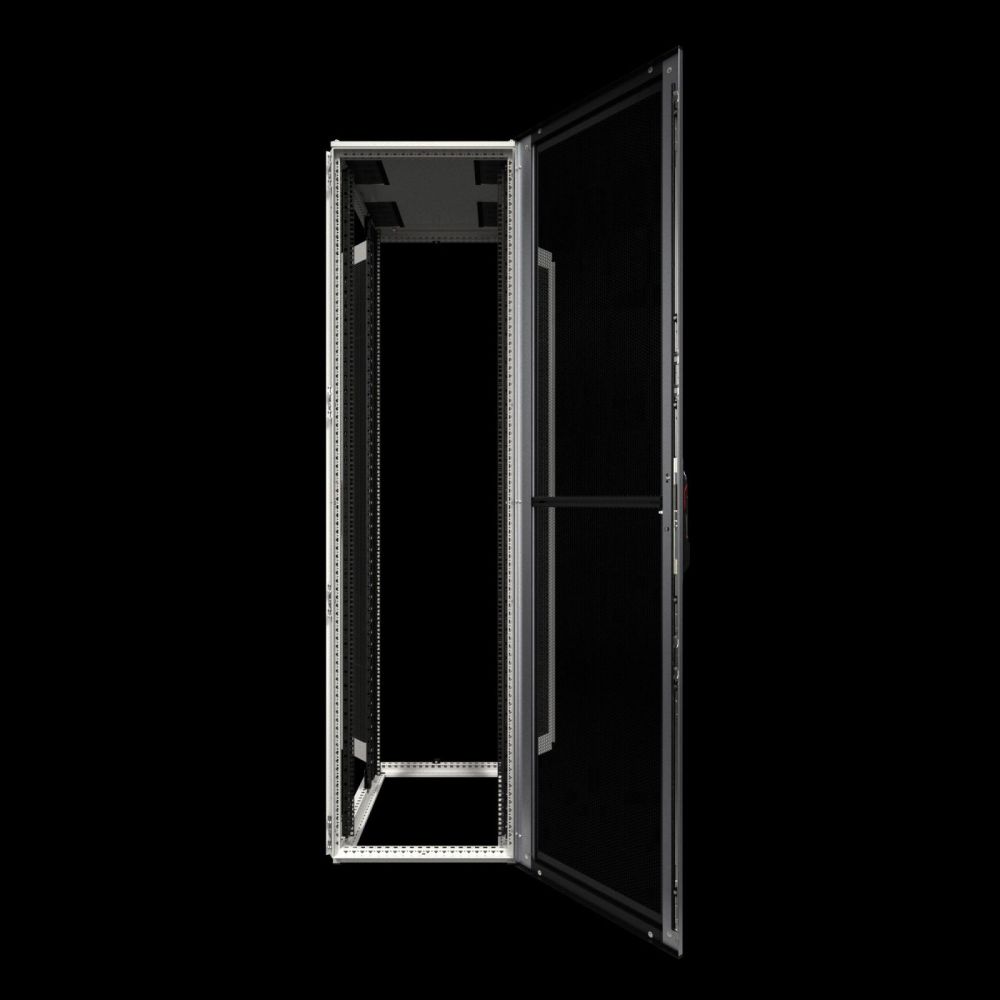

| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 209.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
