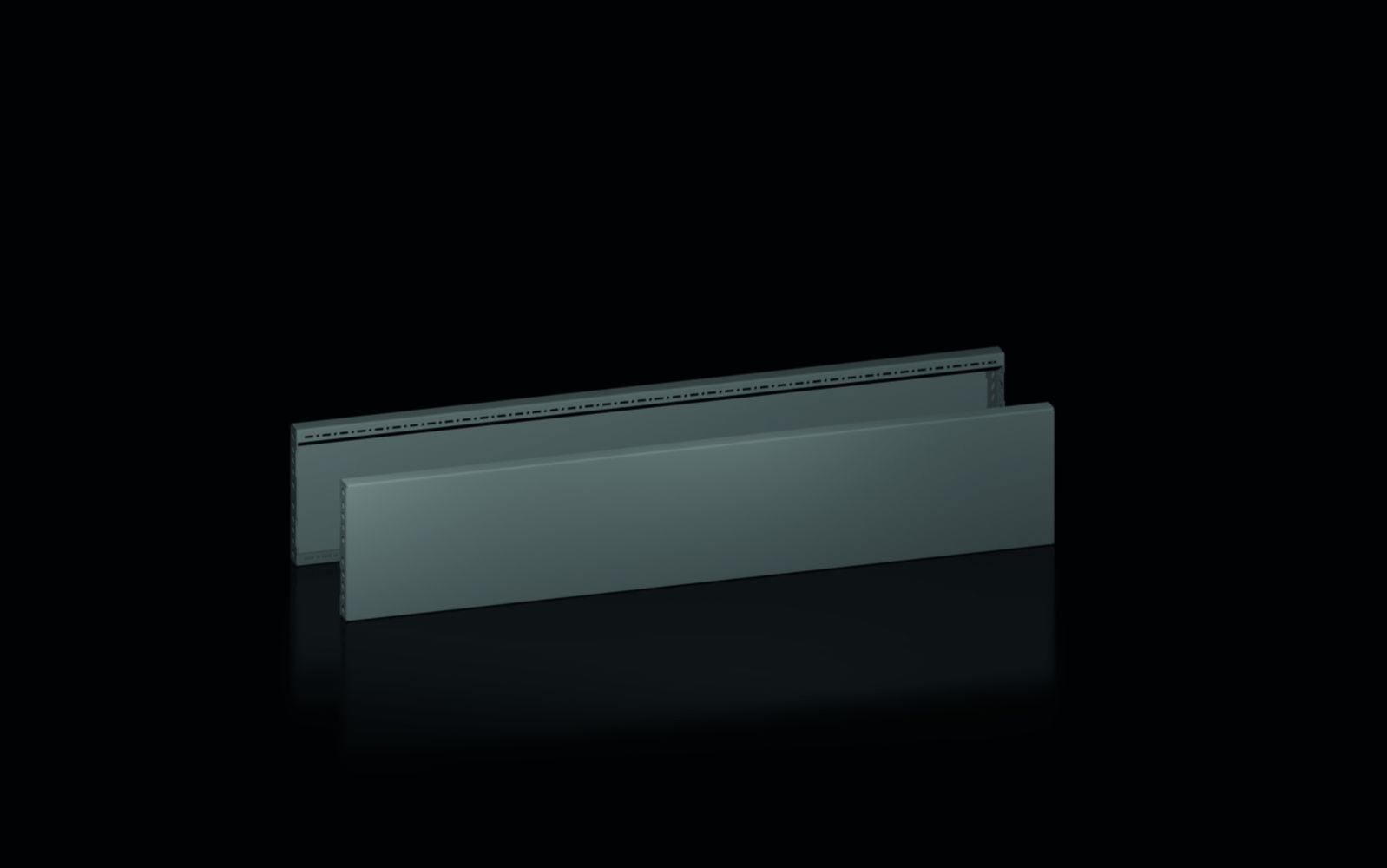

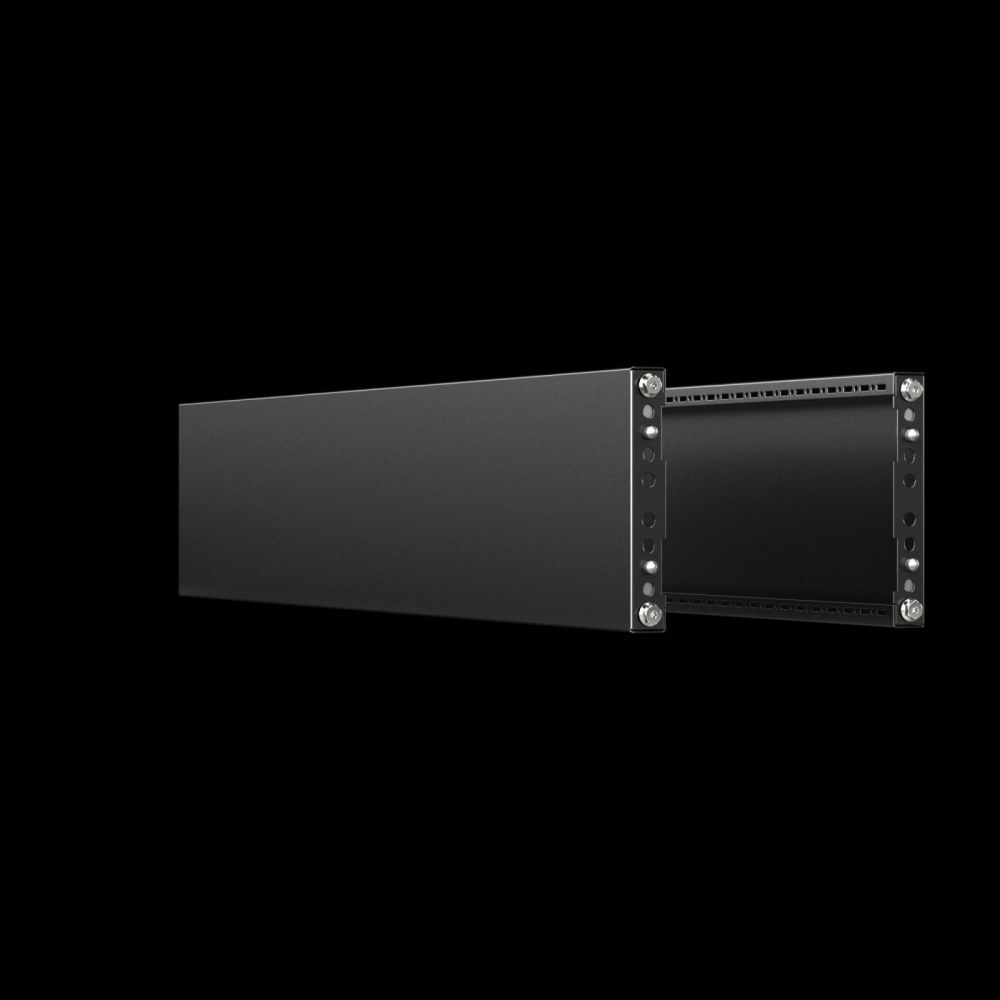

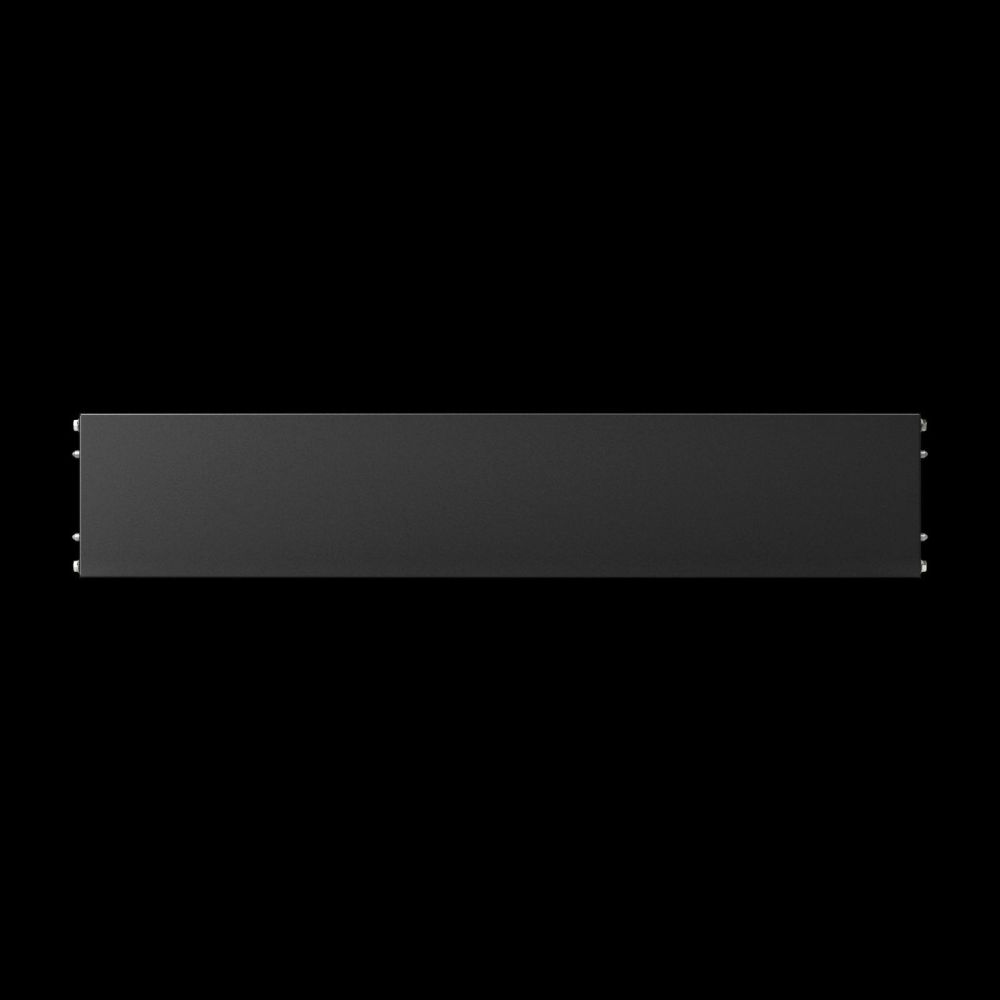

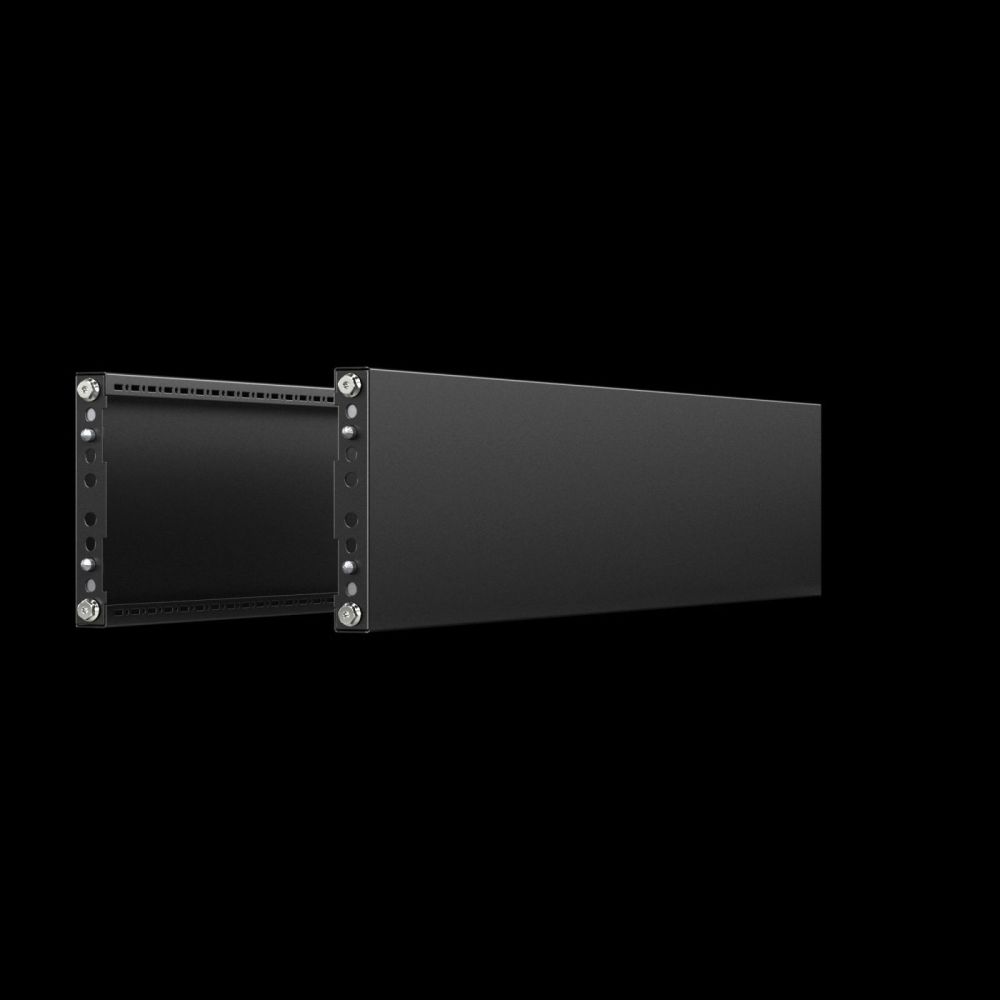

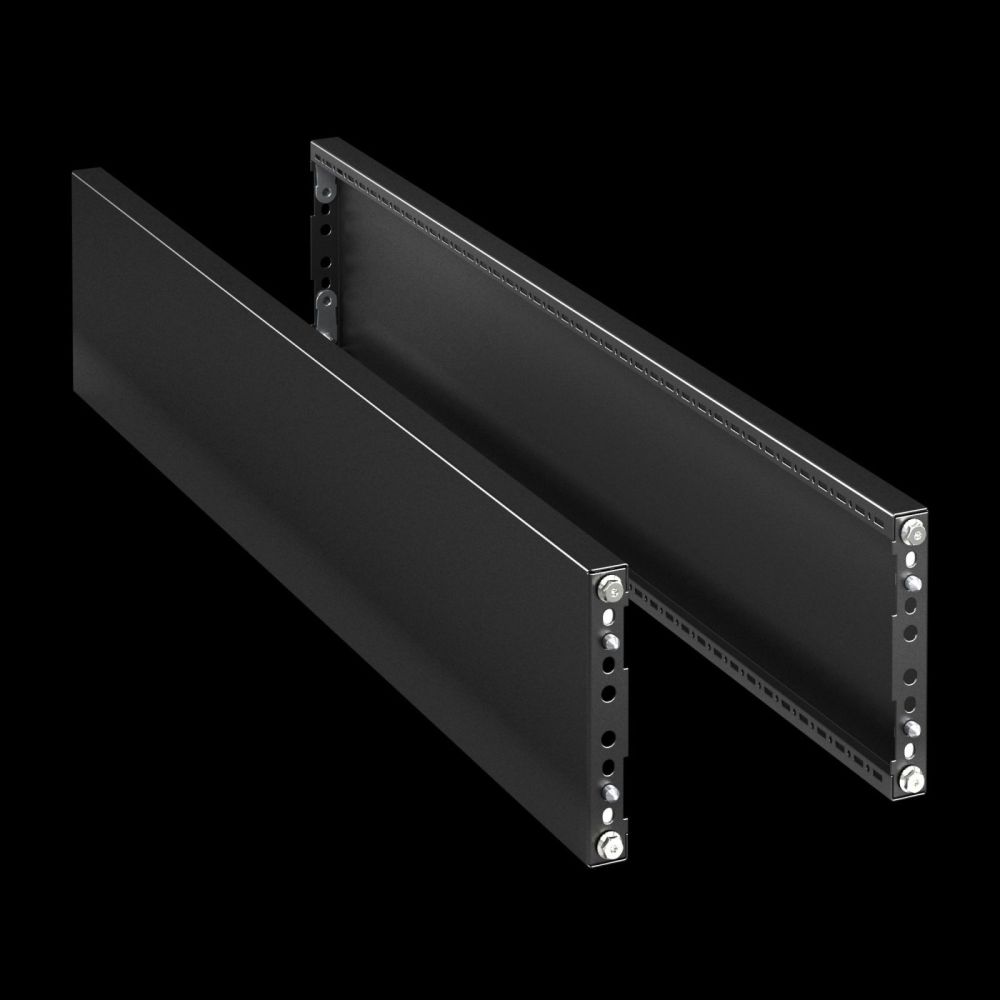

Rittal 8660046 VX plinth trim panels, side, H: 200 mm, for D: 1200
|
94,65 EUR |
|
|
( 112,63 EUR incl. VAT ) ≈ £79.22 | ≈ $104.02 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103912 |
| Mfg Part No: | 8660046 |
| UPC/EAN: | 4028177978348 |
| Weight: | 7.124 kg |
| Type: | VX 8660046 |
Product information for Rittal 8660046:
Applications
The plinth trim panel is used in switchgear and system solutions, particularly with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is part of the VX plinth system and serves for visual demarcation, improving structural stability when multiple plinths are arranged side by side, and supporting internal installation. The panel is designed for use in industrial environments where a robust and durable covering is required.
Functions and Equipment in Detail
The panel is mounted for side finishing of plinths and can be used either as a single 200 mm high panel or as two 100 mm high panels on 200 mm high plinths, depending on requirements. Installation is done using the fastening material included in the delivery scope. The use of fastening material enables secure and durable fixation to the plinth frame. The closed design ensures a clean optical finish and prevents dust or foreign objects from entering the plinth structure.
Technology Explained Simply
The panel is made of steel sheet, ensuring high mechanical strength and durability. The color RAL 9005 (black) is standard in industry and visually integrates into existing switchgear systems. The height of 200 mm corresponds to the standard height of many plinth constructions, ensuring precise fit. The use of steel sheet provides high resistance to mechanical stress and environmental influences. The closed design offers complete coverage of the side panel, which is particularly beneficial for bayed plinths to prevent air flow and enhance structural integrity.
Compatibility and Accessories
The plinth trim panel is compatible with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the plinth depth is 1,200 mm. Suitable accessories include plinth baying brackets, VX plinth expansion angles (for panel heights 100 mm or 100/200 mm), optional panel fastening components, as well as VX system chassis (23 x 64 mm, depth 1200 mm) and cable strain relief rail with angle profile (width 1200 mm). These components support integration of the panel into comprehensive system solutions and allow individual adaptation to specific requirements.
Installation and Mounting
Installation is carried out on the side surfaces of the plinth, where the panel is fastened using the fastening material included in the delivery scope. The panel is designed to fit easily and securely to the plinth structure. Installation is straightforward for professionals in the electrical and IT sectors and does not require special skills.
Operational Advantages
The plinth trim panel provides a clean, closed finish to the plinth sides, improving visual appearance while simultaneously increasing mechanical stability. The use of steel sheet ensures high durability and resistance to mechanical stress. Compatibility with various enclosure types and the option to use the panel in combination with additional accessories increases flexibility in system design. The fastening materials included in the delivery scope simplify installation and ensure secure anchoring.
The panel complies with Type ratings according to UL 50E, namely Type 1 and Type 12, which define a protection class for indoor use and against splashing water from above and sides. This certification makes it suitable for use in industrial and technical installations where a specific protection class is required. The packaging unit contains 2 pieces, with a net weight of 7.12 kg per packaging unit. Product identification is done via manufacturer number 8660046 and EAN 4028177978348. The PCF values (Cradle-to-Gate) amount to 21.83 kg CO2 eq per packaging unit (Category B, approximately calculated and self-declared).
| General | |
| Material | steel sheet |
| Colour | RAL 9005 |
| Scope of delivery | Including mounting hardware |
| Height | 200 mm |
| Suitable for | Cabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, depth: = 1,200 mm |
| Type rating according to UL 50E | Type 1, Type 12 |
| Weight/PU | 7,12 kg |
| PCF/VE (Cradle-to-Gate) | 21.83 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8660046 VX plinth trim panels, side, H: 200 mm, for D: 1200?
The article Rittal 8660046 VX plinth trim panels, side, H: 200 mm, for D: 1200 is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660046 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660046 VX plinth trim panels, side, H: 200 mm, for D: 1200 always at the best possible price. We can give you a discount of 2% on Rittal 8660046 VX plinth trim panels, side, H: 200 mm, for D: 1200 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
