Rittal 1182097 VX IT Open, 48,3 cm ( 19 inch ) profile rails, 800x2000x1200 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 1182097 VX IT Open, 48,3 cm ( 19 inch ) profile rails, 800x2000x1200 mm (freight shipping)
( 4.6 / 5 ) 7 ratings
Rittal 1182097
This image may differ from the desired article.
Rittal 1182097Rittal 1182097Rittal 1182097Rittal 1182097Rittal 1182097Rittal 1182097
863,88 EUR
( 1.028,02 EUR incl. VAT )
≈ £723.07  |  ≈ $949.40
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 1182097 VX IT Open, 48,3 cm ( 19 inch ) profile rails, 800x2000x1200 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1062794
Mfg Part No: 1182097
UPC/EAN: 4028177973299
Weight:76 kg
Type:VX IT 1182097

Product information for Rittal 1182097:

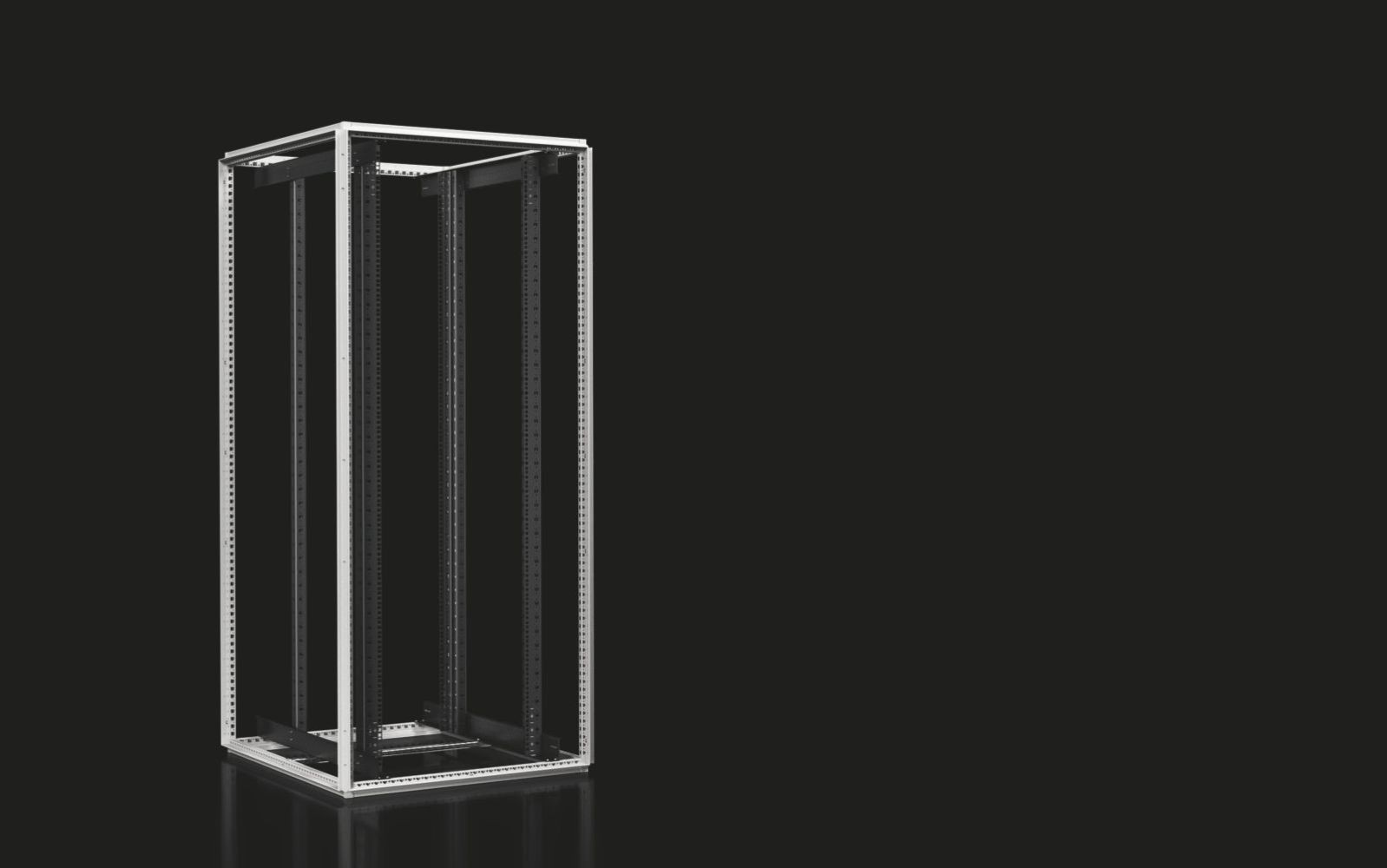

The Rittal VX IT 1182097 is an open 48,3 cm ( 19 inch ) enclosure frame in the format 800 mm width, 2,000 mm height and 1,200 mm depth, executed as VX IT Open. It serves as a basic frame for IT and electronics installations in secured environments or as a base for individual configurations in the Rittal RiPanel system. The frame is factory-equipped without front and rear doors as well as without side panels, thus offering the possibility to complete it according to customer requirements with suitable doors, side panels and additional accessories. The execution includes a roof plate and is designed for ventilation, with the floor remaining open and intended for individual floor modules.

Applications
This enclosure frame is suitable for use in IT infrastructures, server and network installations, as well as in electronics environments where an open, modular mounting is required. It can serve as a base for quick configurations, especially in combination with the Rittal RiPanel system, which enables flexible and space-saving mounting. The open design allows direct access to mounted devices and facilitates maintenance and installation.

Functions and Equipment in Detail
The frame features 42 height units (HE) with a spacing of 720 mm in the delivered state. The 48,3 cm ( 19 inch ) profile rails are screwed to the depth struts at the top and bottom, as well as to the support rail on the frame structure, ensuring stable fixation of devices. The mounting levels are accessible from inside and outside, supporting space-saving internal installation. The 48,3 cm ( 19 inch ) level is present at the front and rear, with mounting clearance of 150 mm at the front and 330 mm at the rear. The surface of the enclosure frame is dip-primed, and the internal structure is painted. The color scheme is RAL 7035 for the enclosure frame and roof, and RAL 9005 for the internal structure.

Technology Explained Simply
The frame is made of sheet steel and constructed to be torsionally rigid, with the frame structure consisting of closed, 9-fold bent hollow profiles. The profiles are symmetric on all sides and feature a hole pattern with a 25 mm grid, enabling flexible mounting. Integrated blind rivet nuts M6 allow secure, IP-rated fastening of fittings. The static load capacity is 15,000 N, while the maximum static load capacity according to UL 2416 per enclosure is 12,000 N. The open floor construction allows individual fitting with floor modules from the accessory program.

Compatibility and Accessories
The VX IT 1182097 is compatible with a wide range of accessories from the Rittal system kit. These include various component shelves in different heights and load capacities, plinth corner pieces with plinth trim panels, as well as various door and side panel variants. Available doors include aluminium viewing doors, sheet steel doors in solid and ventilated versions, as well as vertically divided doors. The side panels are screw-mounted and allow individual enclosure closure. The combination with these elements enables customized configurations according to requirements.

Mounting and Installation
Mounting is done via the integrated mounting levels and the 48,3 cm ( 19 inch ) profile rails. The provided spacers with a height of 50 mm are used to raise a deck plate above the fan opening in the roof plate, enabling passive ventilation. These are not required for variants without a fan opening. The delivery includes 12 x 48,3 cm ( 19 inch ) fasteners 1 HE, conductive, as well as 25 conductive internal hexagon screws. The frame is delivered on an IPPC pallet and is bayable on all sides.

Operational Advantages
The open design enables quick and flexible installation as well as easy maintenance. The modular construction with integrated mounting levels and the possibility of individual completion with doors, side panels and floor modules offers high adaptability. The high static load capacity and torsionally rigid construction ensure safe mounting even for heavy devices. The integrated cable entry in the roof plate facilitates cabling and ensures orderly cable routing.

Scope of Delivery
The product is delivered with the following components: enclosure frame, 48,3 cm ( 19 inch ) profile rails (482.6 mm), spacers (height 50 mm), 12 x 48,3 cm ( 19 inch ) fasteners 1 HE (conductive), 25 internal hexagon screws (conductive), IPPC pallet, roof plate (multi-part, with side cable entry in depth, on both sides, prepped for fan plate).

General
ModelEnclosure frame VX with roof sheet, without front and rear door, ventilated, without side walls
Surface protectionCabinet frame: dip primed, interior: painted
Basic colourRAL 7035
Colourhousing frame and roof: RAL 7035, interior: RAL 9005
Scope of deliverycabinet frame, profile rails, 482.6 mm (19"), spacers, height 50 mm, for raising a cover plate above the fan opening in the roof panel, for passive ventilation (included). Not required for variants without opening., 12 x 19"-fasteners 1 HE, conductive (included), 25 internal hexagon screws, conductive (included), IPPC pallet, roof panel, multi-part, with side cable entry in depth, both sides, prepared for fan panel
Width800 mm
Height2.000 mm
Depth1.200 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 330 mm
Layer spacing (as delivered)720 mm
19" mountingscrewed to depth rails top and bottom, and to mounting rail on frame structure
Roof typeMulti-part, with lateral cable entry in depth, on both sides, prepared for fan panel
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Load capacity15.000 N
Max. load capacity (static) according to UL 2416 per cabinet12.000 N
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1182097, EAN: 4028177973299
