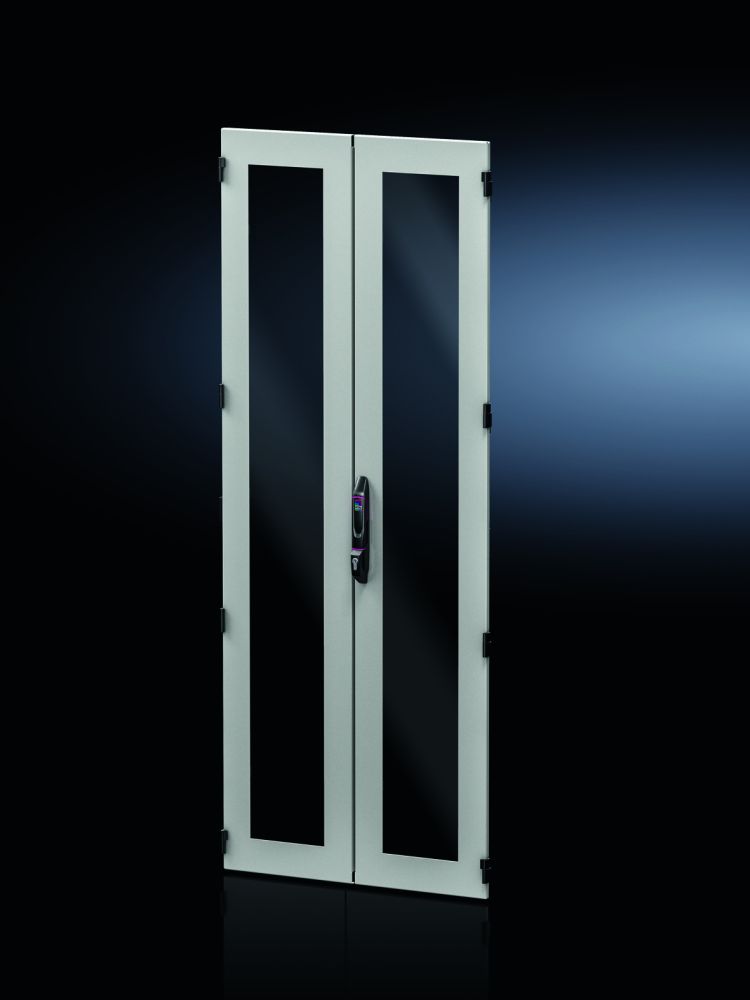

Rittal 5301437 steel sheet viewing door, vertically divided, VX IT
|
461,05 EUR |
|
|
( 548,65 EUR incl. VAT ) ≈ £385.90 | ≈ $506.69 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910592 |
| Mfg Part No: | 5301437 |
| UPC/EAN: | 4028177955035 |
| Weight: | 33.2 kg |
| Type: | DK 5301437 |
Product information for Rittal 5301437:
Applications
The door is designed for use in industrial environments, particularly in enclosures of the VX IT system. It is suitable for installations requiring high accessibility and simultaneous protection functions, such as in manufacturing automation, power supply, or process control. The vertical division is especially advantageous when baying multiple enclosures, as it reduces the required clearance between units and thus optimises space utilisation.
Functions and Equipment in Detail
The door features a rear-mounted viewing pane made of single-glazed safety glass with a thickness of 3 mm, enabling clear visibility of the enclosure's internal components without compromising the protective function. The fastening is achieved via a 4-point bar lock, ensuring secure and stable latching. The integrated VX comfort handle is designed for half cylinders with security lock 3524 E, enabling standardised and secure access control. The door is right-hand configured and supplied with four 180° hinges, with two hinges mounted per door half. The fastening materials are included in the delivery scope.
Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 protects the door against dust and splashing water, making it suitable for use in industrial environments with increased requirements for environmental resistance. The powder-coated surface ensures high resistance against corrosion and mechanical stress, thereby extending the door's service life.
Compatibility and Accessories
The door is specifically designed for enclosures of type VX IT with a width of 800 mm and a height of 2,000 mm. As compatible accessories, the enclosure key 3524E (2 pieces) is offered, which is required for using the integrated security lock. Compatibility with the VX IT system ensures seamless integration into existing enclosure installations.
Installation and Mounting
Installation is carried out using the fastening materials included in the delivery scope. The door is vertically divided, allowing mounting on the respective enclosure sides. The hinges are already designed for a 180° opening; however, for baying, a special baying hinge is required to enable a full 180° opening. Installation does not require special tools, but adherence to the mounting instructions is necessary to ensure proper function and safety.
Operational Advantages
The vertical division of the door enables optimised space utilisation when baying enclosures, thereby reducing the required clearance between units. The safety glass viewing pane provides clear visibility of the internal components without compromising the protective function. The 4-point bar lock technology ensures secure latching, and the integrated VX comfort handle enables ergonomic and safe access. The IP 55 protection rating protects the door against dust and splashing water, increasing reliability in industrial environments.
| General | |
| Material | Frame: sheet steel, viewing window: single-pane safety glass, 3 mm |
| Surface protection | Powder-coated |
| Colour | Frame: RAL 7035, comfort handle VX, hinges: RAL 9005 |
| Scope of delivery | Door, vertically split, with comfort handle VX for profile cylinder with security locking 3524 E, right-hand, 4 hinges 180°, each door half mounted, including mounting material |
| Mounting note | For a door opening angle of 180° when installed in a row, a 180° row hinge is required |
| Note | Door opening angle for single installation max. 240°, door opening angle for row installation max. 160° |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| Suitable for | Housing type: VX IT, width: = 800 mm, height: = 2000 mm |
| PCF/VE (Cradle-to-Gate) | 126.5 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
