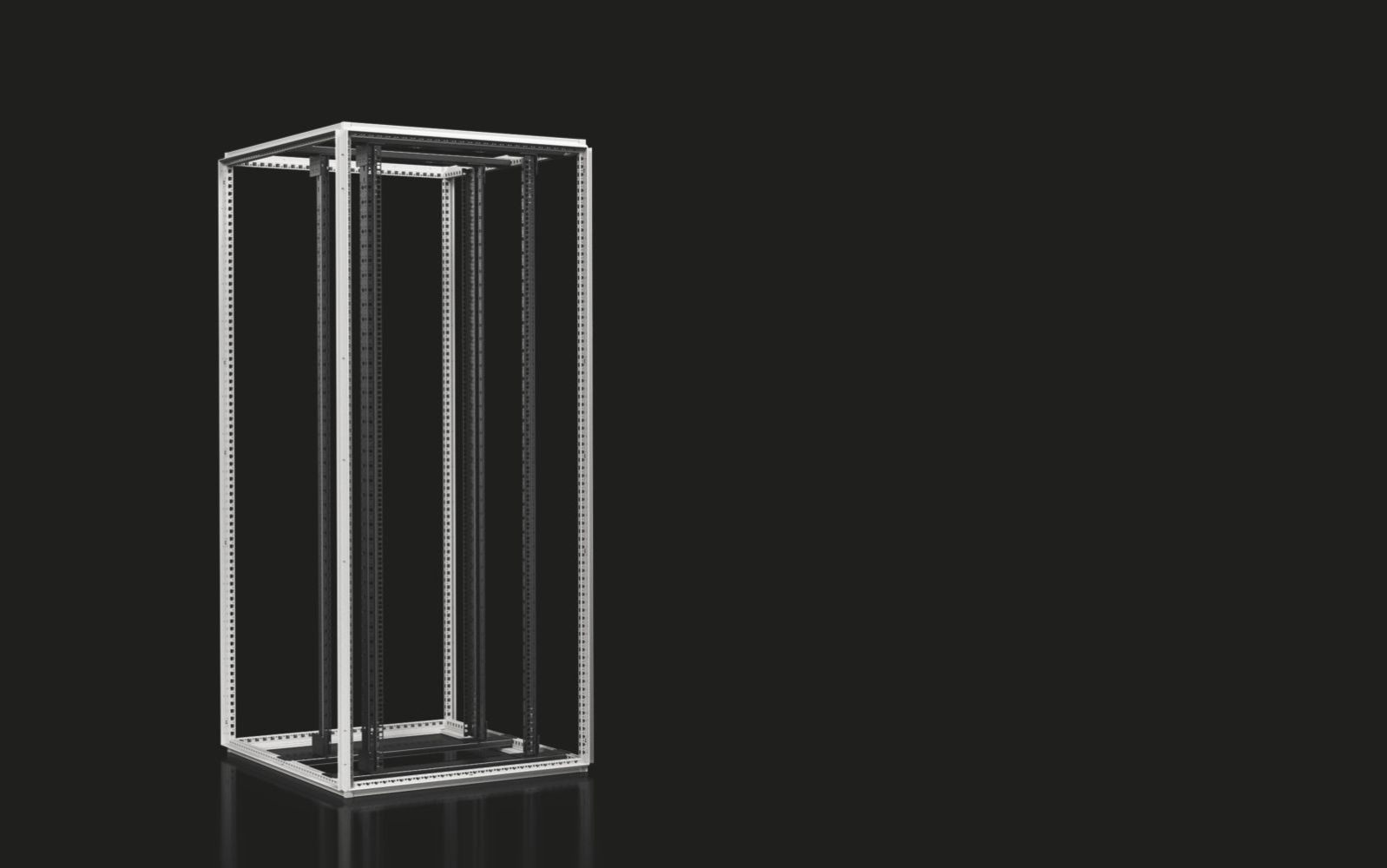

Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U

Your rating:
Average rating
product review for Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U
( 5 / 5 ) 1 ratings
Rittal 1182096
This image may differ from the desired article.
Rittal 1182096Rittal 1182096Rittal 1182096Rittal 1182096Rittal 1182096Rittal 1182096
764,49 EUR
( 909,74 EUR incl. VAT )
≈ £639.88  |  ≈ $840.17
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1103926
Mfg Part No: 1182096
UPC/EAN: 4028177973305
Weight:66.4 kg
Type:VX 1182096

Product information for Rittal 1182096:

The article VX 1182096 from Rittal is a 48,3 cm ( 19 inch )-enclosure frame of the VX IT Open series, designed as an open frame for use in secured environments or as a basis for individual configurations in the Rittal RiPanel system. The unit features a height of 2,000 mm, a width of 800 mm, and a depth of 800 mm, with height units (HE) amounting to 42. The 48,3 cm ( 19 inch )-profile rails are screwed to the cross-braces at the top and bottom, enabling stable mounting of IT and electronics equipment. The frame is supplied without front and rear doors, as well as without side panels, making it flexible for customer-specific additions with doors, side panels, or other accessories.

Applications
This enclosure frame is suitable for use in IT infrastructures, server rooms, or electronics environments where an open, modular structure is required. It can serve as a base for quick configurations, especially when supplemented with doors, side panels, or base modules from the Rittal accessory range. The open design allows for direct mounting of equipment and flexible cable routing, with lateral cable entry in the roof plate supporting structured cabling.

Functions and Equipment in Detail
The unit is supplied with profile rails in the standard configuration for VX IT, featuring a mounting width of 482.6 mm (48,3 cm ( 19 inch )). The 48,3 cm ( 19 inch ) mounting is secured by screws to the cross-braces at the top and bottom, ensuring a secure and load-bearing installation. The mounting clearance is 150 mm in front and 130 mm at the rear relative to the 48,3 cm ( 19 inch ) plane, providing sufficient space for cables and cabling technology. The roof plate is multi-part and equipped with lateral cable entry at the depth, on both sides, and is pre-fitted for a fan plate. The load capacity is 8,000 N static, matching the maximum load according to UL 2416.

Technology Explained Simply
The enclosure frame is made of sheet steel and is dip-primed in the frame area, while the interior construction is painted. The surface of the enclosure frame and roof is in RAL 7035, and the interior construction is in RAL 9005. The spacing between levels in the delivered state is 520 mm, enabling standard mounting. The base concept is open, allowing the enclosure to be mounted directly on the floor or equipped with individual base modules. The 48,3 cm ( 19 inch ) levels are present at the front and rear, enabling symmetrical mounting of equipment.

Compatibility and Accessories
The enclosure frame is compatible with various accessories from the Rittal system kit. These include, for example, aluminum viewing doors, sheet steel doors (single-piece closed or ventilated), vertically divided viewing or sheet steel doors, and side panels. Additionally, plinth corner pieces with plinth trim panels, component shelves in various heights (0.5 HE to 1.5 HE), and lateral plinth trim panels are available to customize the frame individually.

Mounting and Installation
Mounting is done via the integrated blind rivet nuts M6 on the frame, enabling protection-rated fastening of fittings. The square hole pattern all around allows the use of cage nuts and metric screws up to M8. The base frame is welded and features integrated reinforcements, enabling direct screwing of the enclosure to the floor from the inside. The unit is baying-capable on all sides, allowing flexible placement in row configurations.

Advantages in Operation
The open enclosure frame offers high flexibility in configuration and mounting. The stable construction from sheet steel and the high load capacity of 8,000 N ensure safe operation. The pre-fitted cable entry in the roof plate supports structured cabling, and the modular expandability with doors, side panels, and base modules enables individual adaptation to specific requirements. The dip-primed surface provides a good corrosion protection base, while the painted interior construction offers a clean and professional appearance.

Scope of Delivery
The scope of delivery includes: the enclosure frame, profile rails (482.6 mm / 48,3 cm ( 19 inch )), spacers (height 50 mm), 12 x 48,3 cm ( 19 inch ) fasteners 1 HE (conductive), 25 internal hexagon screws (conductive), IPPC pallet, and the multi-part roof plate with lateral cable entry, on both sides, pre-fitted for fan plate.

General
ModelEnclosure frame VX with roof sheet, without front and rear door, ventilated, without side walls
Surface protectionCabinet frame: dip primed, interior: painted
Basic colourRAL 7035
Colourhousing frame and roof: RAL 7035, interior: RAL 9005
Scope of deliverycabinet frame, profile rails, 482.6 mm (19"), spacers, height 50 mm, for raising a cover plate above the fan opening in the roof panel, for passive ventilation (included). Not required for variants without opening., 12 x 19"-fasteners 1 HE, conductive (included), 25 internal hexagon screws, conductive (included), IPPC pallet, roof panel, multi-part, with side cable entry in depth, both sides, prepared for fan panel
Width800 mm
Height2.000 mm
Depth800 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 130 mm
Layer spacing (as delivered)520 mm
19" mountingScrewed to top and bottom crossbar
Roof typeMulti-part, with lateral cable entry in depth, on both sides, prepared for fan panel
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Load capacity8.000 N
Max. load capacity (static) according to UL 2416 per cabinet8.000 N
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1182096, EAN: 4028177973305

Questions & answers

What is the delivery time of Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U?

The article Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1182096 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 1182096 Server rack VX IT open 800x2000x800 mm 42 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
