Rittal 5301423 Aluminium viewing door for VX IT, 800x2000 mm, RAL 9005

Your rating:
Average rating
product review for Rittal 5301423 Aluminium viewing door for VX IT, 800x2000 mm, RAL 9005
( 4.5 / 5 ) 4 ratings
Rittal 5301423
This image may differ from the desired article.
Rittal 5301423Rittal 5301423Rittal 5301423Rittal 5301423
528,54 EUR
( 628,96 EUR incl. VAT )
≈ £442.39  |  ≈ $580.87
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 5301423 Aluminium viewing door for VX IT, 800x2000 mm, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1714676
Mfg Part No: 5301423
UPC/EAN: 4028177955028
Weight:17.2 kg
Type:VXIT 5301423

Product information for Rittal 5301423:

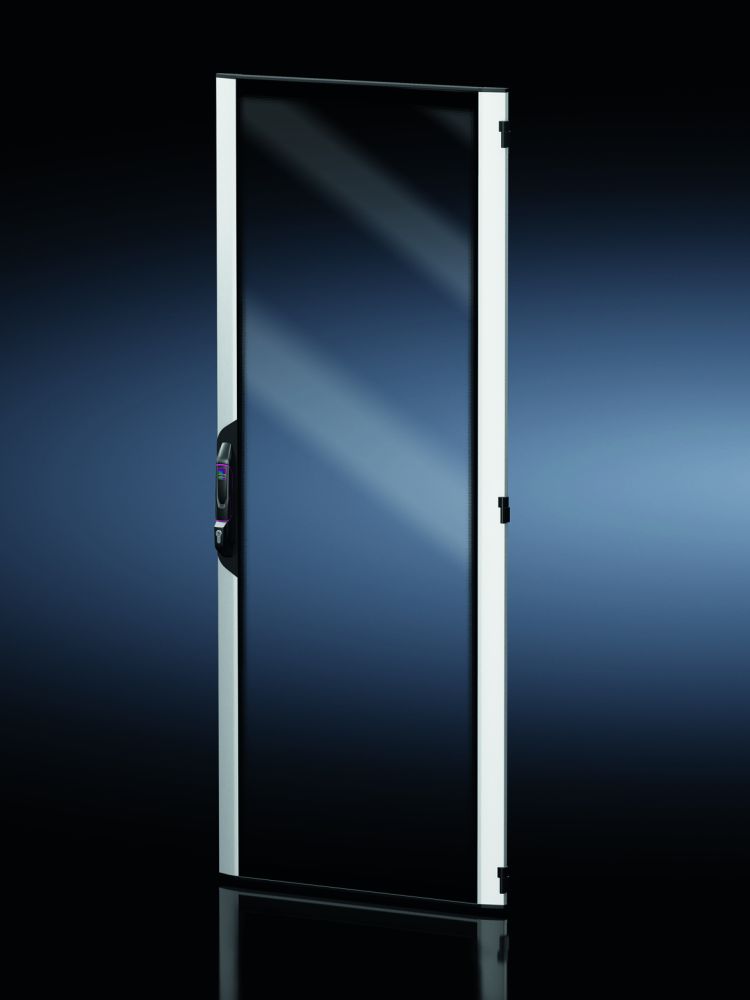

The Rittal aluminium viewing door VXIT 5301423 is a single-piece door for enclosures of type VX IT, designed for replacing existing doors. It is specifically designed for enclosures with a width of 800 mm and a height of 2,000 mm. The door consists of a frame made of aluminium extruded profile, with vertical profiles anodized and horizontal profiles painted in RAL 9005. The viewing panel is made of single-pane safety glass with a thickness of 3 mm, enabling clear visibility of the enclosure's interior without compromising mechanical stability. The comfort handle VX and hinges are also finished in RAL 9005, while the vertical profiles are silver-coloured.

Applications

The door is intended for use in industrial environments, particularly in installations requiring high mechanical strength and simultaneous visibility of the interior. It is suitable for enclosures in the VX IT system, widely used in electrical and automation technology. The design allows replacement of existing doors without changing enclosure dimensions, simplifying maintenance and modernization of existing installations.

Functions and Equipment in Detail

The door is equipped with a comfort handle VX, ensuring ergonomic operation. The safety lock 3524 E is designed for half cylinders and ensures secure access. The door is mounted with three 180° hinges, providing a secure and stable connection to the enclosure body. The door opening angle is up to 240° for single installation and up to 105° for baying. For a 180° opening angle in baying, a special 180° baying hinge is required.

Technology Explained Simply

The use of aluminium extruded profiles for the frame ensures high mechanical strength and low weight. The anodized and painted surface provides corrosion protection and a uniform visual appearance. The single-pane safety glass is certified to DIN EN 12150-1 and offers high impact resistance, ensuring safety under mechanical stress. The protection class IP 55 according to IEC 60 529 protects the door against dust and splashing water, making it suitable for outdoor use or humid environments.

Compatibility and Accessories

The door is specifically designed for enclosures of type VX IT with dimensions 800 mm width and 2,000 mm height. As compatible accessory, the enclosure key 3524E is offered in a quantity of two pieces, required for operating the safety lock. The door is not suitable for other enclosure types or dimensions.

Mounting and Installation

Mounting is carried out using the included fastening materials. The three 180° hinges are pre-installed, allowing the door to be directly attached to the enclosure. In baying, the maximum door opening of 105° must be observed; for a larger opening, a special baying hinge is required. The installation instructions are included in the delivery.

Operational Advantages

The door provides clear visibility of the enclosure's interior, facilitating maintenance and inspection. The high mechanical stability and protection against dust and splashing water ensure long service life and low maintenance costs. Compatibility with the VX IT system enables easy integration into existing installations. The integrated safety lock ensures controlled access, increasing operational safety. The door is designed for replacing existing doors, enabling modernization of installations without changing enclosure dimensions.

General
MaterialFrame: aluminium extruded profile, vertical profile: aluminium, anodised, horizontal profile: aluminium, painted, viewing panel: single-pane safety glass, 3 mm
ColourComfort handle VX, hinges, horizontal profile: RAL 9005, vertical profile: silver
Scope of deliverydoor with comfort handle VX for profile half-cylinder with security locking 3524 E, 3 hinges 180°, mounted, including mounting hardware
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 240°, door opening angle for row installation max. 105°
Degree of protection IP according to IEC 60 529IP 55
Suitable forHousing type: VX IT, width: = 800 mm, height: = 2000 mm
PCF/VE (Cradle-to-Gate)65.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301423, EAN: 4028177955028
